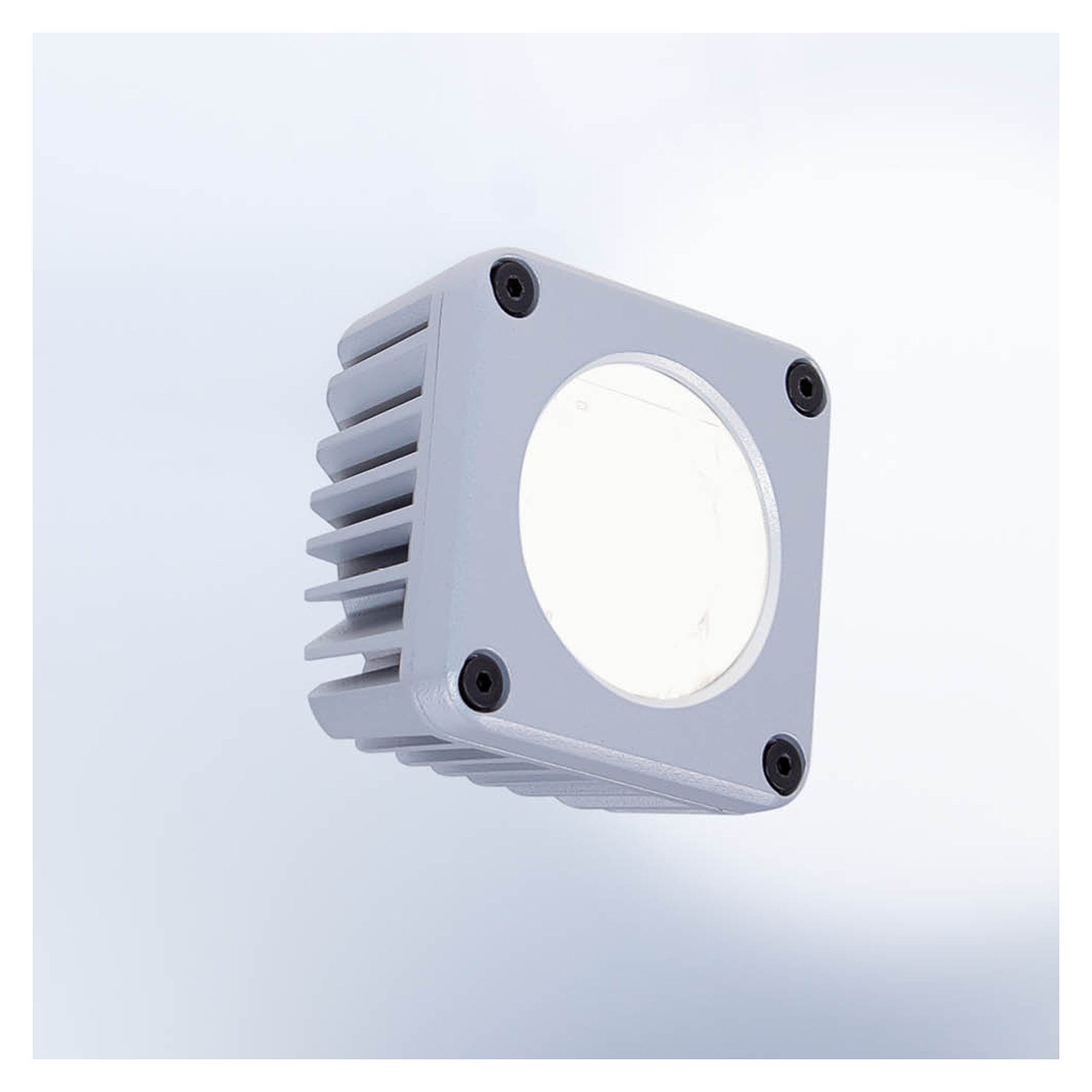

CENALED SPOT surface-mount machine light 8.5W 65° wide flood, IP67 - LED2WORK 121013-04

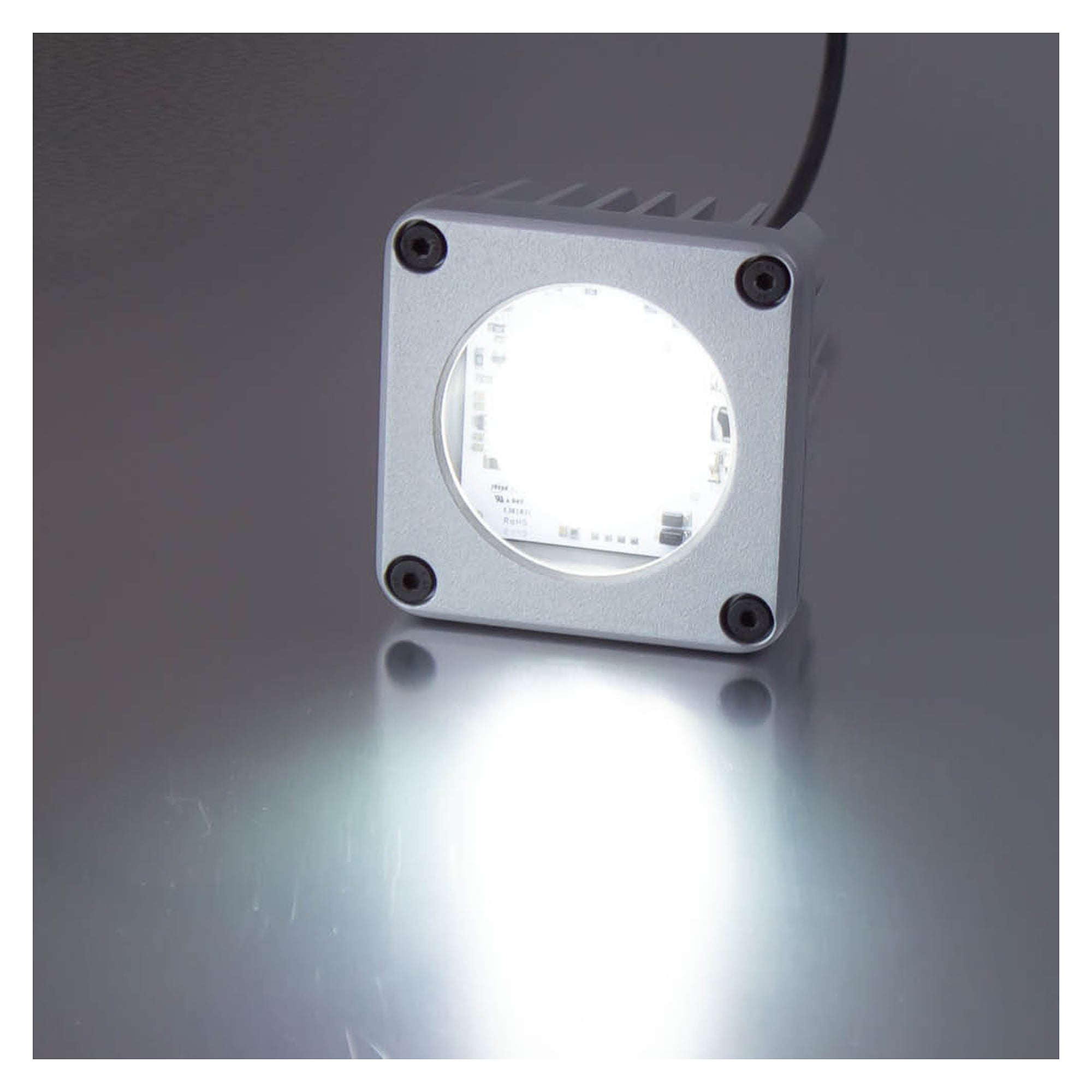

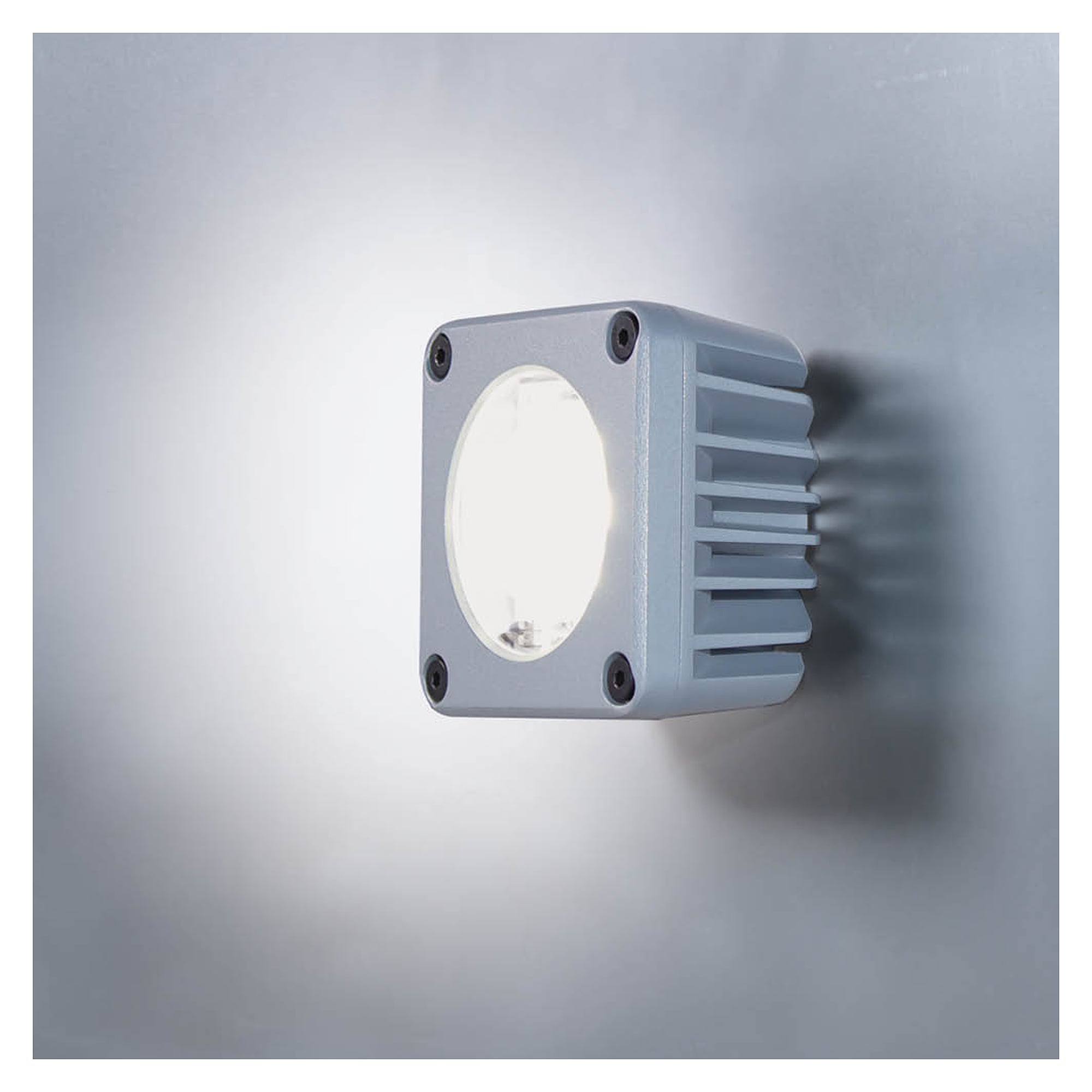

To light a large work area across its full width, the CENALED SPOT surface-mount uses a 65° optic to deliver wide light of 1120 lm from only 8.5 W. It suits both first fit and retrofit.

Your benefits

• 65° optic for full-area, wide illumination
• IP67 rating, dust-tight and protected against jetting water

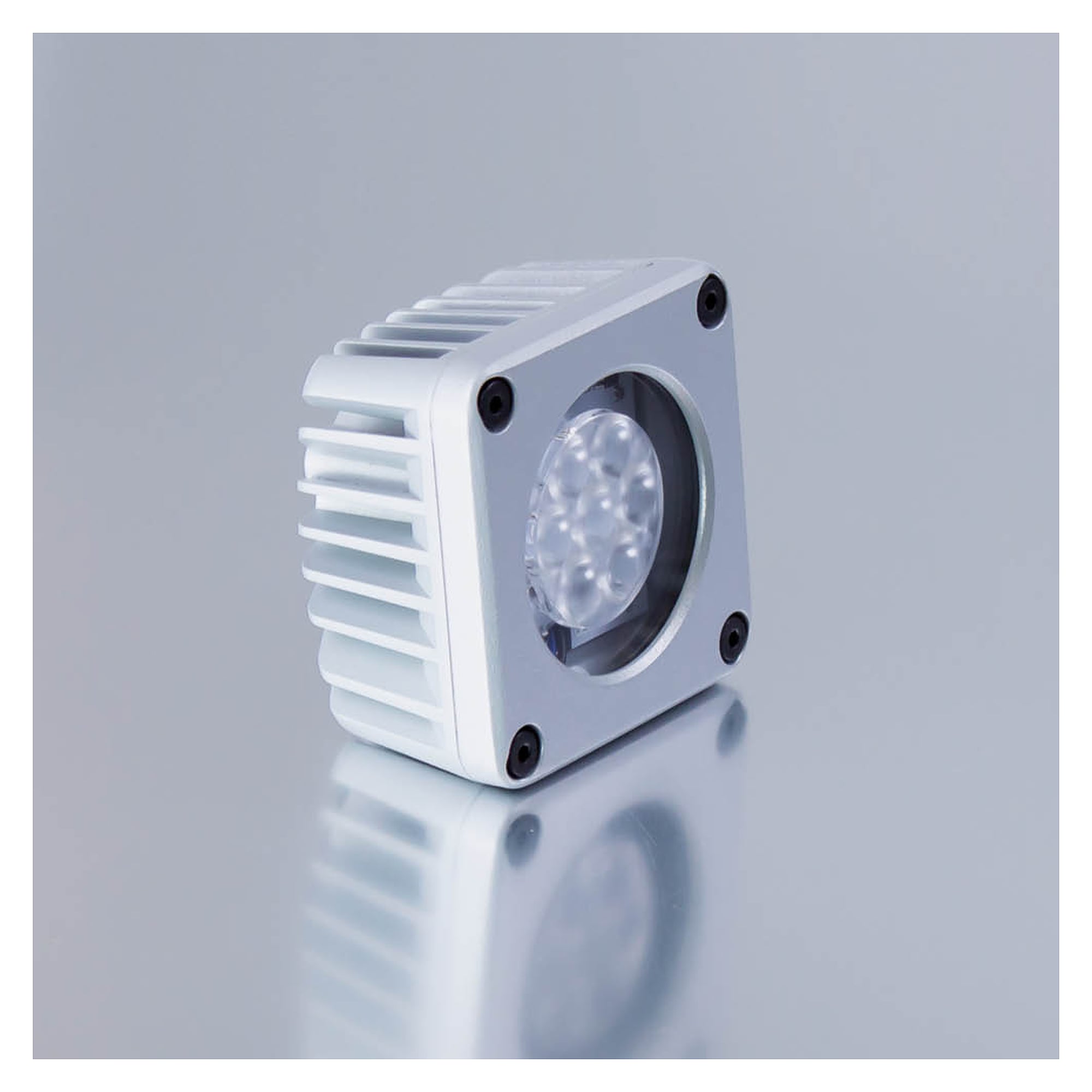

• Sturdy aluminium housing with 4 mm ESG safety glass
• High luminous efficacy of 134 lm/W
• Reverse-polarity-protected M12 A-coded connector
• Long service life of more than 100,000 h (L90/B10)

Technical data

• Model: CENALED SPOT surface-mounted
• Type: surface-mounted LED light
• Light source: High Power LED
• Power: ~8.5 W
• Luminous flux: 1120 lm
• Luminous efficacy: 134 lm/W
• Light colour: 5700K (3-step MacAdam)
• Colour rendering (Ra): >80
• Beam angle: 65°
• Supply voltage: 24V DC ± 10%

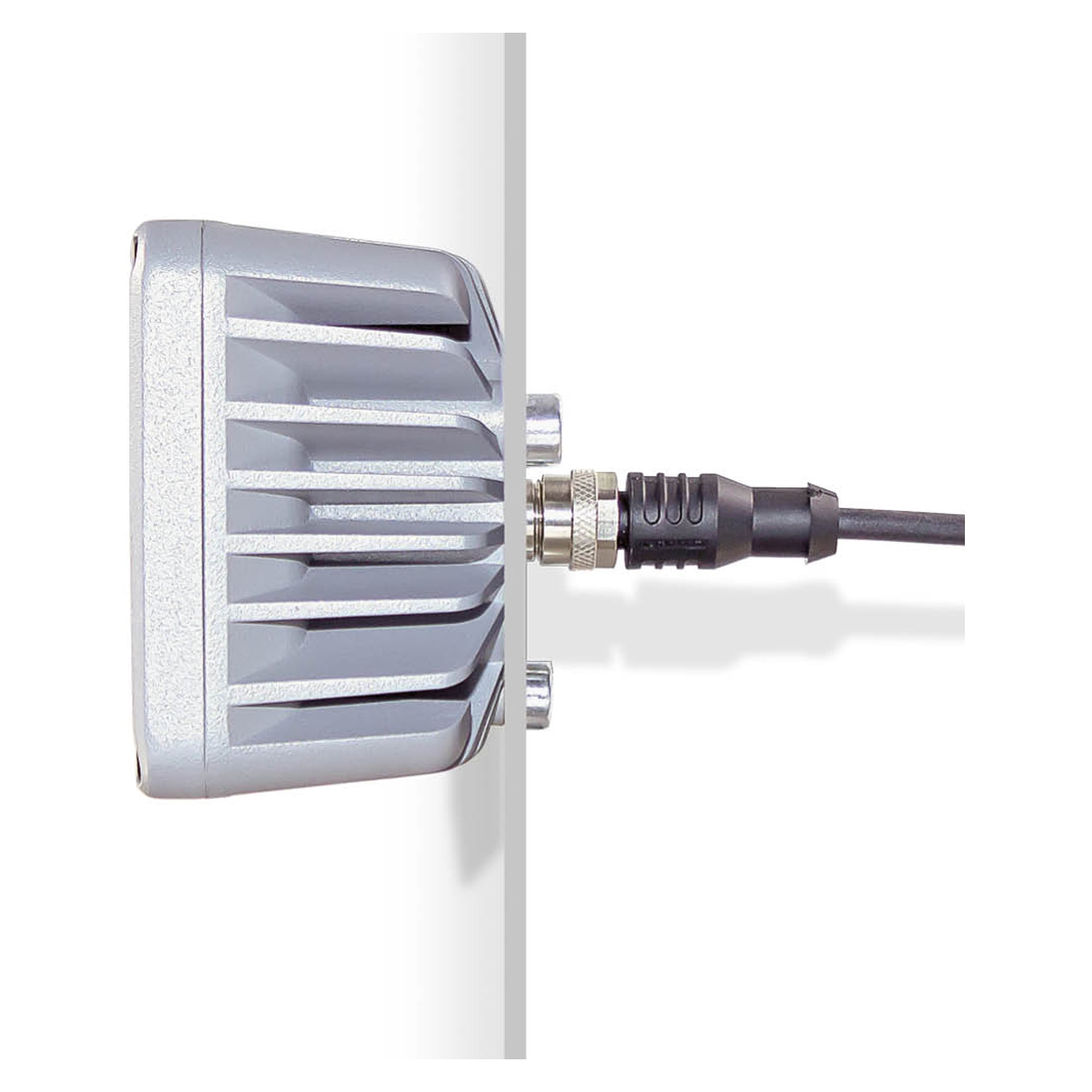

• Connection: M12 A-coded
• Protection rating (IP): IP67
• Protection class: III
• Operating temperature: -10 °C to +50 °C
• Service life: > 100,000 h (L90/B10)
• Housing: aluminium (powder-coated)
• Cover: ESG 4 mm, shatterproof

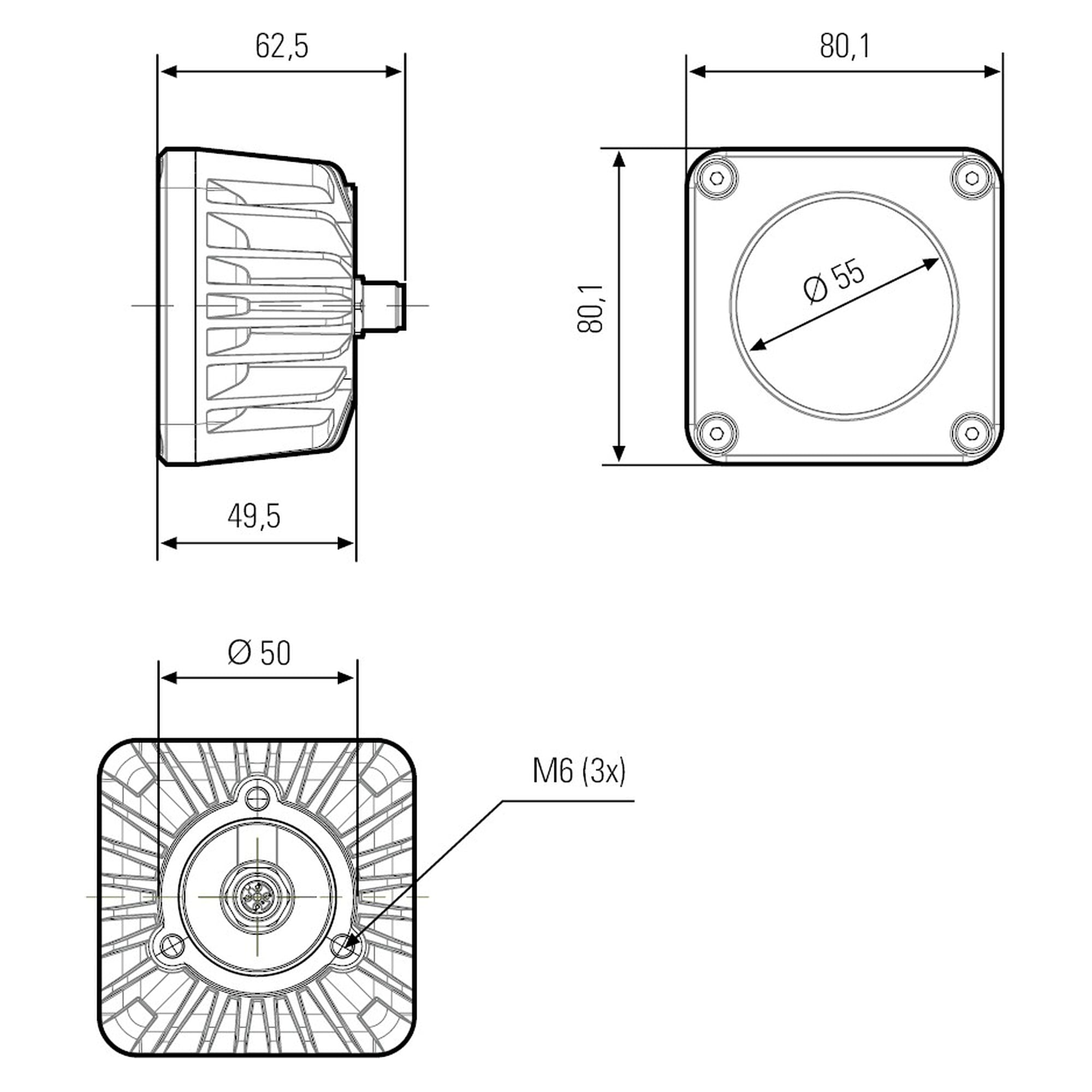

• Dimensions: ~80 x ~80 x ~62.5 mm
• Weight: 200 g
• Risk group (DIN EN 62471): exempt group
• Certifications: CE, UKCA, ETL Listed (5003529)
• Dimmable: optional via accessory
• Made in: Germany

Applications

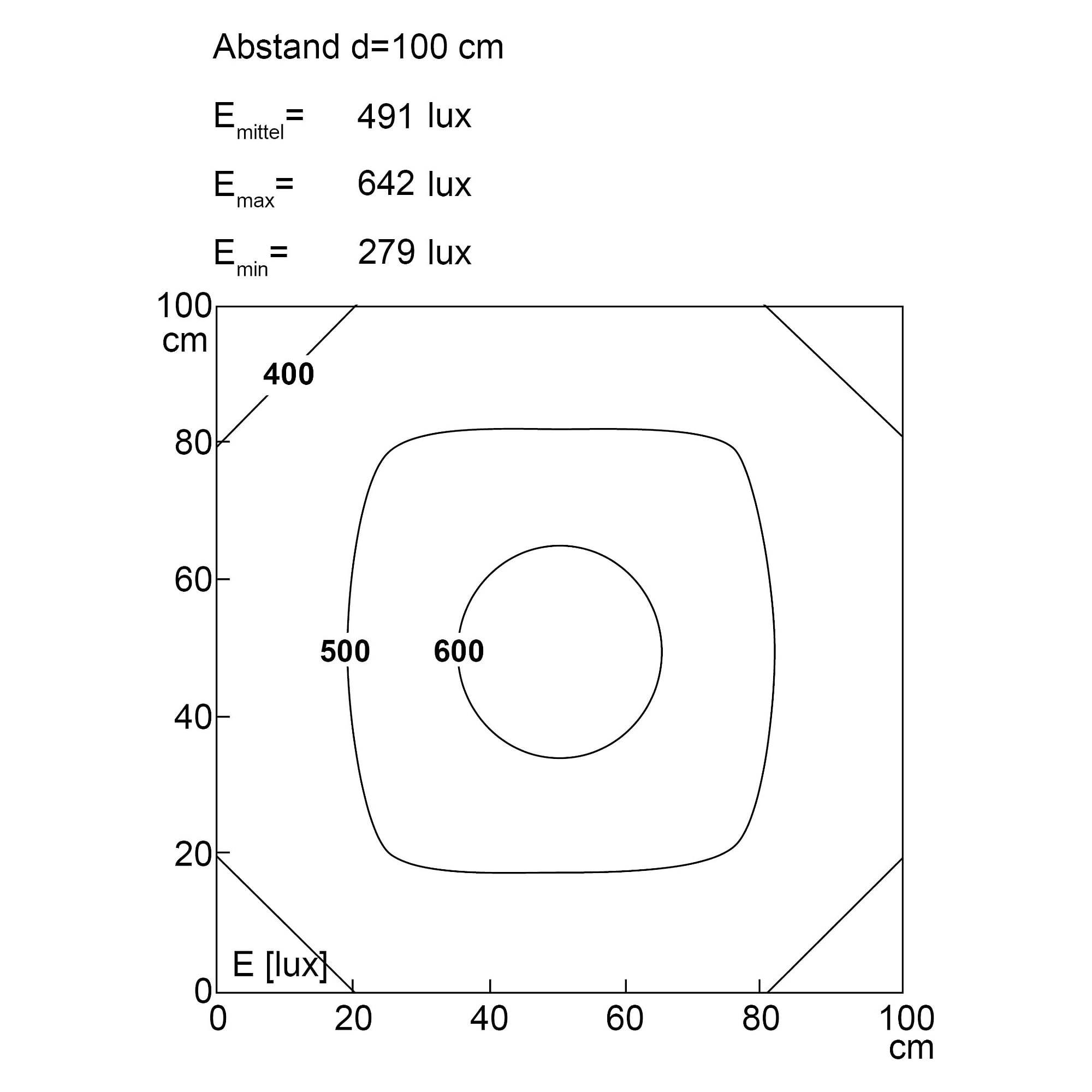

Full-area lighting inside the working area of drilling automats, CNC and milling machines when a large machining zone needs wide, even illumination.

Mounting and scope of delivery

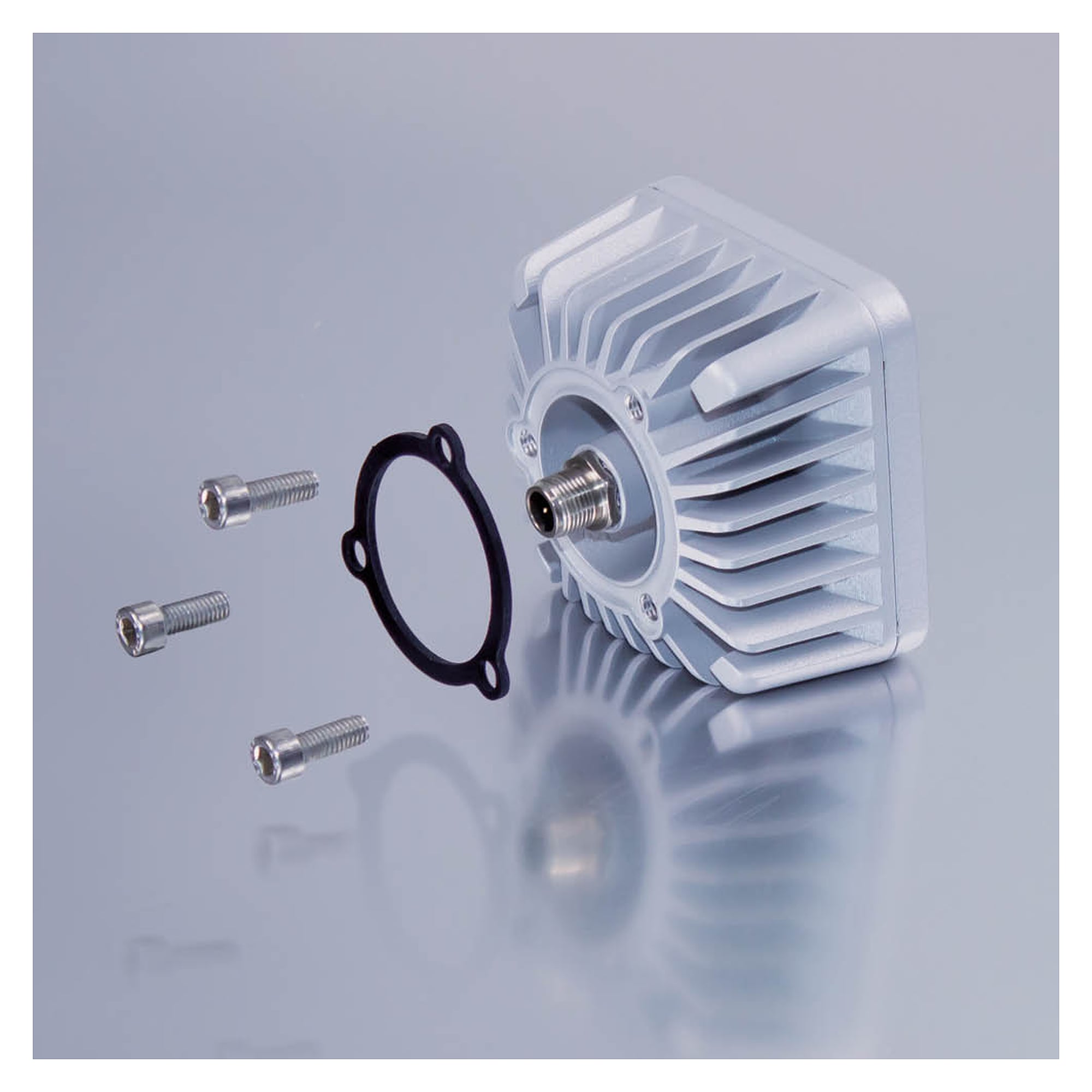

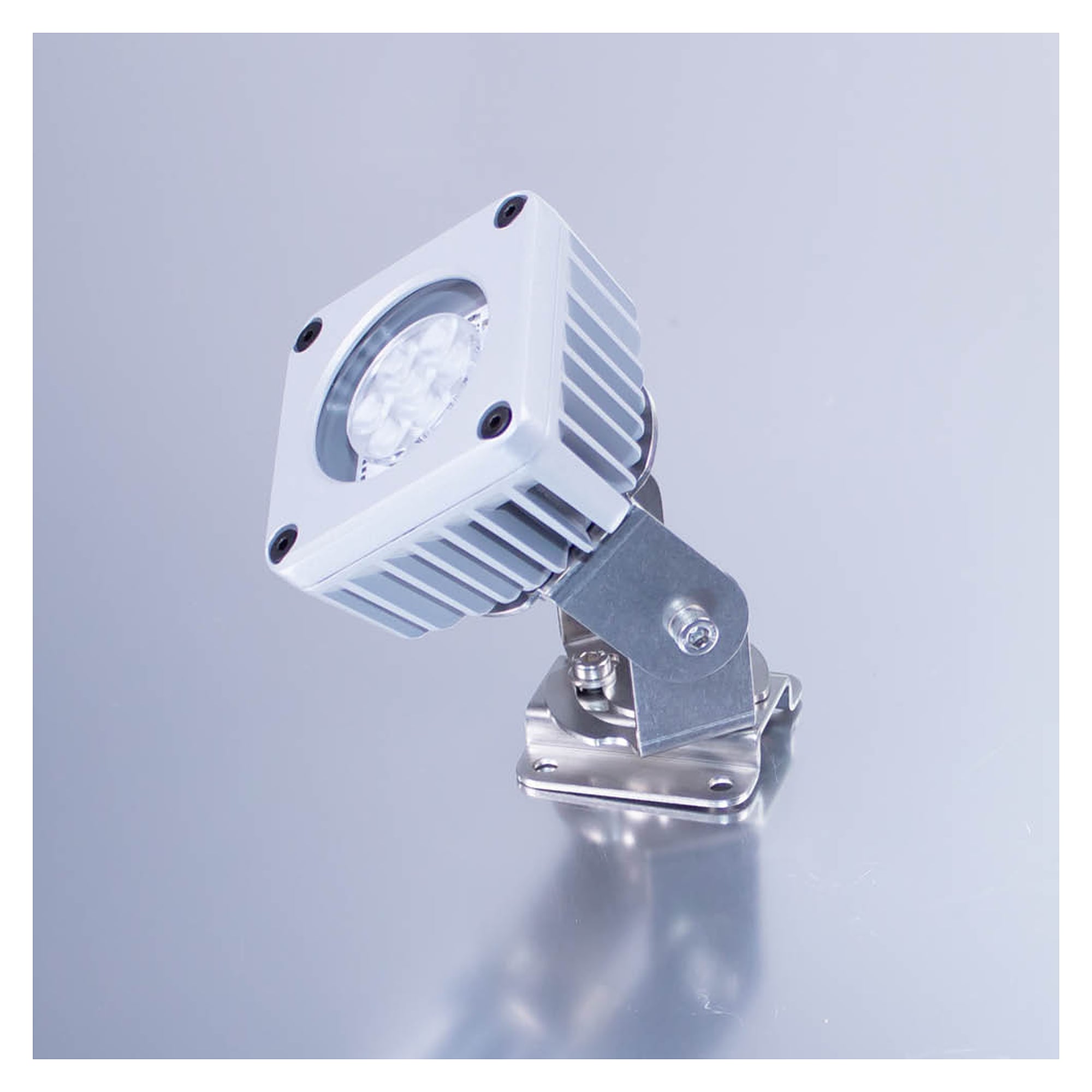

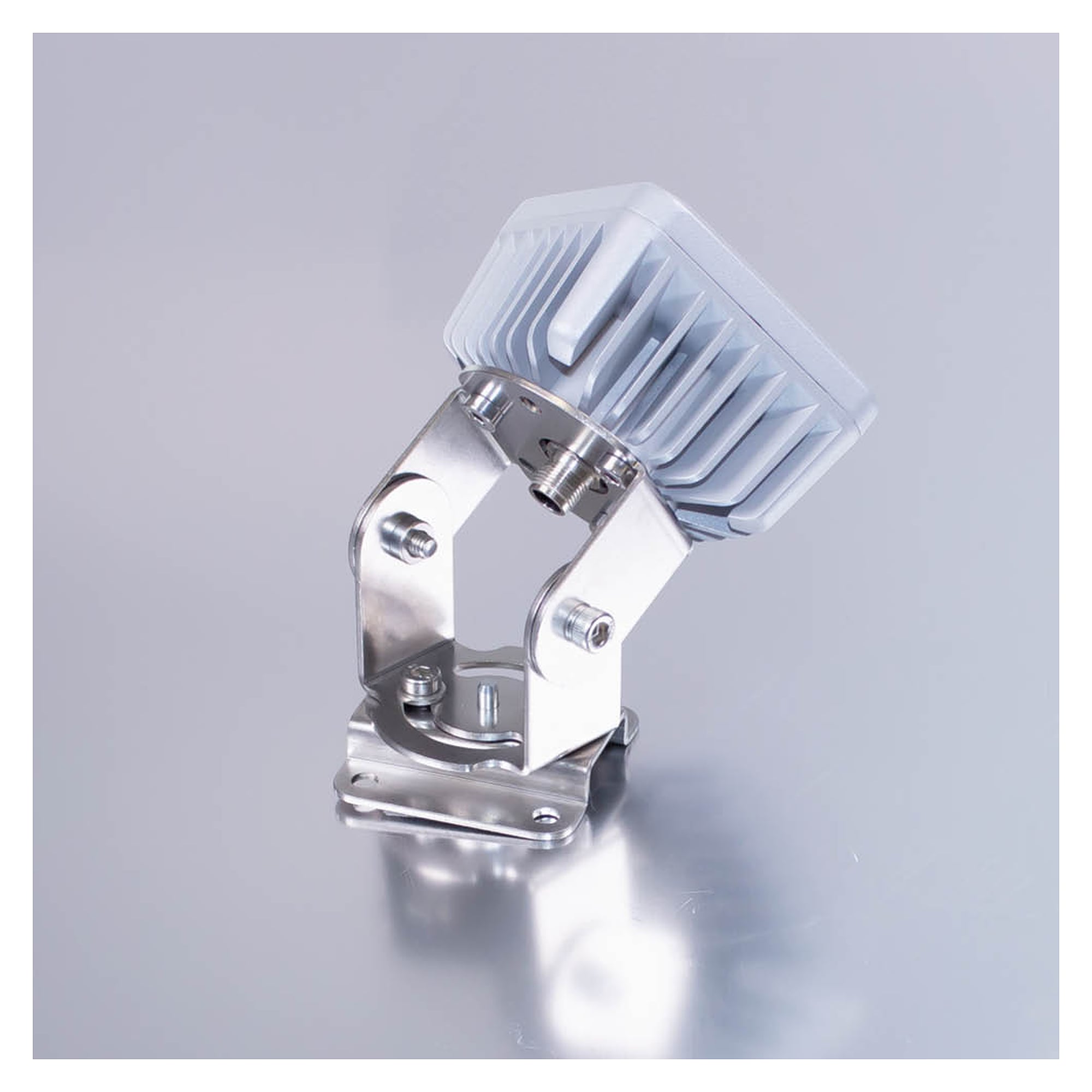

It is fixed from the rear via three M6 threaded holes arranged symmetrically on a 50 mm radius. The optional 214300-01 articulated bracket can be added as a movable holder. A seal is included. Made in Germany.
