CENALED LENS magnifier lamp flexible-arm 500mm 8.4W Ø116mm glass lens, IP54 - LED2WORK 121110-01

To see small details enlarged and well lit, the CENALED LENS flexible-arm offers an LED magnifier lamp with a biconvex glass lens (Ø 116 mm, 4 dpt, 2x magnification). A ring of 21 High Power LEDs lights the area under the lens with 1277 lm, and the 500 mm gooseneck holds the head securely once aimed.

Your benefits

• Biconvex glass lens Ø 116 mm with 4 dpt for 2x magnification
• Ring of 21 High Power LEDs for low-shadow illumination under the lens
• High luminous efficacy of 152 lm/W at 1277 lm
• Repositionable 500 mm gooseneck
• Switched and PWM-dimmed via a button on the head
• Lens cover included to protect the glass lens

Technical data

• Model: CENALED LENS
• Type: LED magnifier lamp with gooseneck
• Magnifier lens: biconvex Ø 116 mm, focal length 250 mm, 4 dpt
• Light source: LED ring, 21 High Power LEDs, PWM-dimmable
• Power: ~8.4 W
• Luminous flux: 1277 lm
• Luminous efficacy: 152 lm/W
• Light colour: 5700K (3-step MacAdam)
• Colour rendering (Ra): >85
• Beam angle: 120°
• Supply voltage: 24V DC ± 10%
• Connection: Ölflex cable with open cable ends
• Protection rating (IP): IP54
• Protection class: III
• Operating temperature: -10 °C to +50 °C
• Service life: > 100,000 h (L80/B10)
• Lens material: glass
• Housing: aluminium (powder-coated)
• Cover: Makrolon
• Base height: 59 mm
• Weight: 1750 g
• Risk group (DIN EN 62471): exempt group
• Certifications: CE, UKCA, ETL Listed (5003529)

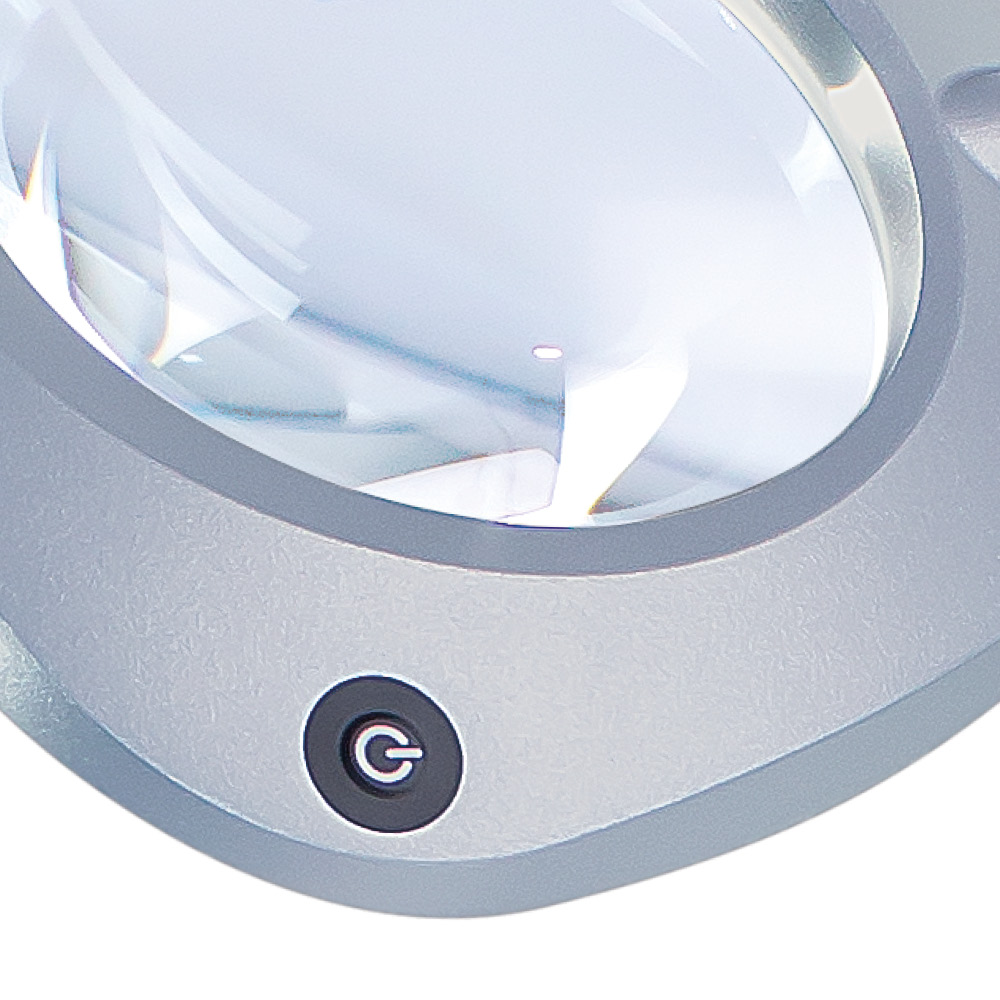

• Dimmable: yes, via head button (on/off and dimming)
• Made in: Germany

Applications

Visual and inspection work at benches, in assembly, repair and quality control. The high illuminance is enough to use the magnifier lamp as a simple workplace light as well.

Mounting and accessories

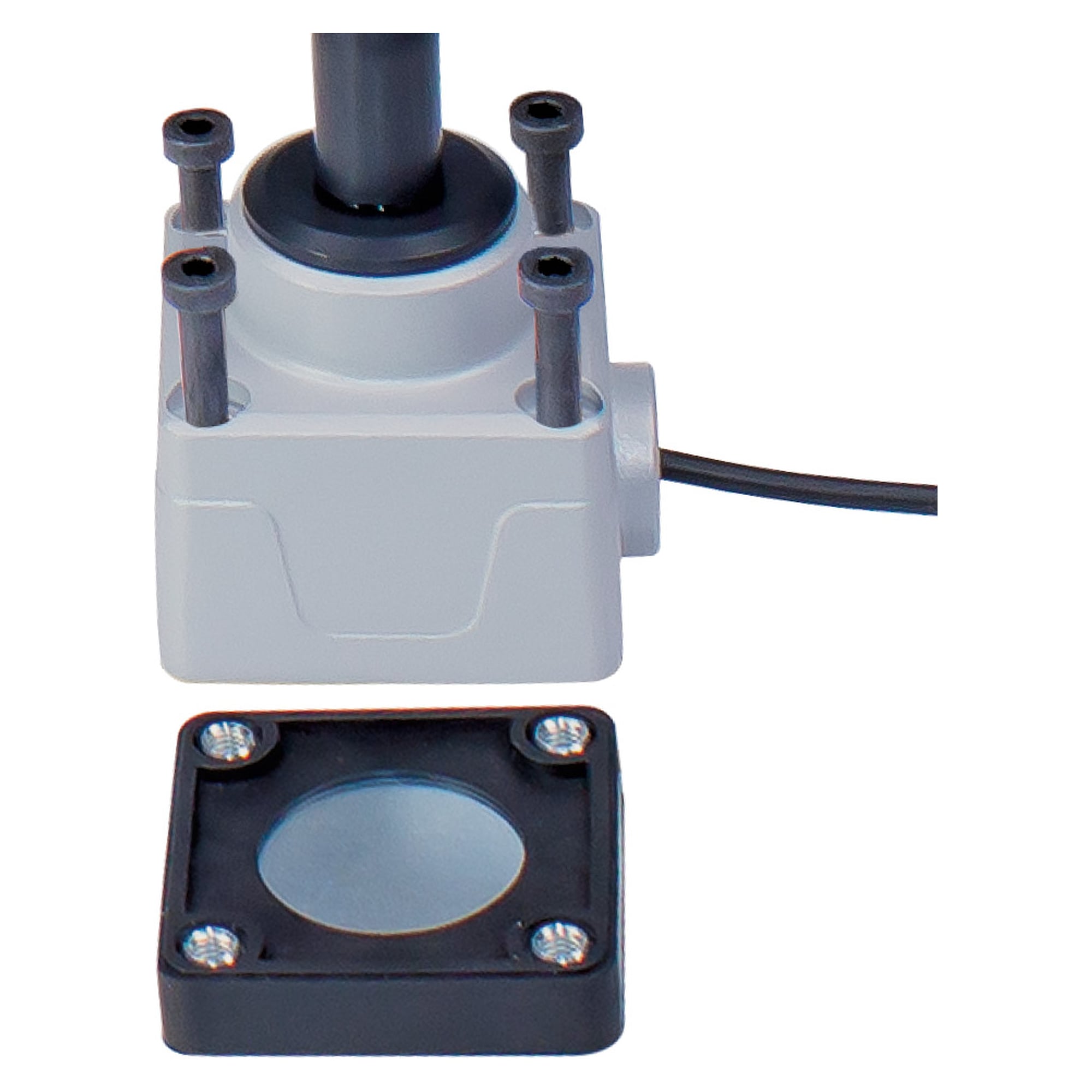

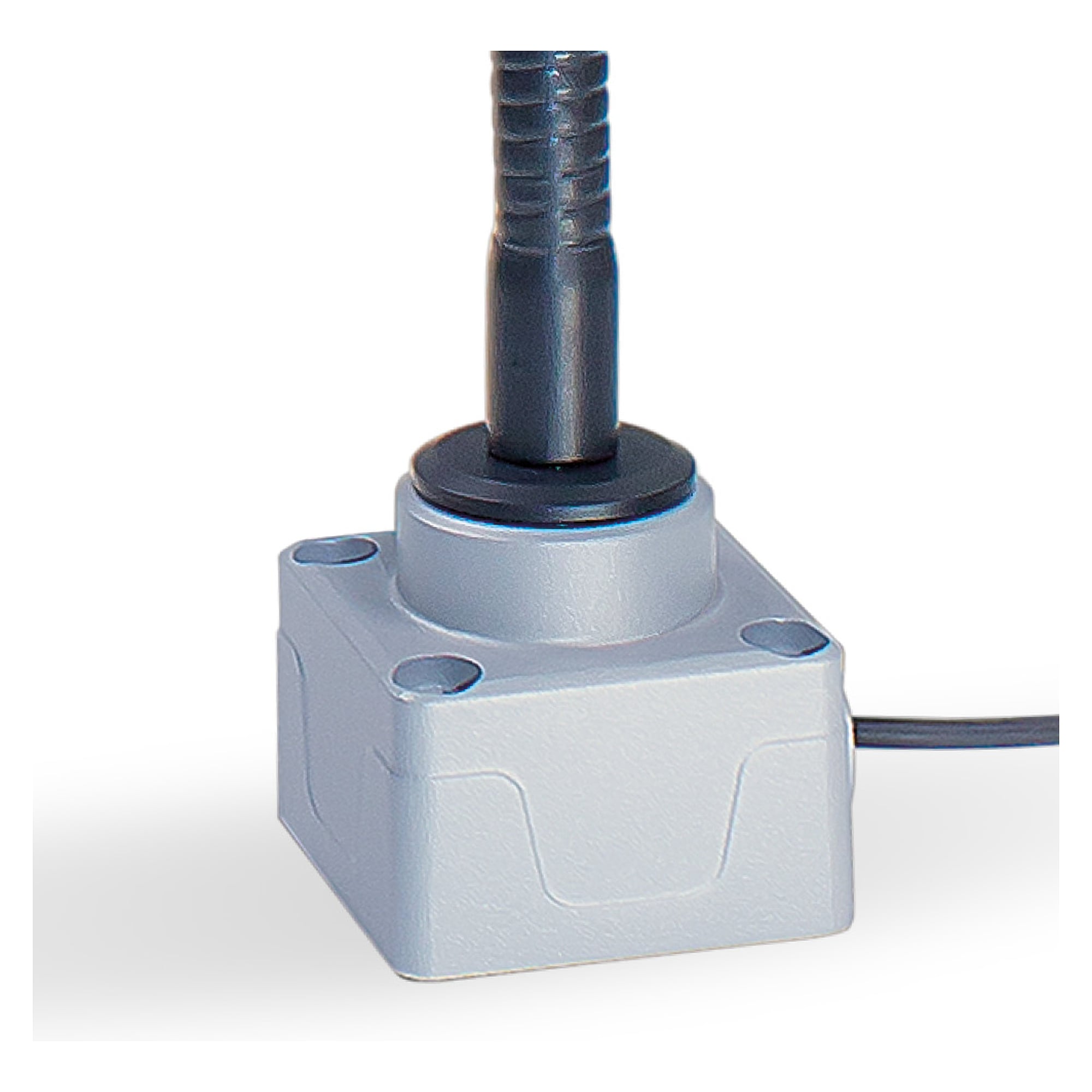

The lamp connects to 24V machine power via a 3 m cable. The screw-on base allows further mounting options such as a magnet, table clamp or wall bracket. A lens cover is included. Made in Germany.
