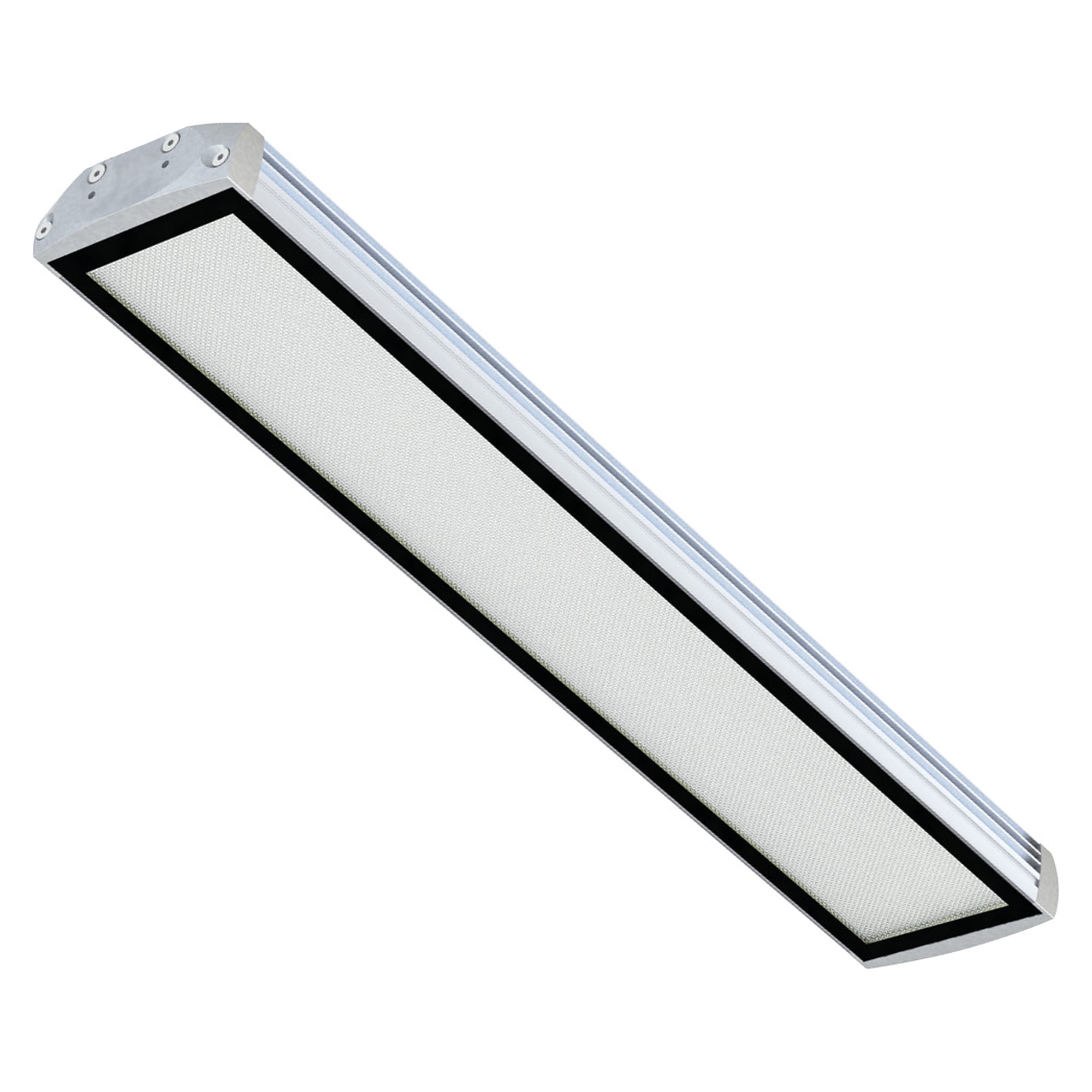

FIELDLED EVO surface-mount machine light 790x96 mm 58W IP69K rear-side - LED2WORK 153210-02

The FIELDLED EVO surface-mount machine light lights up the large interior work areas of machine tools and production equipment uniformly, without glare or flicker. With 9000 lumens at roughly 58 W it puts high-contrast light exactly where metal cutting demands maximum visual performance.

Key benefits

• 9000 lm luminous flux at only about 58 W, with 155 lm/W efficacy for low energy use.
• IP67/IP69K rating, safety glass and an aluminium housing withstand chips, coolant and high-pressure washdown.
• Micro-prism glare control plus 5700 K at Ra >85 deliver fatigue-free, high-contrast working light.

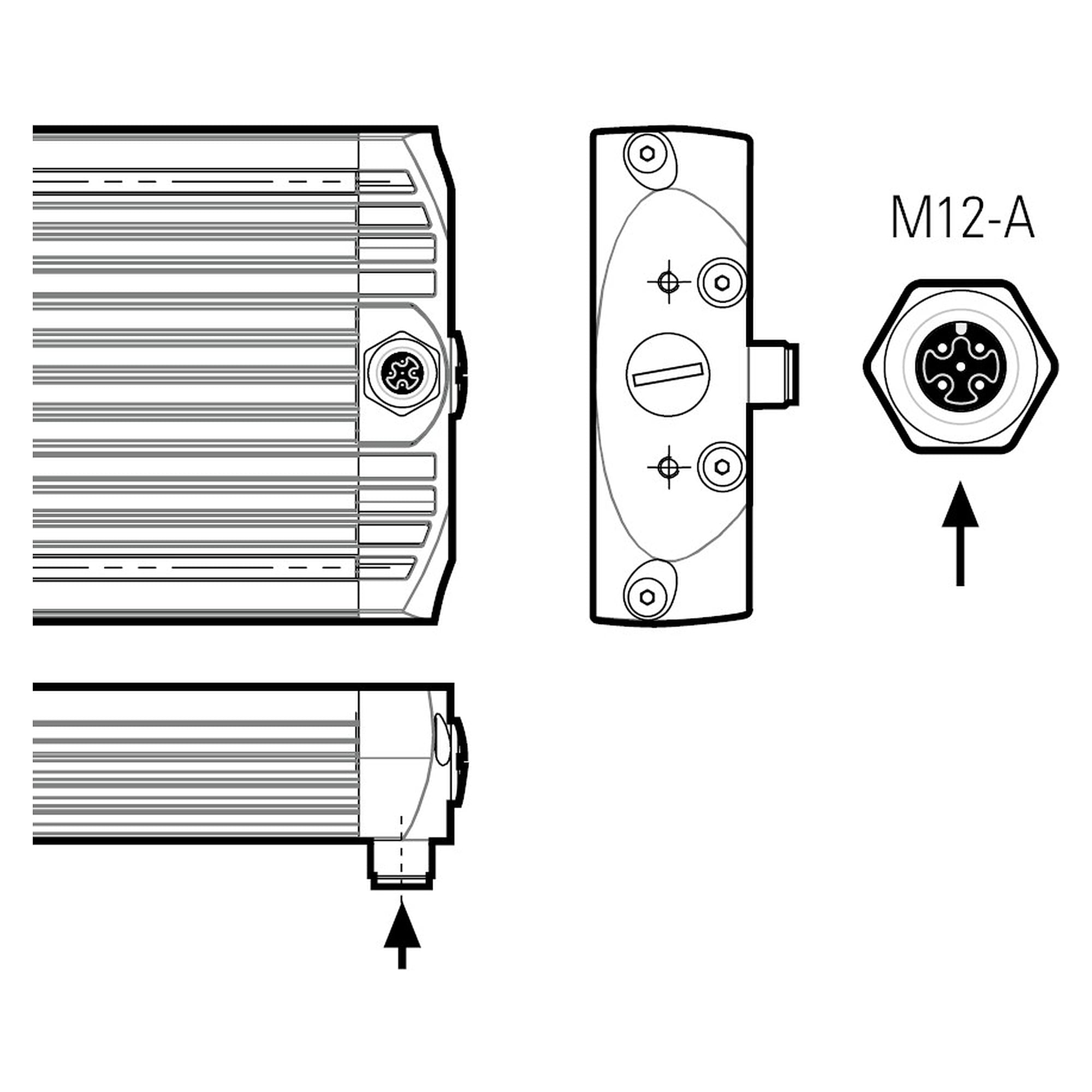

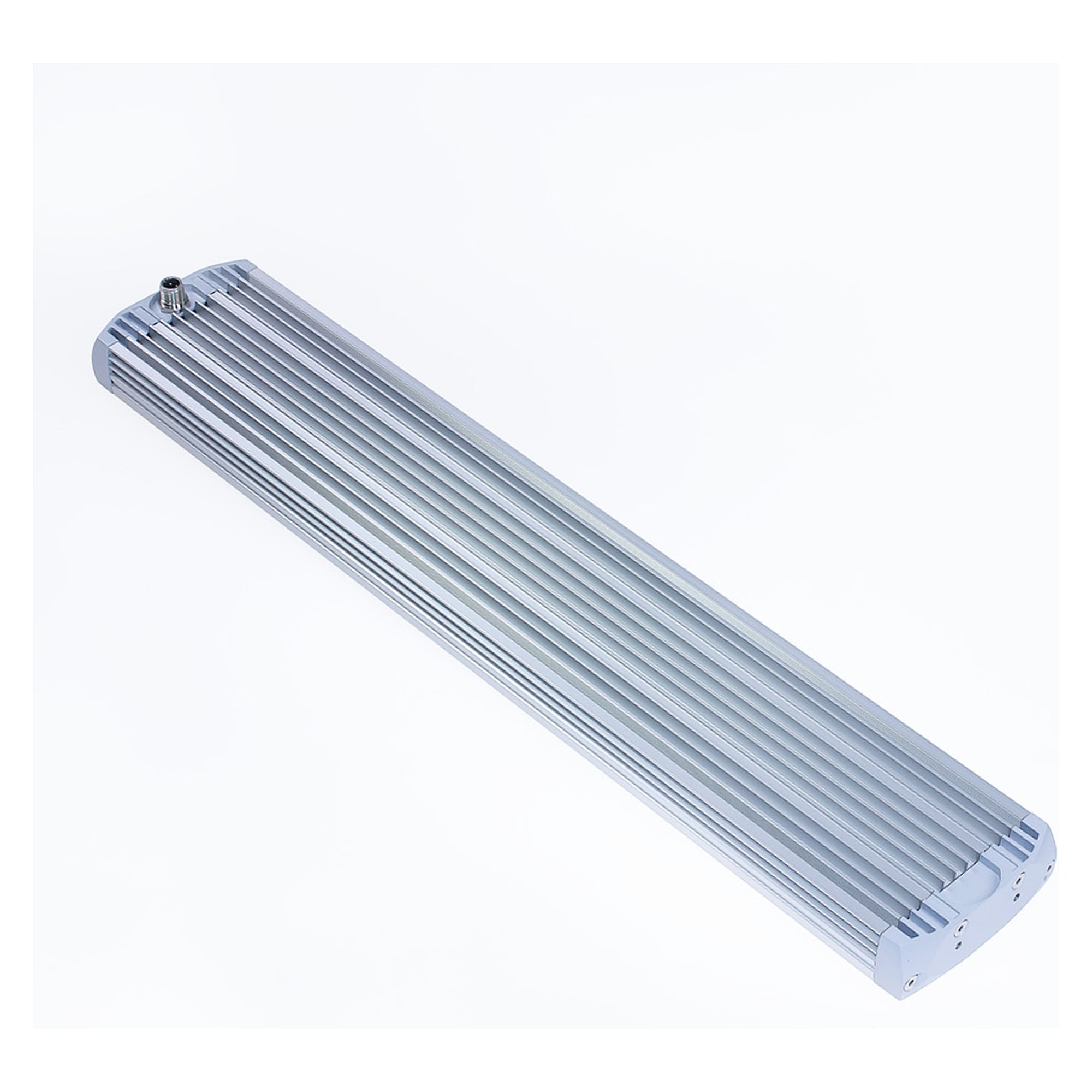

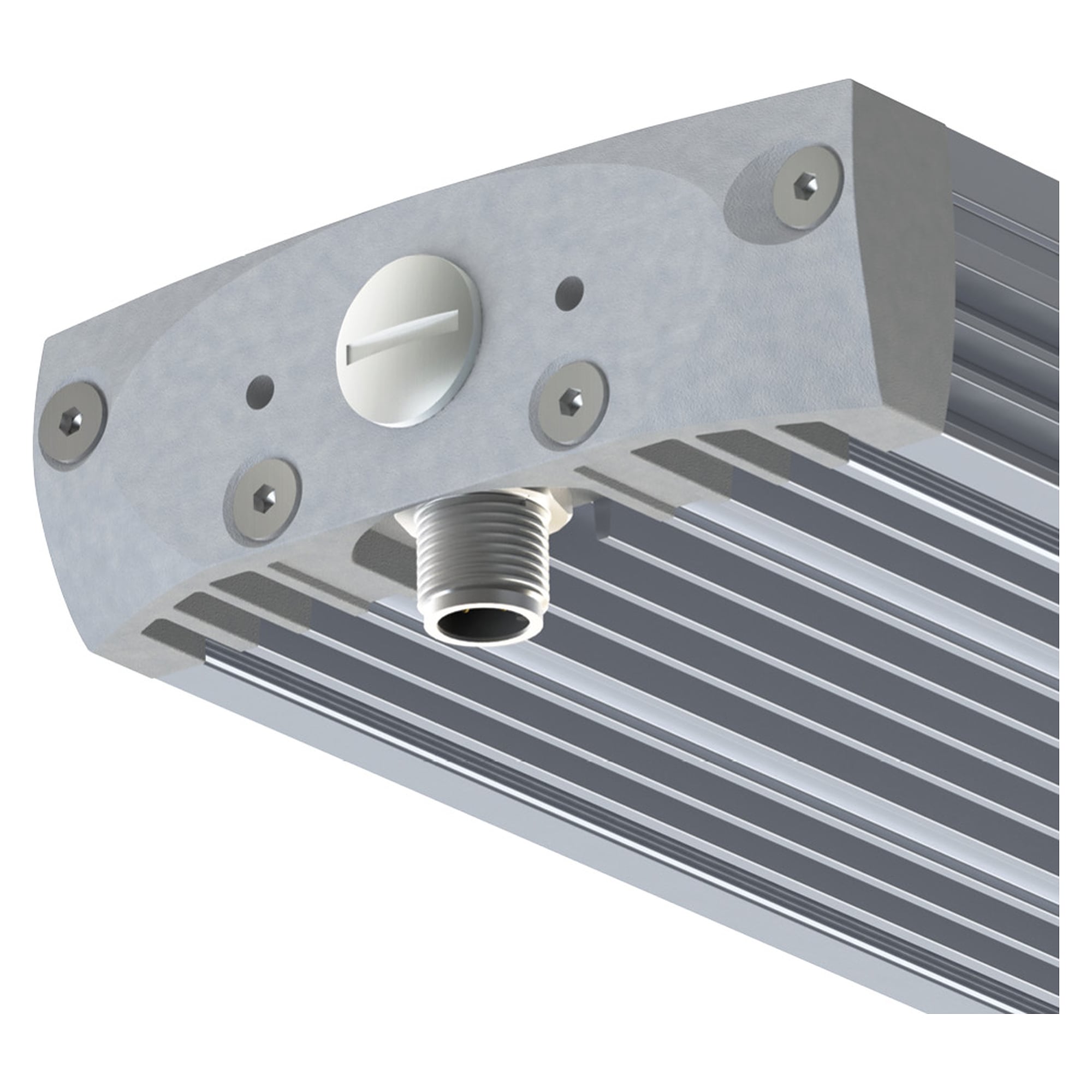

• Reverse-polarity-safe rear-side M12 connection (A-coded) for a fast, secure 24V DC machine-power connection.
• Over 100,000 h service life (L80/B10), shock-resistant to 50 g and vibration-resistant for harsh continuous duty.

Technical data

• Model: FIELDLED EVO rear-side, M12 Surface-mounted light
• Design: LED surface-mounted light for machines
• Light source: SMD LED
• Power: approx. 58 W
• Luminous flux: 9000 lm
• Luminous efficacy: 155 lm/W
• Light colour: 5700 K (3-step MacAdam)
• Colour rendering: Ra >85

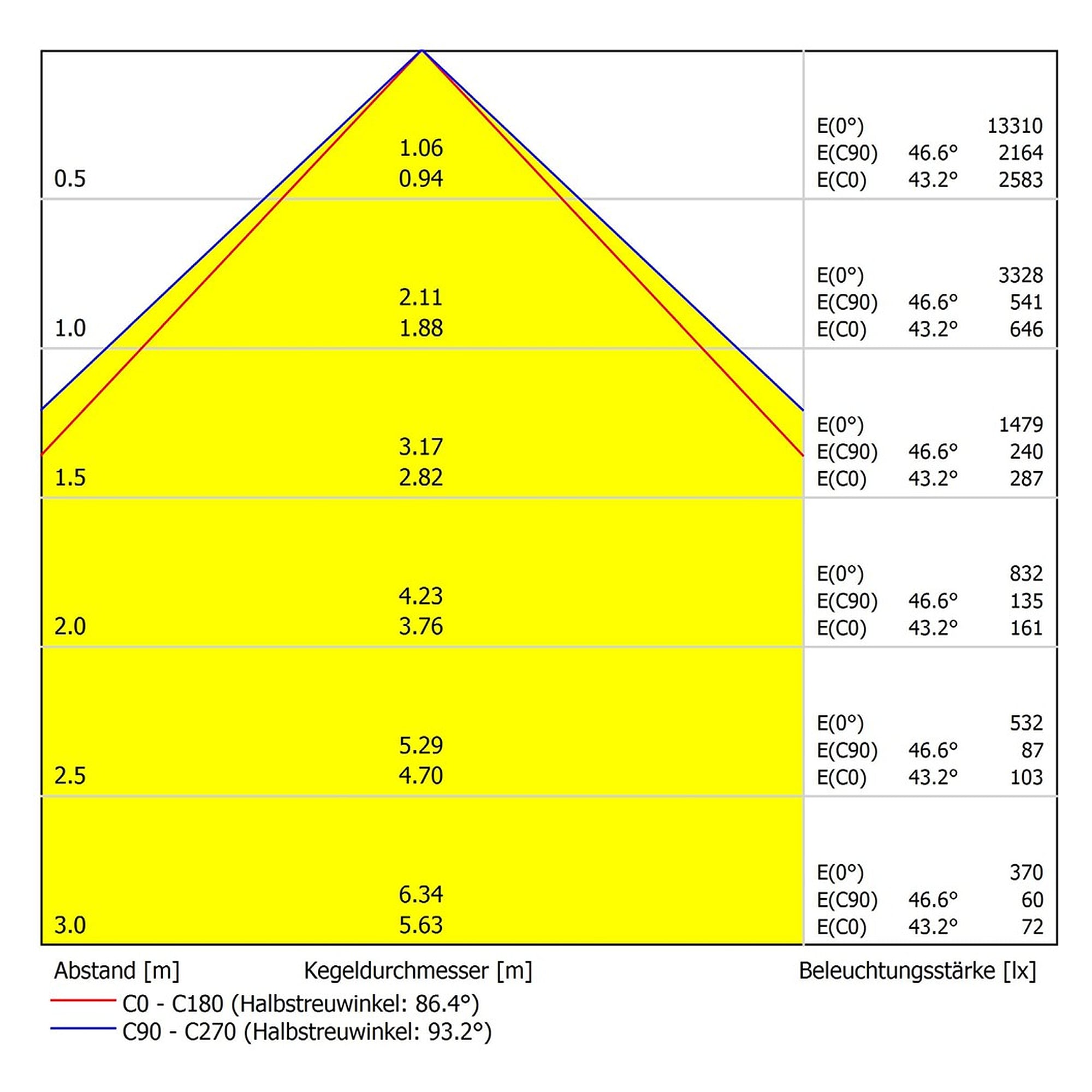

• Beam angle: 100°

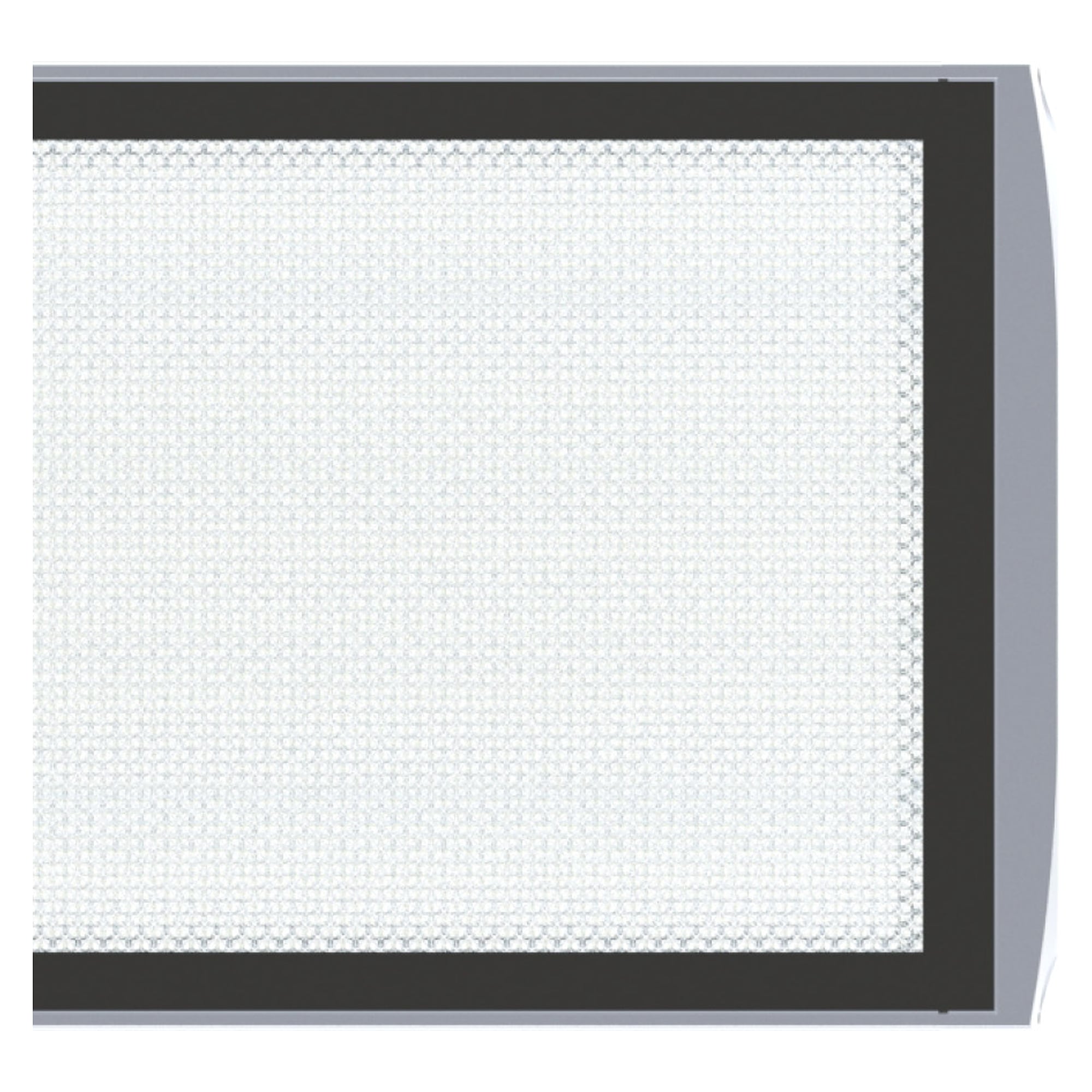

• Glare control: micro-prisms
• Supply voltage: 24V DC ±10%
• Connection: M12 A-coded, rear-side
• Protection rating: IP67/IP69K
• Protection class: III
• Operating temperature: -30 °C to +60 °C
• Service life: > 100,000 h (L80/B10)
• Vibration resistance: 10 to 55 Hz (amplitude 0.35 mm)
• Shock resistance: up to 50 g

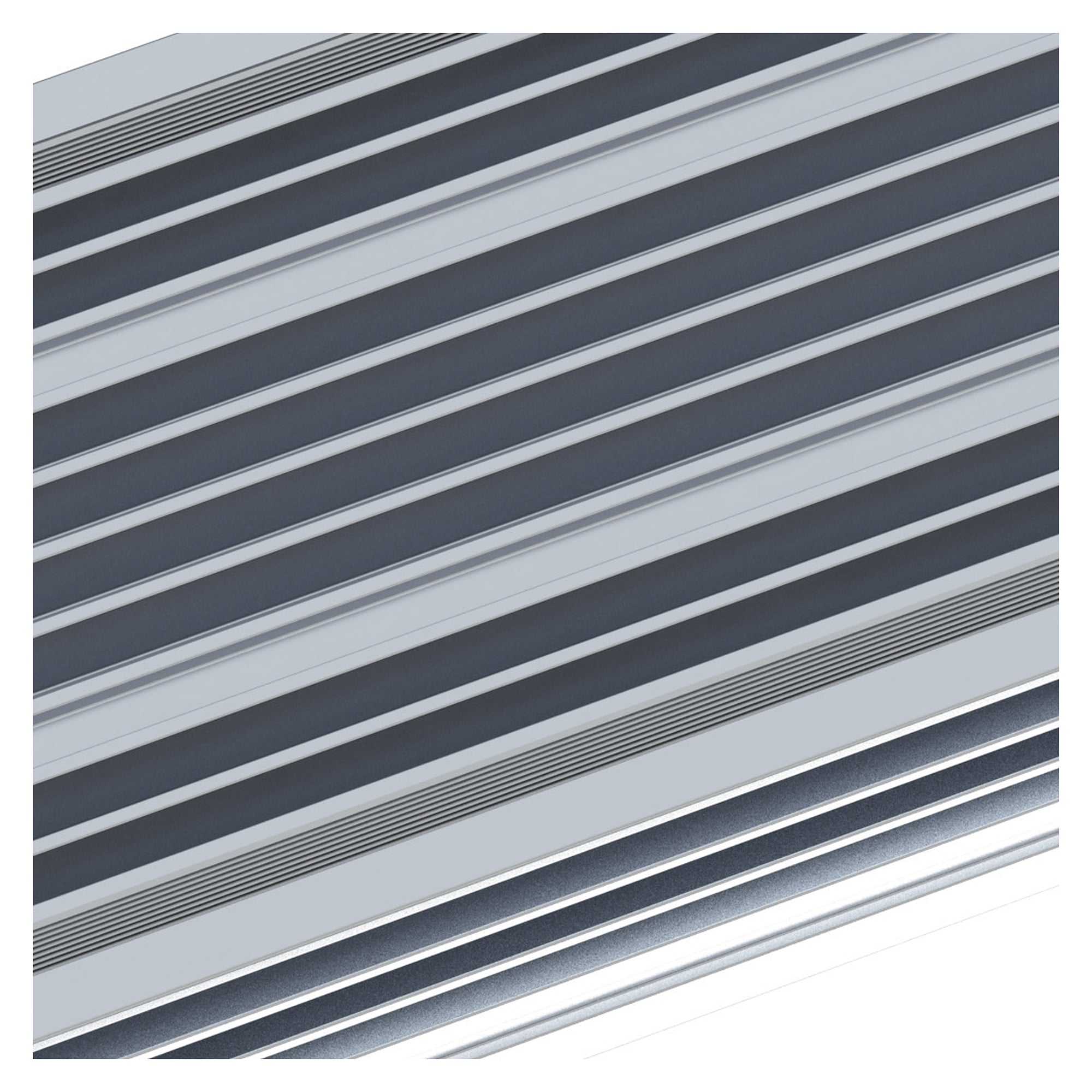

• Housing material: aluminium
• Cover material: toughened safety glass, splinter-free

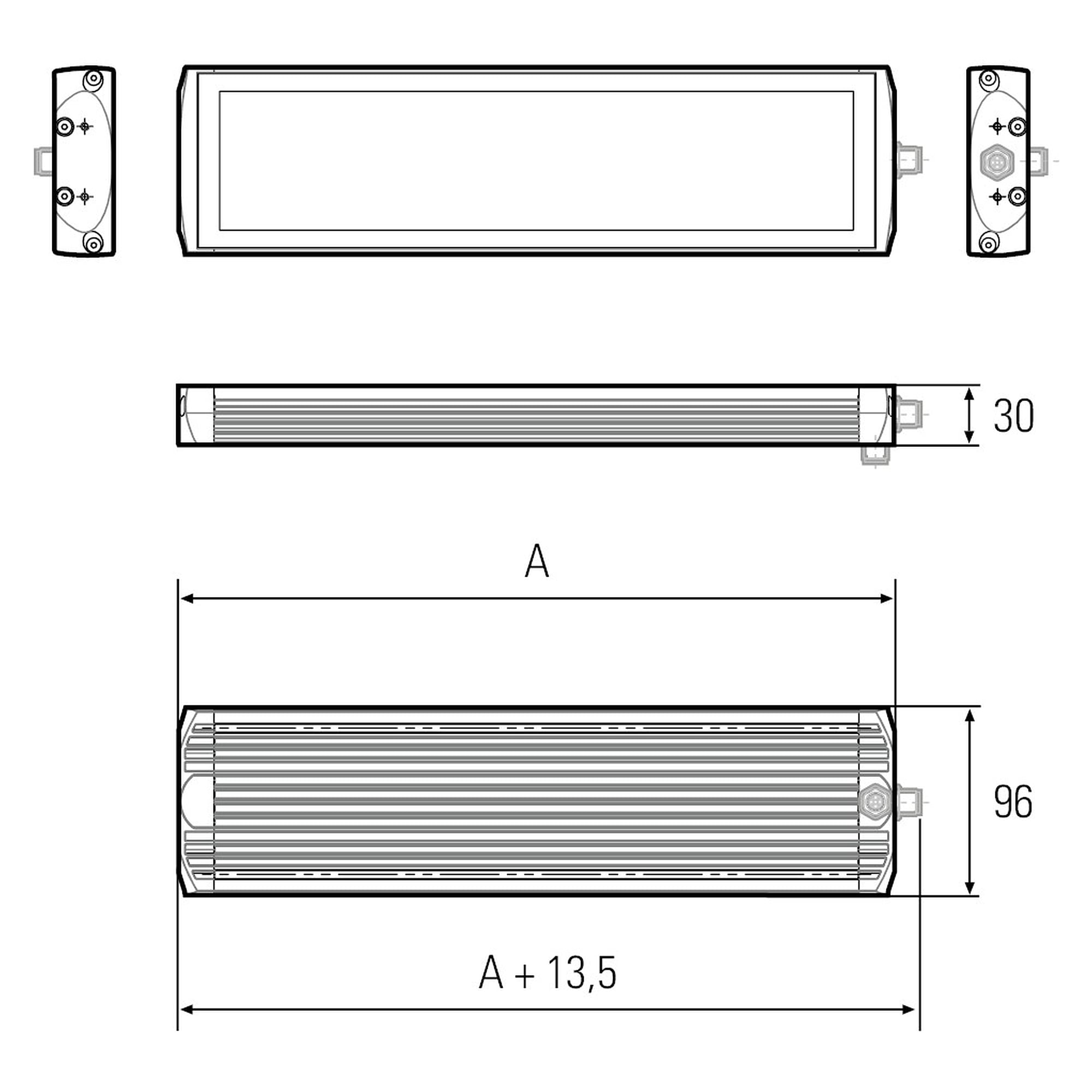

• Dimensions: 790 x 96 x 30 mm
• Weight: 3.2 kg
• Risk group (DIN EN 62471): exempt group
• Certifications: CE, UKCA, ETL Listed (5003529)
• Dimmable: optional via accessory
• Made in: Germany

Applications

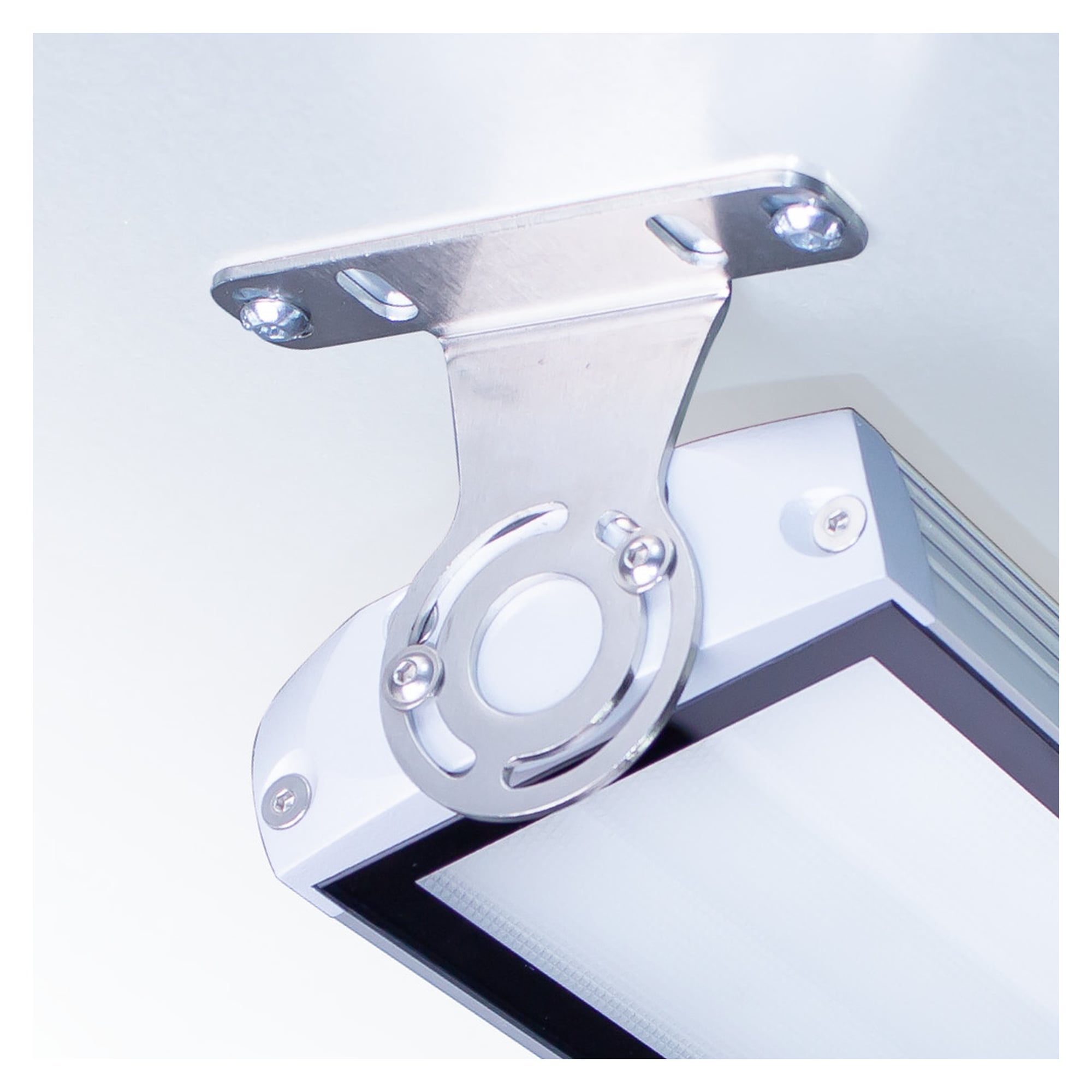

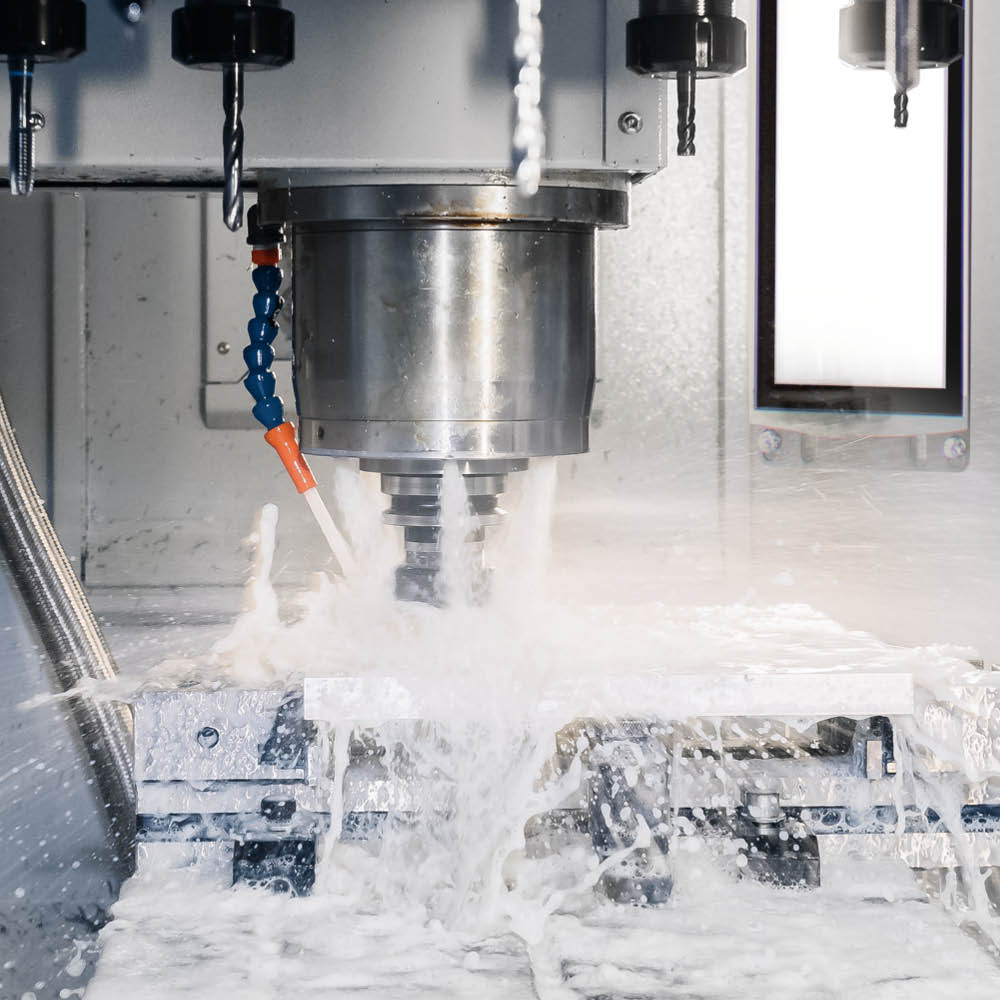

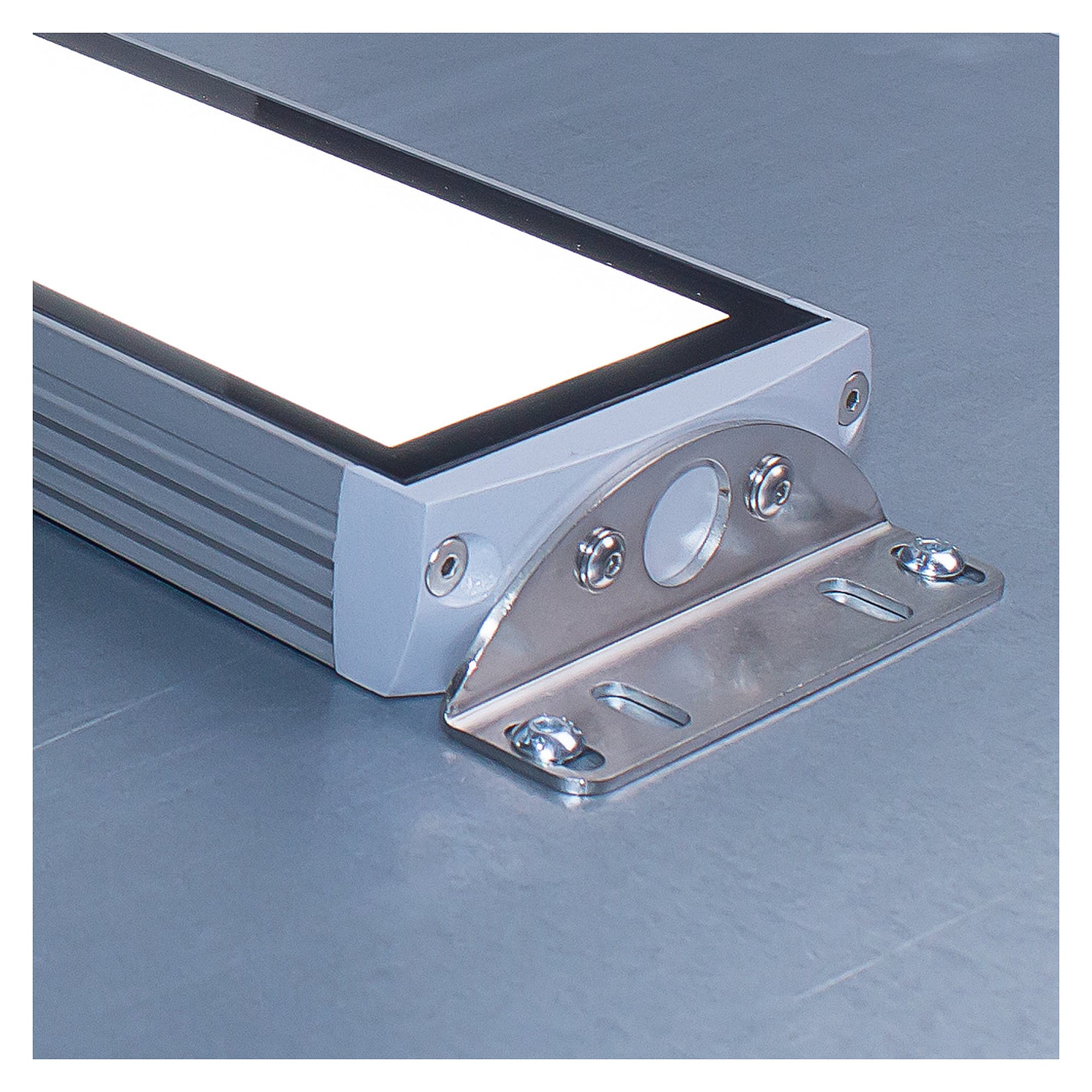

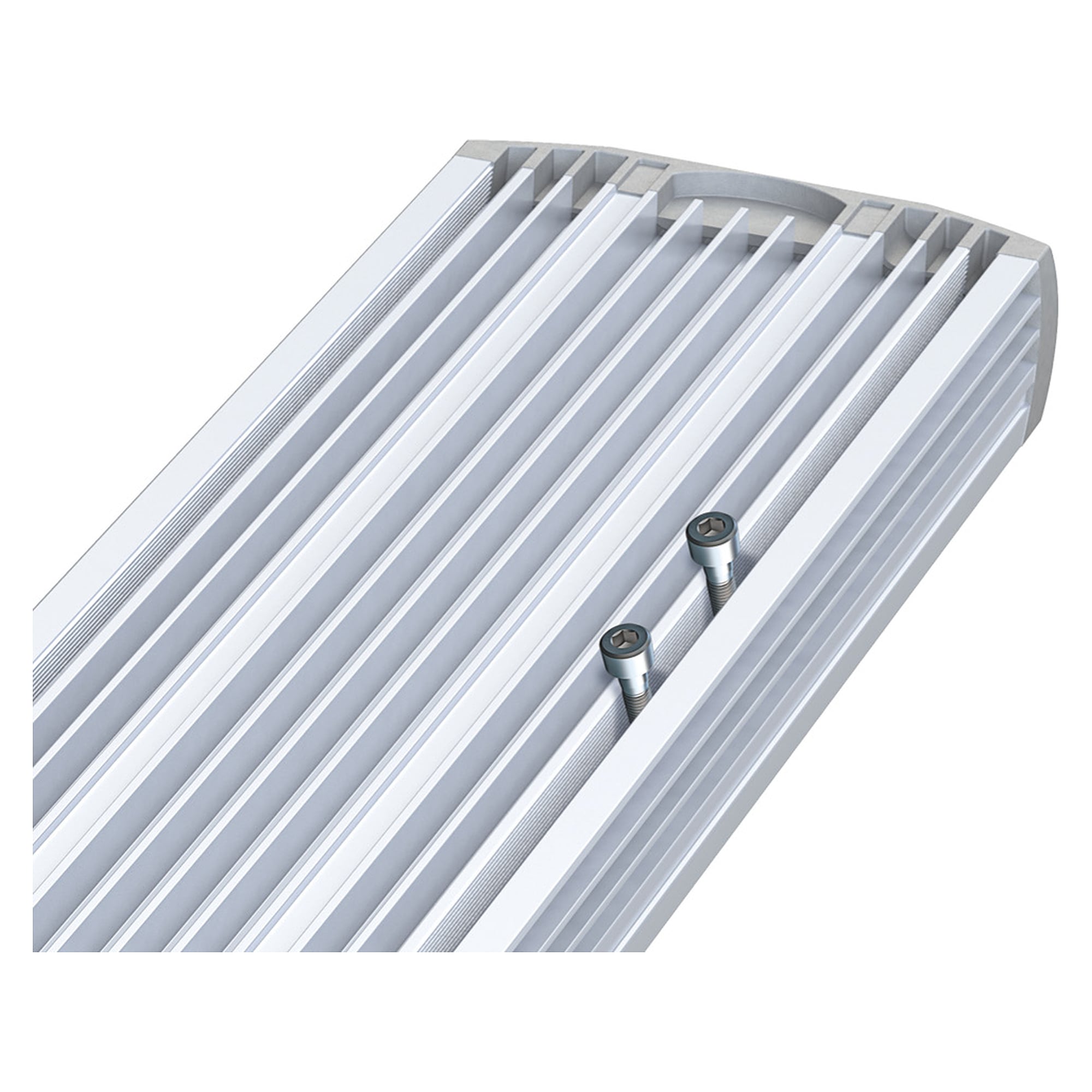

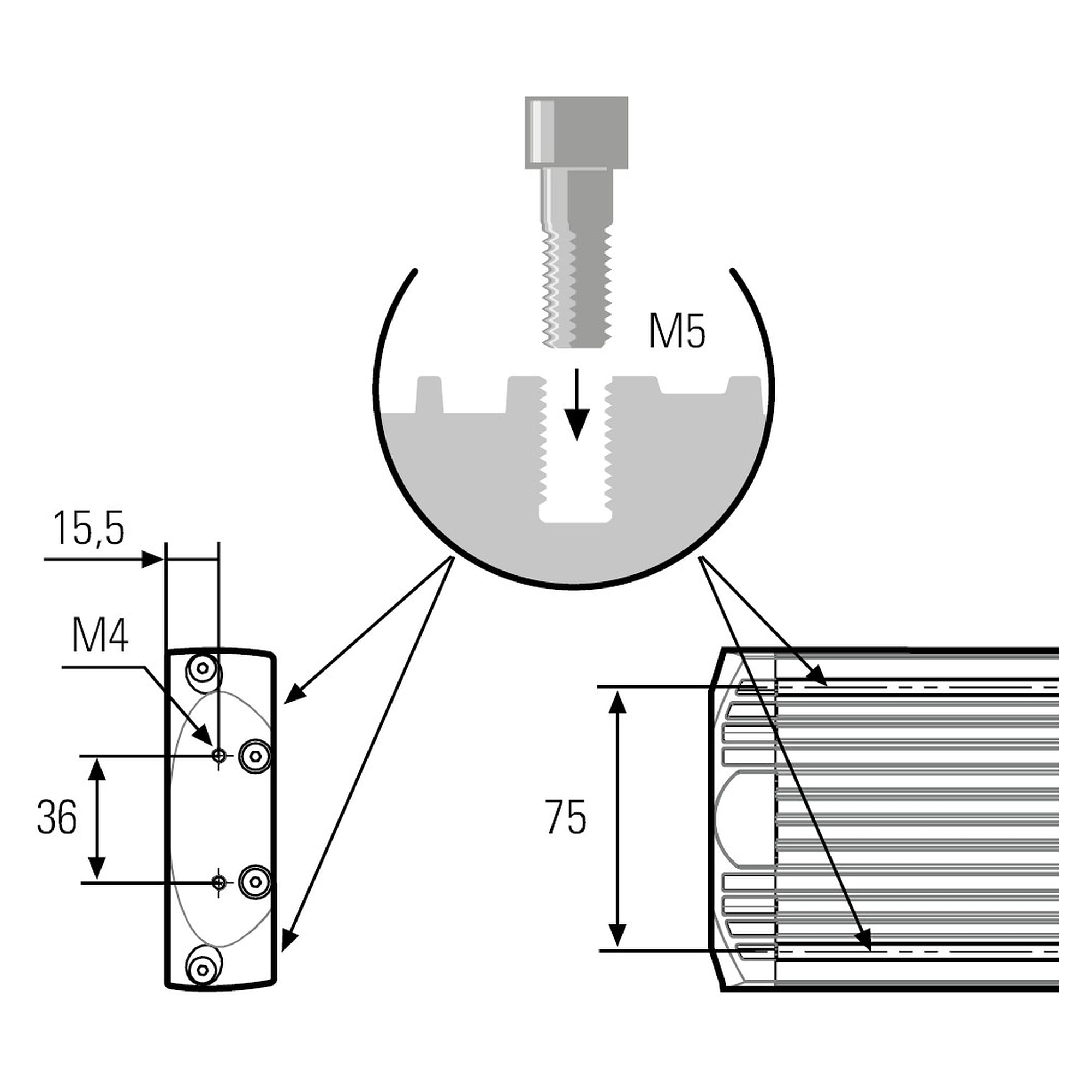

Designed for interior lighting of machine tools, machining centres and large-volume production equipment, especially in metal cutting and harsh production environments. The light retrofits into almost any machine tool via rear M5 screw channels; optional brackets and dimming accessories are available.
