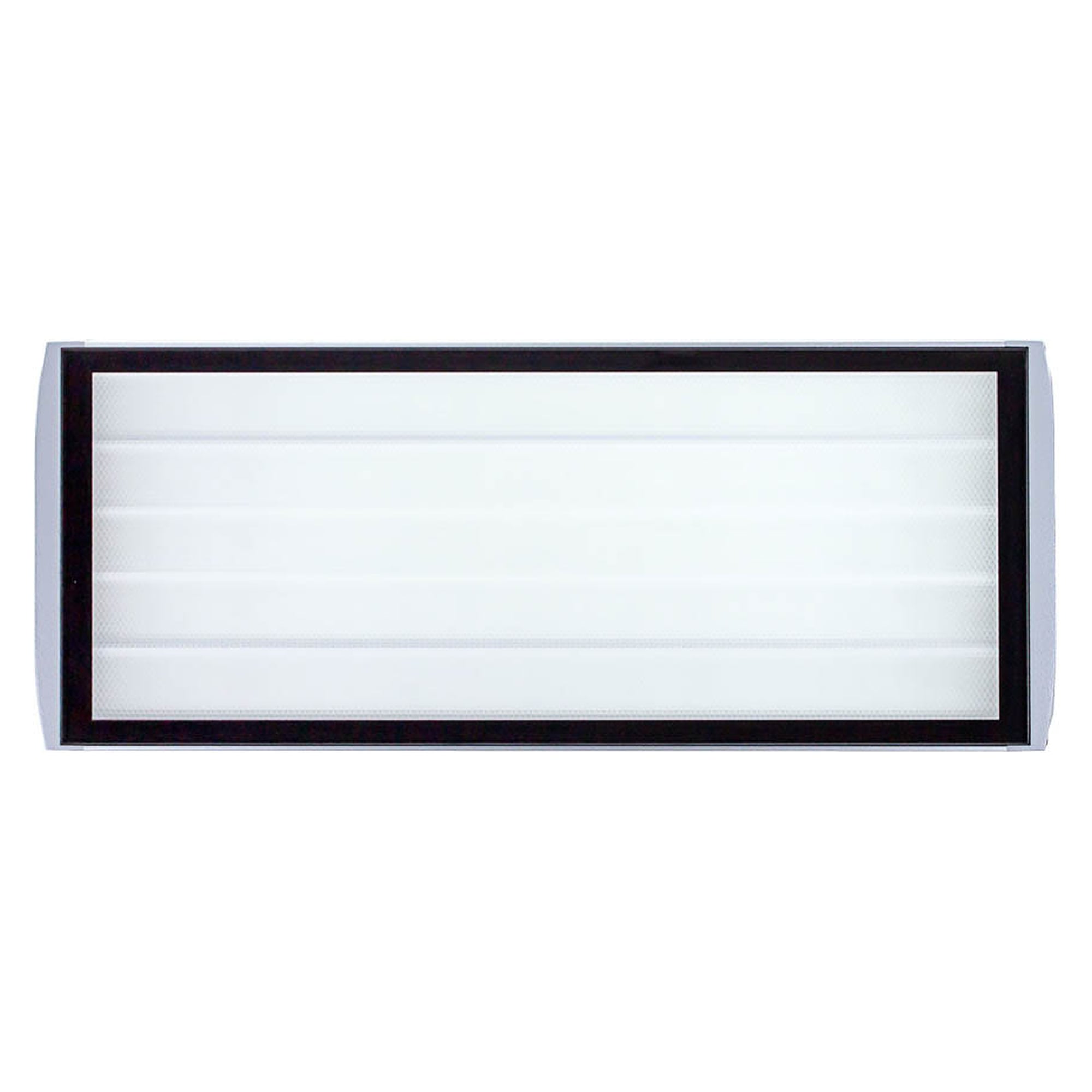

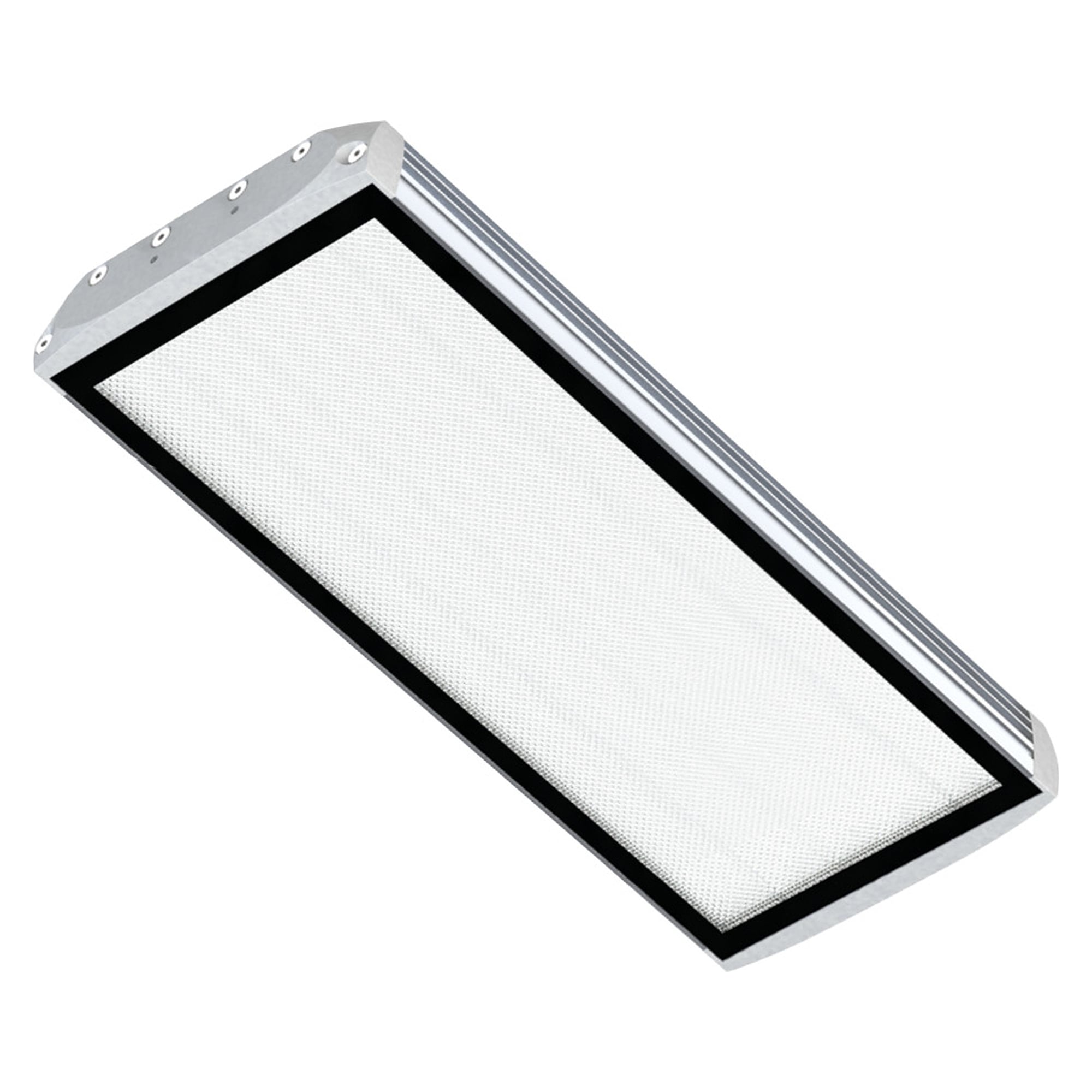

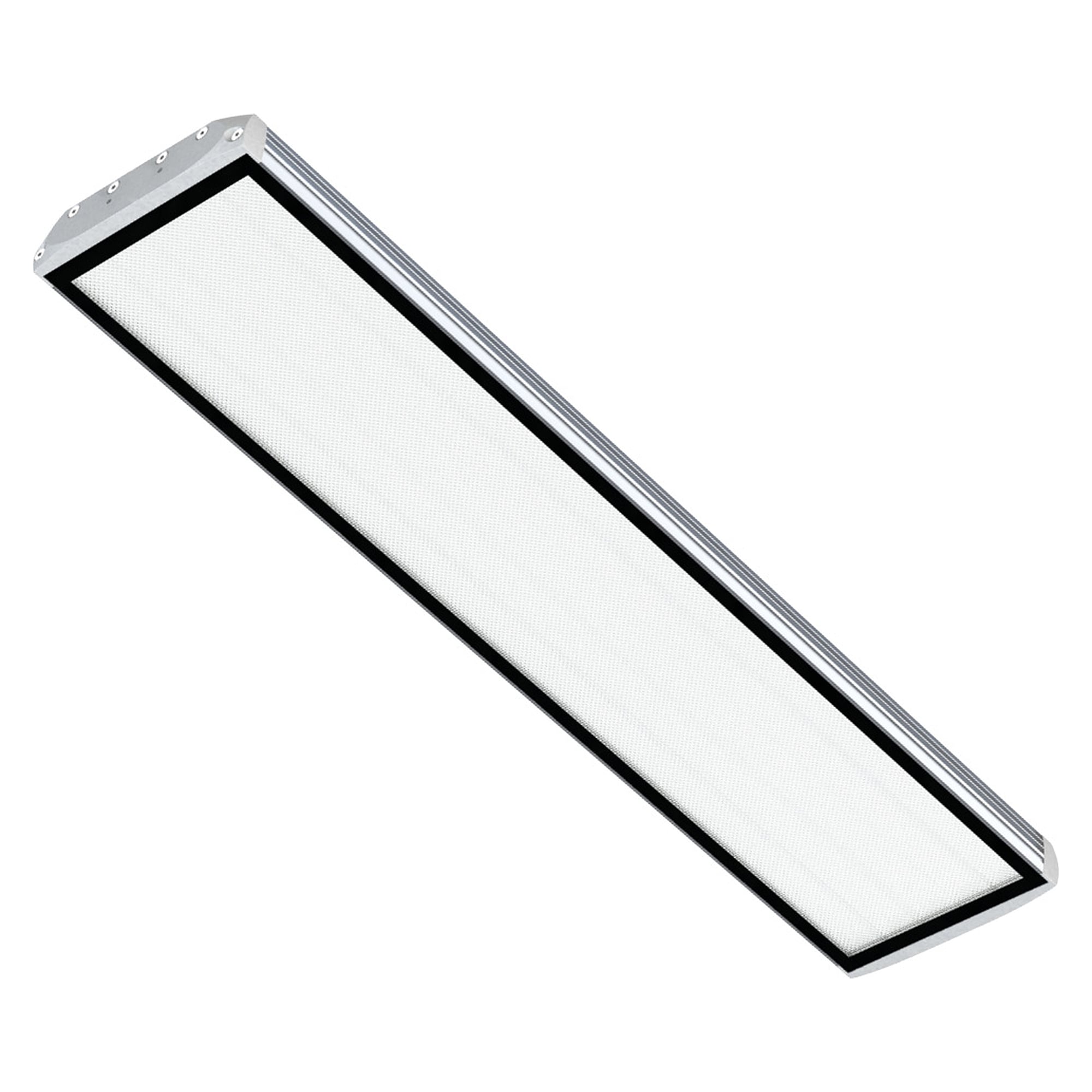

FIELDLED EVO surface machine light 702mm 86W 13400lm 100°, IP69K, M12 rear - LED2WORK 153510-02

The FIELDLED EVO surface-mounted light illuminates large machine tools and plants evenly, producing 13400 lm from around 86 W. Its rear A-coded M12 connection keeps cabling out of the working area and makes retrofitting in almost any machine straightforward.

Your benefits

• High output of 13400 lm and 155 lm/W to light up wide working areas

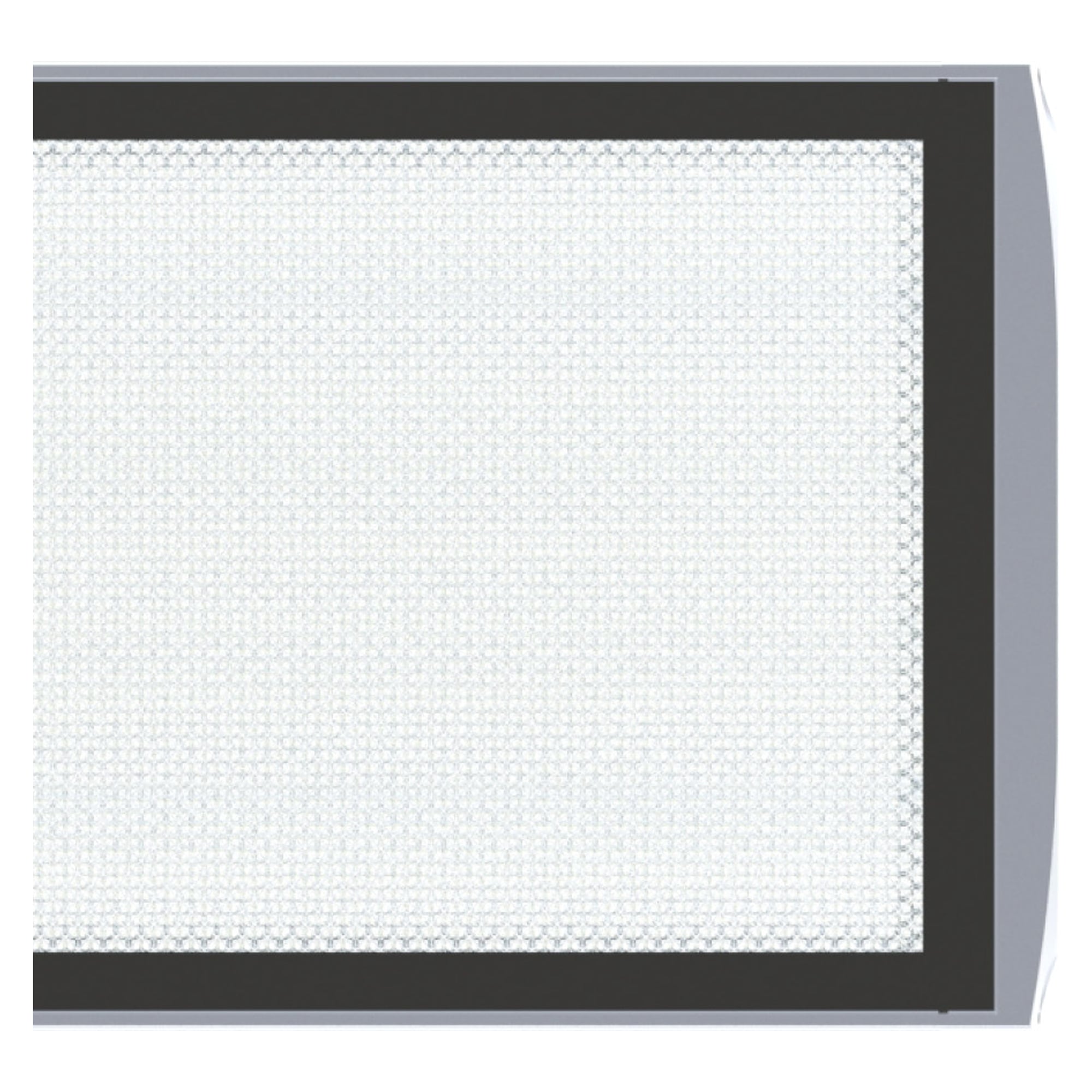

• Flicker- and glare-free light thanks to microprism glare control
• Shatterproof safety glass (ESG) and aluminium housing protect against chips and coolant
• IP67/IP69K protection rating for use in chip-cutting metalworking
• Vibration-resistant up to 55 Hz and shock-resistant up to 50 g for harsh machine environments
• Long service life of more than 100,000 h (L80/B10)

Technical data

• Model: FIELDLED EVO surface, M12 rear
• Type: LED surface-mounted light for machines
• Light source: SMD LED
• Power: ~86 W
• Luminous flux: 13400 lm
• Luminous efficacy: 155 lm/W
• Light colour: 5700K 3-step MacAdam
• Colour rendering (Ra): >85

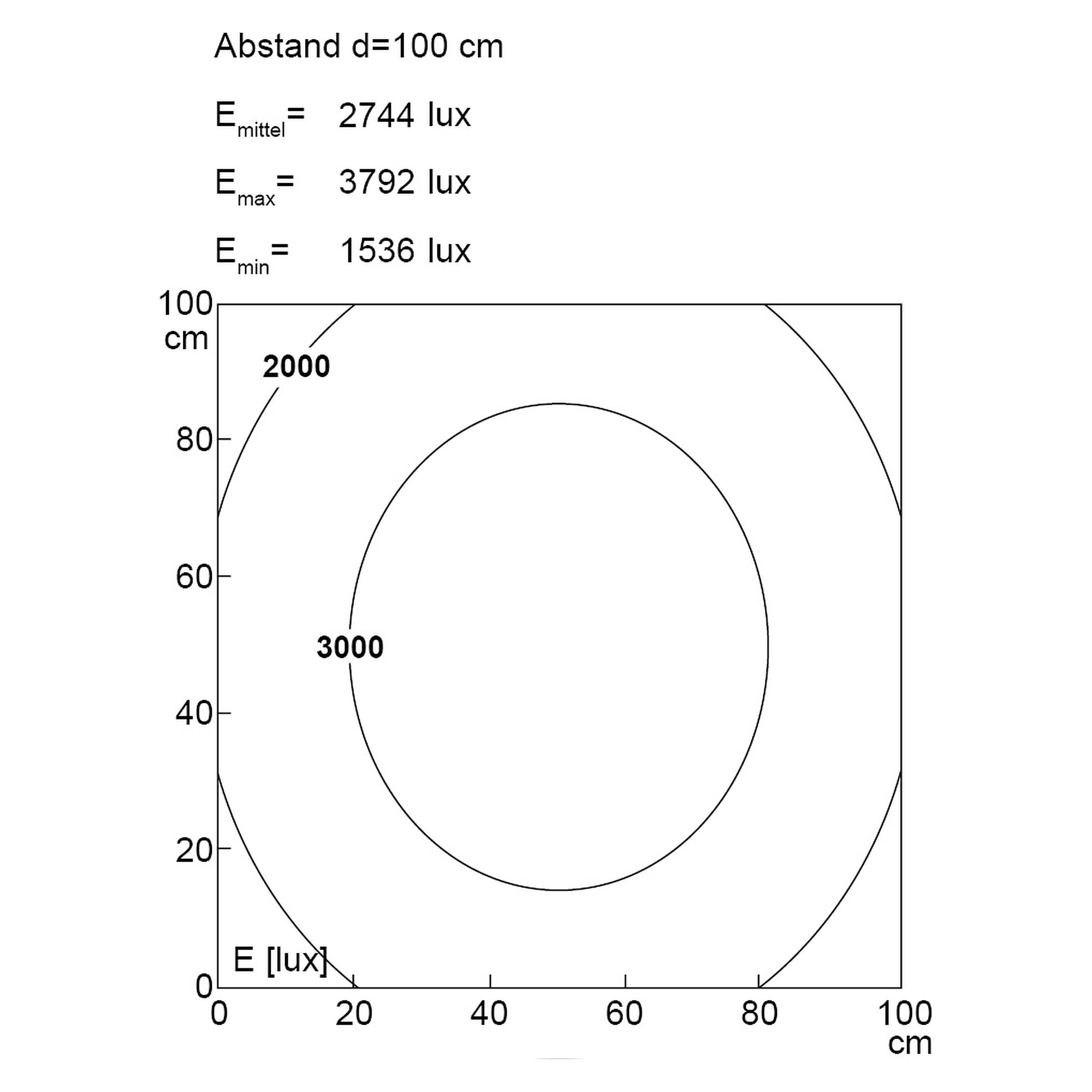

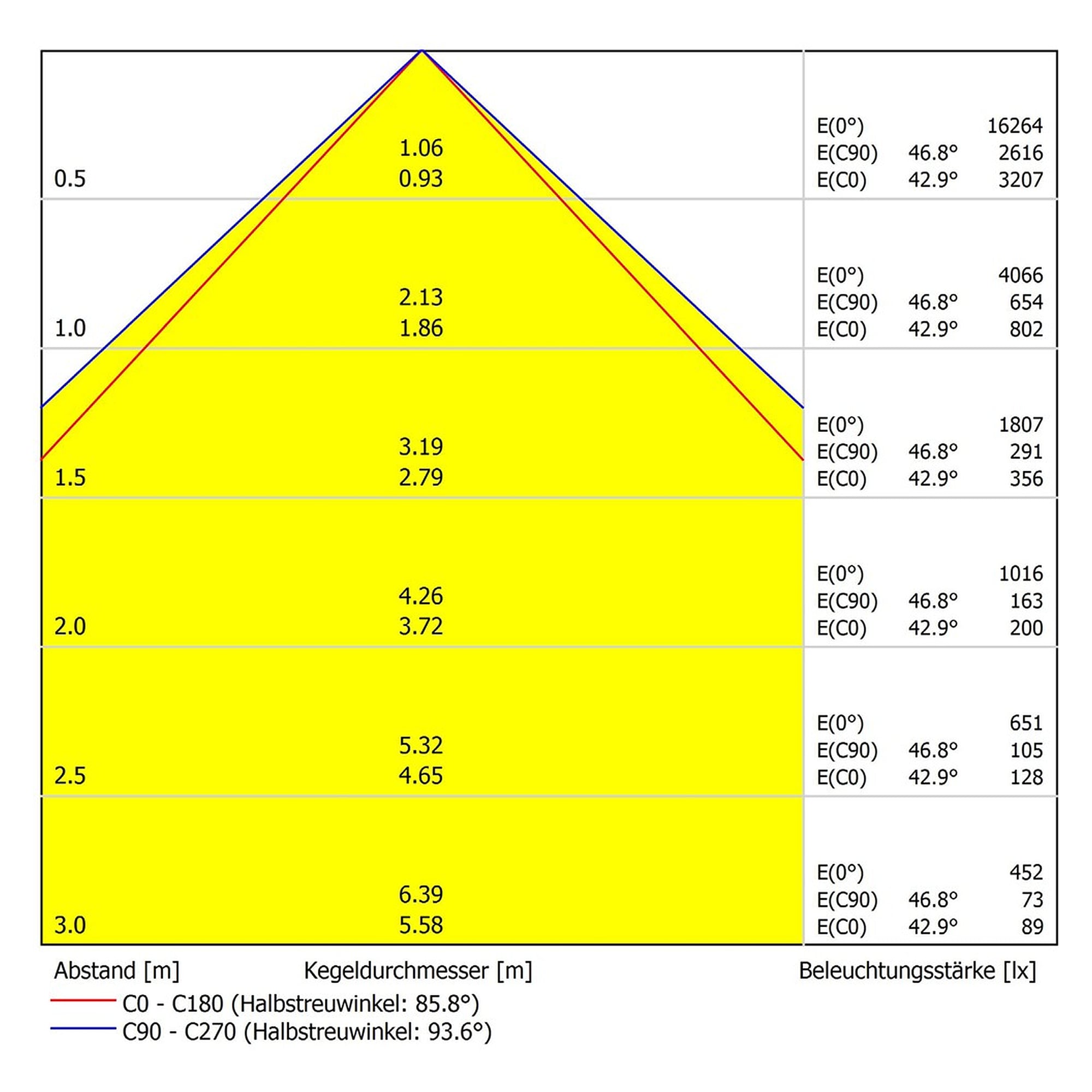

• Beam angle: 100°
• Supply voltage: 24V DC ± 10%

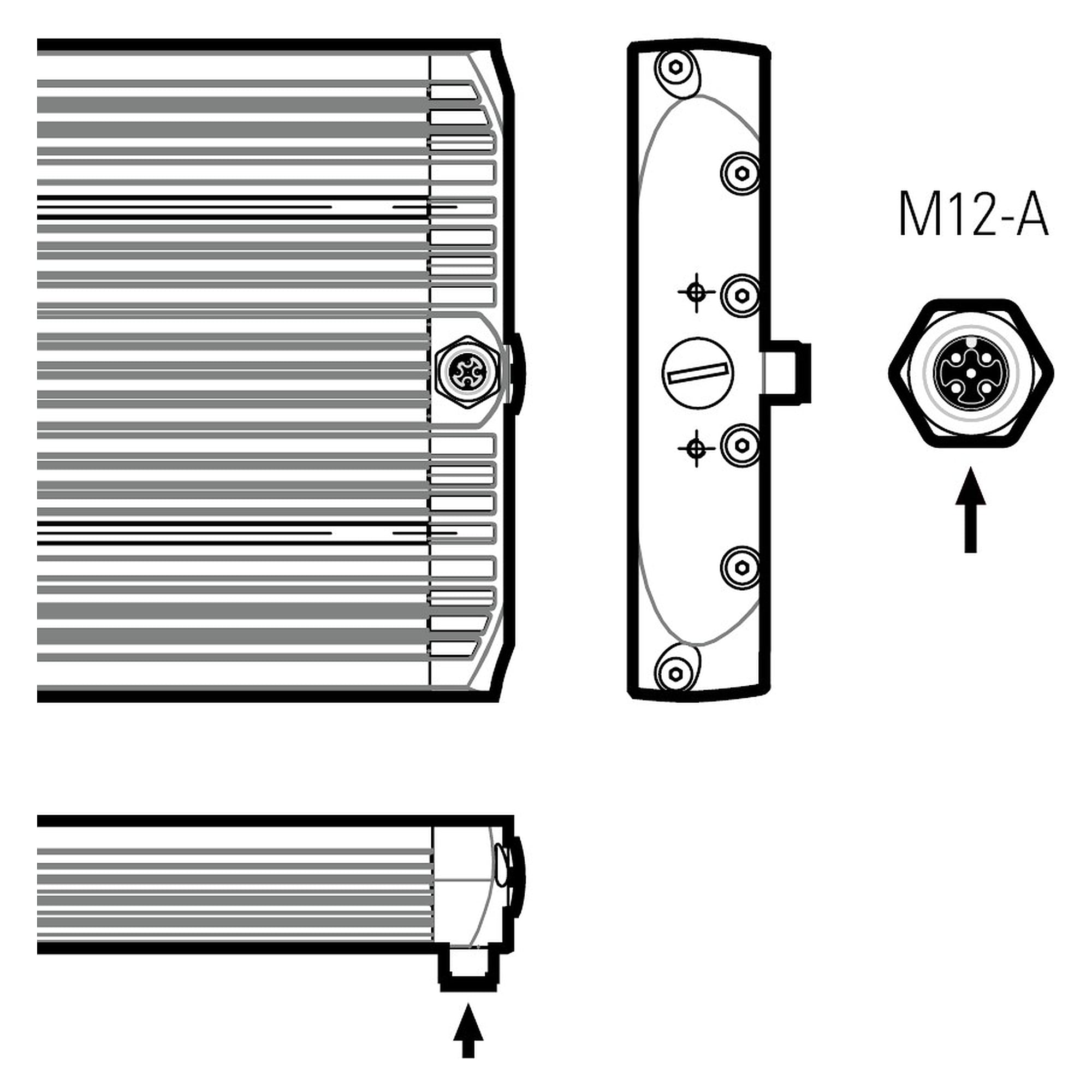

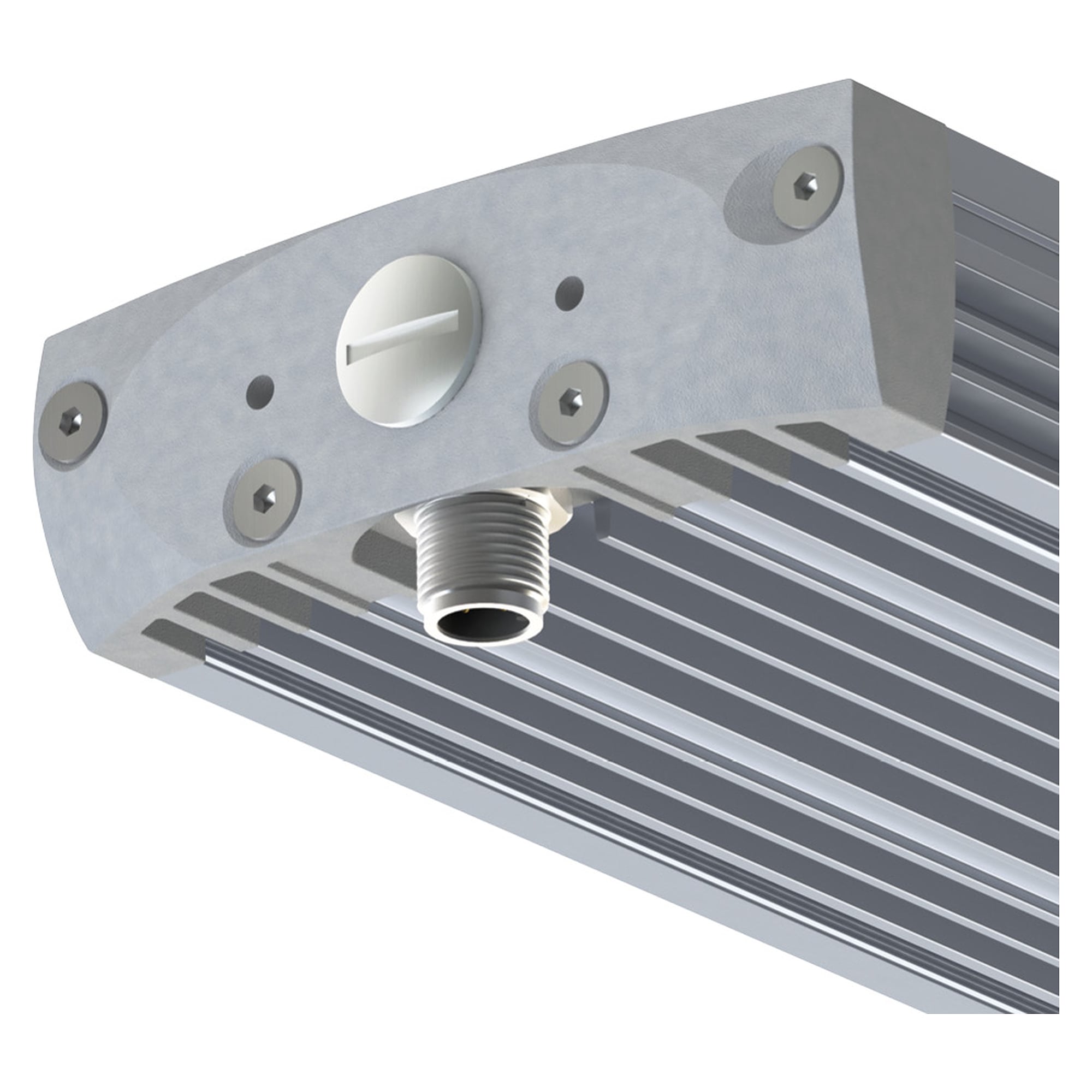

• Connection: M12 A-coded, rear
• Protection rating: IP67/IP69K
• Protection class: III
• Operating temperature: -30 °C to +60 °C
• Service life: > 100,000 h (L80/B10)
• Housing material: Aluminium
• Cover material: ESG (safety glass), shatterproof

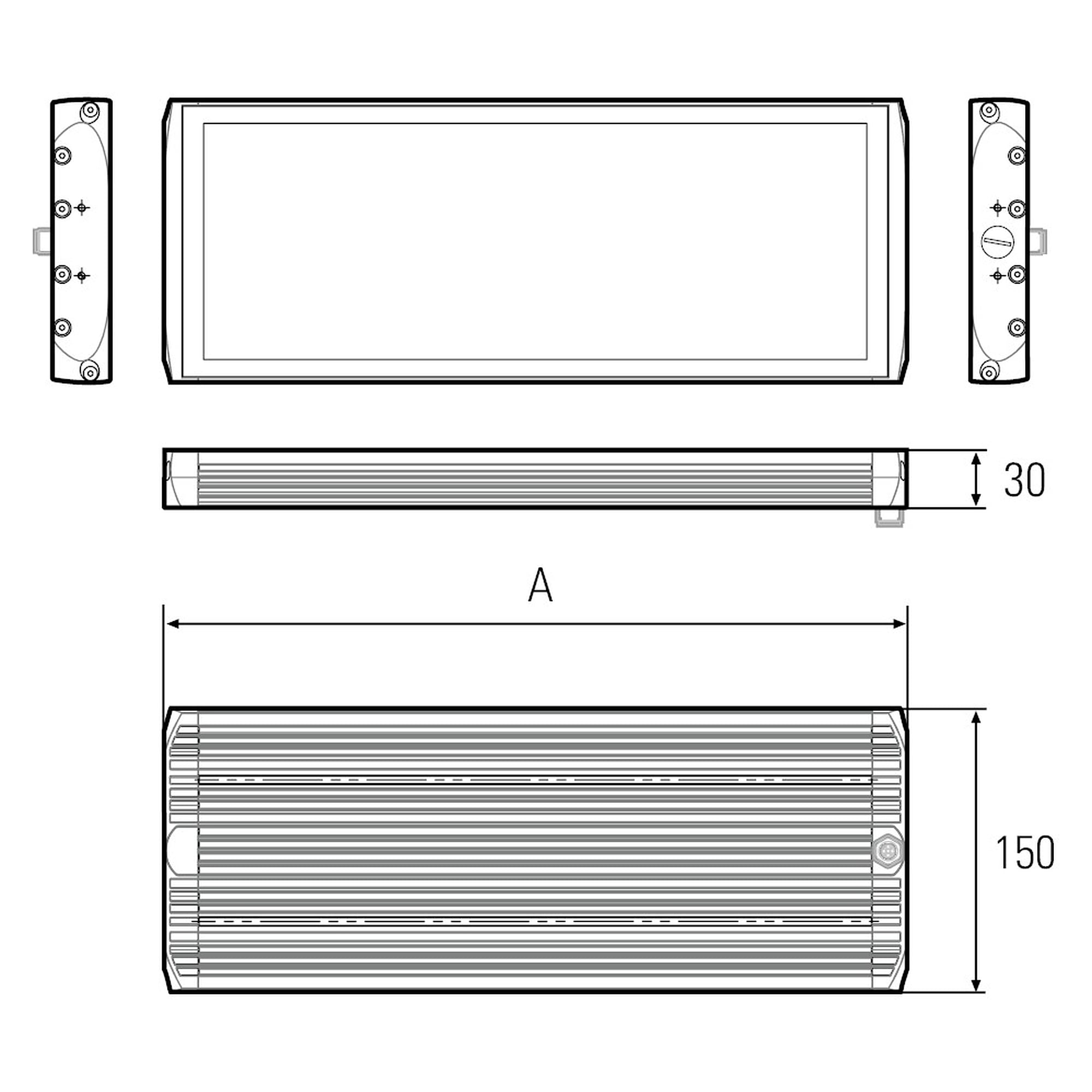

• Dimensions (HxWxL): 30 mm x 150 mm x 702 mm
• Weight: 4000 g
• Risk group (DIN EN 62471): Exempt group
• Certifications: CE, UKCA, ETL Listed (5003529)
• Made in: Germany

Applications

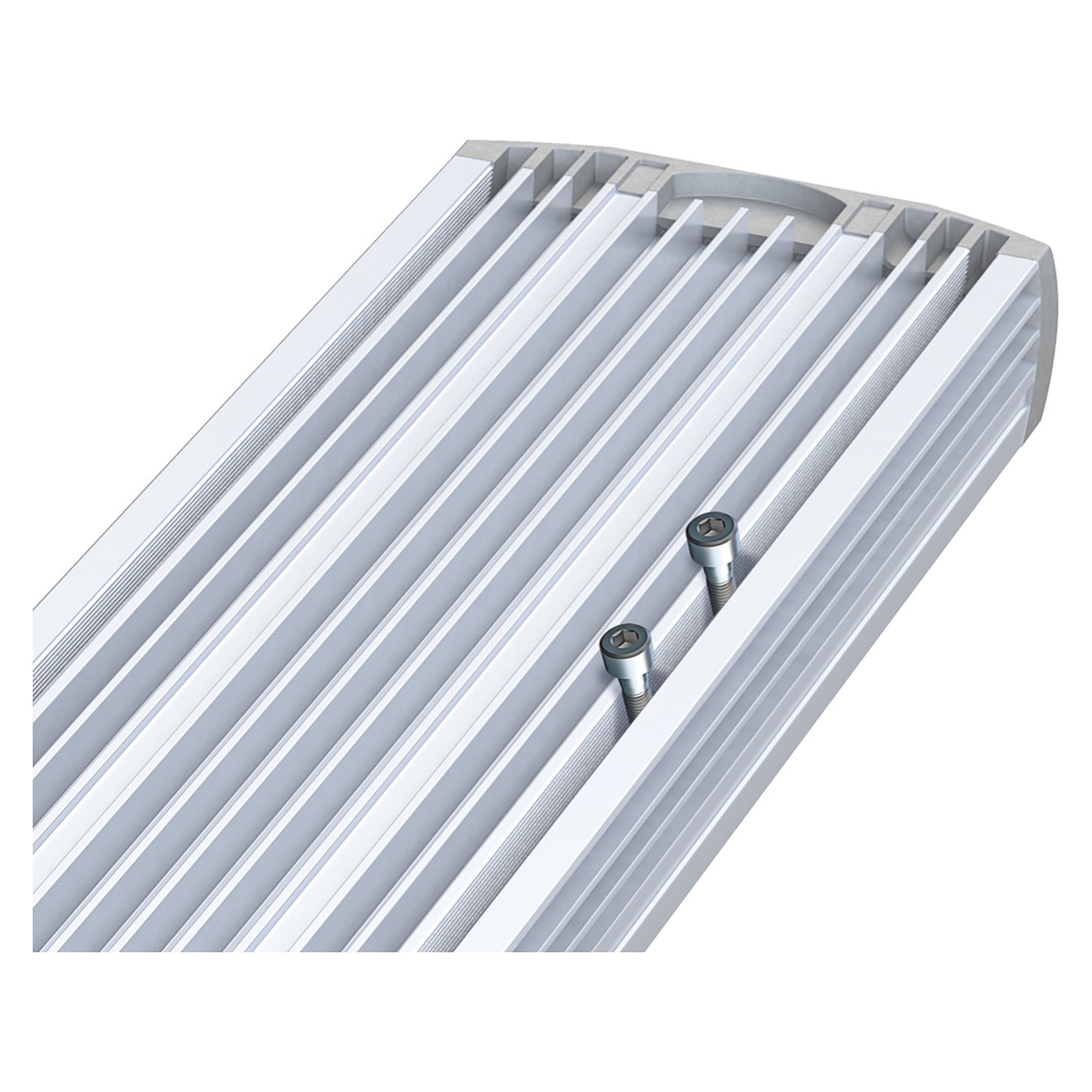

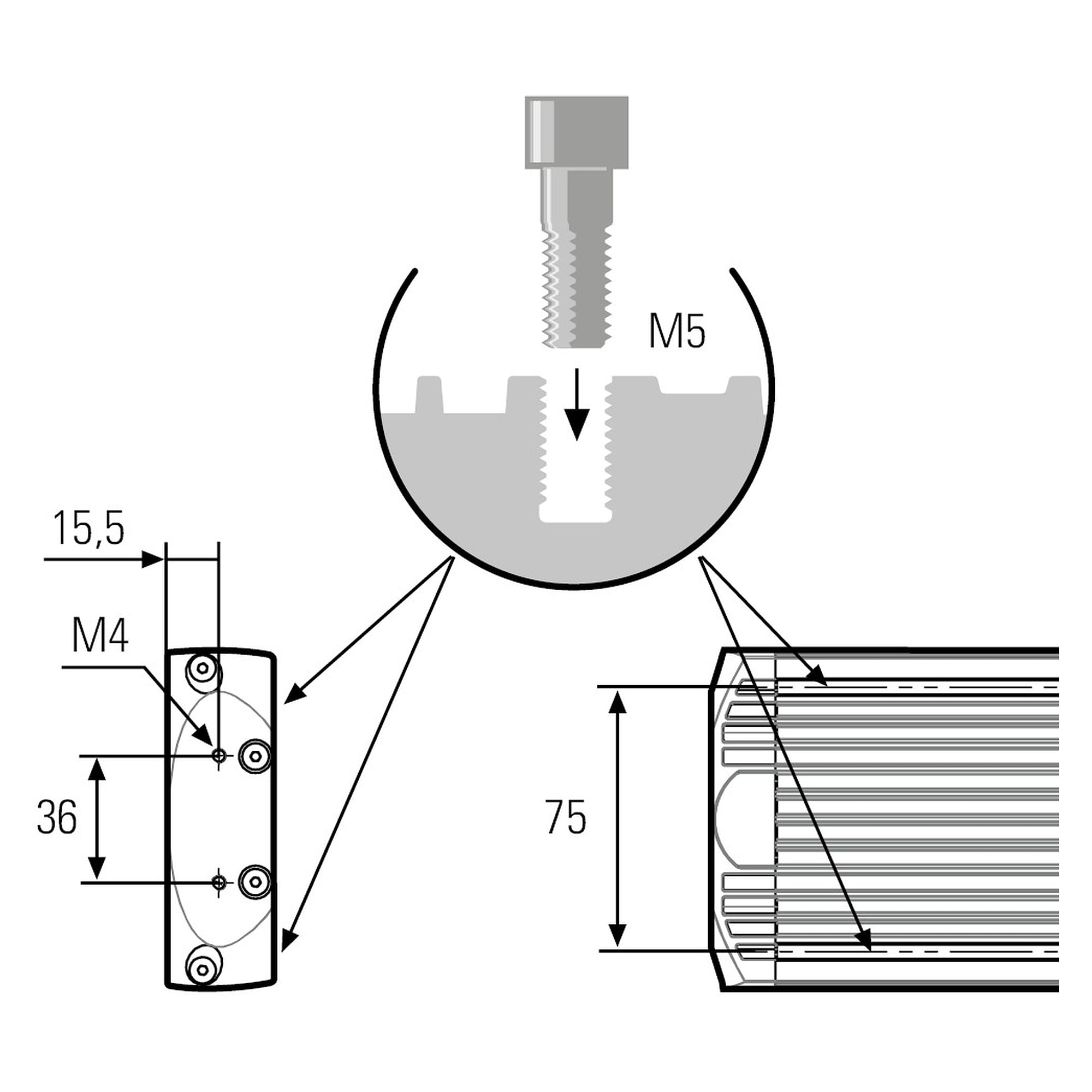

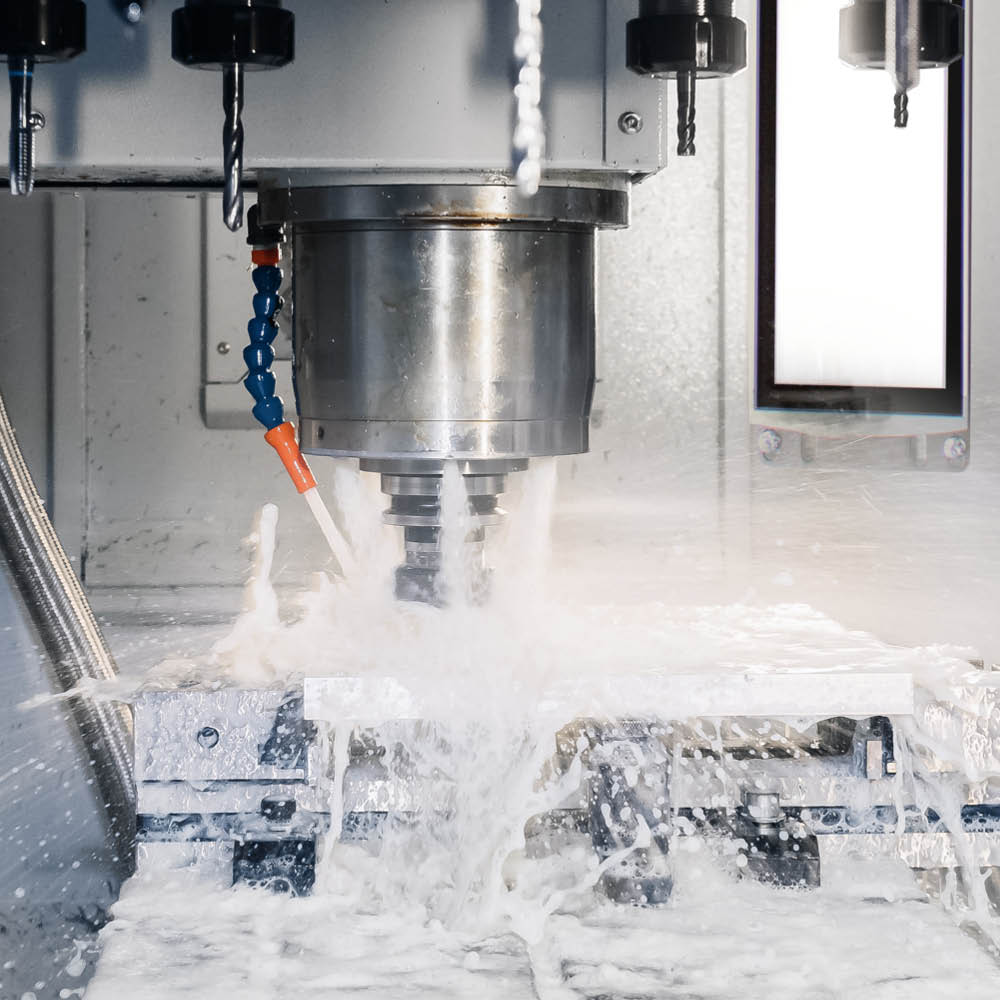

Ideal for lighting machine tools and large-volume plants, especially in chip-cutting metalworking and harsh production environments. Mounting is via two rear M5 screw channels; matching light holders are available as options. Dimming is optionally possible via accessories.
