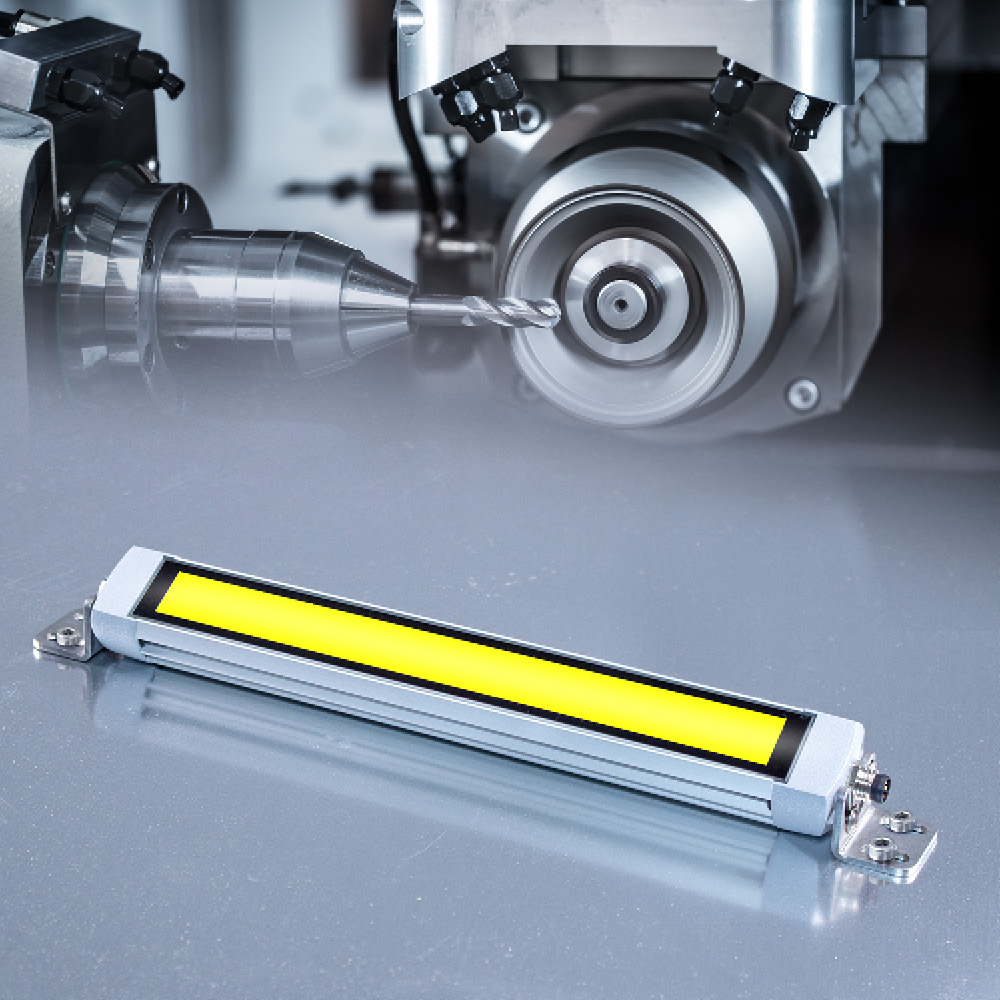

TUBELED_25 RGB-W LED light 290mm, 7.2W white, 100°, IP67 - LED2WORK 154190-01

The TUBELED_25 RGB-W combines lighting and signalling in a single slim luminaire: 1152 lm of white light handles work lighting while red, green and blue signal machine states, developed for equipment, automation and machine tools of the IoT generation.

Key benefits

• Lighting and signalling from one luminaire thanks to RGB-W LED clusters.
• White light 1152 lm at 7.2 W in 5000K (3-step MacAdam, Ra above 85) plus colour signals.
• Very slim, only approx. 23 mm mounting height at 290 mm length for tight installations.
• Shatterproof hard glass and aluminium housing, IP67, dust- and watertight.
• Long service life over 100,000 h (L80/B10), wide -30 °C to +55 °C temperature range.

Technical data

• Model: TUBELED_25 RGB-W
• Design: surface-mounted LED light
• Light source: SMD RGB-W cluster LED

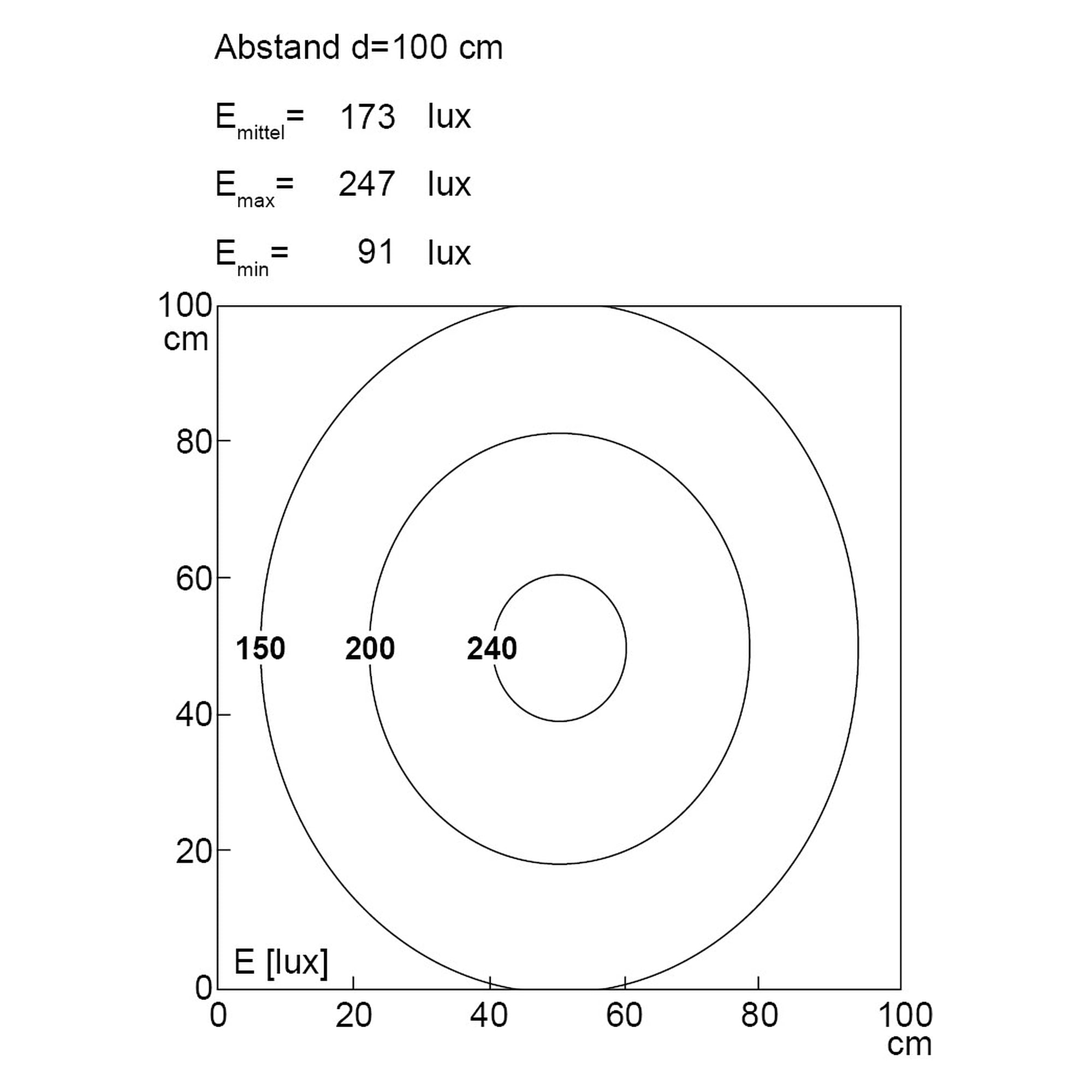

• White power: approx. 7.2 W, 1152 lm (approx. 159 lm/W)
• Red power: approx. 2.2 W, 138 lm
• Green power: approx. 1.4 W, 252 lm
• Blue power: approx. 2.2 W, 84 lm
• White light colour: 5000K 3-step MacAdam
• White colour rendering (Ra): above 85

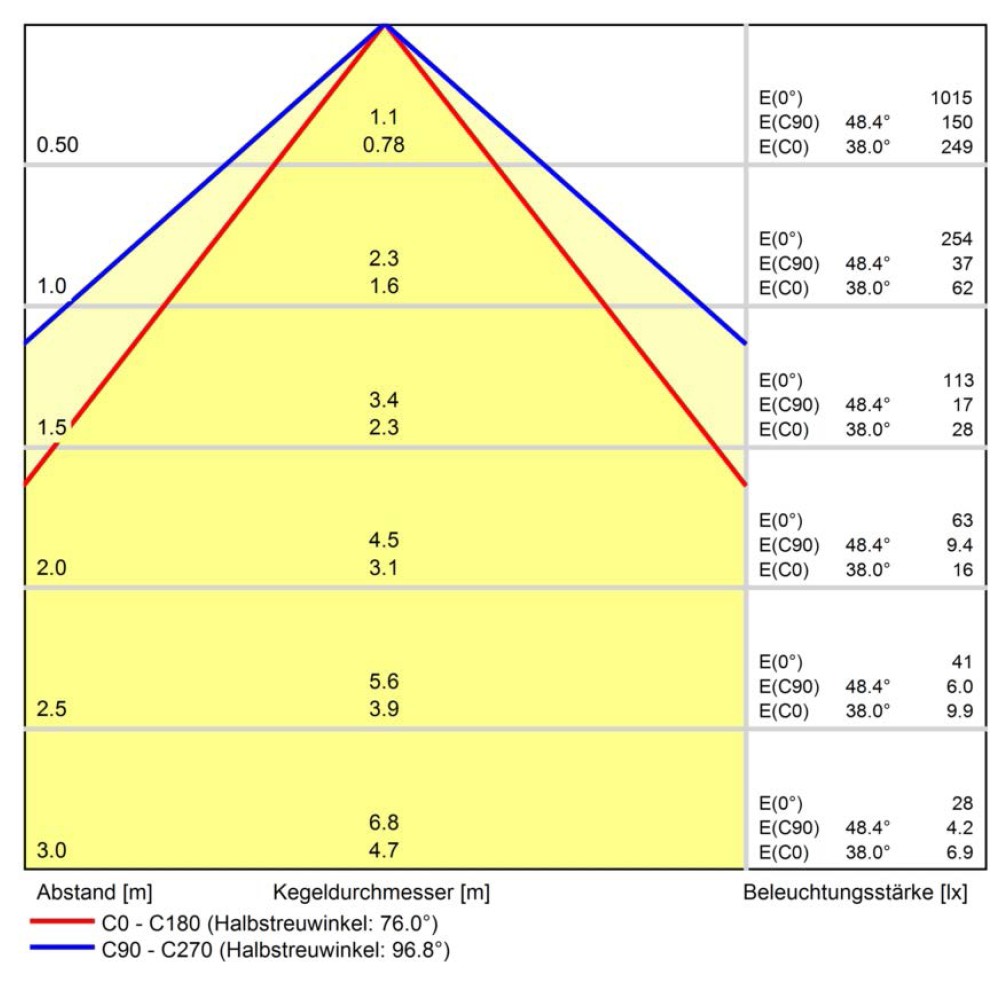

• Beam angle: 100°
• Supply voltage: 24V DC -10 %/+7 % (RGB), 24V DC ± 10 % (W)
• Connection: M8 B-coded
• Protection rating: IP67
• Protection class: III
• Operating temperature: -30 °C to +55 °C
• Service life: over 100,000 h (L80/B10)
• Housing material: aluminium
• Cover material: safety glass

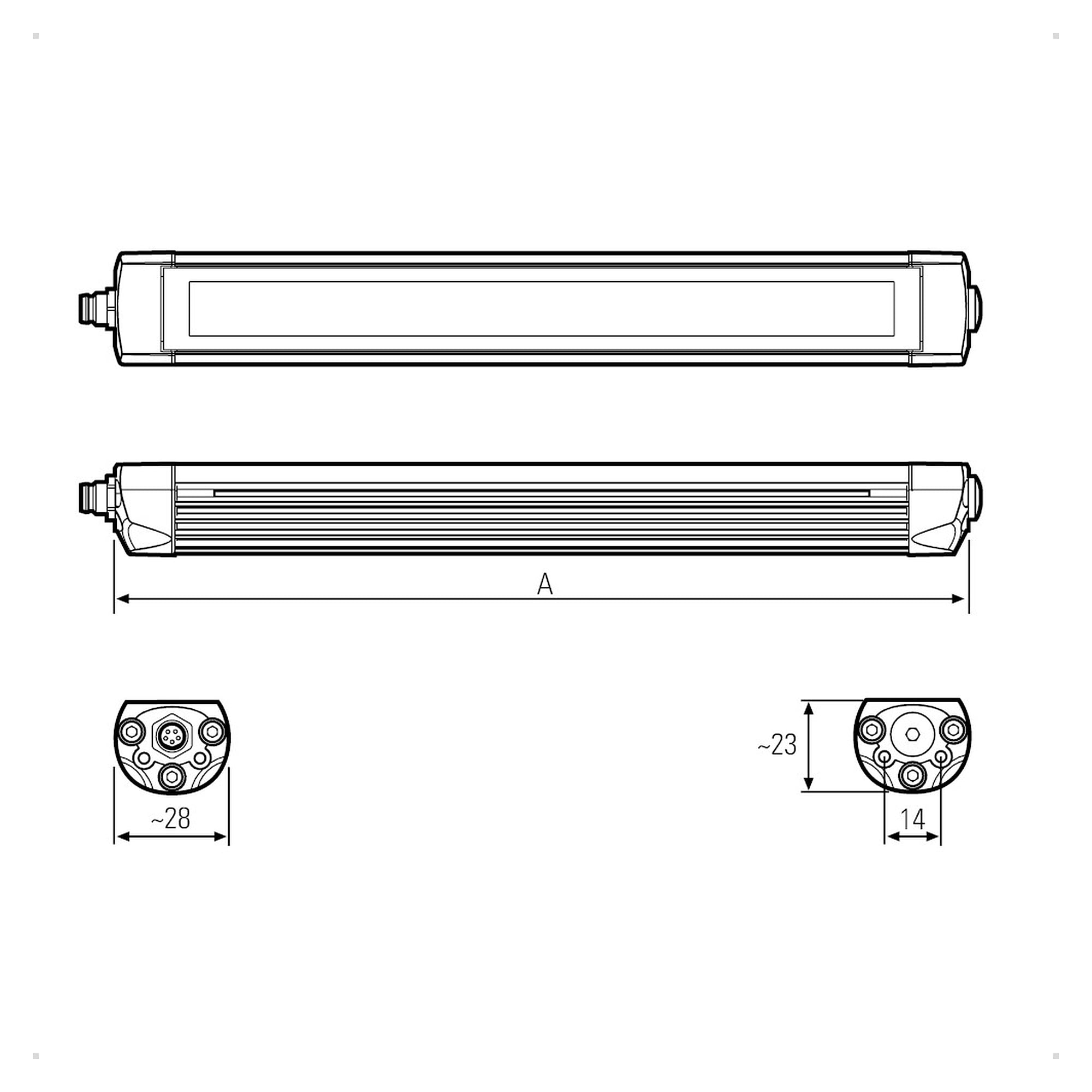

• Dimensions: 290 mm length, approx. 23 x 28 mm
• Weight: 30 g
• Risk group (DIN EN 62471): exempt group
• Certifications: CE, UKCA, ETL Listed (5003529)
• Made in: Germany

Applications

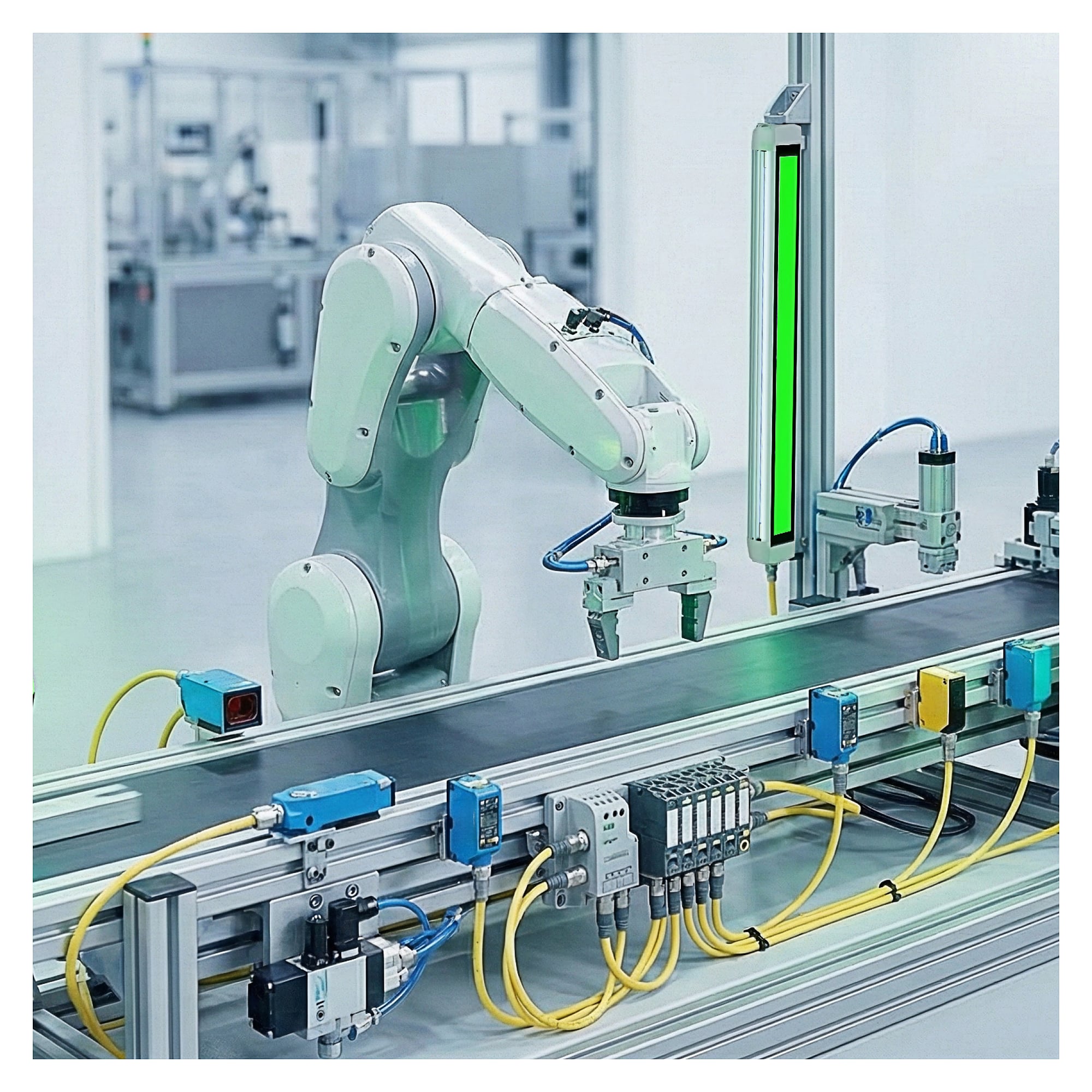

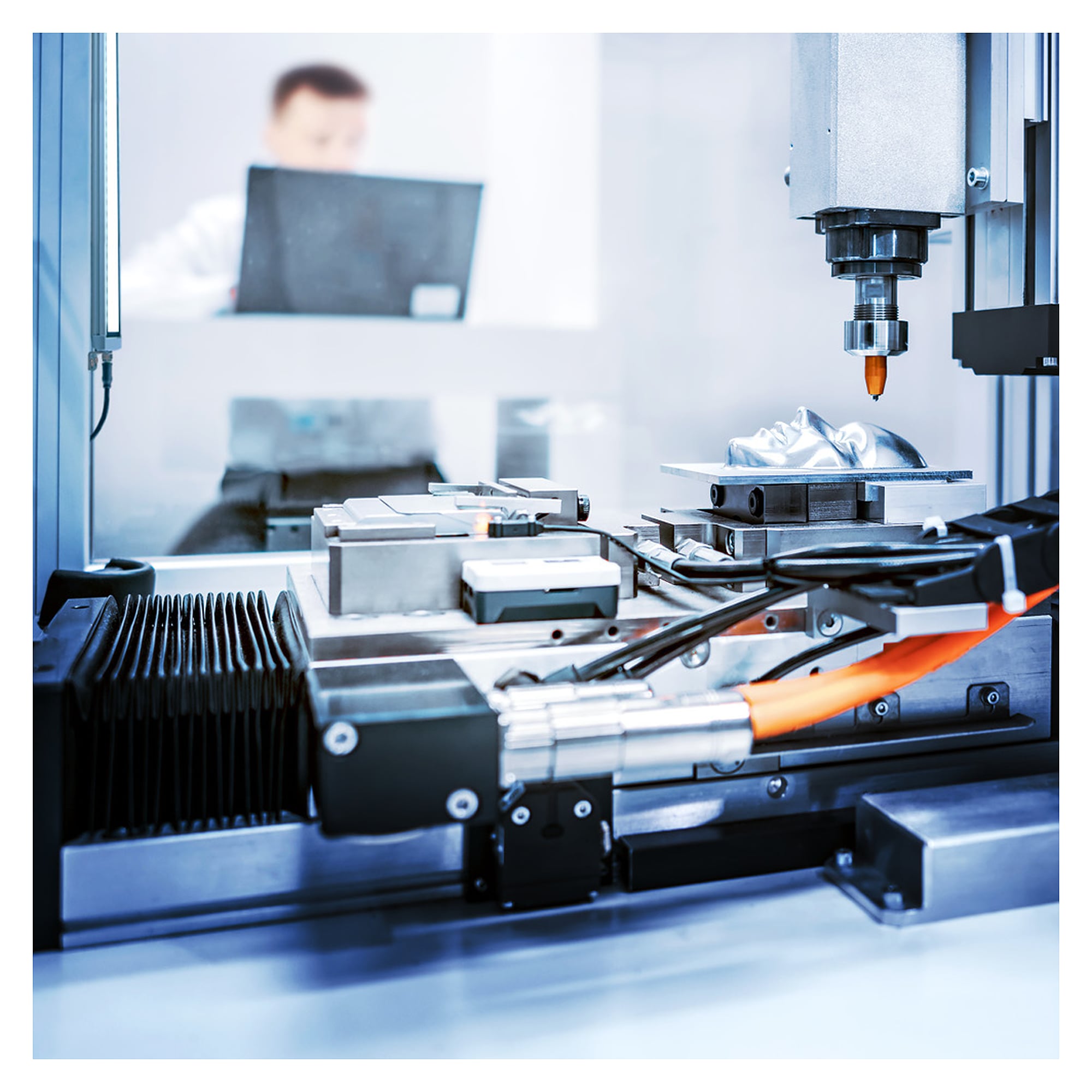

Combined work lighting and status signalling on CNC machine tools, in automation and on infrastructure equipment, especially in networked IoT environments.

Mounting accessories available as an option.
