SYSTEMLED EVO POWER system light 1782mm 80W 5700K dimmable - LED2WORK 155410-01
High-output LED system light for long, demanding workstations. Over 1782 mm it delivers 13000 lm of 5700K daylight white at around 80 W and is externally dimmable or switchable.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Where a long span calls for plenty of light, the SYSTEMLED EVO - POWER delivers 13000 lm over 1782 mm at around 80 W total power. The daylight-white 5700K light and external dimming/switching make it suitable for demanding production and assembly areas.
Key benefits
- 13000 lm at ~80 W, very high efficacy of 184 lm/W.
- Externally dimmable/switchable for flexible lighting control.
- Daylight-white 5700K light (3-step MacAdam) with high colour consistency.
- Colour rendering Ra >90 (typ. 95), R9 = 90 for strong reds.
- Microprism glare control for glare-free work at a 90° beam angle.
Applications

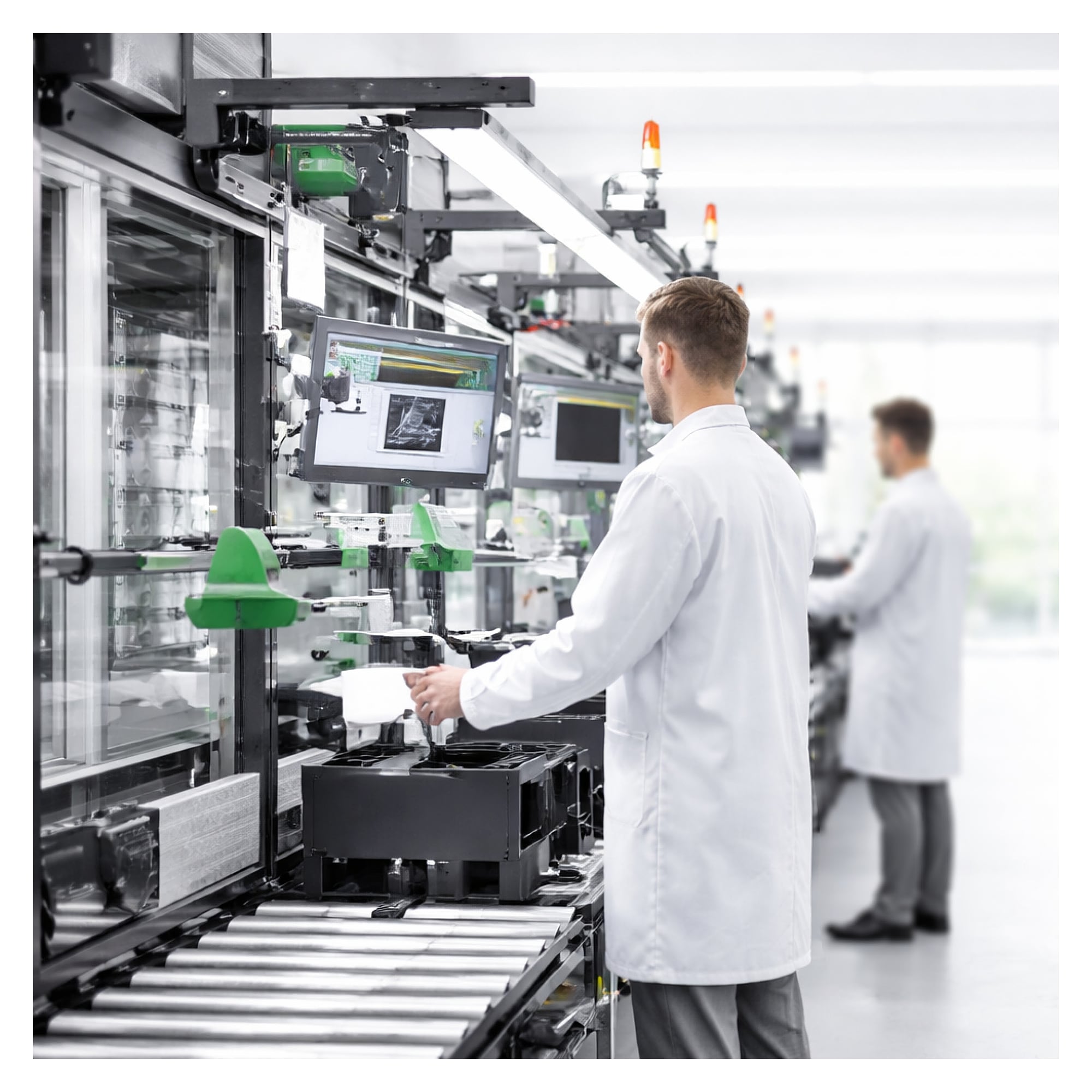

Suited to production lines, laboratories and assembly stations with high light demand over long spans and a need for even, glare-free illumination. Mounting is via the rear T-slot, compatible with size-8 T-slots, with optional fixing accessories available.
Technical data
| Model | SYSTEMLED EVO - POWER daylight white |
|---|---|
| Design | LED system light, SMD LED |
| Total power incl. driver | ~80 W (lamp power ~73 W) |
| Luminous flux | 13000 lm, efficacy 184 lm/W |

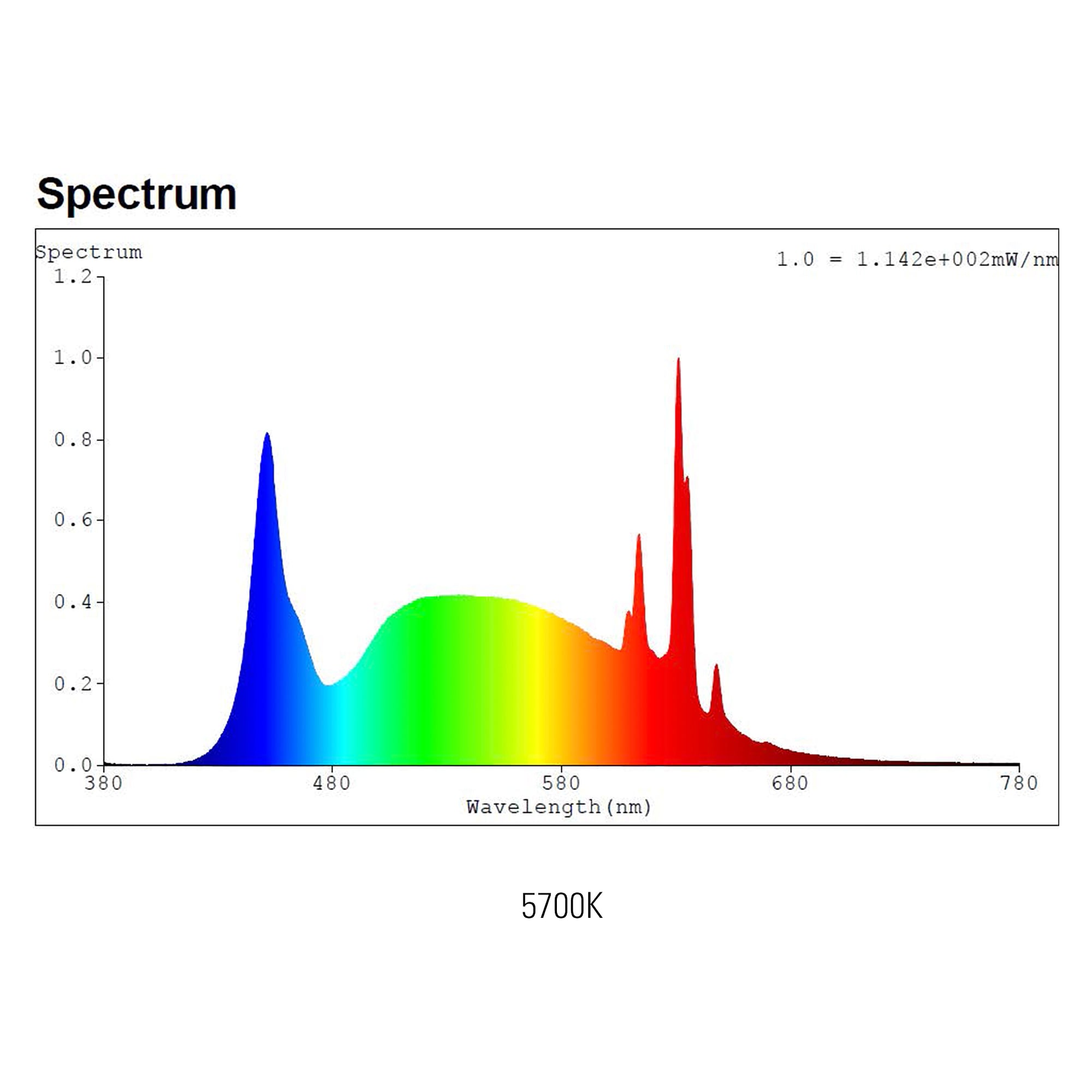

| Light colour | 5700K 3-step MacAdam, R9 = 90 |
| Colour rendering | Ra >90 (typ. 95) |
| Supply voltage | 120-277V AC ± 10%, 50-60 Hz, integrated driver |

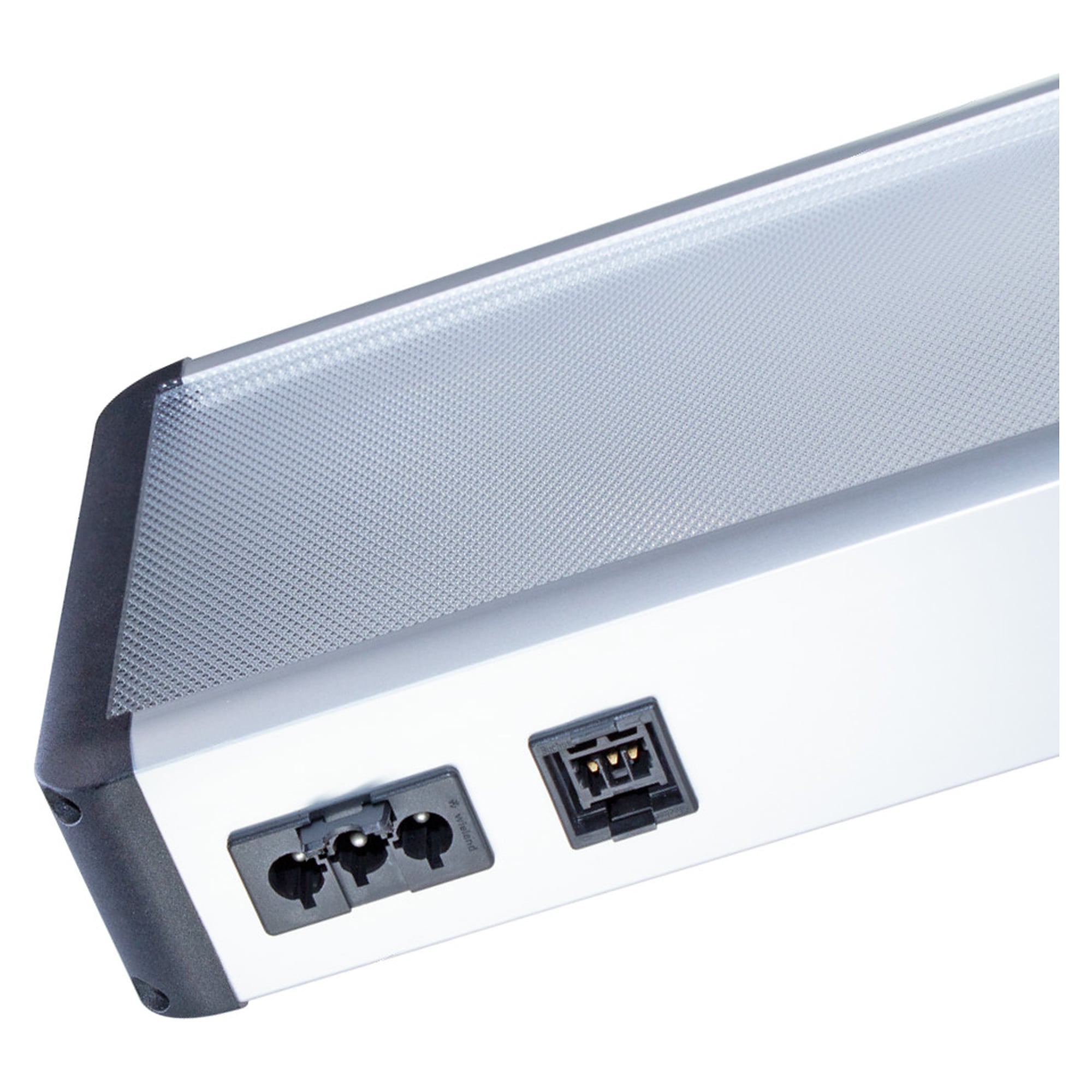

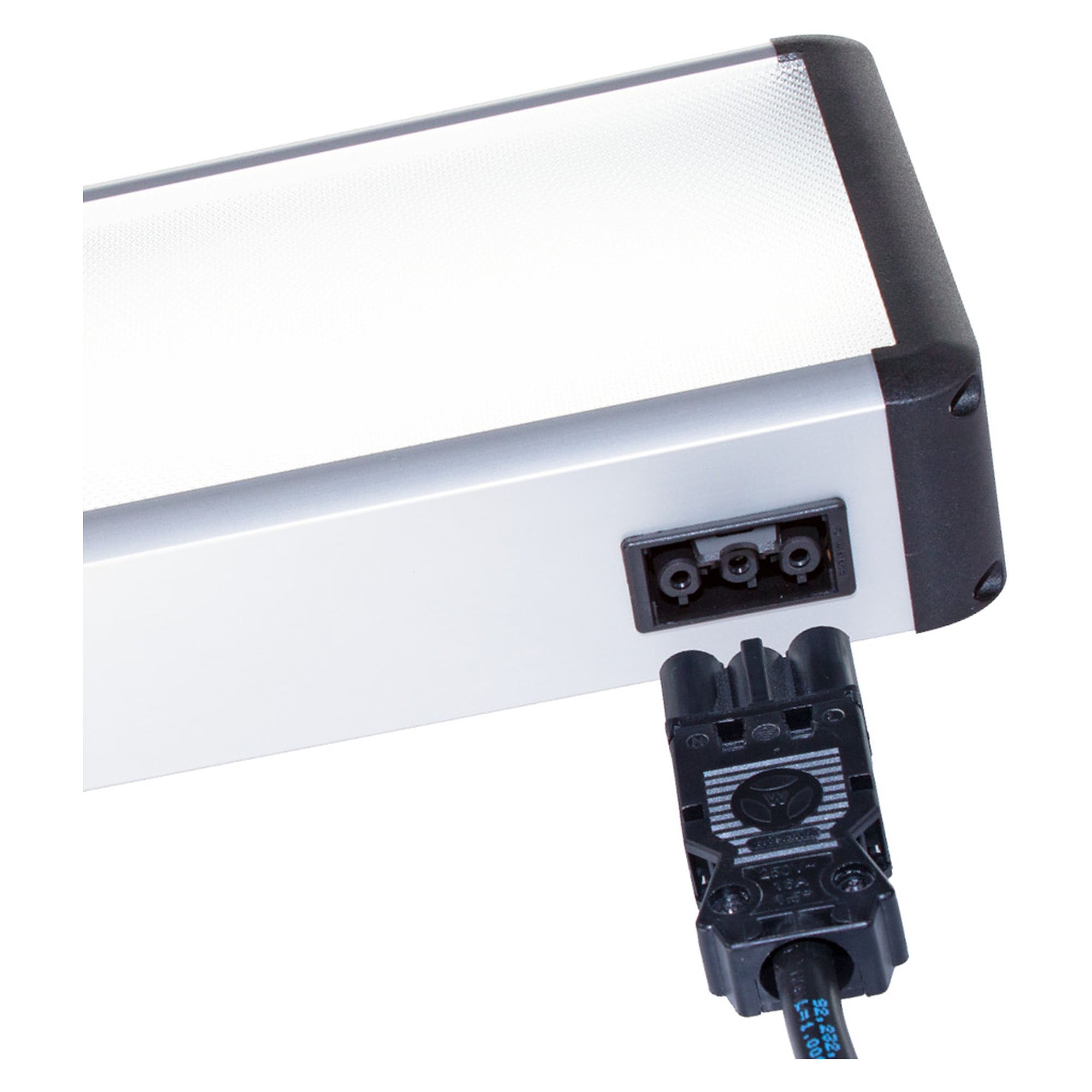

| Connection | Wieland GST18 |
| Protection rating | IP40, protection class I |

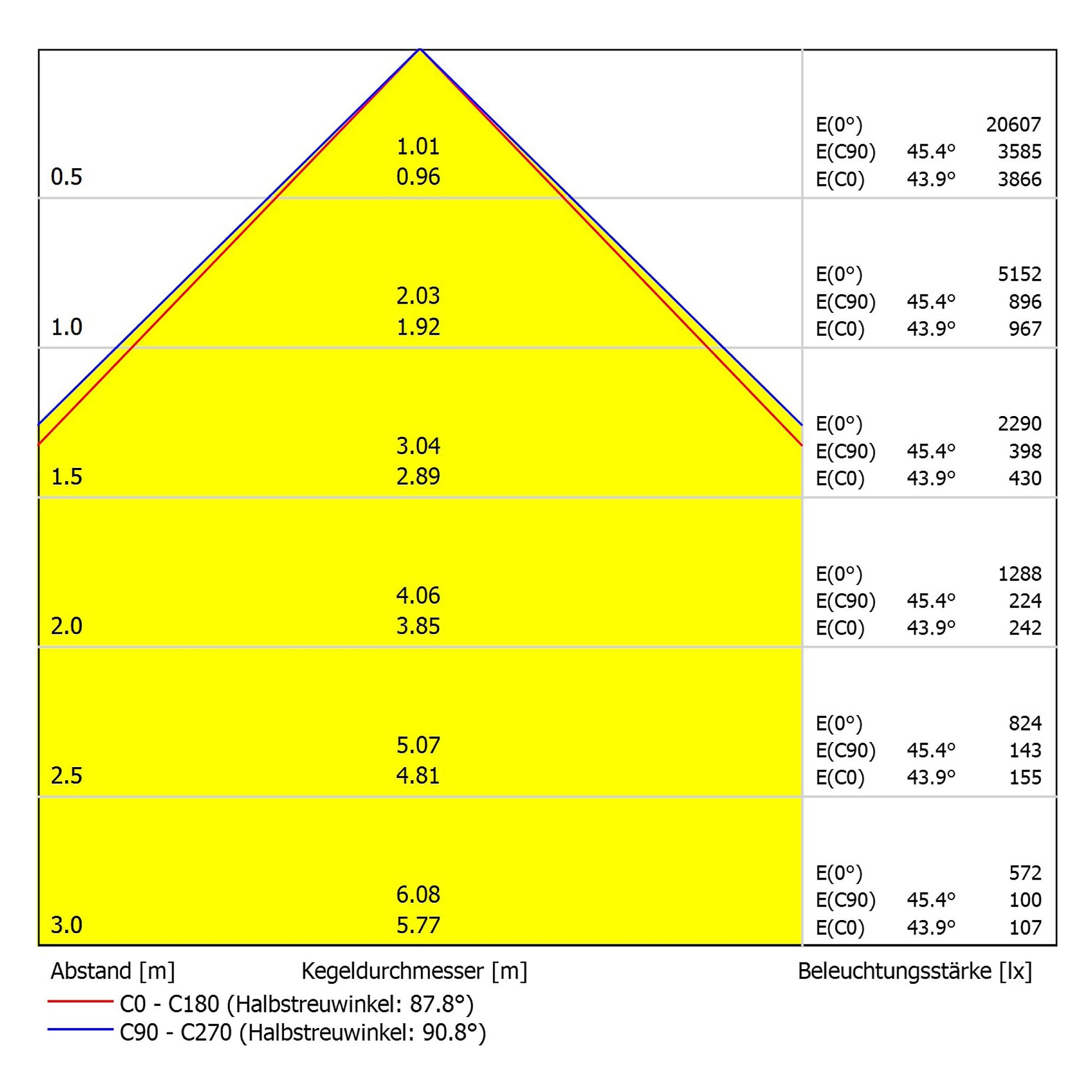

| Beam angle | 90°, glare control via microprisms |
| Operating temperature | -10 °C to +50 °C |
| Service life | > 100,000 h (L80/B10) |
| Material | aluminium and PMMA |

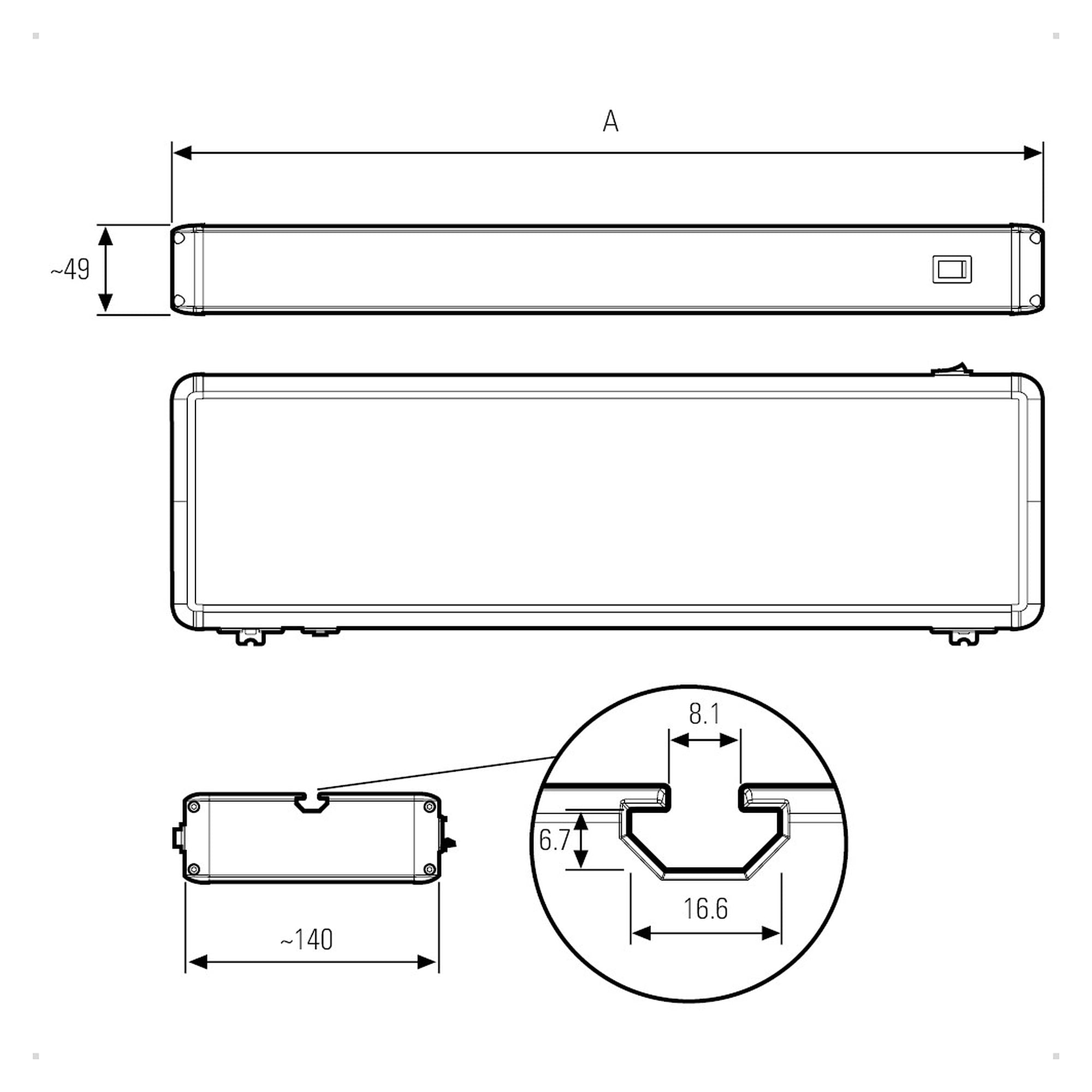

| Dimensions | 1782 mm x 139 mm x 48 mm (L x W x H), weight 4750 g |
| Risk group (DIN EN 62471) | exempt group |
| Certifications | CE, UKCA |
| Special feature | externally dimmable/switchable |
| Made in | Germany |
| Weight | 4.75 kg |
| Manufacturer | LED2WORK |
| Manufacturer Nr. | 155410-01 |
| HS-Code | 94054239 |
| GPSR manufacturer information | LED2WORK GmbH, Stuttgarter Straße 13 A, 75179 Pforzheim www.led2work.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| Norm | DIN EN 62471 |
| Control and dimming | Switchable (HF) |
| Luminous flux (lumen) | 13000 lm |
| Power (W) | 80 W |
| Colour temperature | 5700K |
| Colour rendering (Ra) | Ra 90 |
| Mounting type | T-slot / profile |
| Operating voltage | 120-277 V |
| Protection class (IP) | IP40 |
