SYSTEMLED EVO POWER system light 1342mm 60W 5700K dimmable - LED2WORK 155310-01

Images are examples, some edited with AI. The technical data are authoritative. AI notice

SYSTEMLED EVO POWER system light 1342mm 60W 5700K dimmable - LED2WORK 155310-01

Name: SYSTEMLED EVO POWER system light 1342mm 60W 5700K dimmable - LED2WORK 155310-01
Brand: LED2WORK
SKU: L2W-155310-01
Price: 419.32 EUR
Availability: InStock

LED2WORK ✓ Original product Brand new Made in Germany

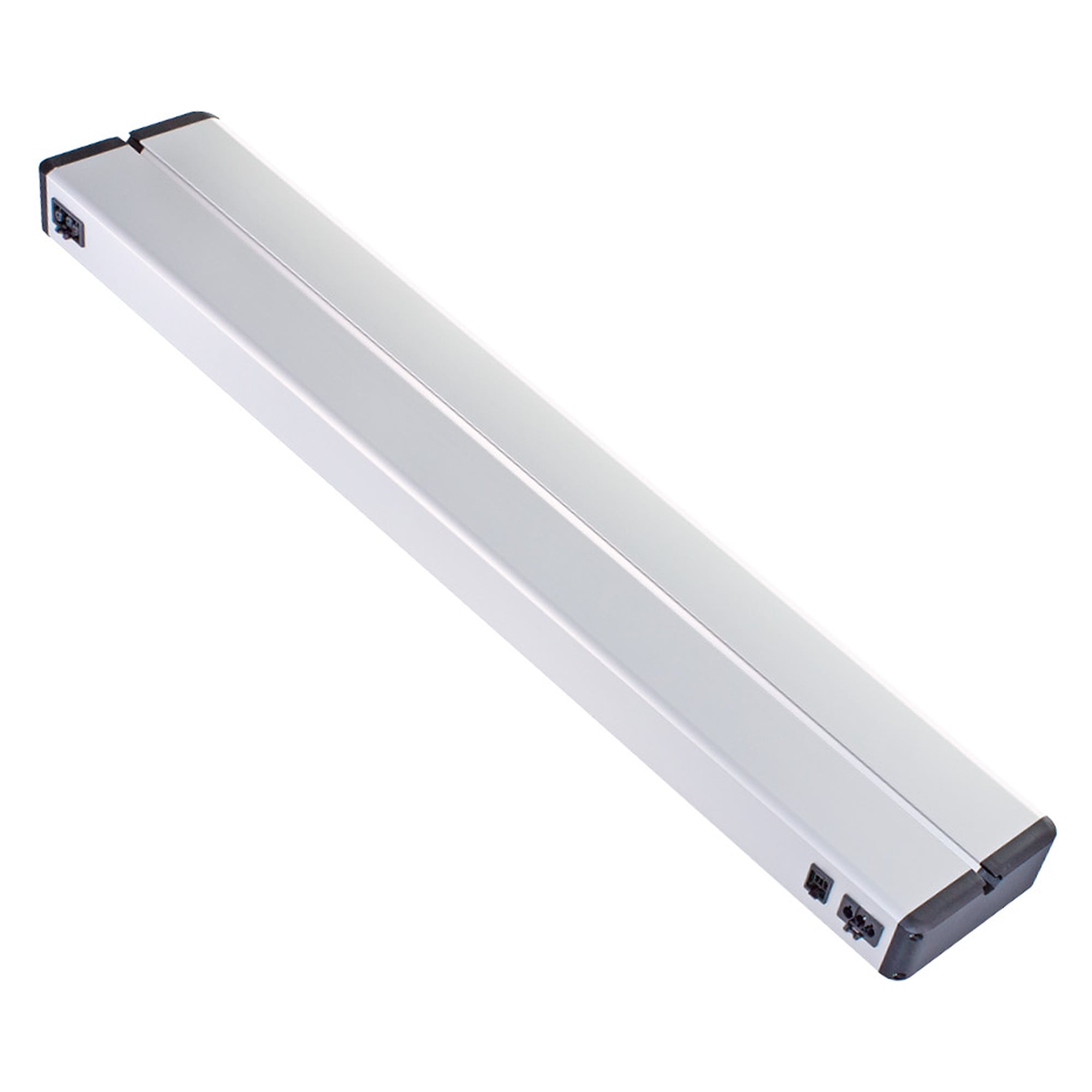

High-output LED system light for demanding workstations. Over 1342 mm it delivers 9750 lm of 5700K daylight white at around 60 W and is externally dimmable or switchable.

Net

€419.32

excl. VAT

Item L2W-155310-01

Manufacturer no. 155310-01

Question about this item

Datasheet (PDF) User manual 5 documents, all under Downloads

Specialist dealer since 2009
Invoice payment for regular customers
Worldwide shipping
Technical questions clarified with the manufacturer

Description

Where a long run needs plenty of light, the SYSTEMLED EVO - POWER delivers 9750 lm over 1342 mm at around 60 W total power. The daylight-white 5700K light and external dimming/switching make it suitable for demanding production and assembly areas.

Key benefits

9750 lm at ~60 W, very high efficacy of 184 lm/W.
Externally dimmable/switchable for flexible lighting control.
Daylight-white 5700K light (3-step MacAdam) with high colour consistency.
Colour rendering Ra >90 (typ. 95), R9 = 90 for strong reds.
Microprism glare control for glare-free work at a 90° beam angle.

Applications

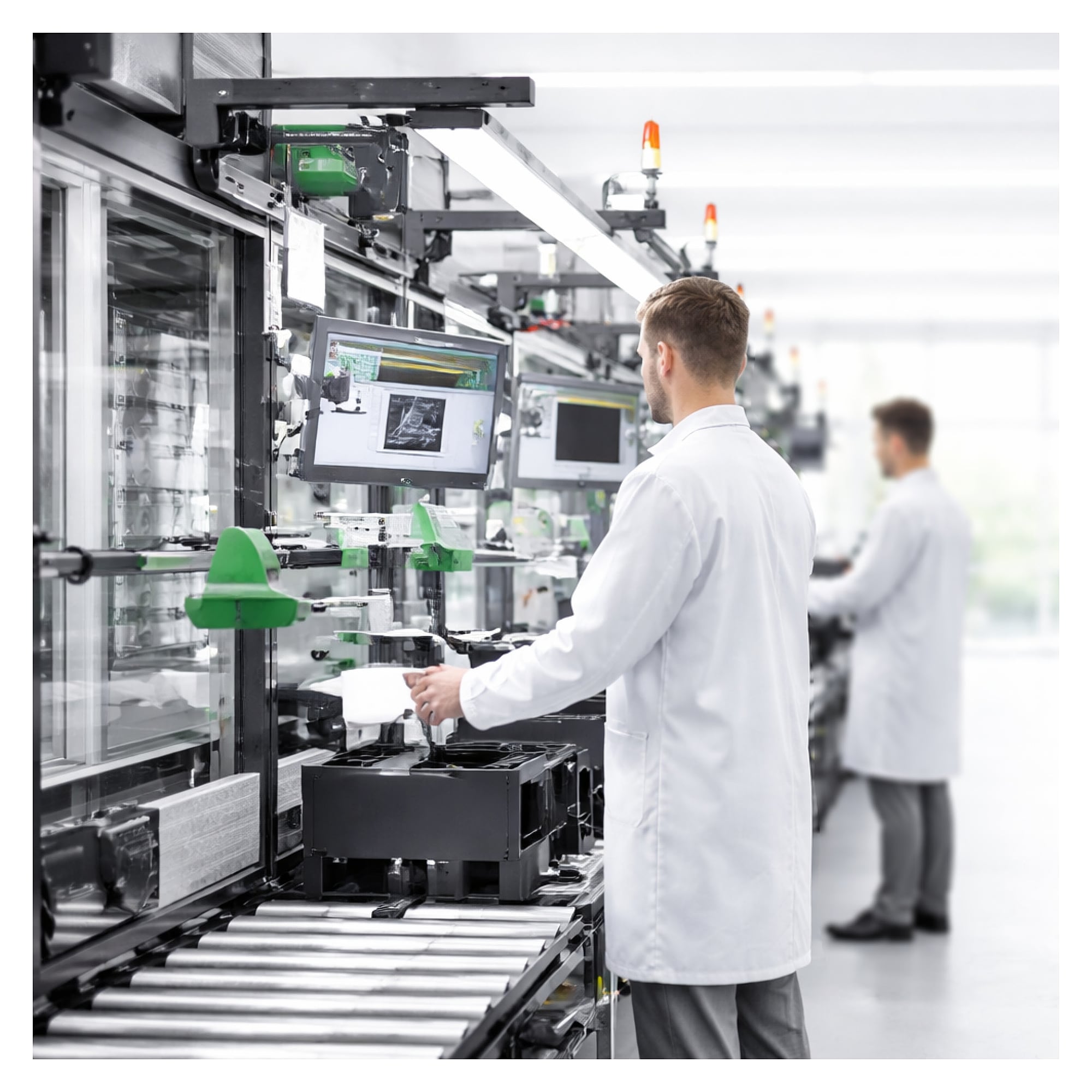

Suited to production lines, laboratories and assembly stations with high light demand and a need for even, glare-free illumination. Mounting is via the rear T-slot, compatible with size-8 T-slots, with optional fixing accessories available.

Technical data

Model	SYSTEMLED EVO - POWER daylight white
Design	LED system light, SMD LED
Total power incl. driver	~60 W (lamp power ~54.75 W)
Luminous flux	9750 lm, efficacy 184 lm/W

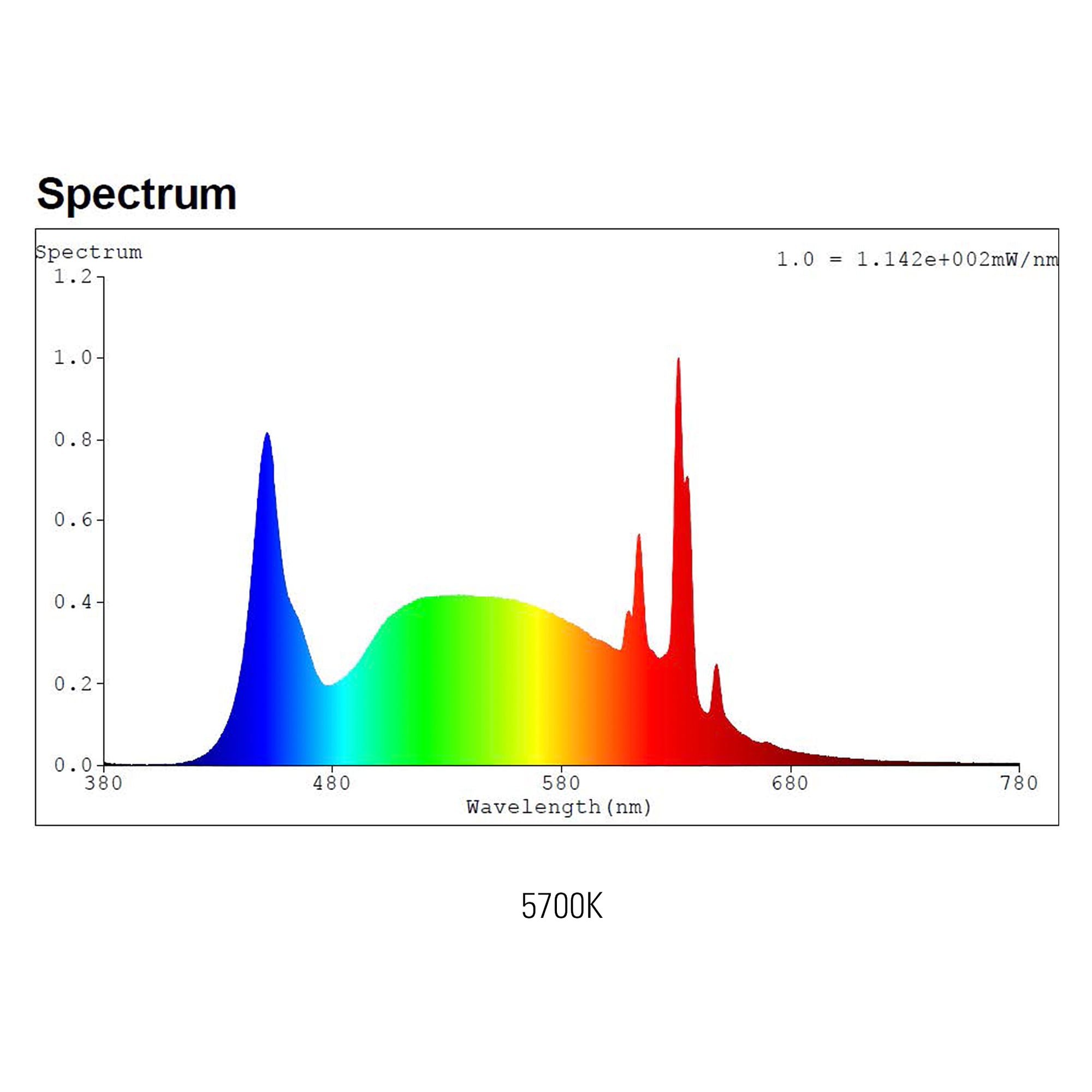

Light colour	5700K 3-step MacAdam, R9 = 90
Colour rendering	Ra >90 (typ. 95)
Supply voltage	120-277V AC ± 10%, 50-60 Hz, integrated driver

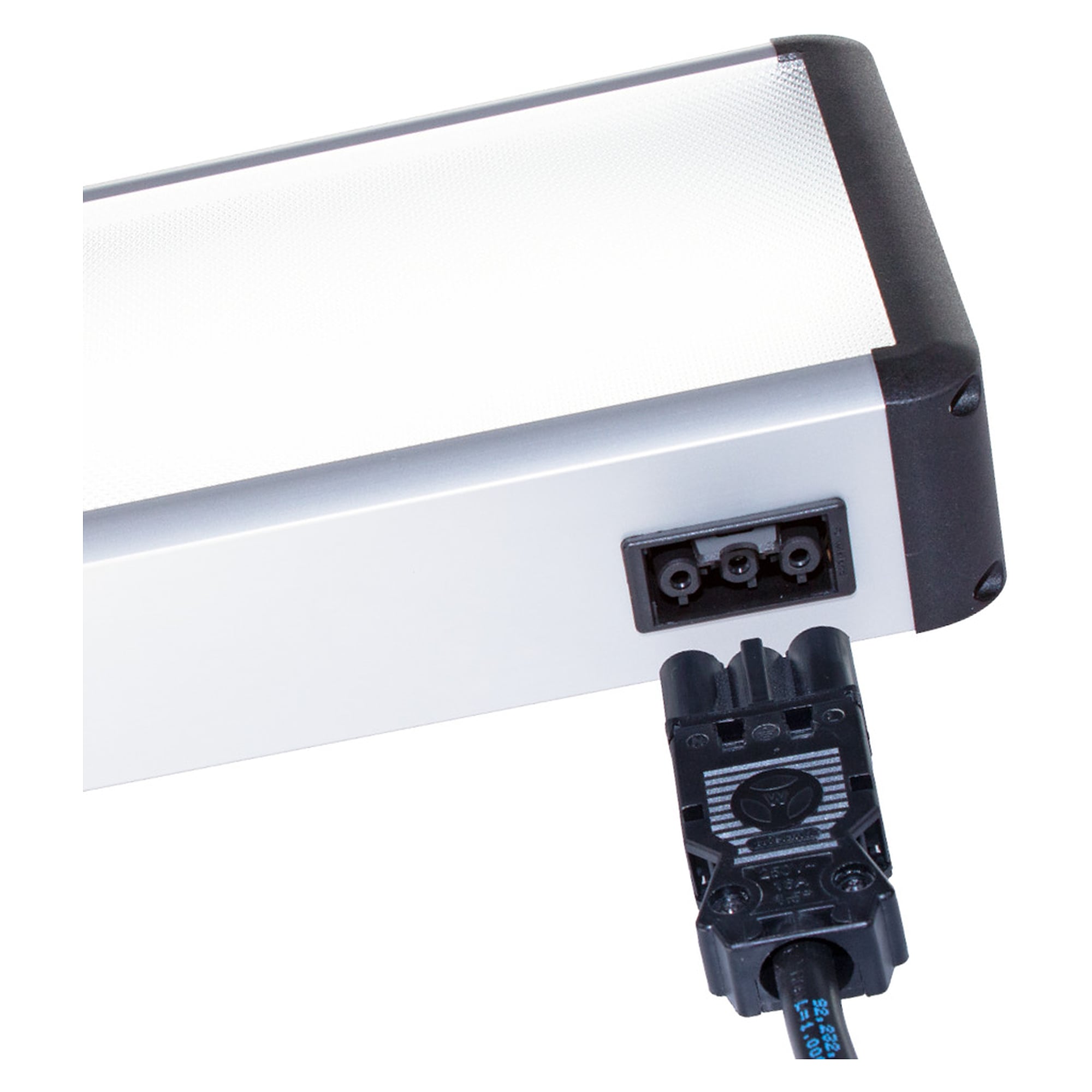

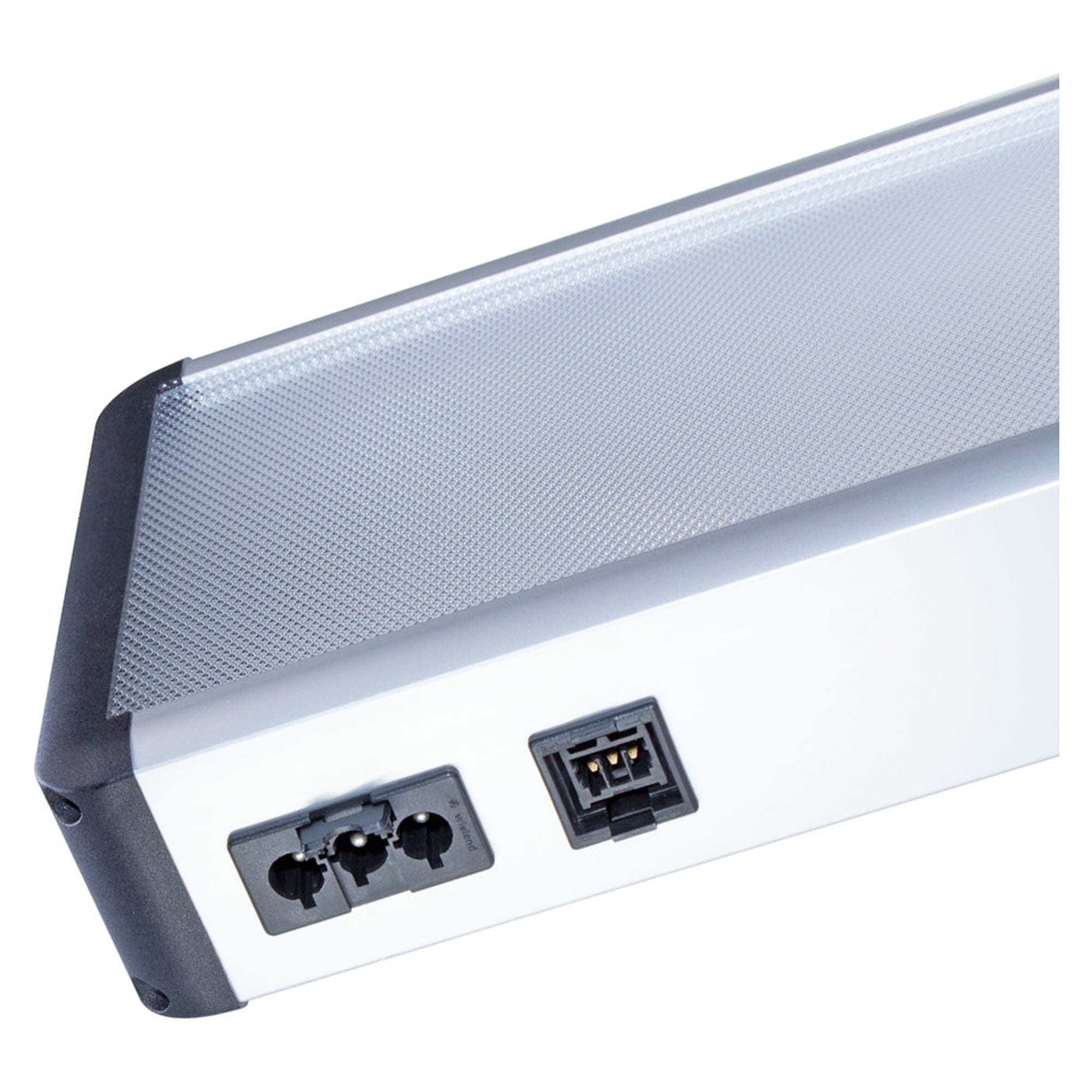

Connection	Wieland GST18
Protection rating	IP40, protection class I

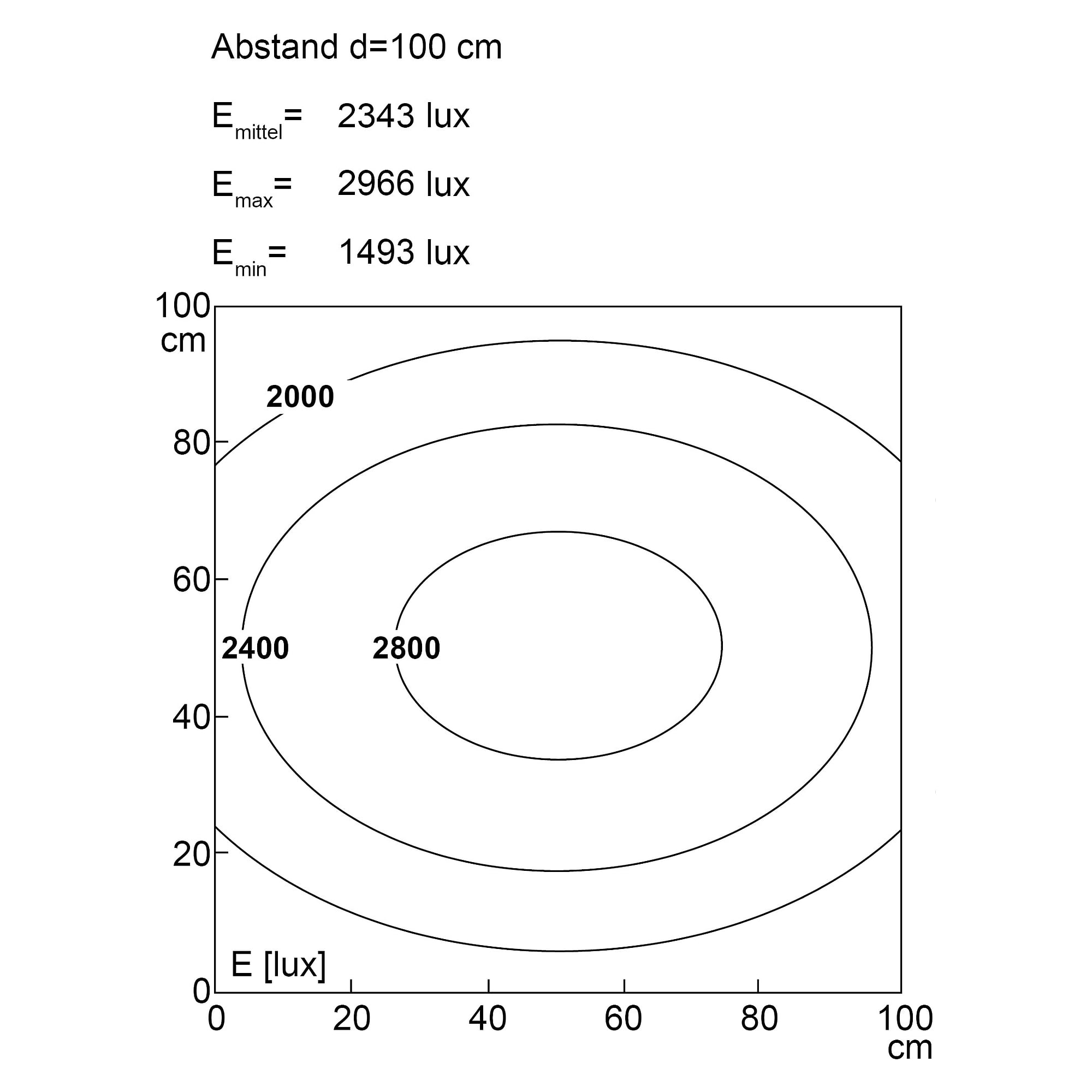

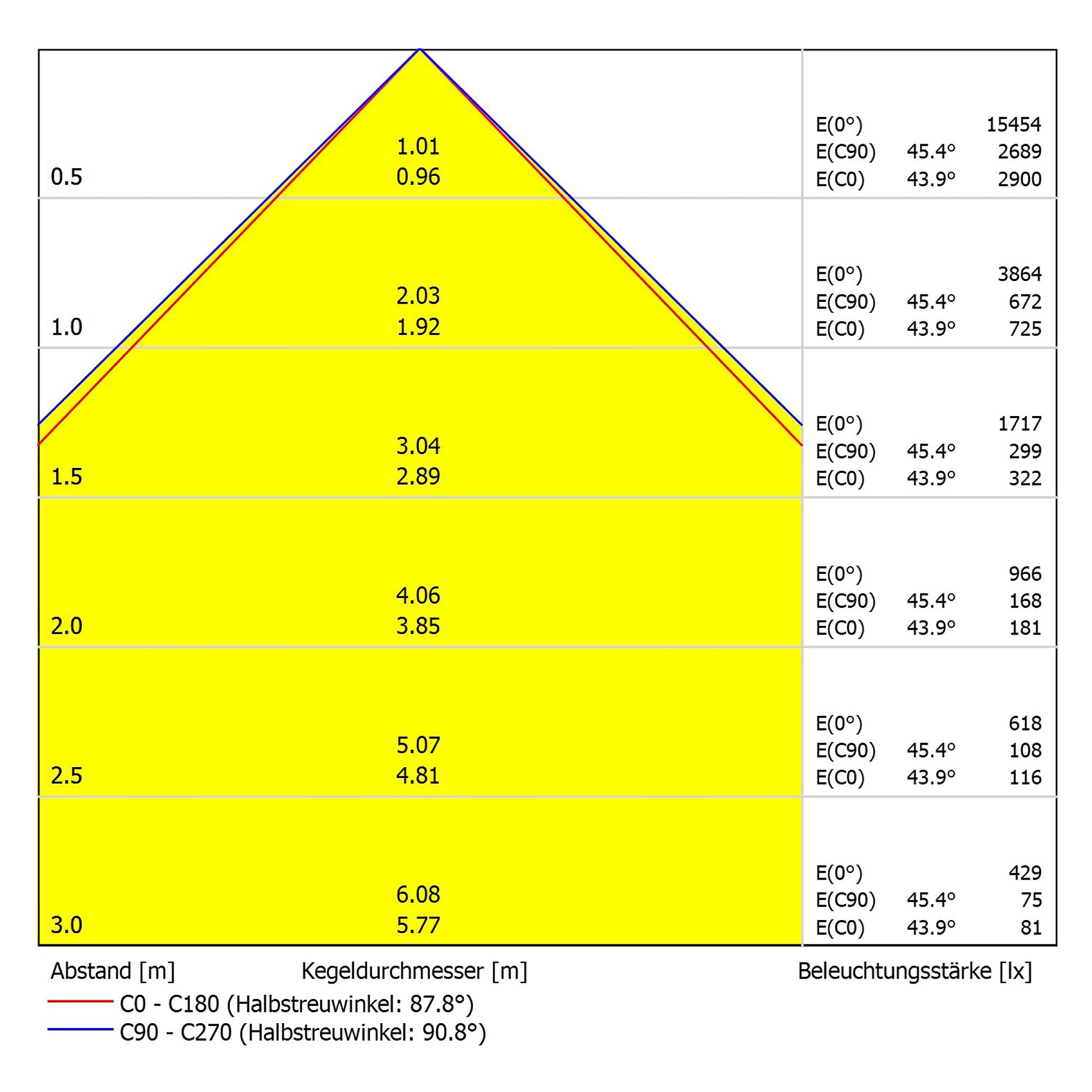

Beam angle	90°, glare control via microprisms
Operating temperature	-10 °C to +50 °C
Service life	> 100,000 h (L80/B10)
Material	aluminium and PMMA

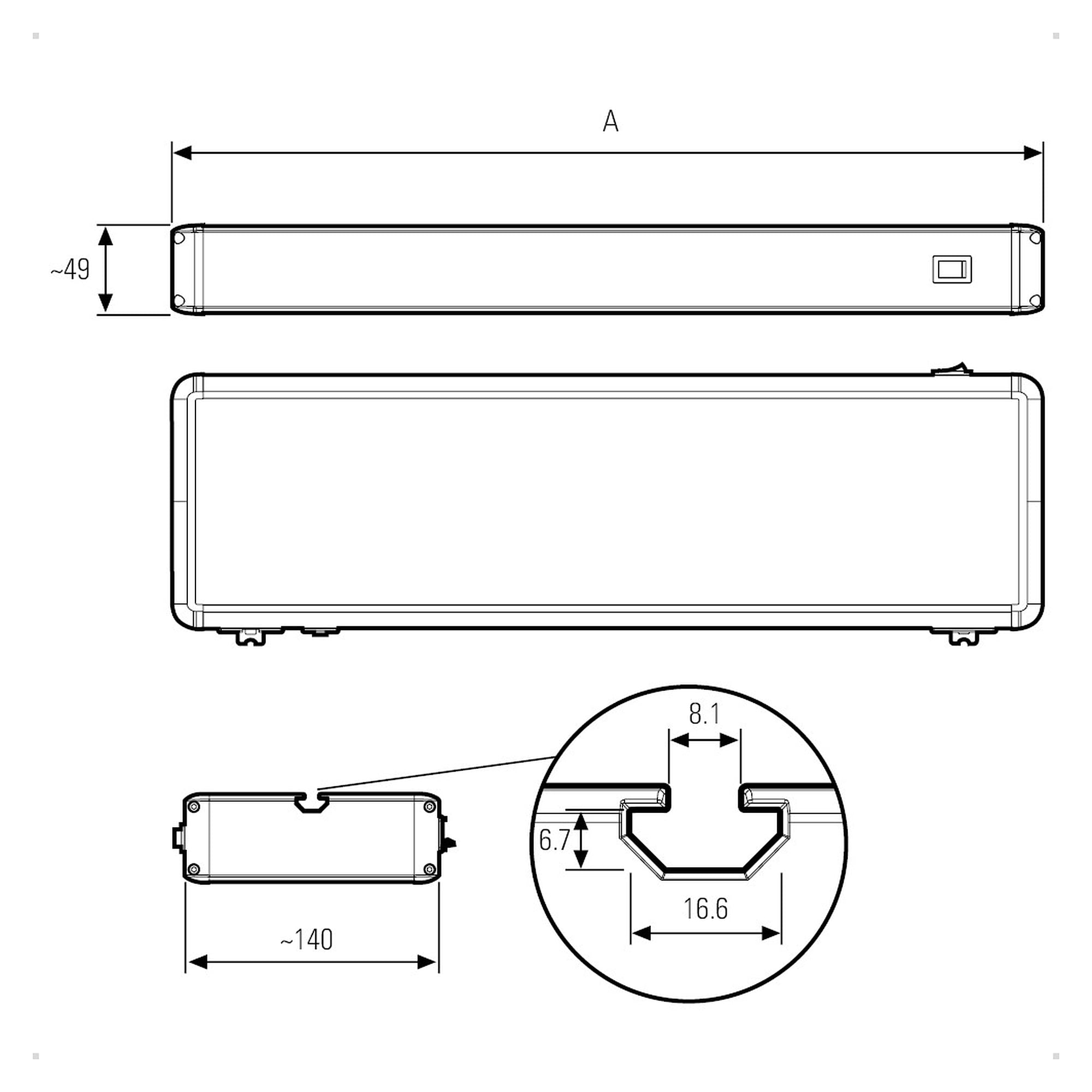

Dimensions	1342 mm x 139 mm x 48 mm (L x W x H), weight 3700 g
Risk group (DIN EN 62471)	exempt group
Certifications	CE, UKCA

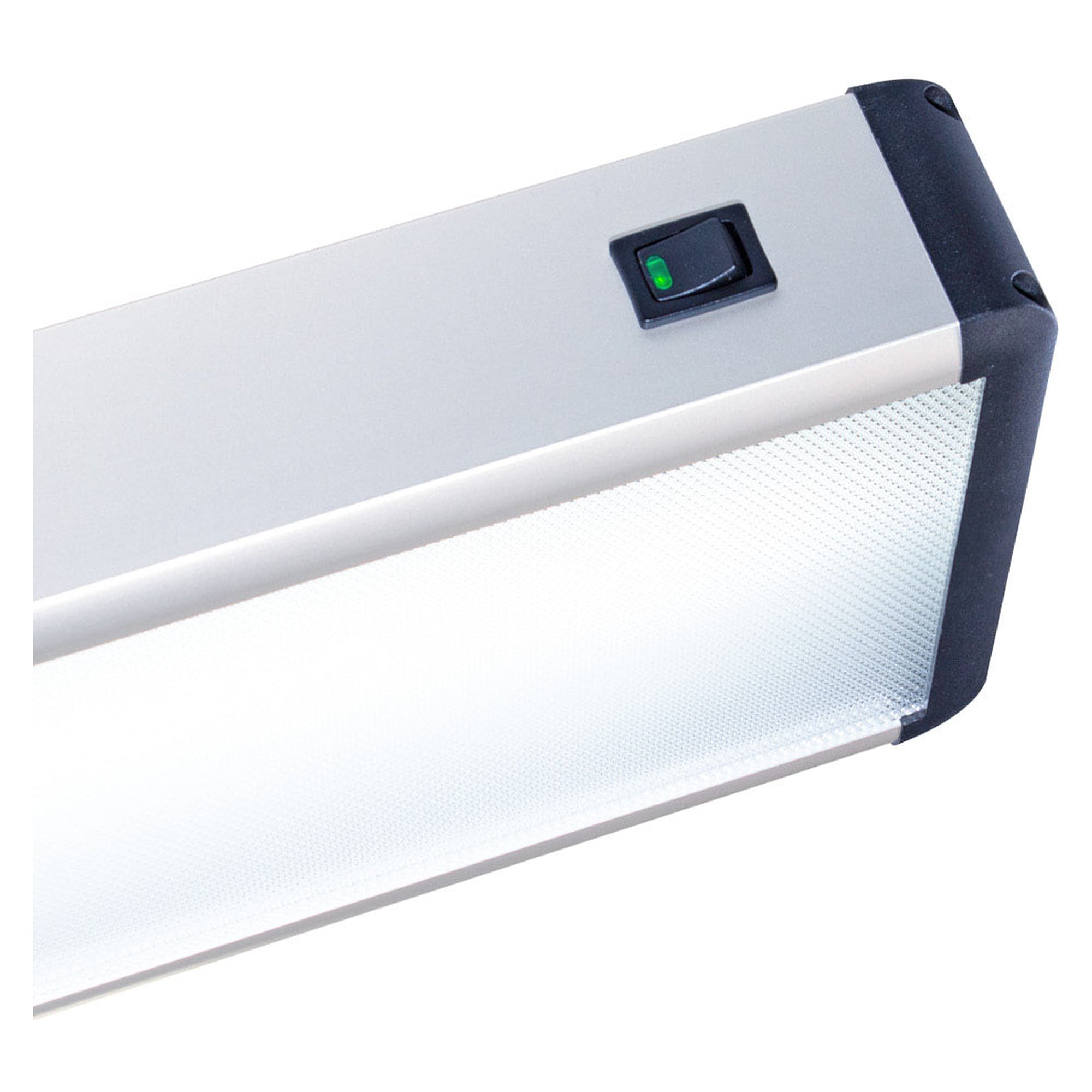

Special feature	externally dimmable/switchable
Made in	Germany
Weight	3.7 kg
Manufacturer	LED2WORK
Manufacturer Nr.	155310-01
HS-Code	94054239
GPSR manufacturer information	LED2WORK GmbH, Stuttgarter Straße 13 A, 75179 Pforzheim www.led2work.com
Condition of article	New
Article authenticity	Original product
Country of Manufacture	Germany
Norm	DIN EN 62471
Control and dimming	Switchable (HF)
Luminous flux (lumen)	9750 lm
Power (W)	60 W
Colour temperature	5700K
Colour rendering (Ra)	Ra 90
Mounting type	T-slot / profile
Operating voltage	120-277 V
Protection class (IP)	IP40
