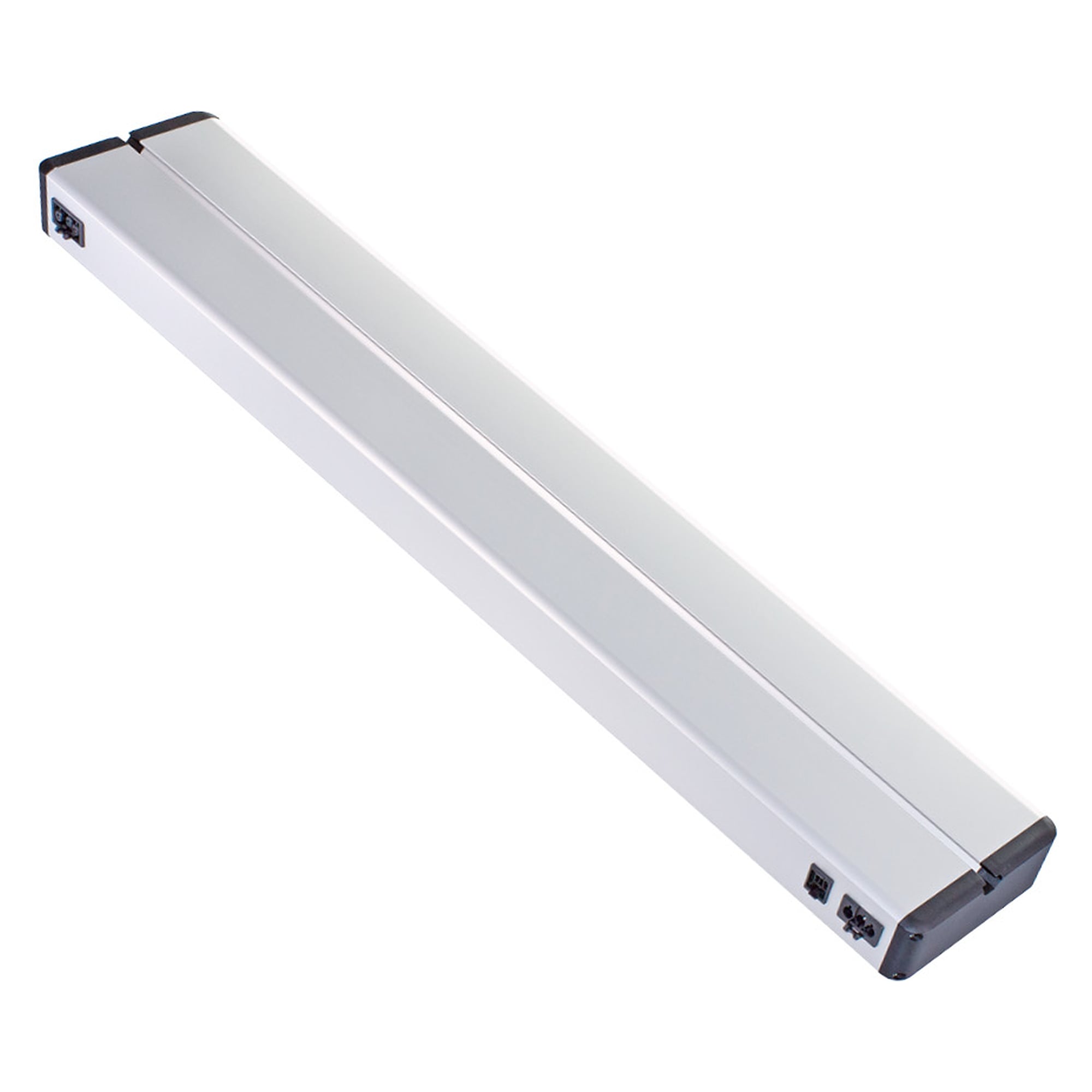

SYSTEMLED EVO POWER LED system light 898mm 5700K, approx. 41W, IP40 - LED2WORK 155110-01

The SYSTEMLED EVO POWER is a German-made LED system light for demanding assembly, production and laboratory workplaces. Over a 898mm length it delivers 6500 lm of luminous flux in 5700K daylight white, creating the even, glare-free lighting that precise work needs.

Key benefits

• High efficiency: 184 lm/W efficacy from approx. 41W connected power keeps running costs low.
• Bright illumination: 6500 lm of luminous flux in 5700K daylight white for clearly visible work areas.
• Glare-free: micro-prism glare control and a 90° beam angle for an even light distribution.
• High colour fidelity: colour rendering >90 (typ. 95) with 3-step MacAdam consistency for reliable colour recognition.

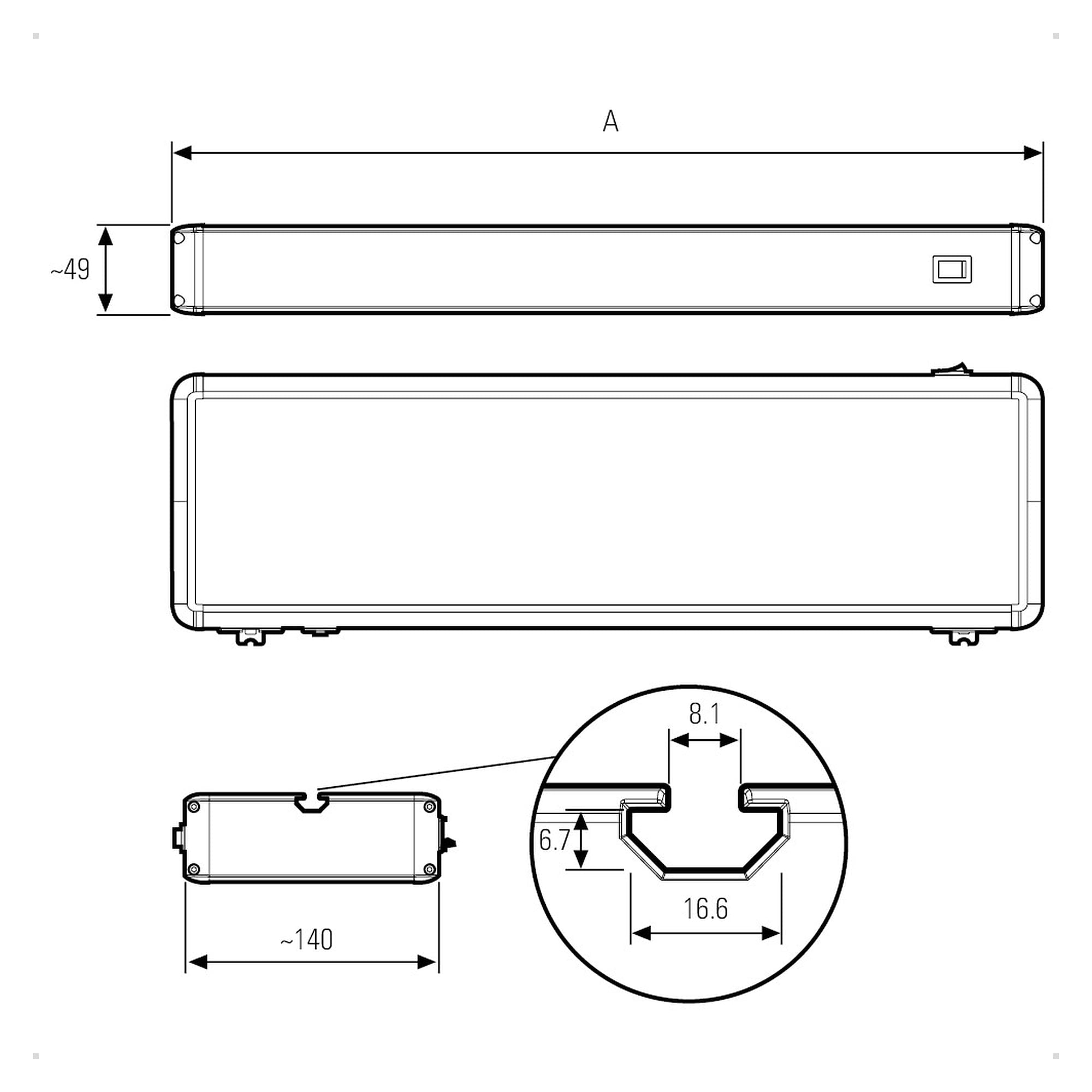

• Easy mounting: a rear T-slot (slot size 8) fixes the light to common profile and carrier systems.
• Durable: a service life of > 100.000 h (L80/B10) and German manufacture for long-term reliability.

Technical data

• Model: SYSTEMLED EVO - POWER Tageslichtweiss
• Type: LED Systemleuchte
• Light source: SMD LED
• Total power incl. driver: ~41 W
• Lamp power: ~36,5 W
• Luminous flux: 6500 lm
• Luminous efficacy: 184 lm/W
• Light distribution: Direct

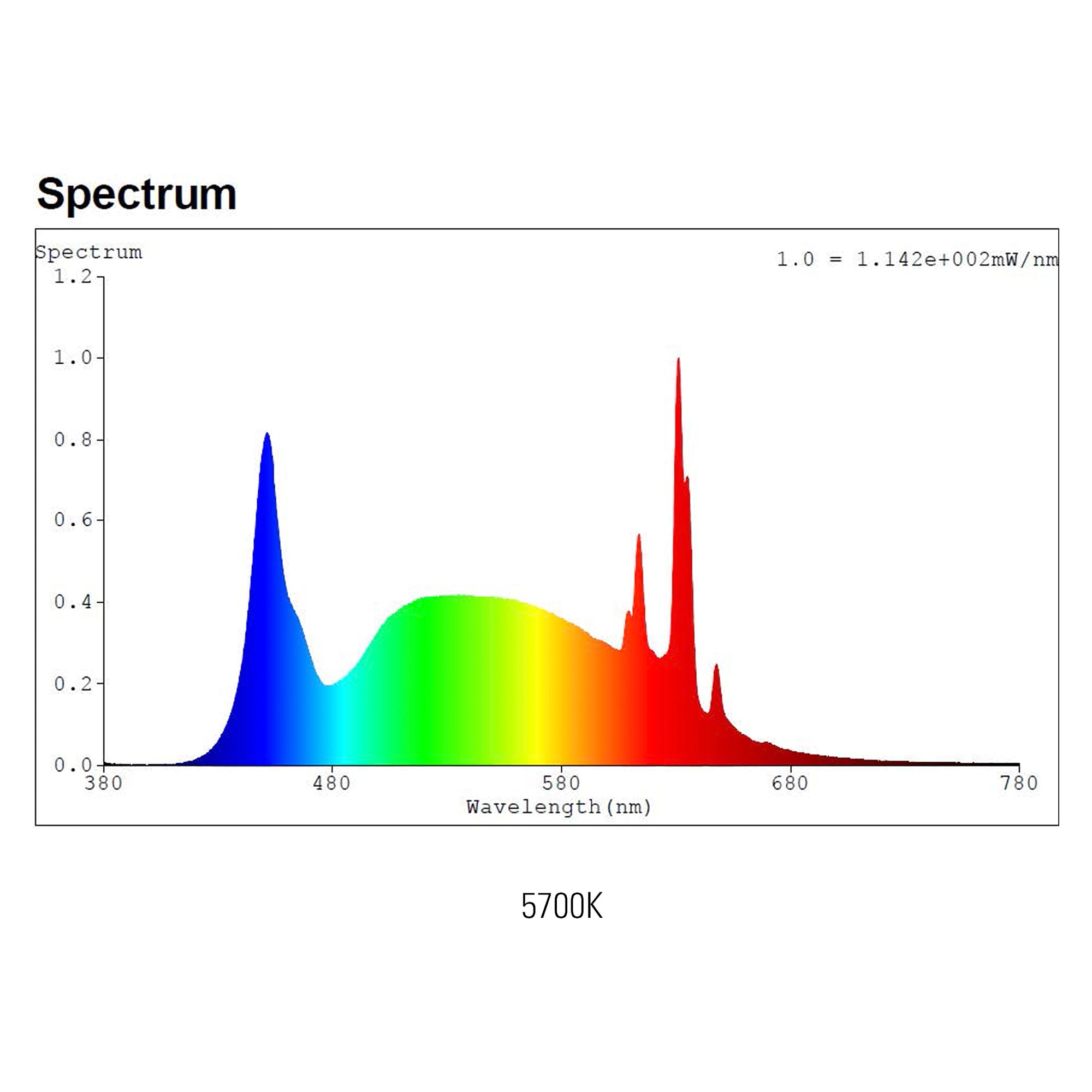

• Light colour: 5700K 3-step MacAdam
• Colour rendering (Ra): >90 (typ. 95)
• Supply voltage: 120-277V AC ± 10%, 50-60 Hz

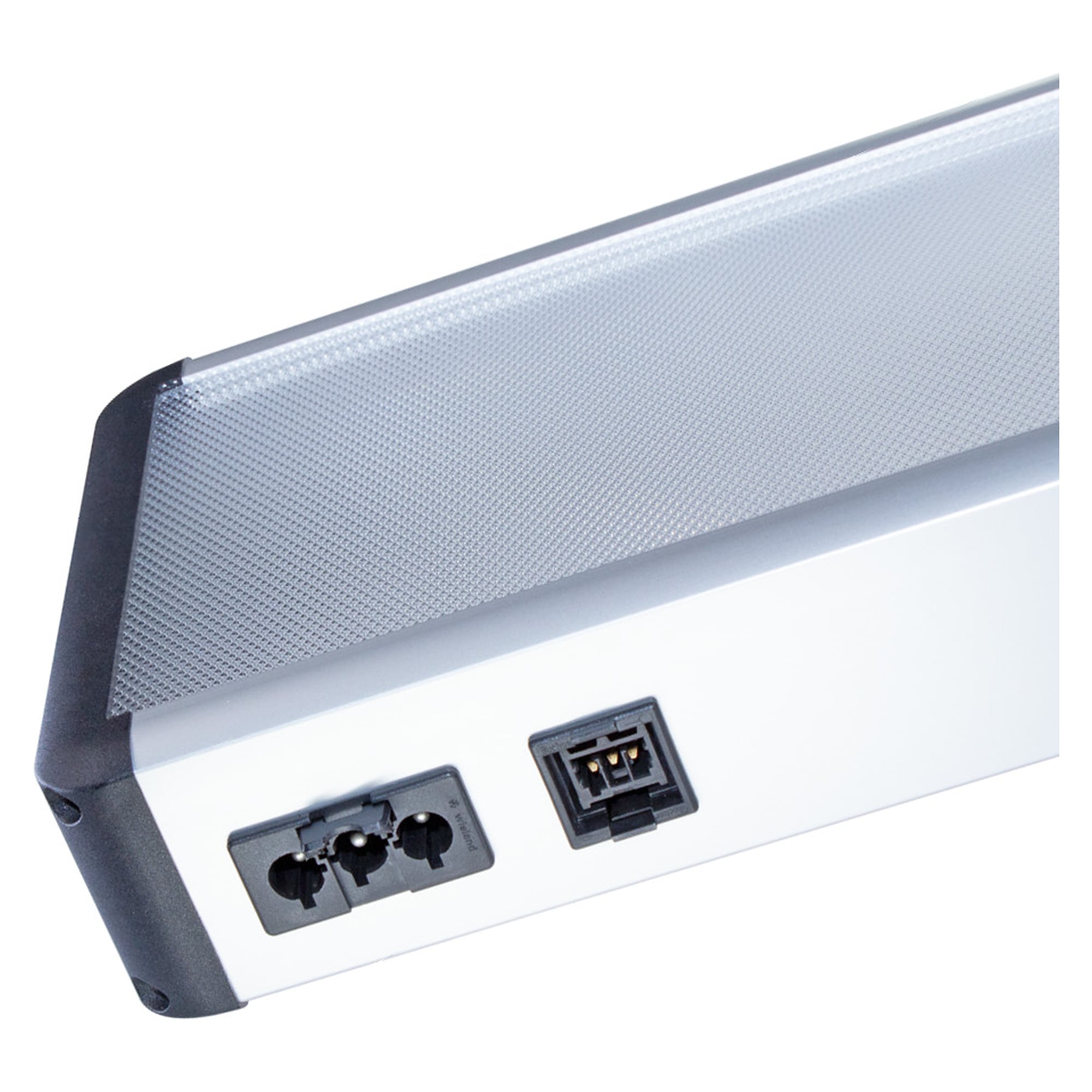

• Connection: Wieland GST18
• Protection rating (IP): IP40
• Protection class: I
• Glare control: micro-prisms

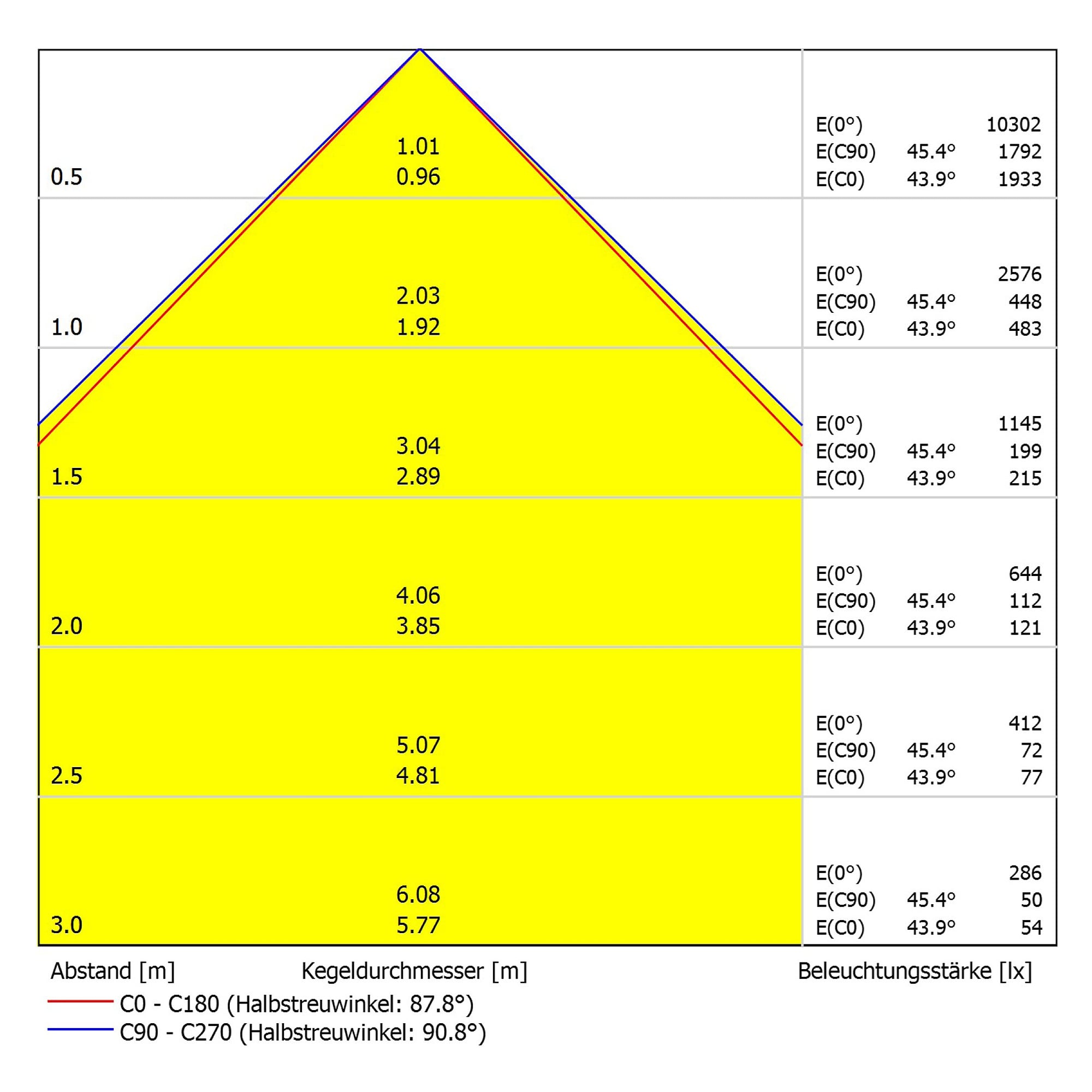

• Beam angle: 90°
• Operating temperature: -10 °C - +50 °C
• Service life: > 100.000 h (L80/B10)
• Housing material: aluminium and PMMA
• Dimensions (L x H x W): 898 mm x 48 mm x 139 mm
• Weight: 2550 g
• Risk group (DIN EN 62471): Exempt group
• Certifications: CE, UKCA
• Dimmable: optional via accessory
• Made in: Germany

Applications

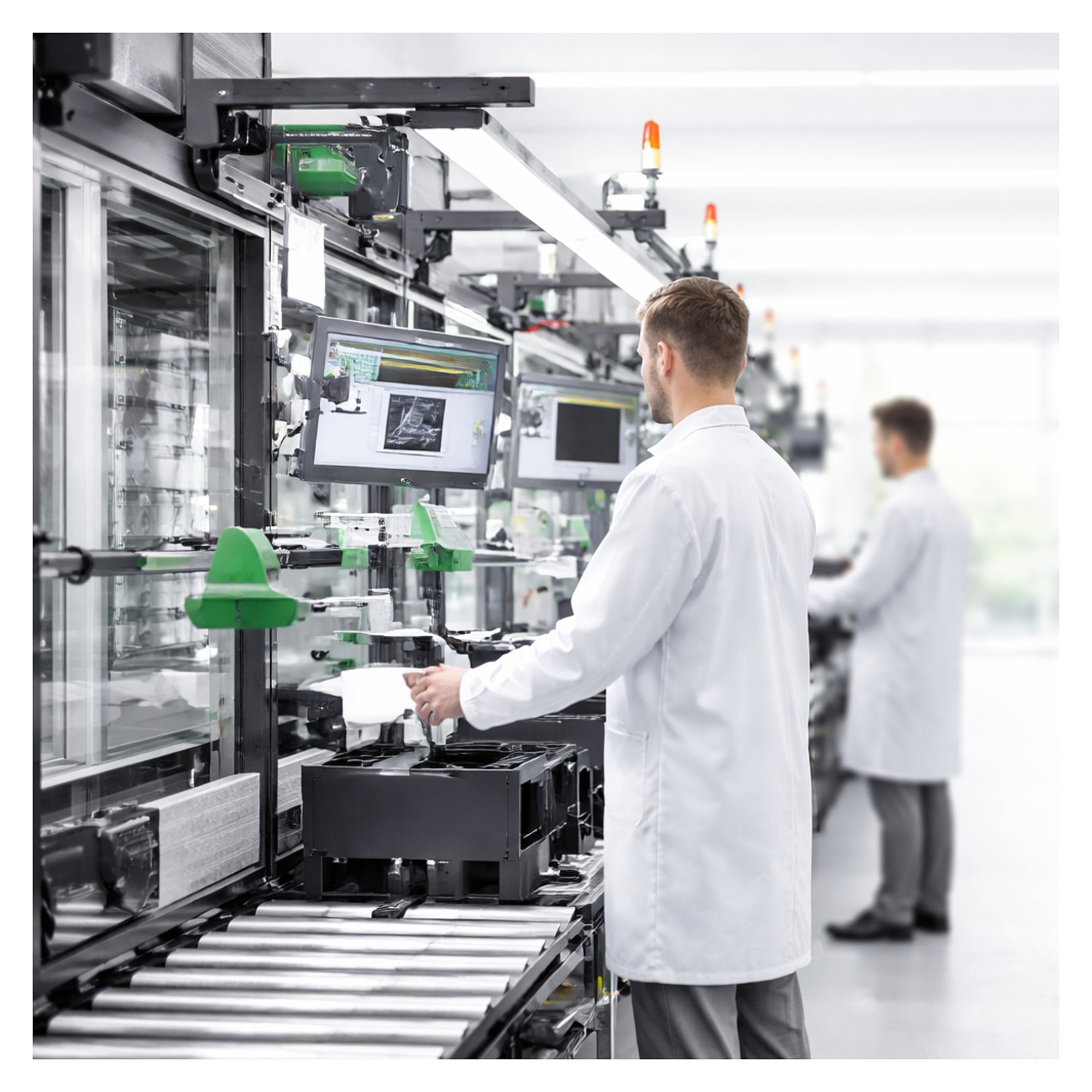

Ideal for assembly stations, production lines, laboratories and inspection areas that call for even, colour-accurate lighting. Optional mounting accessories extend the fitting options, and the light can be dimmed and switched via an optional accessory.

Supply and standards

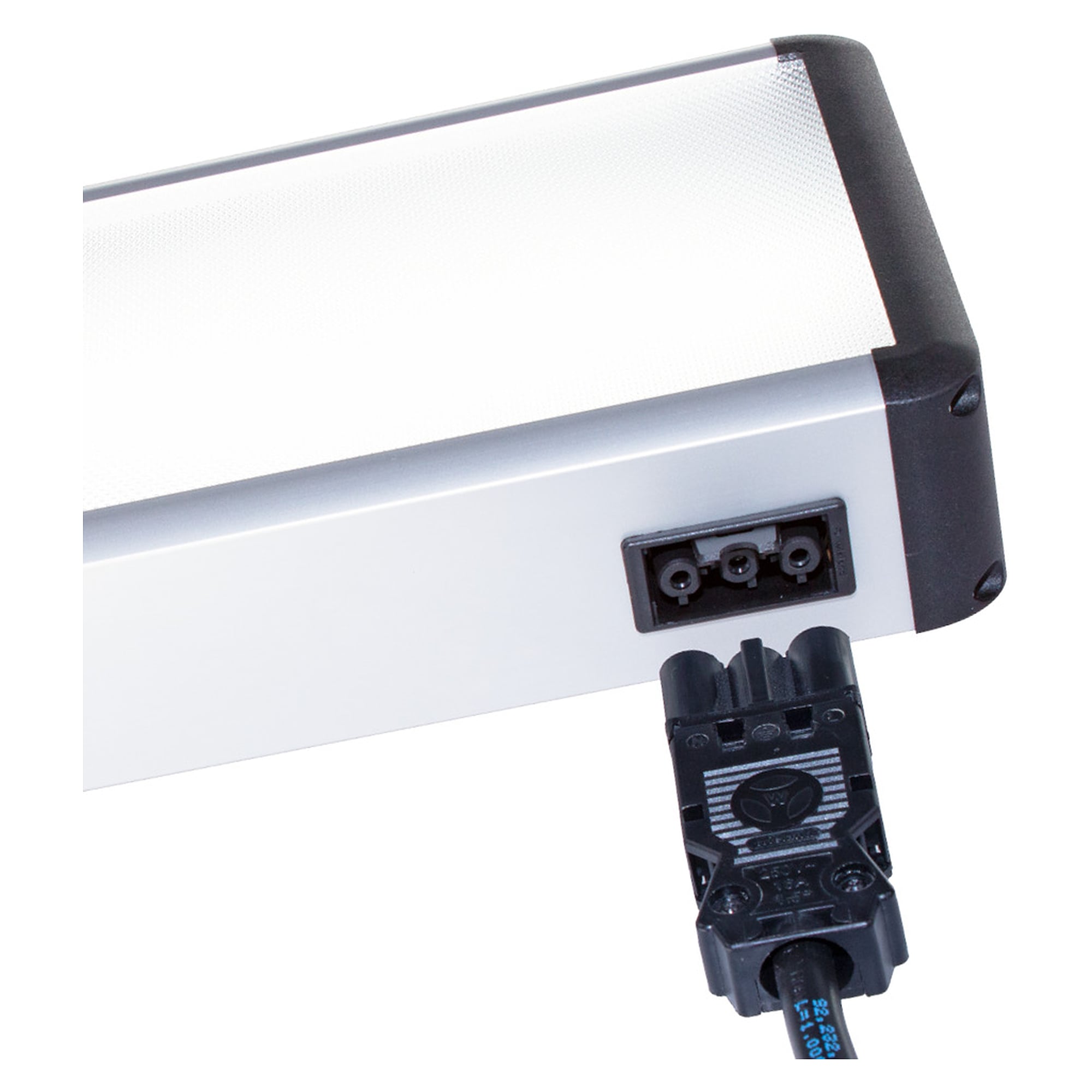

Connected via Wieland GST18 for safe, low-tool installation. Marked CE and UKCA, exempt group per DIN EN 62471. Made in Germany.
