Power supply 24V DC 60 W, M12 socket/earthed plug, IP67 - LED2WORK 210100-11

The 24V DC switching power supply delivers a fixed 24V DC output of 60 W and 2.5 A for LED2WORK luminaires with an M12-A connection. Its highlight is the detachable connecting cable: it can be routed through a machine opening of at least 7.5 mm diameter and then reconnected via the secure screw coupling.

Key benefits

• Fixed 24V DC output, 60 W at 2.5 A
• Detachable connecting cable with screw coupling for routing through machine enclosures from 7.5 mm
• IP67 protection rating, rugged and durable even in demanding environments
• Wide input voltage range 90 to 264 V AC
• Output via M12 socket A-coded, white housing, black cable

Technical data

• Model: constant-voltage power supply
• Design: switching power supply with M12 socket and connection via plug
• Output voltage: 24V DC, adjustable 22...27V DC
• Output power: ~60 W
• Output current: 2500 mA
• Input voltage: 90...264V AC, 47...63 Hz
• Overvoltage protection: 25.2...32.4V DC

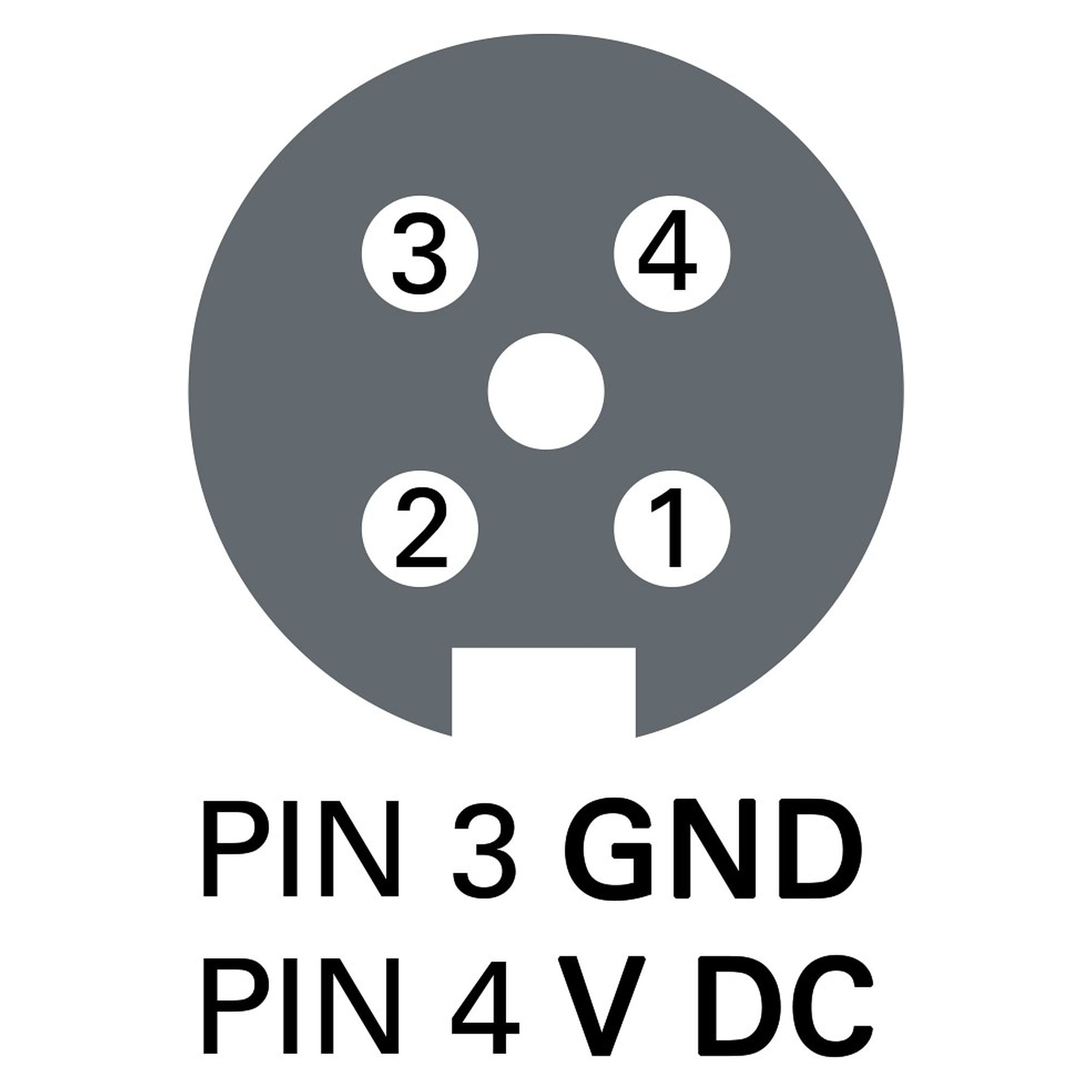

• Connection: M12 socket, A-coded
• Protection rating: IP67
• Ambient temperature: -30 °C to +70 °C
• Over-temperature protection: 75 °C ± 5 °C
• Cable length: 0.30 m
• Weight: 600 g
• Certifications: CE

Scope of delivery

Power supply with permanently attached cable and M12 A-coded connector, plus connecting cable with earthed plug and screw coupling, 1.5 m.

Applications

For powering LED2WORK 24V DC luminaires on machines, especially where the connecting cable must be routed through an enclosure and reconnected on site.
