Table power supply 24V DC, 120 W, M12 A-coded - LED2WORK 210100-05

Images are examples, some edited with AI. The technical data are authoritative. AI notice

Table power supply 24V DC, 120 W, M12 A-coded - LED2WORK 210100-05

Name: Table power supply 24V DC, 120 W, M12 A-coded - LED2WORK 210100-05
Brand: LED2WORK
SKU: L2W-210100-05
Price: 61.07 EUR
Availability: InStock

LED2WORK ✓ Original product Brand new Made in China

This compact industrial AC/DC table power supply feeds LED2WORK 24V DC lights via M12 A-coded with up to 120 W. Input 90 to 264V AC over a SCHUKO IEC cable, with short-circuit, overload, overvoltage and over-temperature protection.

Net

€61.07

excl. VAT

Item L2W-210100-05

Manufacturer no. 210100-05

Question about this item

Datasheet (PDF) 2 documents, all under Downloads

Specialist dealer since 2009
Invoice payment for regular customers
Worldwide shipping
Technical questions clarified with the manufacturer

Description

To run higher-power LED2WORK 24V DC lights from a wall socket, this table power supply delivers a stable 24V DC fixed output at up to 120 W and connects directly to the luminaire via an M12 A-coded plug.

Your benefits

Up to 120 W: 24V DC at 5000 mA output current.
Wide input range: 90 to 264V AC, 47 to 63 Hz.
High efficiency: 89.5 % at full load.
Fully protected: short-circuit, overload, overvoltage and over-temperature protection.
Dimmable: usable with LED2WORK PWM dimmers.
Ready to connect: M12 A-coded to the light, SCHUKO IEC cable to mains.

Technical data

Model	constant-voltage power supply
Type	table power supply with M12 socket on cable, plus IEC cable with SCHUKO plug
Nominal output voltage	24V DC
Max. output power	120 W
Output current	5000 mA
Input voltage	90 to 264V AC
Input frequency	47 to 63 Hz
Output voltage adjustment range	22 to 27V DC

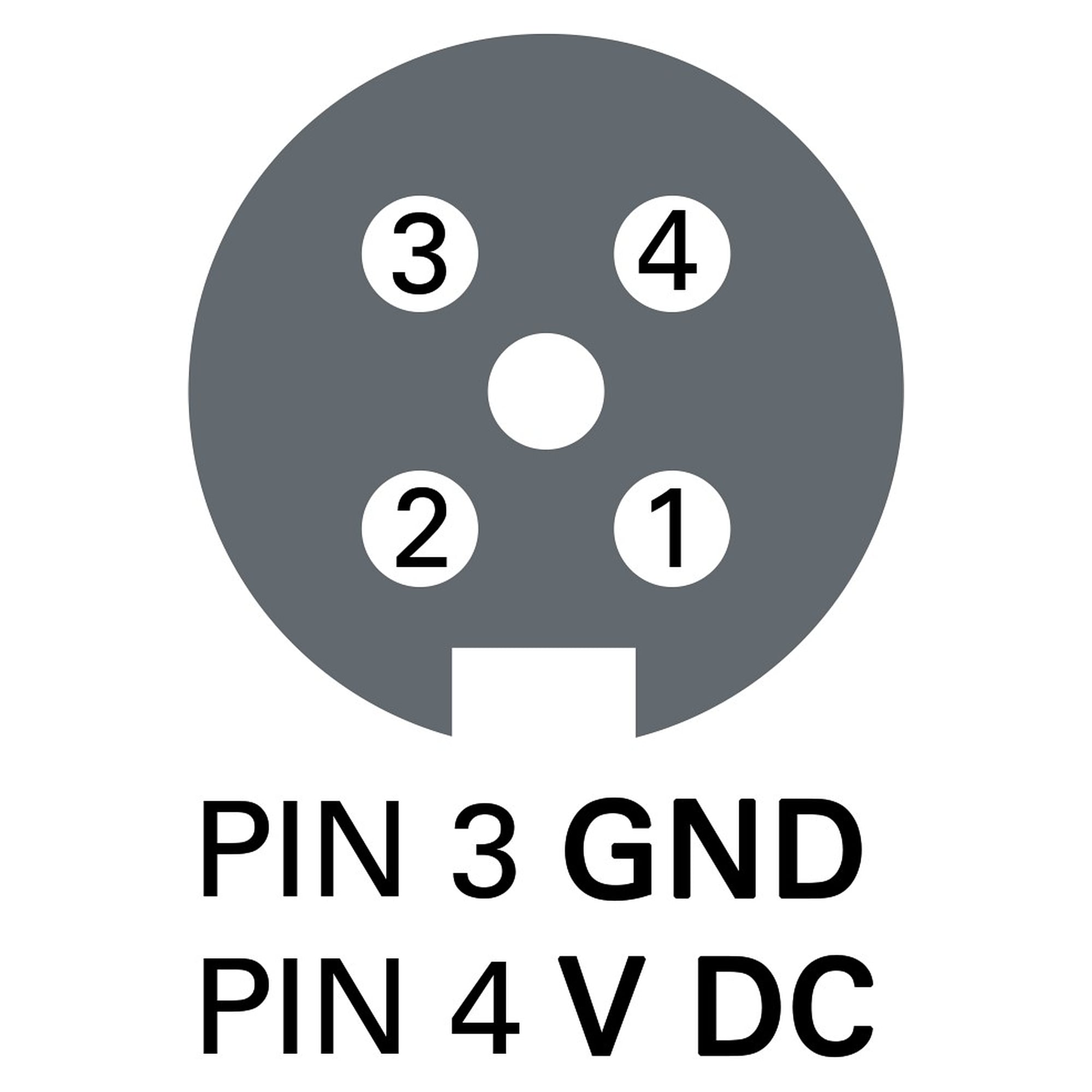

Connection to luminaire	M12 socket, A-coded
Efficiency at full load	89.5 %
Cable length	~1.8 m
Ambient temperature	-30 °C to +70 °C
Dimensions	167 mm x 67 mm x 35 mm
Weight	600 g
Protections	short-circuit, overload, overvoltage, over-temperature
Certifications	EISA 2007/DoE, NRCan, Korea K-MEPS, AU/NZ MEPS, EU, CE, UKCA
Manufacturer	LED2WORK
Manufacturer Nr.	210100-05
HS-Code	85044095
GPSR manufacturer information	LED2WORK GmbH, Stuttgarter Straße 13 A, 75179 Pforzheim www.led2work.com
Condition of article	New
Article authenticity	Original product
Country of Manufacture	China
ESD version	TEC
Control and dimming	Dimmable
Power (W)	120 W
Beam angle	30°
Operating voltage	24 V
