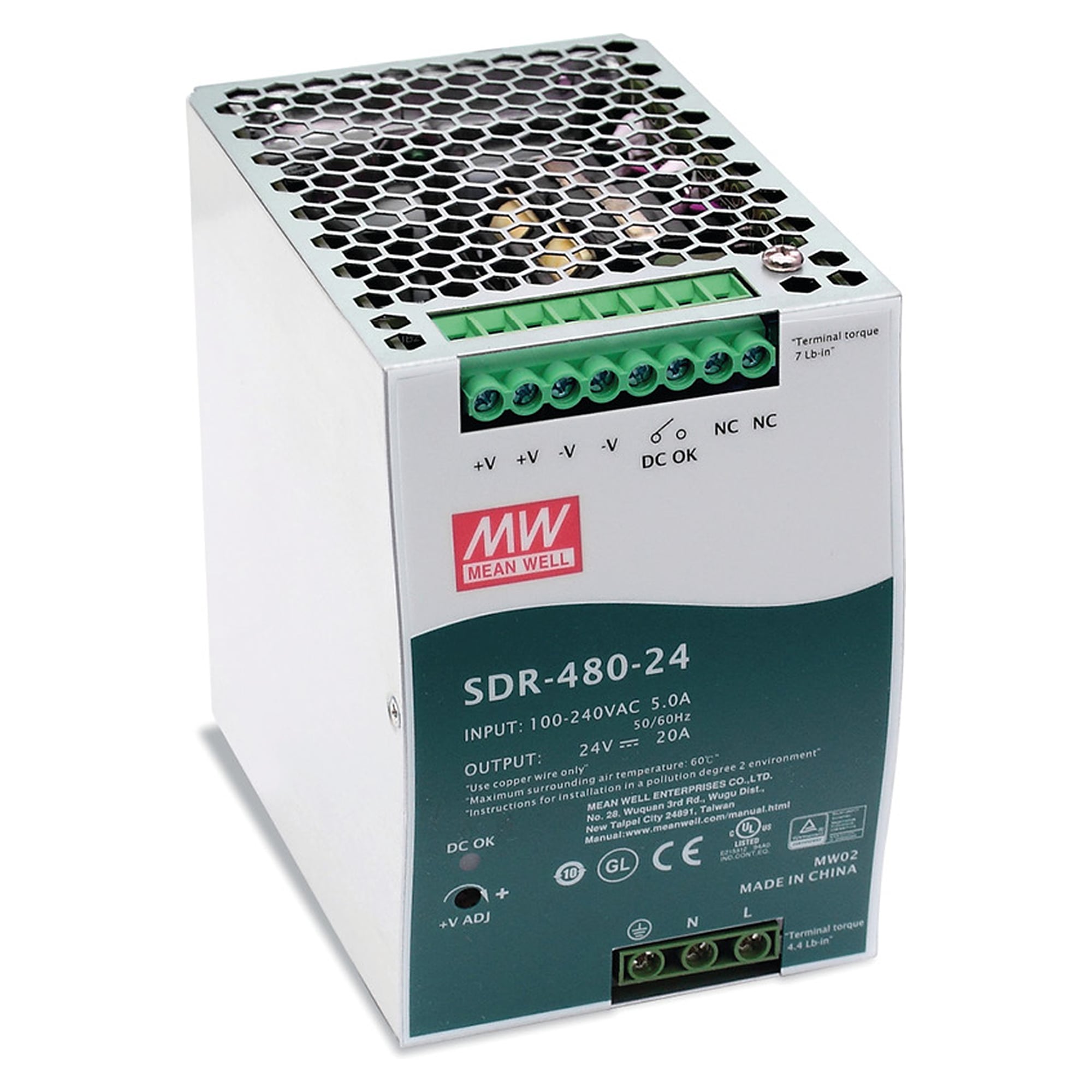

DIN rail power supply 480W 24V DC for LED2WORK lights - LED2WORK 210100-04

This powerful 24V DC switching power supply feeds several or particularly demanding LED2WORK 24V DC lights and mounts directly onto a DIN rail via screw terminals. In an enclosed industrial design, it delivers up to 480 W of stable output.

Your benefits

• 480 W of stable 24V DC output for several lights
• Wide input voltage range from 90 to 264V AC
• Protection against short circuit, overload, over-voltage and over-temperature
• Easy DIN rail mounting via screw terminals
• Very high efficiency of 94 % at full load
• Dimmable in combination with PWM dimmers from LED2WORK

Technical data

• Model: Constant-voltage power supply
• Type: DIN rail switching power supply
• Nominal output voltage: 24V DC
• Max. output power: 480 W
• Output current: 20000 mA
• Input voltage: 90 to 264V AC
• Input frequency: 47 to 63 Hz
• Efficiency at full load: 94 %
• Ambient temperature: -25 °C to +70 °C
• Over-temperature protection: 90 °C ± 10 °C
• Dimensions: 85.5 mm x 125.2 mm x 128.5 mm
• Weight: 2600 g
• Protective devices: short-circuit, overload, over-voltage, over-temperature protection
• Certifications: CE, CB, UKCA, UL508 approved, ITE EN/UL/IEC 60950

Applications

For powering several LED2WORK 24V DC lights in the control cabinet and in the plant. Not suitable for no-load operation. When selecting, check the power consumption and connection ratings of your luminaires.
