Accessories for ball rail systems
High-precision ball rail systems BSHP
The accessories range for Bosch Rexroth ball rail guides covers end caps, wipers, spreading mandrels and connectors for the assembly and operation of profiled rail guide systems. End caps are available in seven widths from 15 to 65 mm, FKM wipers in sizes 35, 45, 55 and 65 mm. Connectors link the ball runner blocks to centralised lubrication systems via M6 and M8 threads.
End caps sizes 15-65 mm - standard and variant F, matching all BSHP runner blocks

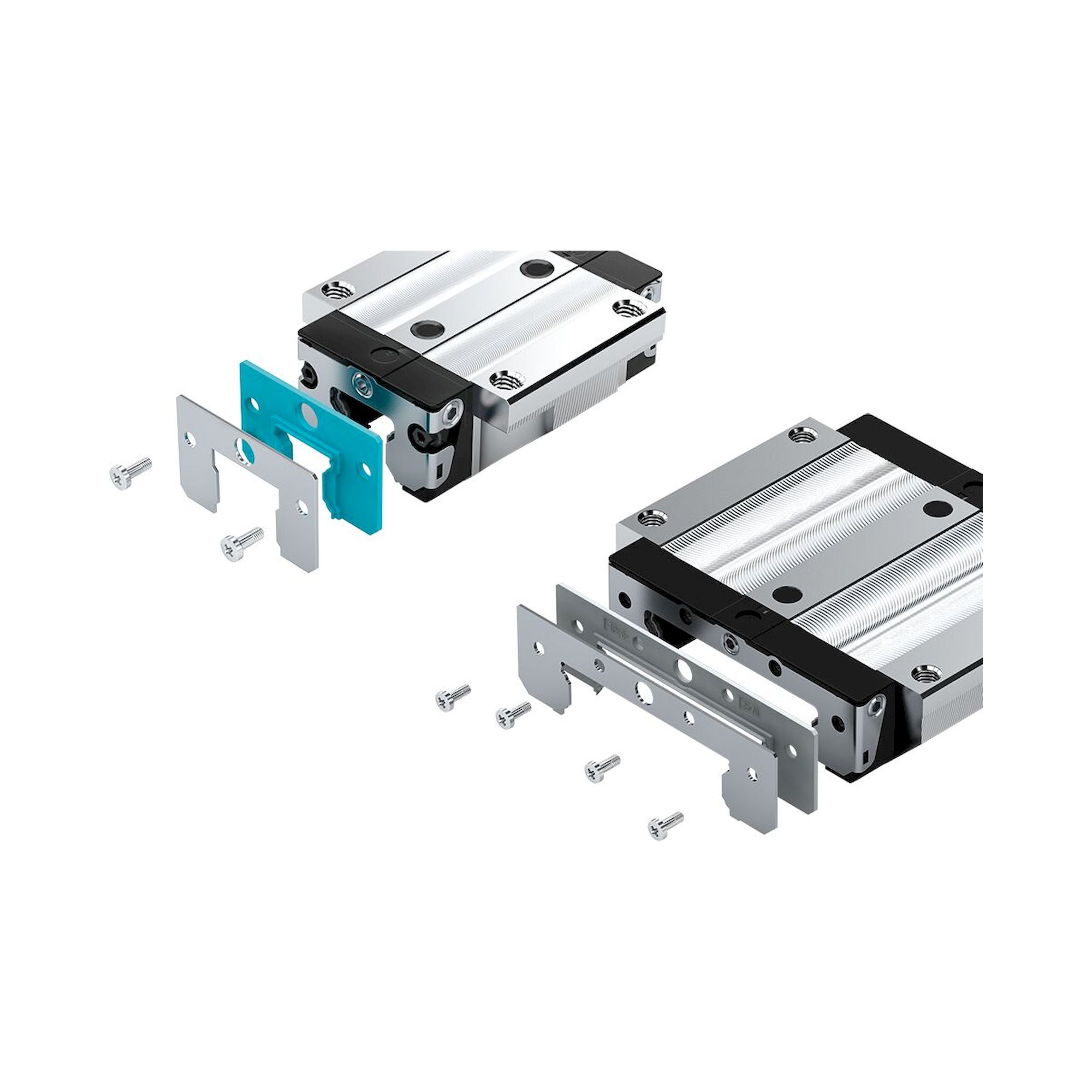

FKM wipers sizes 35-65 mm - fluorinated rubber, resistant to oils and elevated temperatures

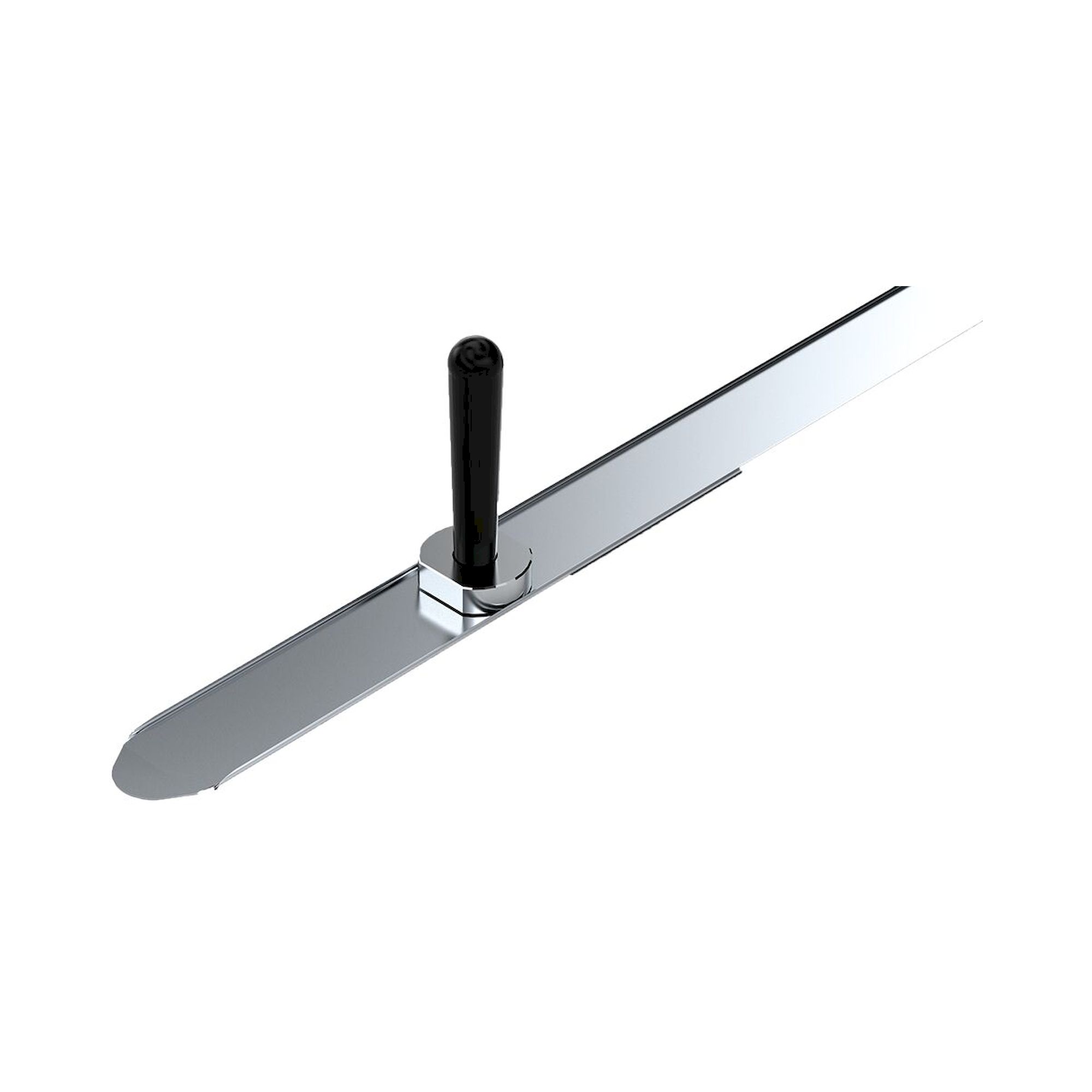

Spreading mandrels sizes 15-65 mm - simplify wiper installation without damaging the sealing profile

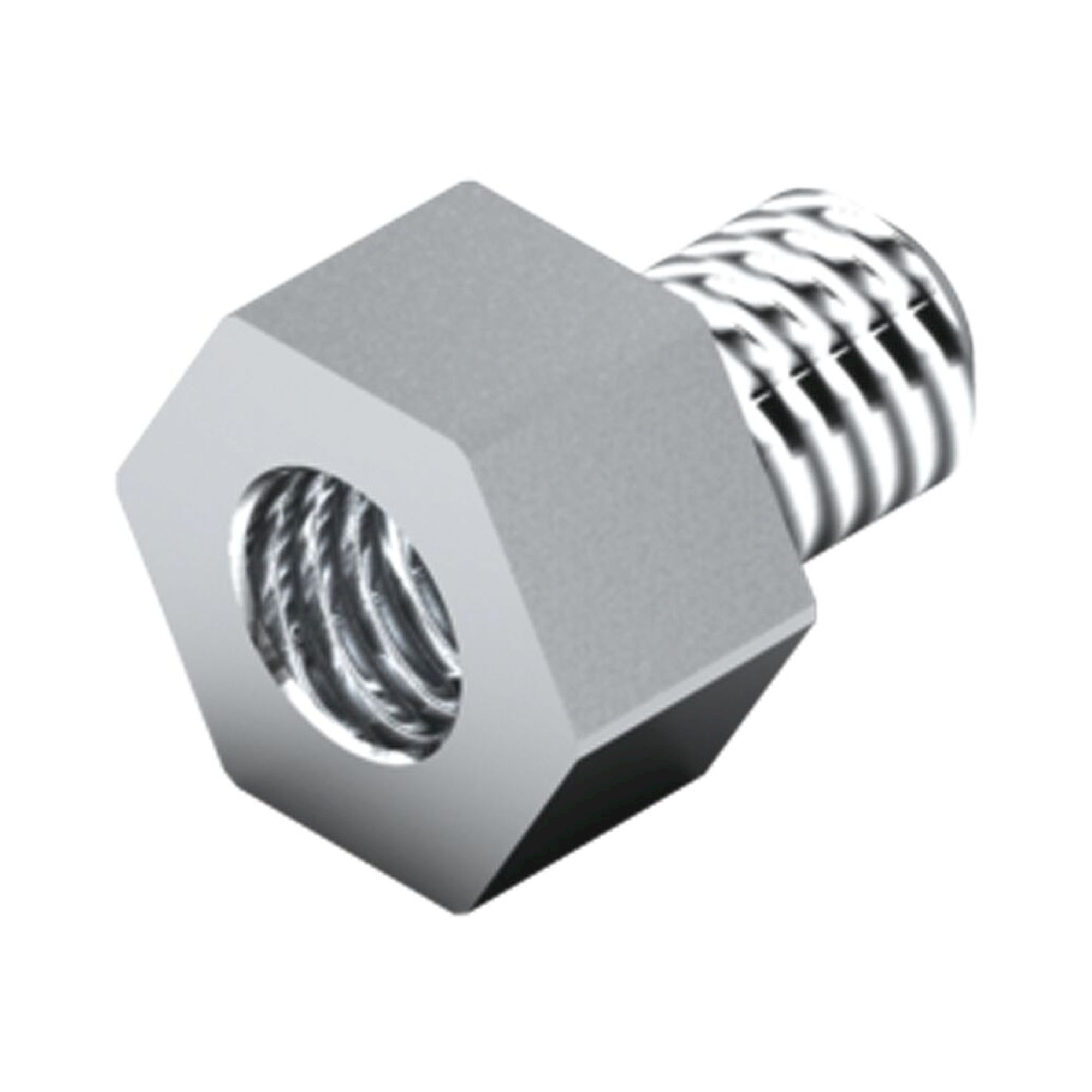

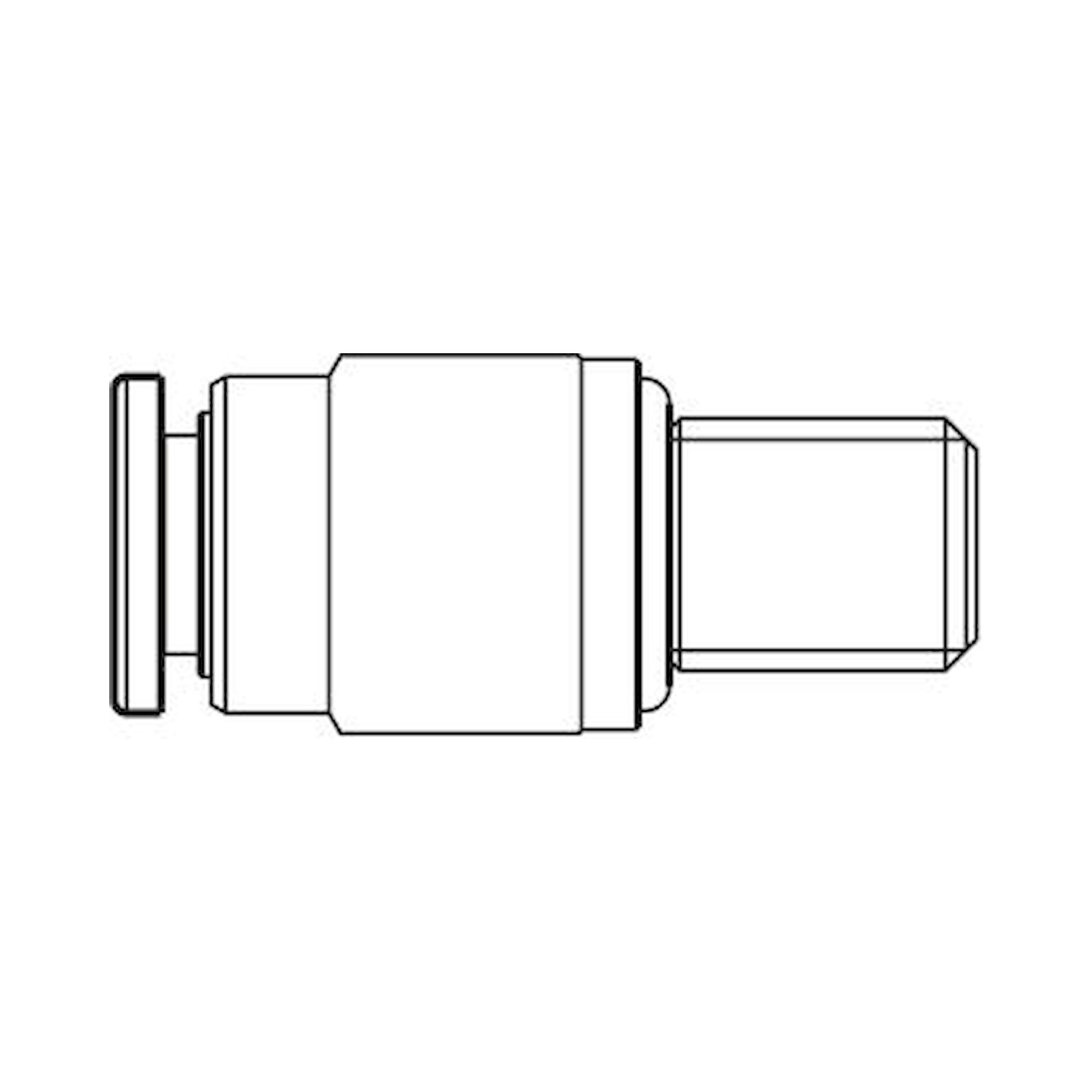

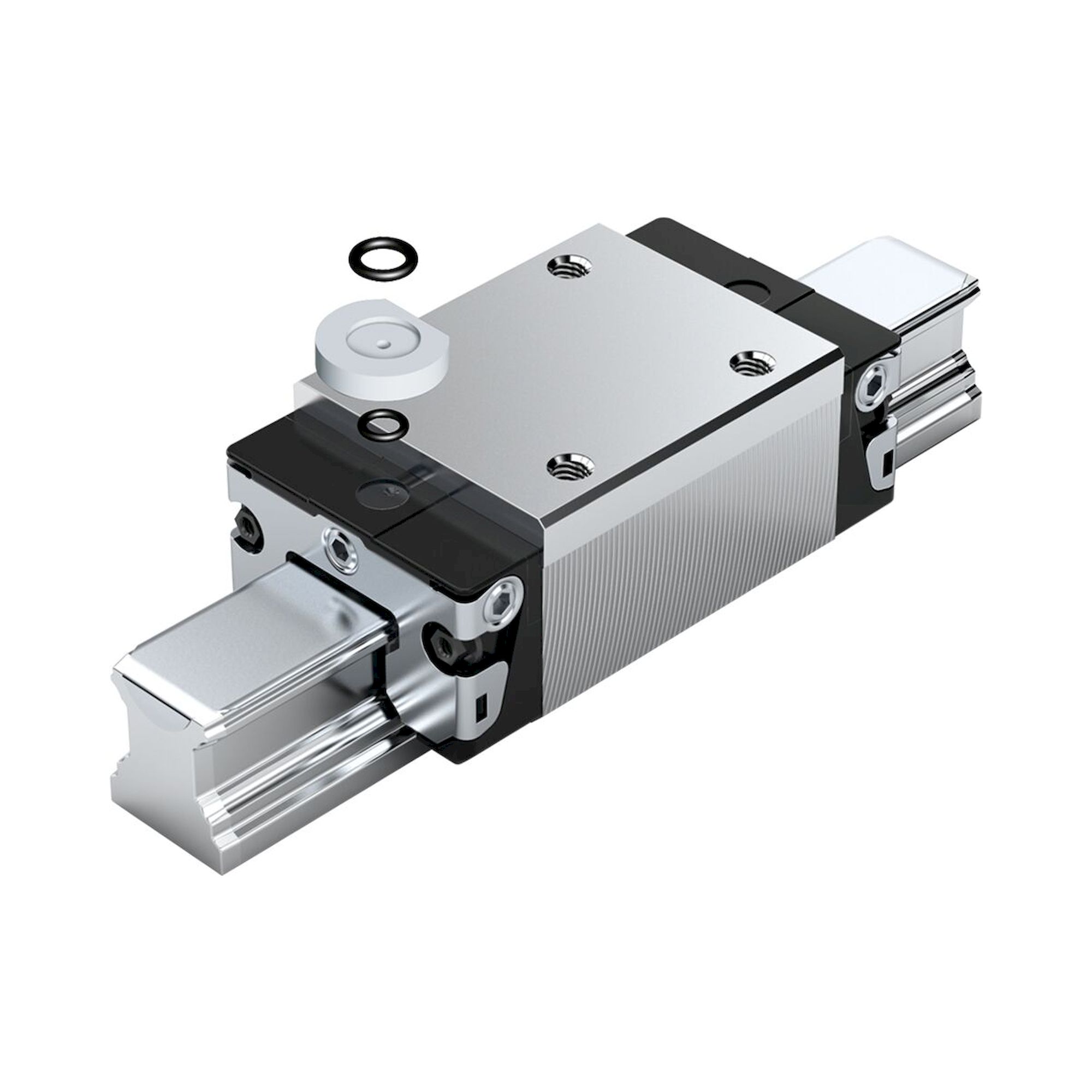

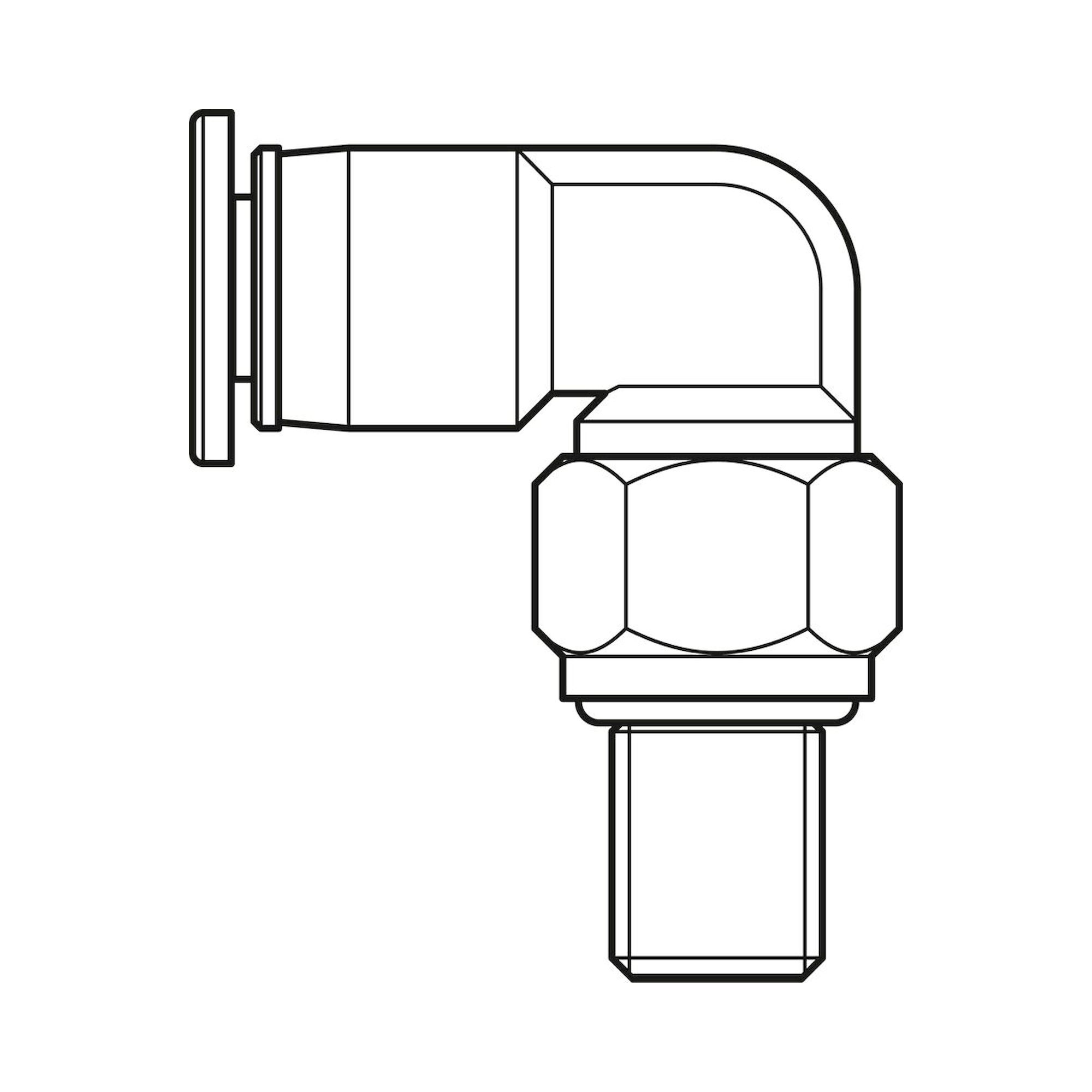

Connectors M6x8-M6x0.75 / M6x8-M8x1 - lubricant supply to the rolling-element raceway via central lubrication
| Component | Sizes | Part example |
|---|---|---|
| End cap standard | 15, 20, 25, 30/35, 45, 55, 65 mm | R160510080 / R160560080 |
| End cap variant F | 15, 20, 25, 30/35 mm | R160510084 / R160530084 |
| Wiper FKM | 35, 45, 55, 65 mm | R161932030 / R161962030 |
| Spreading mandrel | 15, 20, 25, 30, 35, 45, 55, 65 mm | R161911510 / R161961530 |
| Connector | M6x8-M6x0.75 / M6x8-M8x1 | R345503038 / R345503037 |
Typical applications: Assembly and maintenance of profiled rail guides in machine tools, retrofit of sealing elements after wear or cleanroom conversion, connecting runner blocks to centralised lubrication systems in production lines, and stocking spare parts for BSHP guide systems.
