Compressed air preparation

Q: What is compressed air preparation?

Compressed air preparation involves the use of filters, regulators, and lubricators to ensure clean and efficient air supply in pneumatic systems.

Q: Why is air preparation important in pneumatics?

Air preparation removes contaminants, regulates pressure, and provides lubrication, which enhances the performance and longevity of pneumatic components.

Q: What are the components of air preparation systems?

Air preparation systems typically include filters for contamination removal, regulators for pressure control, and lubricators for reducing friction.

Q: How do filters work in air preparation?

Filters remove particles, moisture, and oil from compressed air to prevent damage to pneumatic components and ensure efficient operation.

Q: What role do regulators play in air systems?

Regulators maintain a consistent air pressure within the pneumatic system, which is crucial for the proper functioning of various components.

Q: Why are lubricators used in pneumatic systems?

Lubricators add a controlled amount of oil to the compressed air, reducing friction and wear on moving parts, thus extending the system's lifespan.

Q: Can air preparation improve energy efficiency?

Yes, proper air preparation reduces the energy needed for air compression and minimizes air leaks, leading to more efficient and cost-effective system performance.

Aventics compressed air preparation covers all components that deliver clean, dry and pressure-regulated air between the compressor and the point of use. The range includes modular maintenance units and individual components from the NL and AS series, AR1 compressed-air tanks for buffer storage, PG1 pressure gauges for pressure monitoring, and lubricants for oiler charging.

Maintenance units are supplied in 2- or 3-part form (filter, pressure regulator, lubricator) or as combined filter-pressure regulator units. The series differ in nominal size (G 1/8 to G 2), filter fineness (standard 5 µm, ultra-fine 0.01 µm, activated carbon) and maximum operating pressure.

4 subcategories
Net prices plus VAT

We can't find products matching the selection.

Buying guide

How to choose Compressed air preparation

What matters when choosing: properties, comparison and typical applications.

Building a compressed air preparation line

⚙ Pre-filter (FLP) - removes coarse particles and water droplets, protects downstream components

✦ Main filter (FLS, 5 µm) - separates particles and oil mist from the compressed air

↕ Pressure regulator (RGS) - sets and maintains working pressure at the required level

📦 Ultra-fine / activated-carbon filter (FLC / FLA) - residual oil content < 0.01 mg/m³ for oil-free applications

✓ Lubricator (LBS) - metered lubrication for cylinders and tools, standard mist lubricator MU1-LBS

⬡ Buffer tank (AR1) - pressure storage for peak demand equalisation, 0.1-9 litre capacity

Series comparison

Series	Port size	Max. pressure	Key feature
NL1	G 1/8 - G 1/4	up to 10 bar	Compact individual and combination units

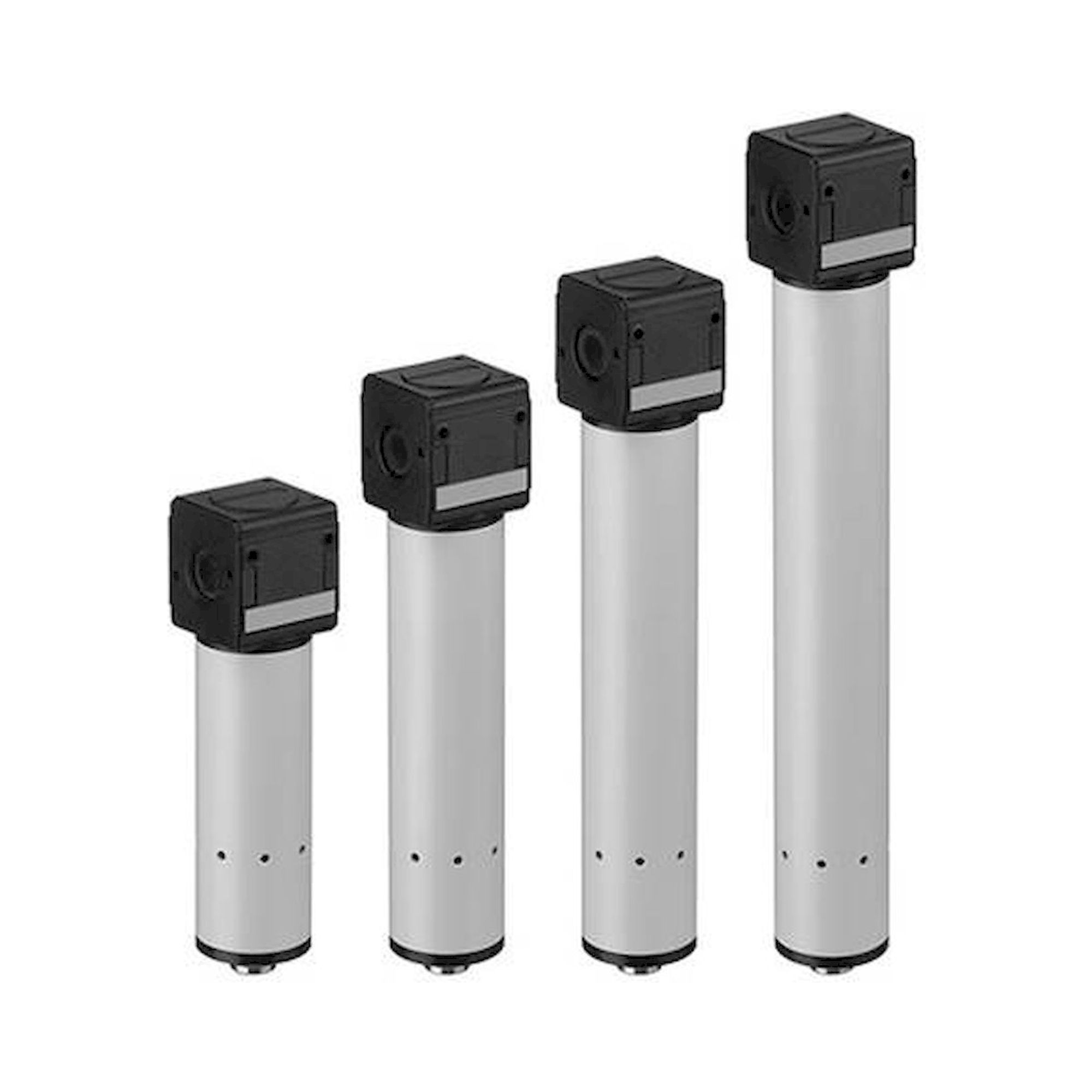

NL2	G 1/8 - G 3/8	up to 10 bar	Wide filter spectrum FLS/FLC/FLP/FLA

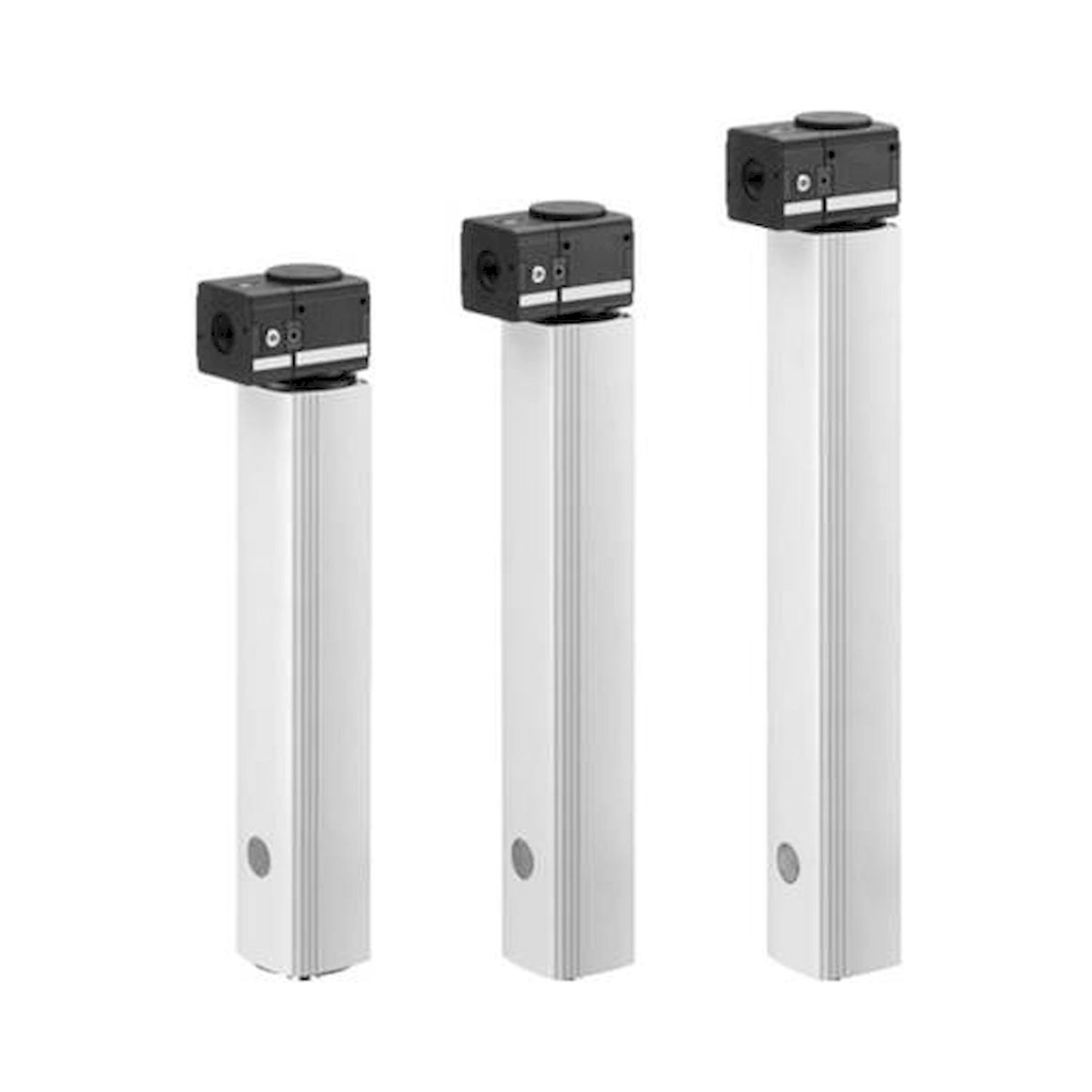

NL4	G 1/8 - G 3/4	up to 10 bar	Filter-regulator (FRE) as combined unit
NL6	G 3/4 - G 1	up to 10 bar	Large nominal flow, 3/2-way valve SOV
NLC	G 3/8 - G 3/4	up to 10 bar	Universal FRL maintenance unit combined
AS3	G 1/8 - G 1/2	up to 16 bar	Charge unit SSU, isolator valve BAV
AS5	G 3/4 - G 1	up to 16 bar	High flow, charge valve SSV electric/pneumatic
MU1	G 1/8 - G 2	up to 30 bar	High pressure, condensate separator COS, oxygen version

Typical applications

Typical applications: Compressed air preparation for manufacturing and assembly automation, supply to handling systems, grippers and valve islands, food and pharmaceutical industry with oil-free air requirements (activated-carbon stage FLA), automotive and general mechanical engineering, and high-pressure applications up to 30 bar with the MU1 series.

✓ Genuine Aventics partsNL1, NL2, NL4, NL6, NLC, AS3, AS5, MU1, MH1

📦 Port sizes G 1/8 to G 2Pressure up to 30 bar (MU1), filter fineness to 0.01 µm
