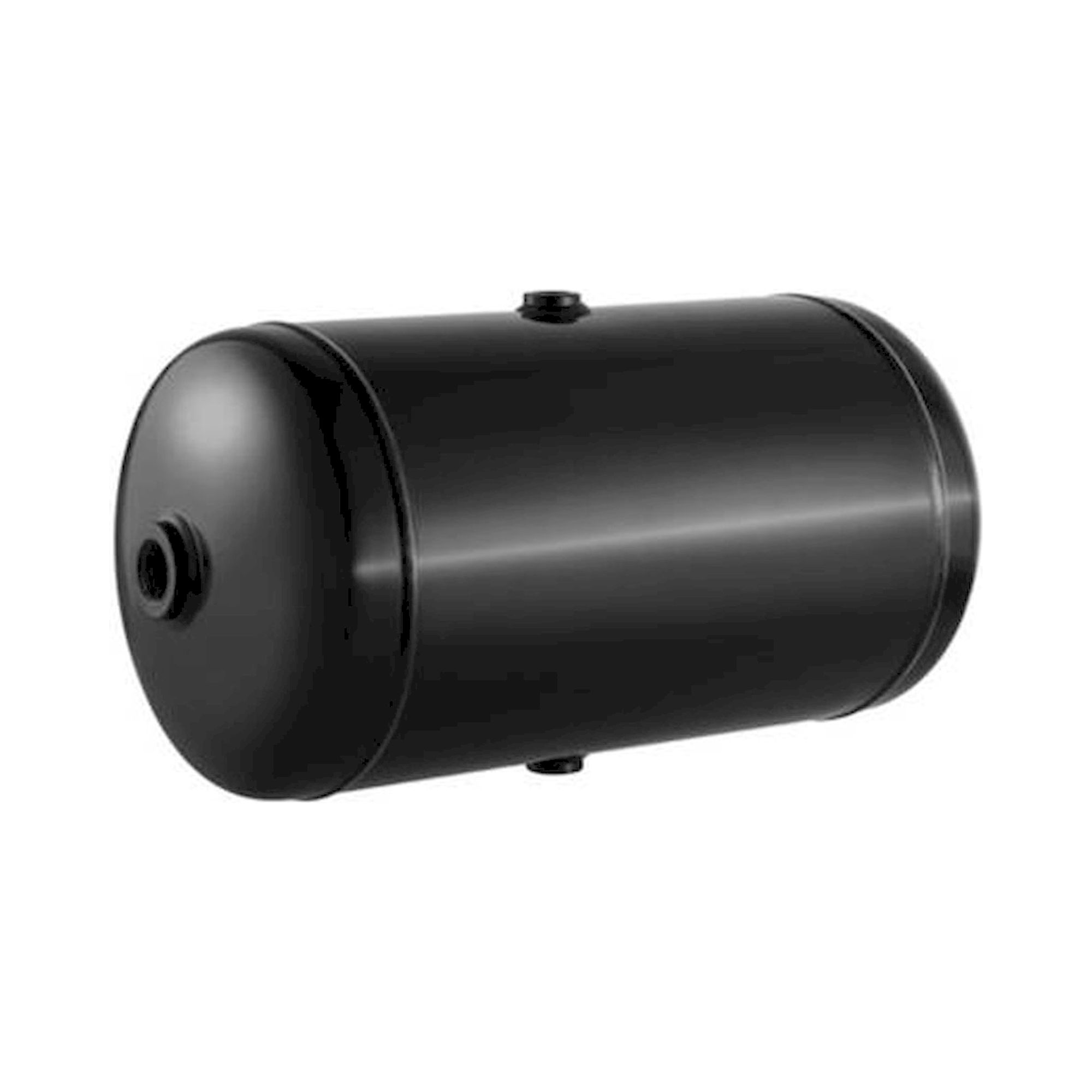

Compressed air tank AR1

Compressed air preparation

Aventics Series AR1 compressed-air tanks serve as buffer reservoirs in pneumatic systems, absorbing pressure peaks and reducing compressor cycling. The series covers seven sizes from 0.1 litre (AR1-G012-0010, G 1/2 connection) to 9 litres (AR1-G200-0900, G 2 connection); intermediate volumes of 0.32, 0.5, 1, 2 and 4 litres are all G 1-connected.

Compressed-air tanks are typically installed at valve islands, pneumatic drives with high peak demand, or as local buffers upstream of fast-switching consumers. AR1 tanks are pressure-resistant steel cylinder housings designed for operation in compressed-air networks up to the rated working pressure of the connected maintenance unit.

TypeVolumeConnection
AR1-G012-00100.1 litreG 1/2
AR1-G100-00320.32 litreG 1
AR1-G100-00500.5 litreG 1
AR1-G100-01001 litreG 1
AR1-G100-02002 litresG 1
AR1-G100-04004 litresG 1
AR1-G200-09009 litresG 2

The required tank size depends on the peak volume demand of the consumer and the permissible pressure drop during peak operation. As a rule of thumb: the larger the peak volume required and the shorter the consumer duty cycle, the larger the buffer tank needed. The port size (G 1/2 to G 2) must match the nominal size of the connected maintenance unit. AR1 tanks are plumbed directly into the compressed-air line, ideally after the pressure regulator and before the consumer.

Typical applications: Buffer storage upstream of pneumatic hammers, nibblers and fast-switching grippers, pressure stabilisation on test rigs with short blow-off cycles, local pressure storage on long supply lines with high pressure loss, peak-demand equalisation at valve islands with multiple valves switching simultaneously, and system extensions in existing compressed-air networks with G 1/2 to G 2 connections.
