Guide cylinders

Aventics guided cylinders are precision pneumatic actuators with integrated linear guidance systems that eliminate the need for external guide rails in industrial automation applications. The GPC-BV series guided cylinders feature bore diameters from 40mm to 100mm with stroke lengths ranging from 25mm to 200mm, making them ideal for assembly automation, packaging machinery, material handling systems, and precision positioning tasks. These cylinders are extensively used in automotive manufacturing, electronics assembly, pharmaceutical production, and food processing where consistent linear motion and high positional accuracy are critical for production quality.

Aventics GPC-BV guided cylinder selection depends on required thrust force, stroke length, and mounting constraints within your pneumatic system. Available bore diameters include 40mm, 50mm, 63mm, 80mm, and 100mm options, with theoretical thrust forces at 6 bar ranging from approximately 750N for 40mm bore to 4710N for 100mm bore cylinders. Stroke lengths are available in 25mm, 50mm, 75mm, 100mm, 125mm, 160mm, and 200mm variants, with longer strokes requiring additional consideration for buckling loads and cycle stability. The integrated guidance system eliminates side load concerns that would typically require external linear guides in standard cylinder applications.

Aventics guided cylinders comply with ISO 15552 pneumatic cylinder standards for dimensional compatibility and performance requirements, ensuring interchangeability with other manufacturers' mounting accessories and fittings. The GPC-BV series meets ISO 4762 specifications for hexagon socket head cap screws used in mounting hardware and ISO 8573-1 compressed air quality standards for media purity requirements. Manufacturing follows ISO 9001 quality management protocols, while materials and sealing systems conform to RoHS directives for environmental compliance. European machinery applications require compliance with EN ISO 13849 safety standards and the Machinery Directive 2006/42/EC for integration into automated production systems.

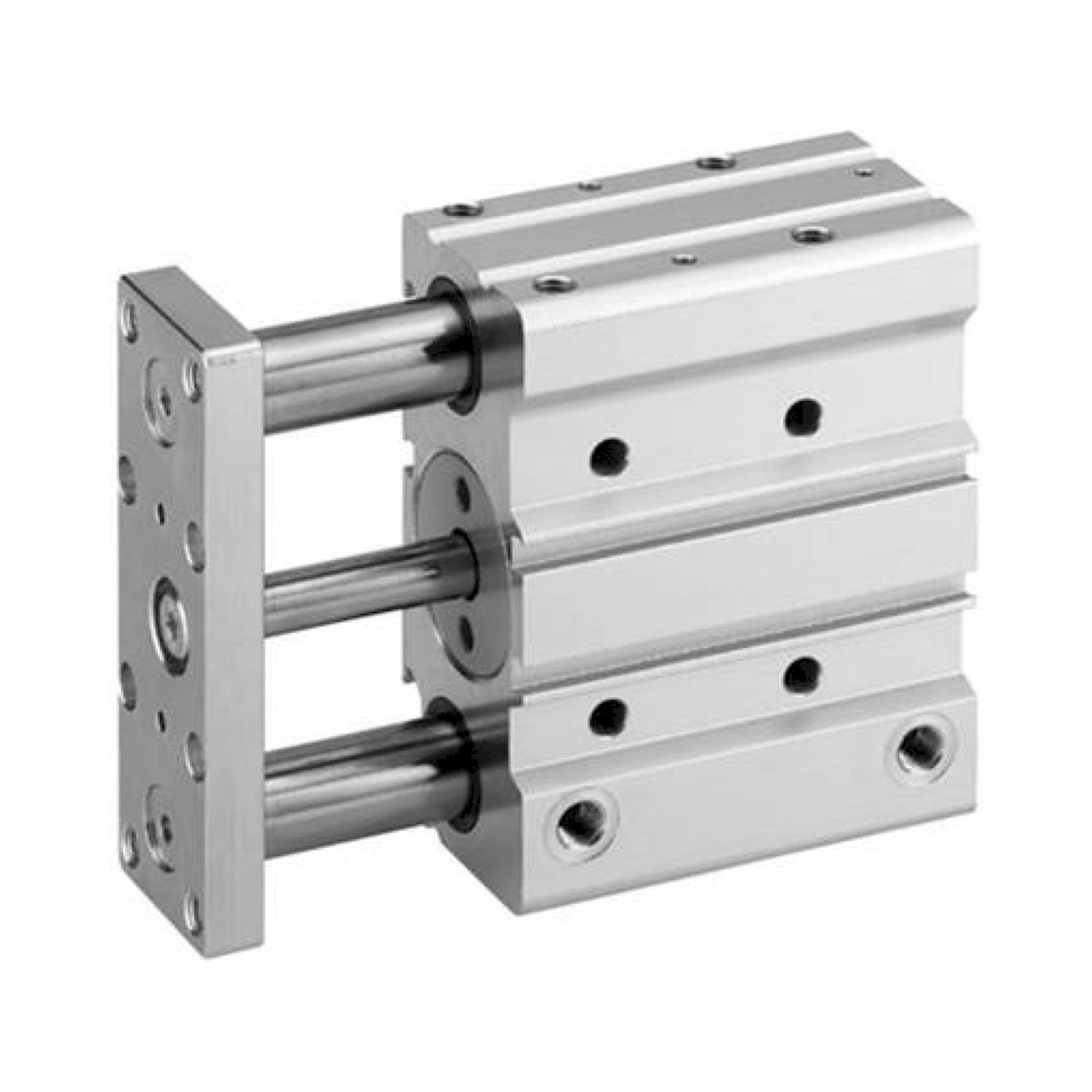

The primary difference between Aventics GPC-BV guided cylinder variants lies in the piston rod configuration and mounting options, with BB variants featuring double-acting operation with cushioning at both stroke ends, while SB variants provide single-sided cushioning typically at the extended position. BB variants like the 0822067106 model offer bidirectional speed control for precise positioning applications, whereas SB variants such as the R402000934 provide simplified operation for applications requiring cushioning only at one stroke end. Both variants maintain identical bore diameters and stroke lengths within the same model families, with selection depending on specific application requirements for motion control and end-position dampening characteristics.

Aventics GPC-BV guided cylinders require G1/8 or M5 pneumatic ports depending on bore size, with smaller bore cylinders typically using M5 connections and larger bores utilizing G1/8 threaded ports for compressed air supply. Installation demands a clean, dry compressed air supply meeting ISO 8573-1 Class 2:4:3 quality standards with recommended filtration to 40 microns and maximum oil content of 1ppm for optimal seal life. Mounting hardware follows ISO 15552 standards for front and rear flange configurations, requiring proper alignment during installation to prevent binding and premature wear. The integrated guidance system eliminates external guide rail requirements but necessitates adequate clearance for full stroke travel and service access to pneumatic connections.

Aventics GPC-BV guided cylinders operate within a working pressure range of 2 to 10 bar with optimal performance at the standard 6 bar operating pressure commonly used in industrial pneumatic systems. Operating temperature range spans from -10°C to +80°C for standard applications, with special seal configurations available for extended temperature applications up to +150°C in high-temperature industrial environments. The cylinders feature IP40 protection rating against solid particle ingress, making them suitable for typical factory environments but requiring additional protection in washdown or outdoor applications. Maximum cycle rates depend on stroke length and operating pressure, with typical industrial applications achieving 60 to 120 cycles per minute under standard operating conditions.

Aventics GPC-BV guided cylinders typically achieve 10 to 20 million cycles under standard operating conditions with proper compressed air preparation and regular maintenance intervals. Preventive maintenance should include quarterly inspection of pneumatic connections for leakage, semi-annual lubrication of guide bearings, and annual replacement of exhaust flow controls and cushioning valves depending on operating intensity. Seal replacement intervals range from 12 to 24 months in continuous operation applications, with piston seals and rod wipers being the primary wear components requiring periodic replacement. Service life extends significantly when operating within 70% of maximum rated pressure and maintaining ISO 8573-1 compressed air quality standards throughout the pneumatic system.
