Diaphragm cylinder

Pneumatic diaphragm cylinders are actuators that utilize a flexible membrane instead of a traditional piston seal to convert compressed air pressure into linear motion. These cylinders excel in food processing, pharmaceutical manufacturing, and chemical handling applications where contamination-free operation is critical, as the diaphragm completely isolates the compressed air from the process medium. The Aventics Series 102 and RDC diaphragm cylinders provide contamination-free actuation for packaging machinery, dosing systems, and clean room automation where traditional piston cylinders would risk product contamination through seal leakage.

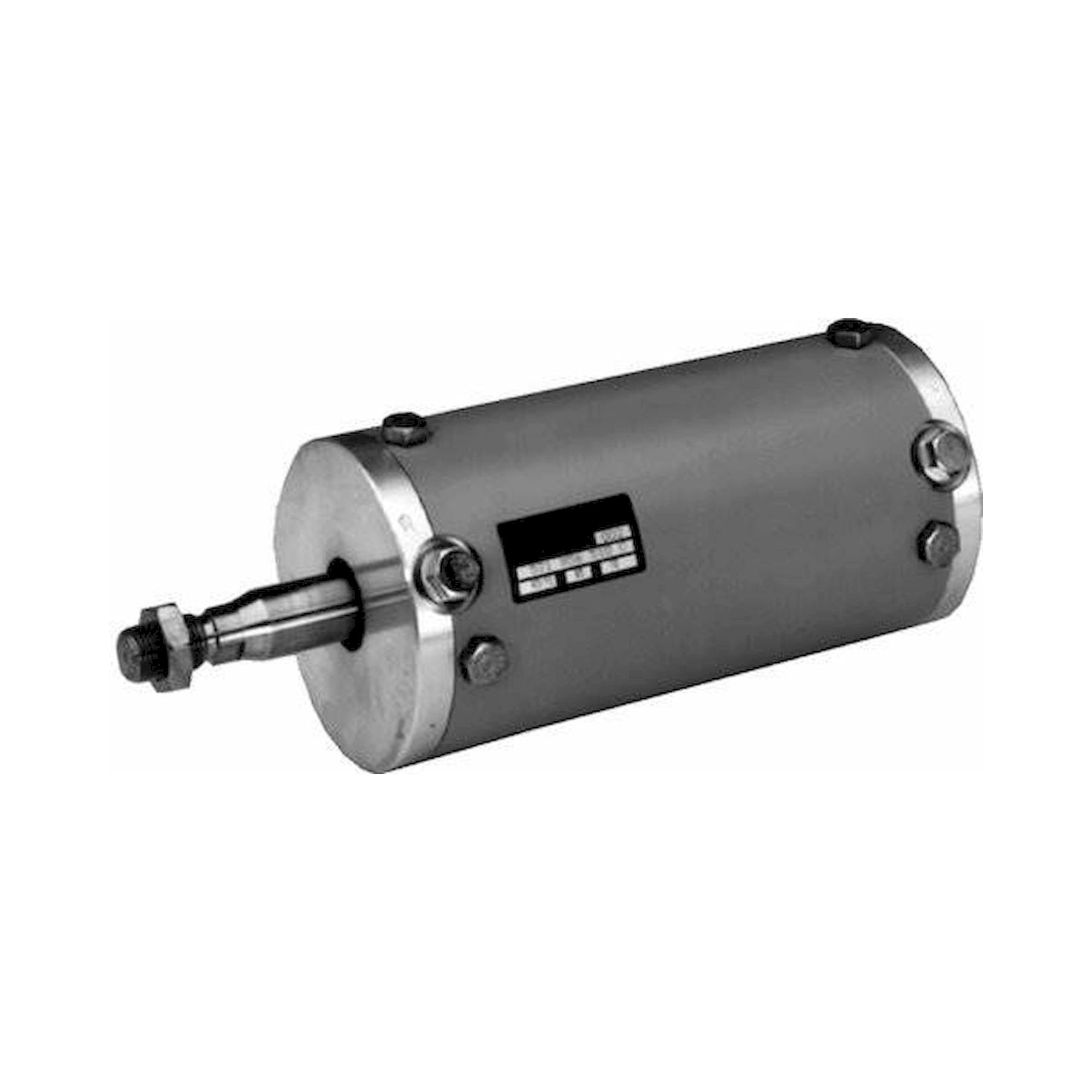

Aventics diaphragm cylinder selection requires evaluating bore diameter, stroke length, and operating pressure compatibility with your pneumatic system requirements. The Series 102 models offer bore sizes from 80mm to 250mm with stroke lengths ranging from 40mm to 100mm, such as the model 1025100000 with 80mm bore and 40mm stroke. The RDC series provides bore diameters from 52.5mm to 115mm with corresponding stroke lengths, like the RDC-SA-0115-0095 combining 115mm bore with 95mm stroke. Operating pressure typically ranges from 1.5 to 8 bar, with force output calculated as pressure multiplied by effective diaphragm area.

Aventics diaphragm cylinders comply with ISO 6432 for compact cylinder dimensions and ISO 15552 for tie-rod cylinder mounting interfaces where applicable. The pneumatic components meet EN 983 safety requirements for fluid power systems and adhere to the Machinery Directive 2006/42/EC for integration into automated equipment. Food-grade applications require compliance with FDA CFR 21.177.2600 for elastomeric materials in food contact, while pharmaceutical installations must meet USP Class VI biocompatibility standards. ATEX certification may be available for specific models intended for explosive atmosphere applications in Zone 1 and Zone 2 environments.

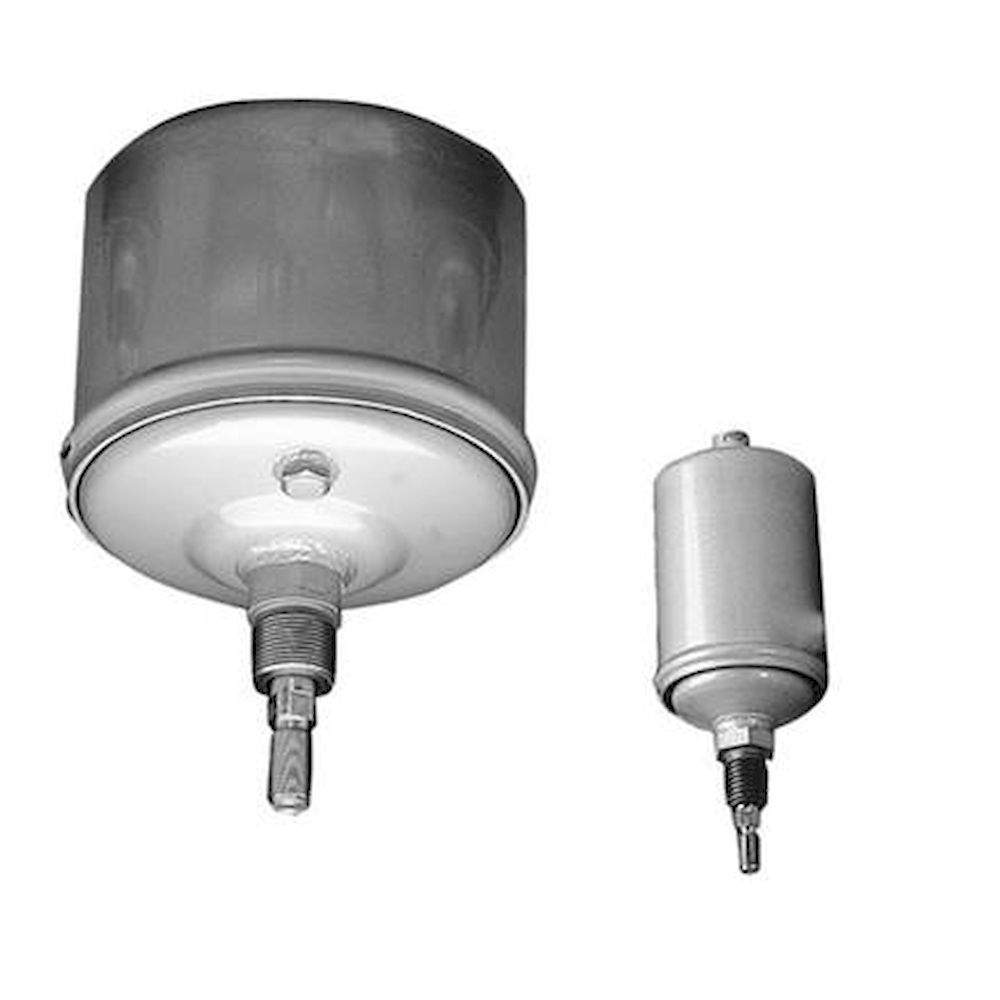

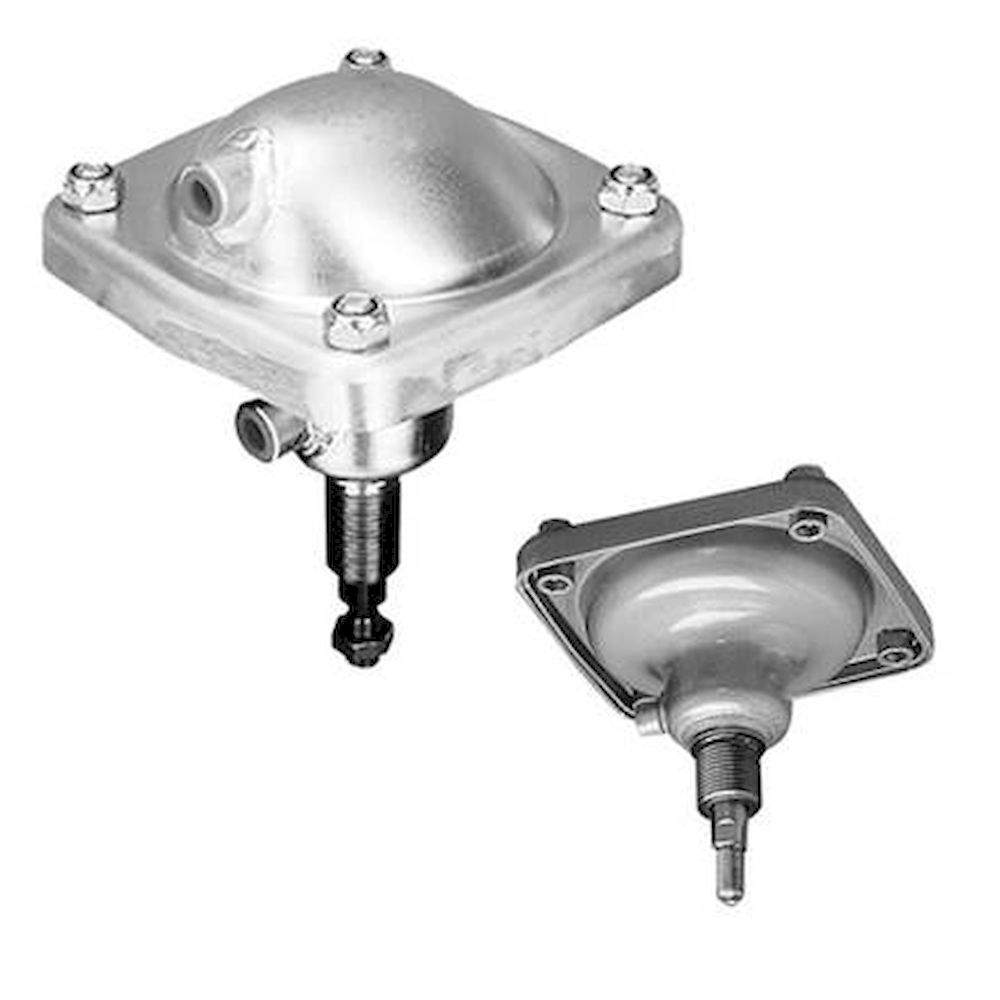

The Aventics Series 102 diaphragm cylinders feature robust tie-rod construction with bore sizes from 80mm to 250mm and are designed for heavy-duty industrial applications requiring higher force output and extended service life. The RDC series offers more compact dimensions with bore sizes from 52.5mm to 115mm, utilizing a different mounting configuration optimized for space-constrained installations and lighter-duty applications. Series 102 models like the 1022300000 provide 250mm bore diameter for maximum force generation, while RDC variants such as the RDC-SA-052,5-0040 offer precise positioning in compact packaging machinery where space is critical.

Aventics diaphragm cylinders require G1/8 or G1/4 threaded pneumatic connections depending on bore size, with larger Series 102 models typically using G1/4 ports for adequate air flow capacity. Installation requires rigid mounting to prevent flexural stress on the cylinder body, with ISO 15552 standard mounting holes available on applicable models for direct machine integration. The cylinders operate on standard compressed air quality per ISO 8573-1 Class 7.4.4, requiring filtration to 40 microns, water removal, and oil content below 1 ppm to prevent diaphragm degradation. Minimum bend radius for pneumatic tubing connections should exceed 6 times the tube outer diameter to prevent flow restriction.

Aventics diaphragm cylinders operate within a temperature range of -20°C to +80°C for standard NBR diaphragm materials, with extended temperature variants available for applications reaching +150°C using specialized elastomers. Operating pressure ranges from 1.5 bar minimum to 8 bar maximum working pressure, with proof pressure testing conducted at 12 bar according to ISO 19973 standards. The cylinders achieve IP54 protection rating against dust ingress and water splashing, making them suitable for washdown environments in food processing facilities. Maximum operating frequency depends on stroke length and pressure, typically allowing up to 300 cycles per minute for short stroke applications.

Aventics diaphragm cylinders require inspection every 2 million operating cycles or 12 months, whichever occurs first, with particular attention to diaphragm integrity and pneumatic connection tightness. The diaphragm membrane represents the primary wear component, typically requiring replacement after 5 to 10 million cycles depending on operating pressure, temperature, and stroke frequency. Visual inspection should check for diaphragm cracking, permanent deformation, or loss of elasticity, while pneumatic testing at 6 bar can verify continued pressure holding capability. Service life commonly exceeds 20 million cycles under normal operating conditions with proper air preparation and adherence to specified pressure and temperature limits.
