Signal converter

Festo signal converters are precision interface devices that transform electrical control signals into pneumatic actuation commands or convert pneumatic feedback into standardized electrical outputs for PLC systems. These components serve critical roles in automated manufacturing lines, packaging machinery, automotive assembly systems, and food processing equipment where electrical control systems must interface with pneumatic actuators. The SVE4 series handles standard voltage ranges while SCDN models provide specialized current loop conversion for process control applications. Signal converters eliminate the need for complex relay logic and enable seamless integration between digital control architectures and pneumatic final control elements in industrial automation systems.

Critical selection parameters for Festo signal converters include input signal type with the SVE4-HS handling high-speed switching applications, SVE4-US for universal signal compatibility, and SVE4-IS for isolated signal processing to prevent ground loops. Operating voltage ranges typically span 24VDC nominal with tolerance bands, while current handling capacity varies from 2A continuous rating in standard models to specialized current loop configurations in SCDN variants. Connection methodology differs between M8 threaded connectors for compact installations and PNLK terminal blocks for cabinet mounting applications. Response time specifications, typically under 10 milliseconds for SVE4 models, determine suitability for high-frequency switching applications versus slower process control requirements.

Festo signal converters comply with IEC 61131-2 industrial automation safety standards and meet EN 60204-1 electrical safety requirements for machinery applications. EMC compliance follows EN 61000-6-2 for industrial immunity and EN 61000-6-4 for emissions control, ensuring reliable operation in electromagnetically harsh industrial environments. Safety integrity levels conform to IEC 61508 functional safety standards where required for critical control applications. ATEX certification may apply to specific models intended for explosive atmosphere zones, while IP protection ratings typically achieve IP65 or IP67 sealing standards for industrial enclosure compatibility. CE marking indicates conformity with European machinery directive requirements and enables deployment across EU industrial facilities.

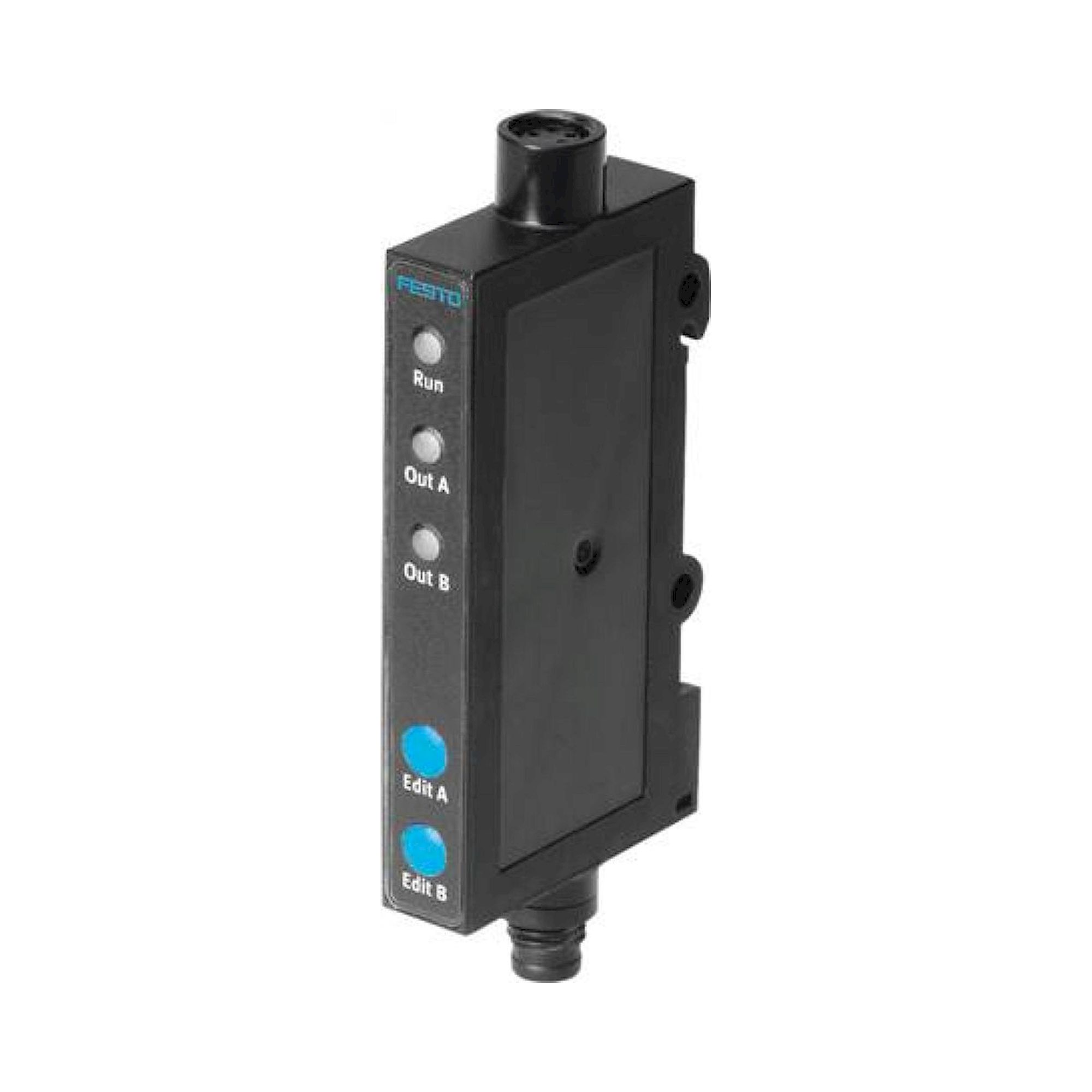

The SVE4-HS variant specializes in high-speed switching applications with response times optimized for rapid cycling pneumatic systems, while SVE4-US provides universal signal compatibility across broader voltage and current ranges for general automation applications. SVE4-IS models incorporate galvanic isolation to prevent electrical interference and ground loop formation in sensitive control circuits. Connection configurations vary between 2N normally open and 2P normally closed output states, with M8 connector variants offering compact installation profiles versus terminal block versions for panel mounting. SCDN series converters handle specialized current loop signals for process control integration, with 2V voltage output and 2A current output variants serving different instrumentation requirements in pneumatic control loops.

Festo signal converters require 24VDC power supply with current capacity matching the converter specifications plus connected load requirements, typically 2A minimum for SVE4 series installations. M8 threaded connector models mount directly to DIN rail assemblies or compact manifold blocks, while PNLK terminal variants require standard 35mm DIN rail mounting with adequate ventilation clearance. System compatibility encompasses PLC output modules rated for the converter input impedance, typically 4-20mA current loop or 0-10VDC voltage signal ranges. Wiring must follow industrial cable standards with shielded conductors for signal integrity, and grounding connections must prevent potential differences that could damage isolation barriers in IS-series converters.

Festo signal converters typically achieve IP65 or IP67 ingress protection ratings, ensuring reliable operation in industrial environments with dust exposure and water spray conditions. Operating temperature ranges span -10°C to +60°C for standard installations, with extended temperature variants available for extreme ambient conditions. Safety isolation voltage ratings reach 500VAC or higher for IS-series models, providing protection against electrical faults and ground potential differences. Maximum switching current ratings of 2A continuous duty with surge handling capability accommodate standard pneumatic valve coil loads without derating. Vibration resistance meets IEC 60068-2-6 standards for industrial machinery mounting, while electromagnetic immunity follows EN 61000-6-2 requirements for reliable operation adjacent to variable frequency drives and welding equipment.

Festo signal converters require minimal preventive maintenance with inspection intervals of 6-12 months focusing on connection integrity, terminal tightness, and housing seal condition. Expected service life exceeds 10 years under normal industrial operating conditions with switching cycles rated for millions of operations depending on load characteristics. Critical inspection points include M8 connector sealing integrity, terminal block corrosion in harsh environments, and LED indicator functionality for fault diagnosis. Replacement indicators include erratic switching behavior, thermal shutdown activation, or isolation barrier degradation measured with insulation resistance testing. No internal serviceable components exist, requiring complete unit replacement when performance degrades below specification limits, with fault diagnosis supported through integrated LED status indicators on most SVE4 and SCDN series models.
