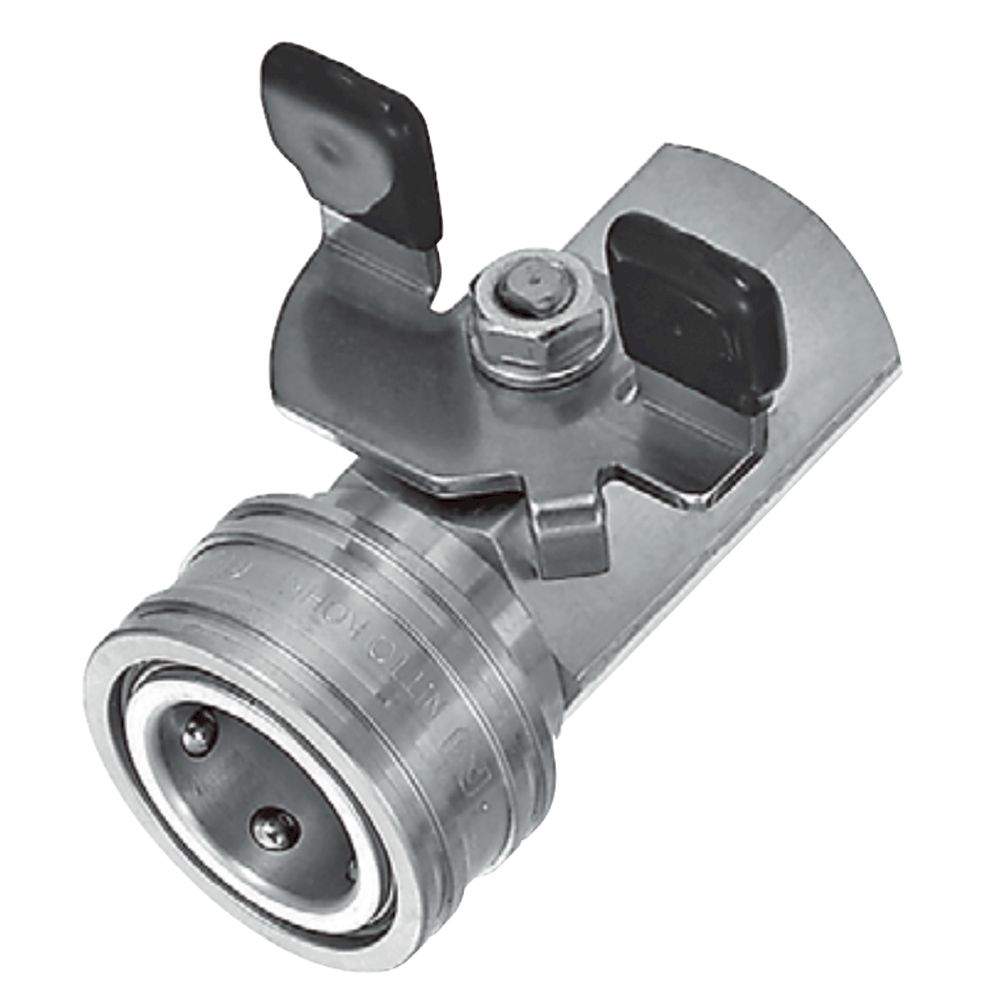

TSP-BV Cupla

Medium Pressure up to 75 Bar

The Nitto Kohki TSP-BV Cupla is a brass quick coupling with FKM (fluoroelastomer) seals for medium-pressure service up to 75 bar. The range comprises five socket versions in nominal sizes 2, 3, 4, 6 and 8 (BV-2TSF through BV-8TSF). FKM provides significantly better resistance to mineral oils, fuels, aromatic hydrocarbons and elevated temperatures compared with NBR, qualifying this series for chemically demanding hydraulic and coolant systems.

⚙ Brass body - corrosion-resistant, suitable for hydraulic and coolant media

✓ FKM seal - fluoroelastomer, resistant to mineral oils, fuels and aromatic hydrocarbons

⚡ Nominal sizes 2-8 - socket type (TSF), series BV-2TSF to BV-8TSF

↕ Working pressure up to 75 bar - medium-pressure range, TSP compatible

Part number	Nominal size	Body material	Seal
BV-2TSF	2	Brass	FKM
BV-3TSF	3	Brass	FKM
BV-4TSF	4	Brass	FKM
BV-6TSF	6	Brass	FKM
BV-8TSF	8	Brass	FKM

Typical applications: Hydraulic systems using mineral oil or synthetic hydraulic fluids, metalworking coolant-lubricant installations, chemical process equipment exposed to fuels or solvents, and general medium-pressure line connections up to 75 bar where FKM seals are preferred over NBR for media compatibility reasons.

Technical data from the manufacturer catalogue

Series	TSP CUPLA Socket with Ball Valve
Body material	Brass
Seal material	Fluoro rubber (FKM), Fluoropolymer resin (ball valve part)
Max working pressure	1.0 MPa {10 kgf/cm2}
Working temperature	CUPLA part: Fluoro rubber (FKM): -5 °C to +120 °C
Valve structure	One-way shut-off
Applicable fluids	Water, Hydraulic oil, Air, Gas
Vacuum service	Not suitable for vacuum application in either connected or disconnected condition.
Size range	1/4 inch to 1 inch
Catalogue page	C01en-b, 83

Operating principle

On disconnection the valve in the socket closes the supply line. The fluid left in the plug escapes.

Connecting sequence of a ball locking quick connect coupling.

One-piece design of TSP CUPLA socket and ball valve.
Separation prevention mechanism prevents accidental disconnection during connection (when the valve is open).
The handle of the ball valve locks the sleeve to prevent disconnection of the plug during use.
Socket valve can be opened and shut off while socket and plug are connected.
Ball valve design provides for high flow rate.
High viscosity fluids such as grease can be applied.
Interchangeable with standard TSP CUPLA plug in the same size.
Compact and enhanced sealing design: the connection part between a standard TSP CUPLA socket and a commercially available ball valve is eliminated for enhanced sealing and the overall length is reduced by around 30%.

All models of the series

BV-TSF - Female thread

Model	Coupling part	Application	Brass (g)	L	T	øH(WAF)	øh	øunlabelled	øøD	øød
BV-2TSF	Socket	R 1/4	104	(52.3)	Rc 1/4	Hex.17	(43)	(38.5)	24	5
BV-3TSF	Socket	R 3/8	163	(60.5)	Rc 3/8	Hex.21	(47.5)	(44)	28	7.5
BV-4TSF	Socket	R 1/2	270	(70.3)	Rc 1/2	Hex.26	(53)	(52)	35	9
BV-6TSF	Socket	R 3/4	491	(82.8)	Rc 3/4	Hex.32	(66.1)	(60.5)	45	12.5
BV-8TSF	Socket	R1	904	(102.3)	Rc 1	Hex.41	(76.6)	(76)	58	16

Dimensions in millimetres. Values in brackets apply in the connected condition.

Legend: L = overall length; H = width across flats or outside dimension; D = socket outside diameter; A = hose barb length; C = sleeve dimension; T = thread or barb size; B = bore

Series comparison

Series	Max working pressure	Size range	Valve structure	Applicable fluids
TSP CUPLA Socket with Ball Valve	10 bar	1/4 inch to 1 inch	One-way shut-off	Water, Hydraulic oil, Air, Gas
ZEROSPILL CUPLA	36 bar	1/4 inch, 3/8 inch, 1/2 inch, 3/4 inch, 1 inch (thread)	Two-way shut-off (Spill Reduction)	Water, Hydraulic oil, Chemicals, Air, Gas
SP CUPLA Type A	75 bar	1/8 inch to 2 inch	Two-way shut-off	Water, Hydraulic oil, Chemicals, Air, Gas, Steam
TSP CUPLA	75 bar	1/8 inch to 2 inch (thread and hose)	Straight through	Water, Hydraulic oil, Chemicals, Air, Gas, Steam

Pick the TSP CUPLA Socket with Ball Valve when the line has to be shut off and reopened at the socket while the plug stays connected, which the straight through TSP CUPLA does not provide. It is rated 1.0 MPa {10 kgf/cm2}, so lines working in the 1.5 to 7.5 MPa {15 to 76 kgf/cm2} range of TSP CUPLA and SP CUPLA Type A, or at the 3.5 MPa {35 kgf/cm2} of ZEROSPILL CUPLA, are above its rating. Its valve structure is one-way shut-off, so where both halves have to close on disconnection SP CUPLA Type A or ZEROSPILL CUPLA with their two-way shut-off apply.

Body and seal materials

Body material
Brass

Seal material	Mark	Working temperature	Remarks
CUPLA part: Fluoro rubber (FKM)	-	-5 °C to +120 °C	-
Ball valve part: Fluoropolymer resin	-	-	-

Further catalogue data

Note	Value
Pressure unit conversion	1.0 MPa = 10 kgf/cm2 = 10 bar = 145 PSI
Min. cross-sectional area BV-2TSF	19.6 mm2
Min. cross-sectional area BV-3TSF	44.1 mm2
Min. cross-sectional area BV-4TSF	63.6 mm2
Min. cross-sectional area BV-6TSF	122 mm2
Min. cross-sectional area BV-8TSF	201 mm2
Maximum tightening torque BV-2TSF	9 Nm {92 kgf - cm}
Maximum tightening torque BV-3TSF	12 Nm {122 kgf - cm}
Maximum tightening torque BV-4TSF	30 Nm {306 kgf - cm}
Maximum tightening torque BV-6TSF	50 Nm {510 kgf - cm}
Maximum tightening torque BV-8TSF	65 Nm {663 kgf - cm}
Flow direction	Fluid flow can be bi-directional when socket and plug are connected.
Accessory	CUPLA ADAPTER for Braided Hose Connection, can be screwed into CUPLA with female threads 3/8 inch, 1/2 inch, 3/4 inch (see page 166).
Flow rate	Flow rate - pressure loss characteristics chart on page 84 for BV-2TSF to BV-8TSF. Test conditions: fluid hydraulic oil, temperature 30 deg C, fluid viscosity 32x10-6 m2/s, density 0.87x103 kg/m3. Chart range 1 to 1000 L/min against 0.01 to 1.0 MPa {0.1 to 10 kgf/cm2} pressure loss.

Interchangeability and size groups

TSP CUPLA plugs of the same size can be connected regardless of end configurations. Interchangeable with the standard TSP CUPLA plug in the same size.

Safety and application notes

Before use, please be sure to read the Safety Guide described at the end of the catalogue and the Instruction Sheet that comes with the products.

All technical data on this page is taken from the Nitto Kohki general catalogue Quick Connect Couplings C01en-b, page 83. The complete catalogue is available for download on this page.
