High-precision stand with fine focus and quick release - Dino-Lite RK-10A
The Dino-Lite RK-10A is a precision stand in stainless steel and aluminium with fine focus, quick release and an adjustable safety stop. According to the manufacturer it works with all Dino-Lite models and ships with the HD-P1 holder and the RK-10-EX additional arm. It can be extended with the RK-10-FX, RK-10-VX, RK-10-PX2 and the SS-M2 Petri dish holder.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
At high magnification a fraction of a millimetre separates a sharp image from a blurred one. The Dino-Lite RK-10A carries the microscope on a stainless steel and aluminium frame and sets focus with a fine-focus knob. The quick release moves the holder to a new height without endless turning.

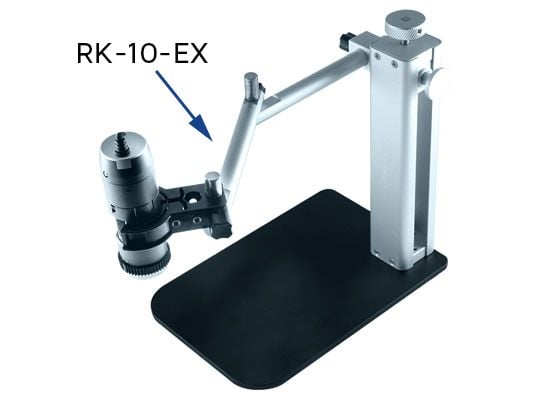

An adjustable safety stop keeps the microscope from touching the specimen. The horizontal arm reaches 15 cm and rotates through 360 degrees. The included RK-10-EX additional arm extends the reach so larger objects fit under the microscope as well.
What it does in practice
- Fine focus for high magnification, quick release for switching between flat and tall objects.
- The safety stop protects microscope and specimen from contact.
- ESD safe according to the manufacturer.
- Expandable: gooseneck, vertical arm, XY arm and Petri dish holder all mount on the same stand.
Works with
Microscopes: all Dino-Lite models according to the manufacturer. That covers the Edge, Edge PLUS, Edge 3.0, DinoConnect (AF) and Basic series as well as the AD models, including long working distance versions and high magnification models such as the AM4115ZTL, AF4515ZT or AM7515MT8A.
Holders: the HD-P1 holder is included. The HD-M2A and HD-M1 are metal alternatives with a 10 mm mount.
Not suitable: the HD-M2B holder has a 1/2 inch mount and, according to the manufacturer, does not fit RK stands.

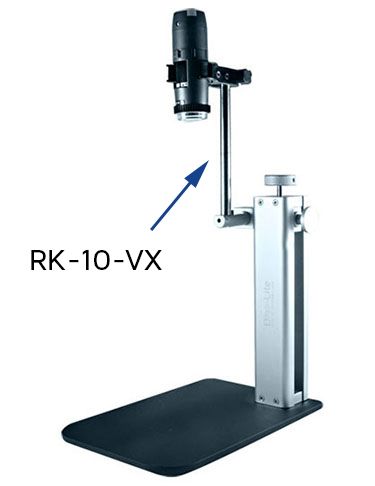

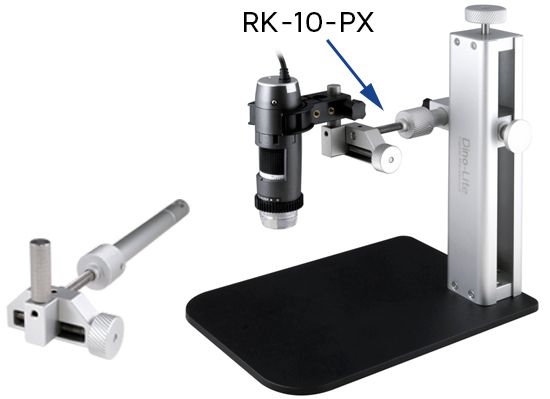

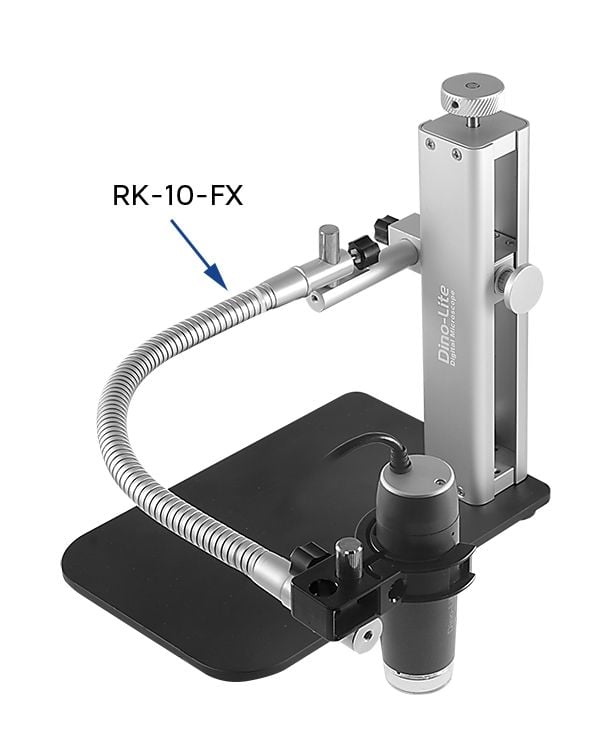

Combines with: the RK-10-FX (gooseneck arm), RK-10-VX (vertical arm) and RK-10-PX2 (XY positioning arm), all approved by the manufacturer for the RK-10A. The SS-M2 Petri dish holder is made for the RK-10A only. The MS15X XY stage and the KM-01 focus motor can also be mounted on the RK-10A according to the manufacturer. Microscope compatibility of the KM-01 is confirmed by the manufacturer on request.
Technical data
| Property | Value |
|---|---|
| Type | Precision stand with fine focus, quick release and safety stop |
| Material | Stainless steel and aluminium |
| Horizontal arm | 15 cm reach, 360 degree rotation |
| Dimensions | 15 cm (W) x 22 cm (L) x 23 cm (H) |
| Weight | 1.10 kg |
| ESD safe | Yes |
| Regulatory approval | RoHS |
| Warranty | 2 years manufacturer warranty |
| Package contents | Stand, HD-P1 holder, RK-10-EX additional arm |
| Manufacturer | Dino-Lite |
| Manufacturer Nr. | RK-10A |
| EAN | 4712805474820 |
| HS-Code | 90119090 |
| GPSR manufacturer information | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment, info@esd.equipment |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Taiwan |
| ESD version | ESD (antistatic) |
| ESD equipment | USB Mikroskop |
