Lötspitze verlängert, flach 8,0 x 1,9 mm, Frontfläche verzinnt für Lötroboter-Tools 9018M, 9018BMT - Quick QU911G-80D-09

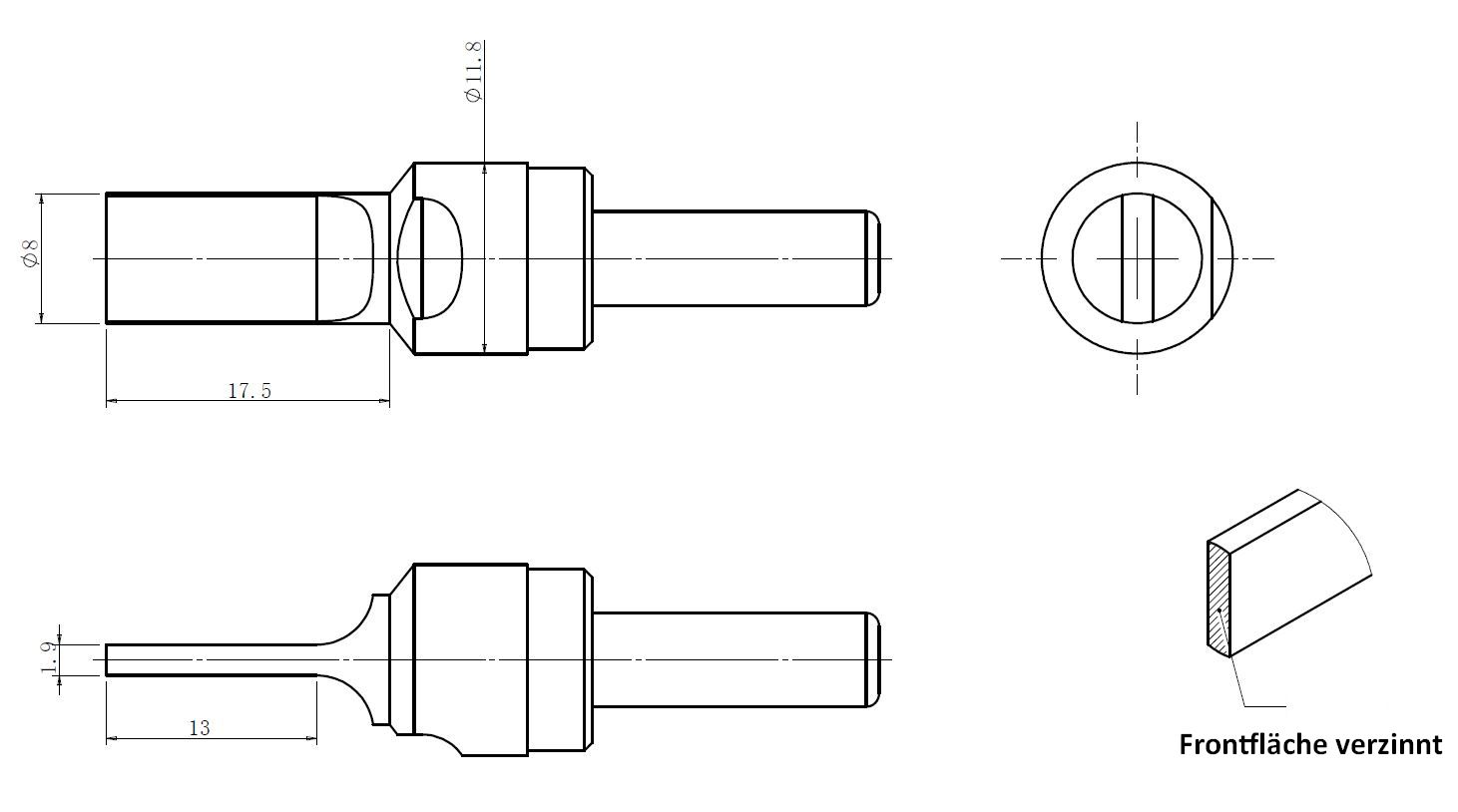

When an extended flat tip cools too quickly on thick copper areas, cross section is what is missing. This version therefore uses a 1.9 mm end thickness, 0.2 mm more than the otherwise identical 8.0 x 1.7 mm variant, with the front face tinned as well.

Why it works

• End thickness 1.9 mm, more mass right behind the contact face and therefore less temperature drop on heat hungry joints.
• Face width 8.0 mm, the full area sits on wide pads and terminal surfaces.
• Pre-tinned front face, solder wets the whole end from the first contact.
• Extended body, recessed contacts are reached without converting the tool.
• Straight design, no correction of the attack angle needed in the path program.
• QU911G cartridge format, RoHS compliant and suited to lead free alloys.

Technical data

Application and compatibility

Aimed at large area joints with a high heat demand such as ground connections, flat terminals and heavy stranded wire on recessed contacts. Fits the 9018M and 9018BMT soldering robot tools and therefore the ET9181, 9594FYA, ET9494E, 9584EYA and ET9494F-A robots plus further models of the range. Supplied as a single tip.
