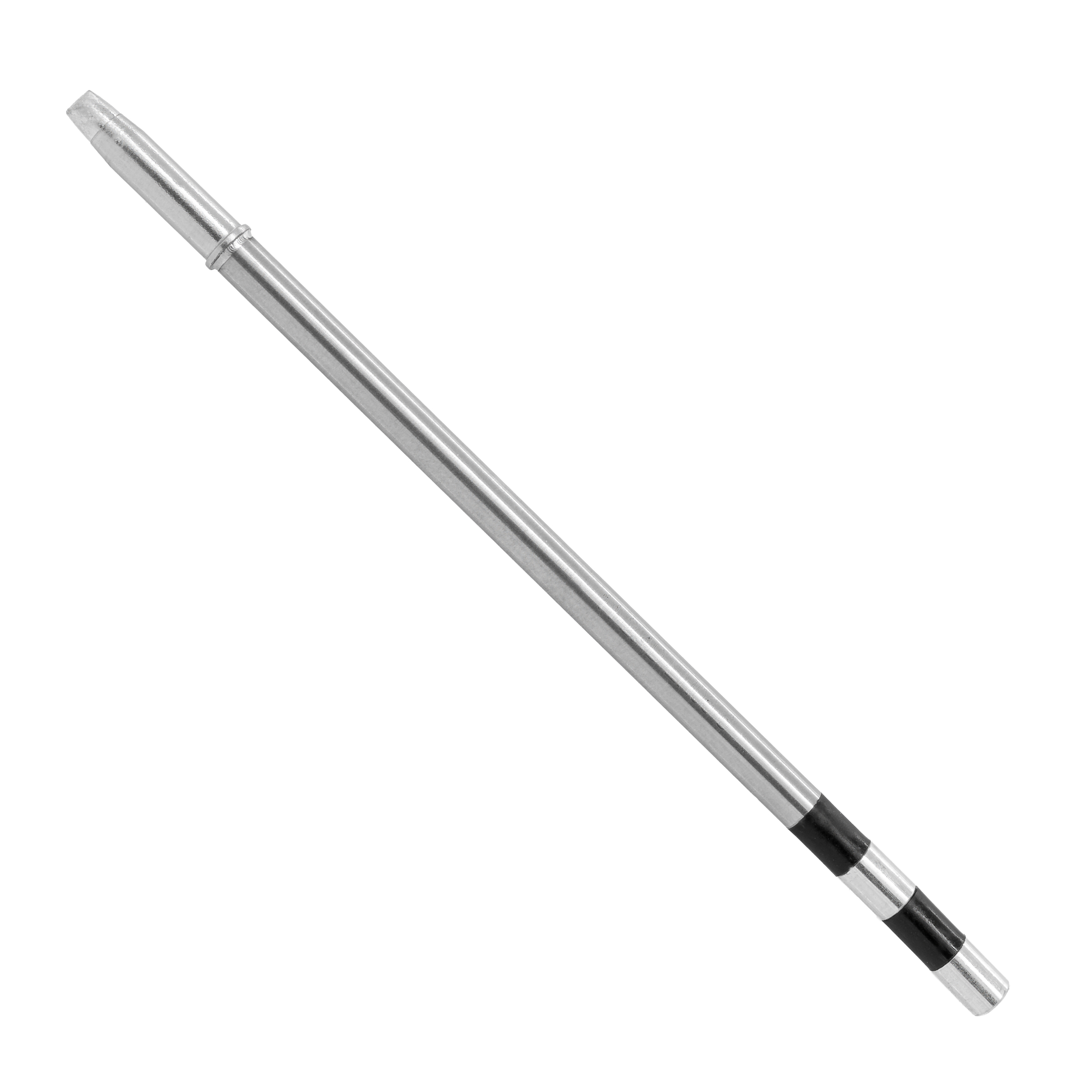

A straight chisel 2.4 mm wide and 1.0 mm thick lays a continuous edge across pad and lead, so the joint wets in one pass. On the QUICK TS11 the tip is at 300 °C after 3 seconds, controlled by the thermocouple inside the cartridge. The everyday shape for through-hole parts, headers and larger SMD pads.
Kartuschenlötspitze TS11 gerade Meißel 2,4 mm - extrem schnelle Aufheizzeit - Quick TSS11-2.4D
QUICK
Original product
Net price (excl. VAT)
€6.30
Item
QCK-TSS11-2.4D
Manufacturer no.
TSS11-2.4D
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.TSS11-2.4D
ConditionNew
Article
QCK-TSS11-2.4D
Frequently Bought Together
Through-hole parts and pin headers pull heat away fast. The 2.4 mm chisel edge returns it over a flat area, and the cartridge brings the QUICK TS11 to 300 °C in 3 seconds from cold.
Benefits
- Chisel width 2.4 mm at 1.0 mm thickness, the edge covers pad and lead at the same time.
- Heat-up time of 3 seconds from 20 °C to 300 °C on the TS11, short waiting even after a tip swap.
- Built-in thermocouple measures at the working face and holds temperature while the joint draws heat.
- Working range 100 to 450 °C for leaded and lead-free alloys.
- Overall length 90 mm, shank diameter 3.3 mm to 3.5 mm.
- Tool-free tip change with no need to let the heater cool down.
Technical data
| Tip shape | straight chisel |
| Tip width | 2.4 mm |
| Tip thickness | 1.0 mm |
| Overall length | 90 mm |
| Shank diameter | 3.3 mm / 3.5 mm |
| Temperature range with TS11 | 100 to 450 °C |
| Heat-up time with TS11 | 3 seconds from 20 °C to 300 °C |
| Tip series | TSS11 |
| RoHS | compliant |
| Manufacturer number | TSS11-2.4D |
Applications
Soldering on larger pads, pins, connectors and boards. The wide edge suits through-hole components and pin headers where a needle tip cannot supply enough heat.
Scope of delivery and compatibility
1x cartridge soldering tip TSS11-2.4D. Fits the QUICK TS11 soldering station and the TSS11 tip holder.
| Manufacturer Nr. | TSS11-2.4D |
|---|---|
| Manufacturer | Quick |
| GPSR manufacturer information | Bräunlich GmbH Am Heideberg 26, DE 06886 Lutherstadt Wittenberg, www.braeunlich-gmbh.com |
| Article authenticity | Original product |
| Condition of article | New |
| Position sensing | No |
