Kartuschenlötspitze für TS8, gerade, meißelförmig spitz 10 mm breit x 1,5 mm, 3 mm Lot-benetzt beidseitig - Quick TSS08-10D

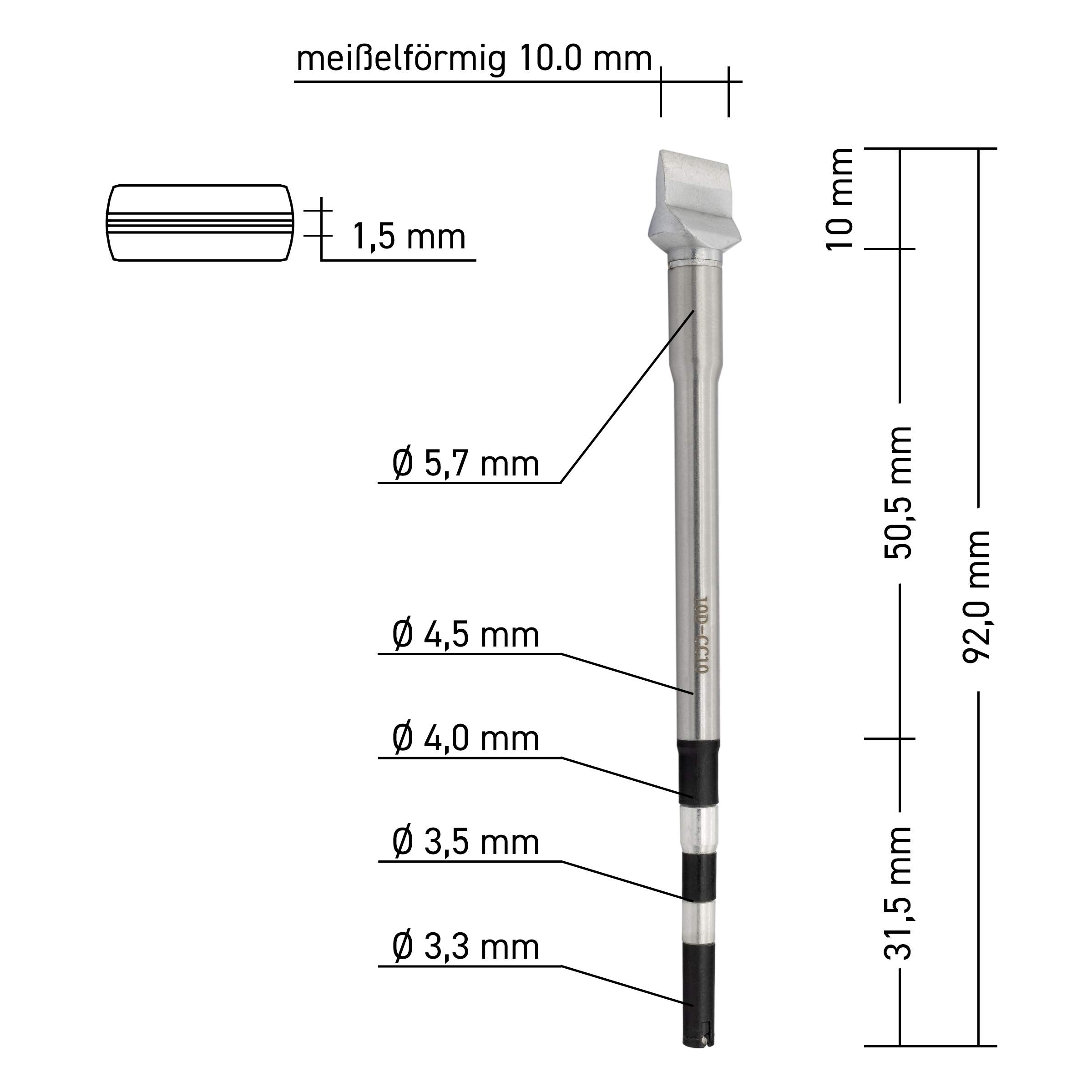

Where heat drains into a copper plane or a sheet metal part, contact width decides the result. The TSS08-10D lands with a 10 mm blade of 1.5 mm material thickness, which provides the cross section for joints where narrow tips cannot hold temperature.

Key points

• Blade width 10 mm covers a QFP row or a solder tab in one pass instead of pin by pin.
• Material thickness 1.5 mm supplies the heat that a ground plane pulls away.
• Tinning 3 mm on both faces, so the tip can be turned and either flank carries a reservoir.
• Thermocouple in the cartridge, which matters most at this heat demand, since the station regulates at the work point.
• Calibration chip in the tip keeps the displayed temperature dependable on large tip shapes.

Specifications

Use and scope of delivery

Intended for ground planes, shield cans, battery tabs, connectors with large contact cross section and stranded wire from about 1.5 mm2. If more width is needed, the TSS08-15D offers 15 mm. The tip fits the QUELKTSS80A iron of the Quick TS8 and TS8+ stations. Supplied as one cartridge tip without iron or station.
