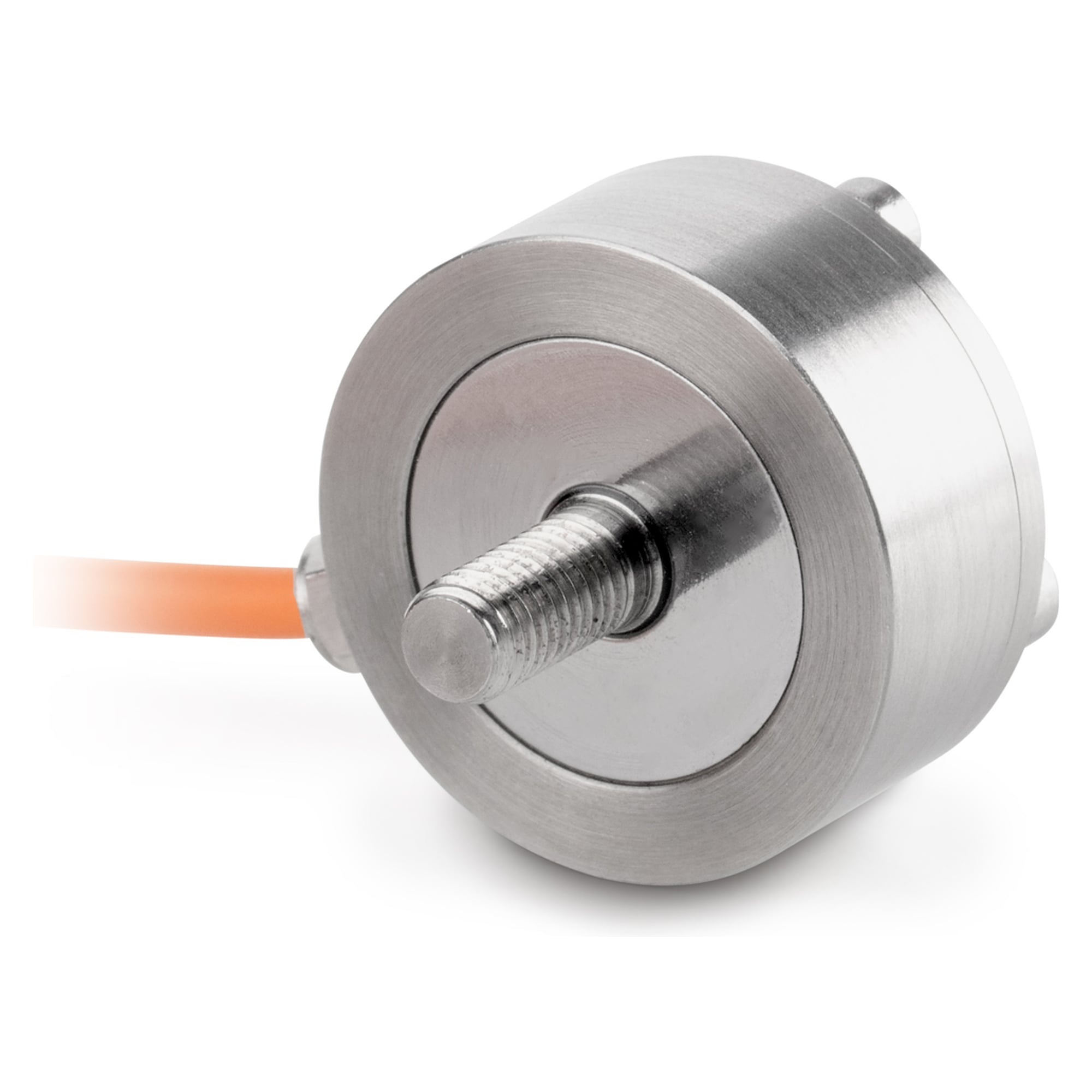

Load Cell 2000 kg - SAUTER CO 2000-Y2
The SAUTER CO 2000-Y2 measures tensile and compressive forces up to 20 kN or weights up to 2000 kg. The stainless button load cell keeps a combined error of 0.5 % F.S.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The SAUTER CO 2000-Y2 takes tensile and compressive forces up to 20 kN in a stainless housing (Ø 51 × 75 mm) and covers a weighing range up to 2000 kg. Its combined error is 0.5 % F.S.
Benefits
- Tension and compression in one sensor: force range up to 20 kN in both directions
- Repeatable readings: combined error 0.5 % F.S.
- Corrosion-resistant stainless housing: Ø 51 × 75 mm body

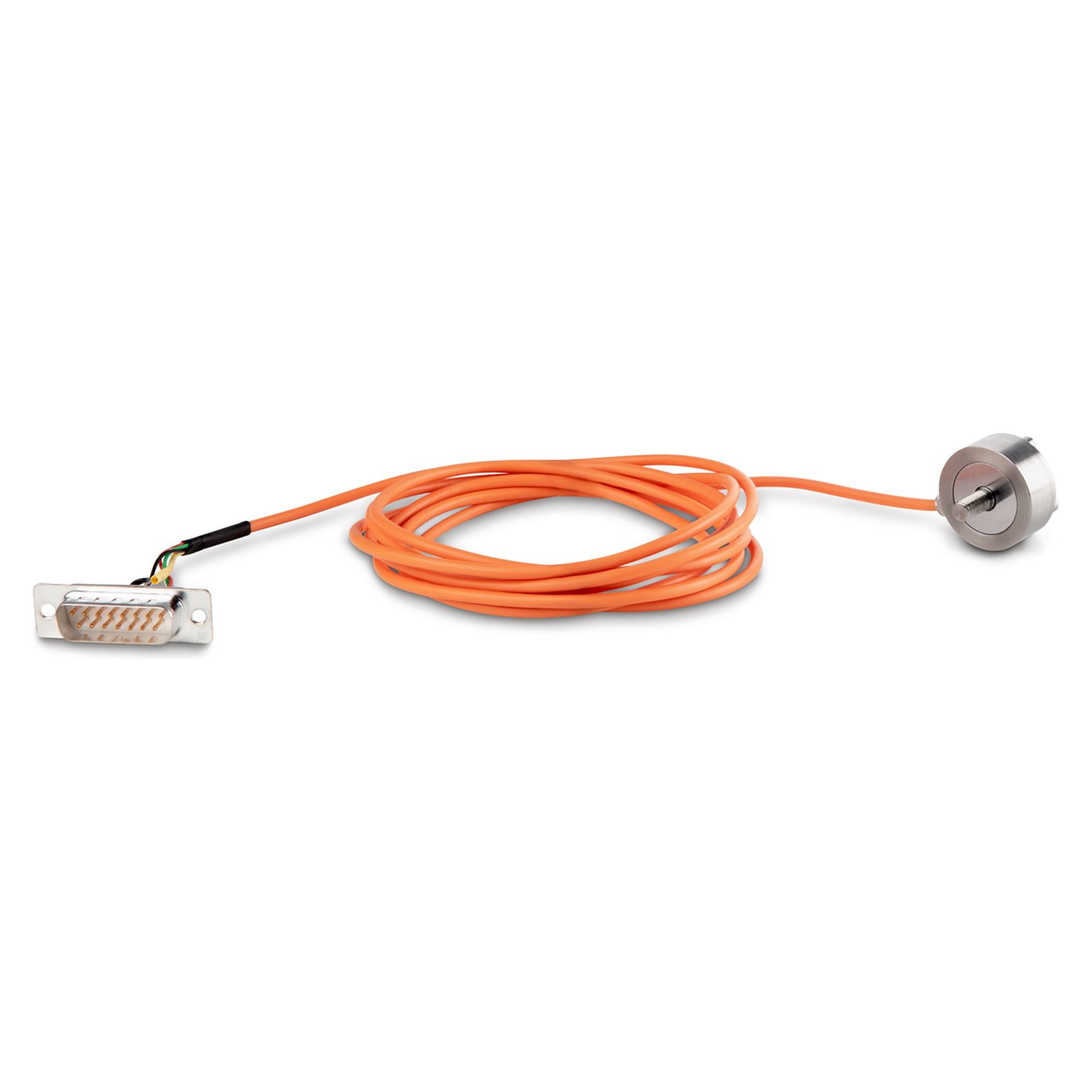

- Ready to wire: 4-wire technique with 2 m cable
Applications
Typical fields of use are research and development, mechanical engineering and testing technology, the automotive and supplier industry, medical technology and biomechanics as well as calibration and test-equipment engineering.
Compliance and origin
EAN 4045761233034, customs tariff number 90249000, country of origin China.
Technical data
| Weighing range (max) | 2000 kg |
|---|---|
| Force range (max) | 20 kN |
| Dimensions (Ø×H) | 51×75 mm |
| OIML class | G5 |
| Force directions | Tension and compression |
| Connection | 4-wire |
| Cable length | 2 m |
| Net weight approx. | 0,55 kg |
| Weight | 0.6 kg |
| Manufacturer | Sauter |
| EAN | 4045761233034 |
| HS-Code | 90249000 |
| GPSR manufacturer information | KERN & SOHN GmbH, Ziegelei 1, DE-72336 Balingen-Frommern, www.kern-sohn.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | China |
| Wägebereich max (g) | 2000000 |
