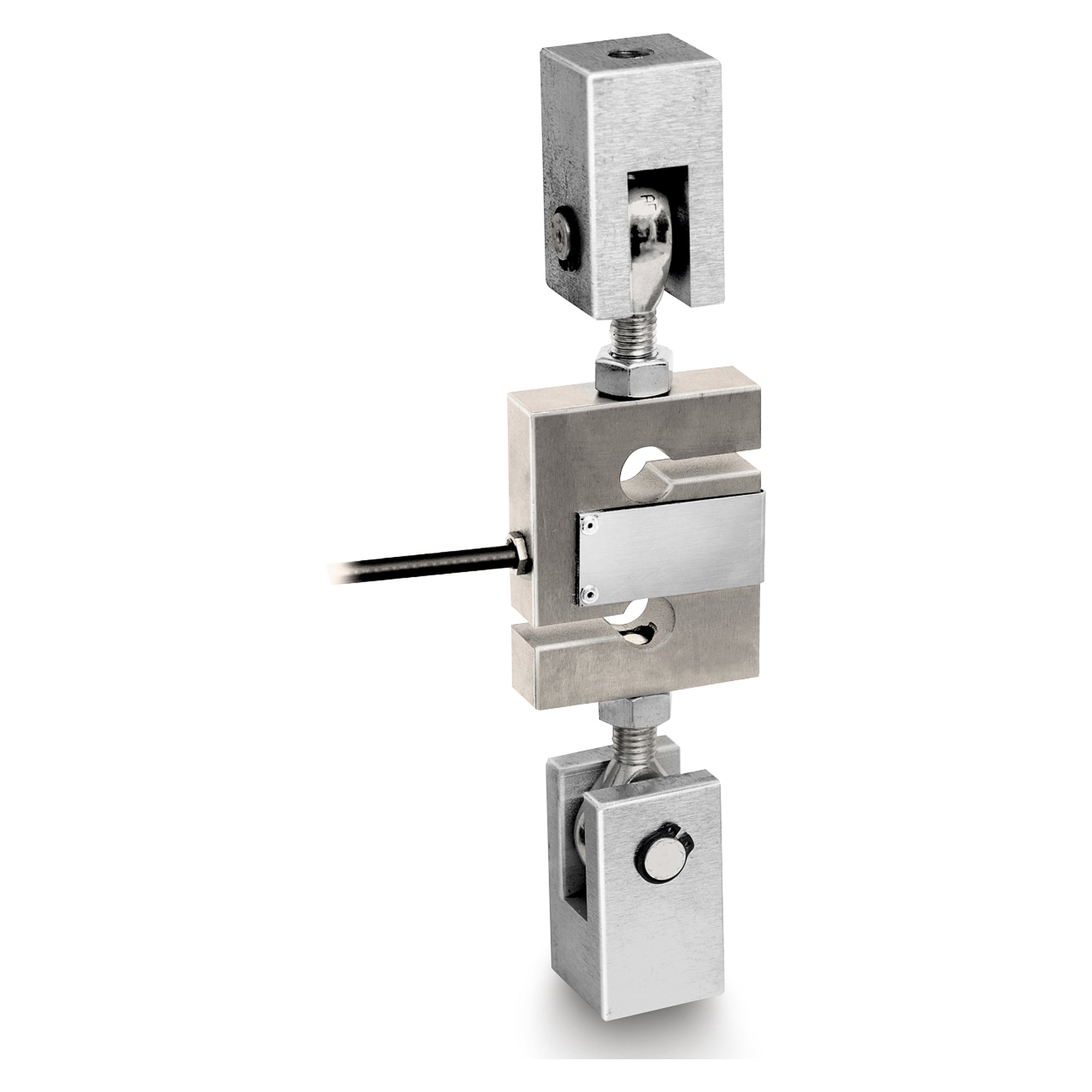

Load Cell 200 kg - SAUTER CS 200-3Q1
The SAUTER CS 200-3Q1 is an S-type weighing and force load cell up to 200 kg (2 kN) with a six-wire connection. The sense lines compensate lead resistance so the calibratable C3 accuracy (3000 e) is maintained even over longer cables.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The six-wire SAUTER CS 200-3Q1 captures tension and compression forces up to 200 kg (2 kN) and keeps its C3 accuracy even at greater cable length.
Benefits
- Tension and compression in one cell: captures forces up to 2 kN in both directions
- Calibratable accuracy: OIML class C3 with 3000 verification intervals (e)
- Six-wire connection: compensates lead resistance for stable readings over longer cables
- Corrosion-protected: nickel-plated steel body
- Defined temperature range: -10 °C to 40 °C
Applications
The load cell is used in machine and plant engineering, testing and materials testing, conveyor and logistics systems, tank and silo weighing as well as in medical technology and research.
Compliance and origin
EAN 4045761222021, customs tariff code 90249000, country of origin Spain.
Technical data
| Weighing range (max) | 200 kg |
|---|---|
| Force range (max) | 2 kN |
| Force directions | tension and compression |
| Accuracy class (OIML) | C3 |
| Verification interval | 3000 e |
| Y value | 10000 |
| Connection | 6-wire |
| Cable length | 5 m |
| Operating temperature | -10 °C to 40 °C |
| Material | nickel-plated steel |
| Net weight | 0,80 kg |
| Weight | 0.9 kg |
| Manufacturer | Sauter |
| EAN | 4045761222021 |
| HS-Code | 90249000 |
| GPSR manufacturer information | KERN & SOHN GmbH, Ziegelei 1, DE-72336 Balingen-Frommern, www.kern-sohn.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Spain |
| Wägebereich max (g) | 200000 |
