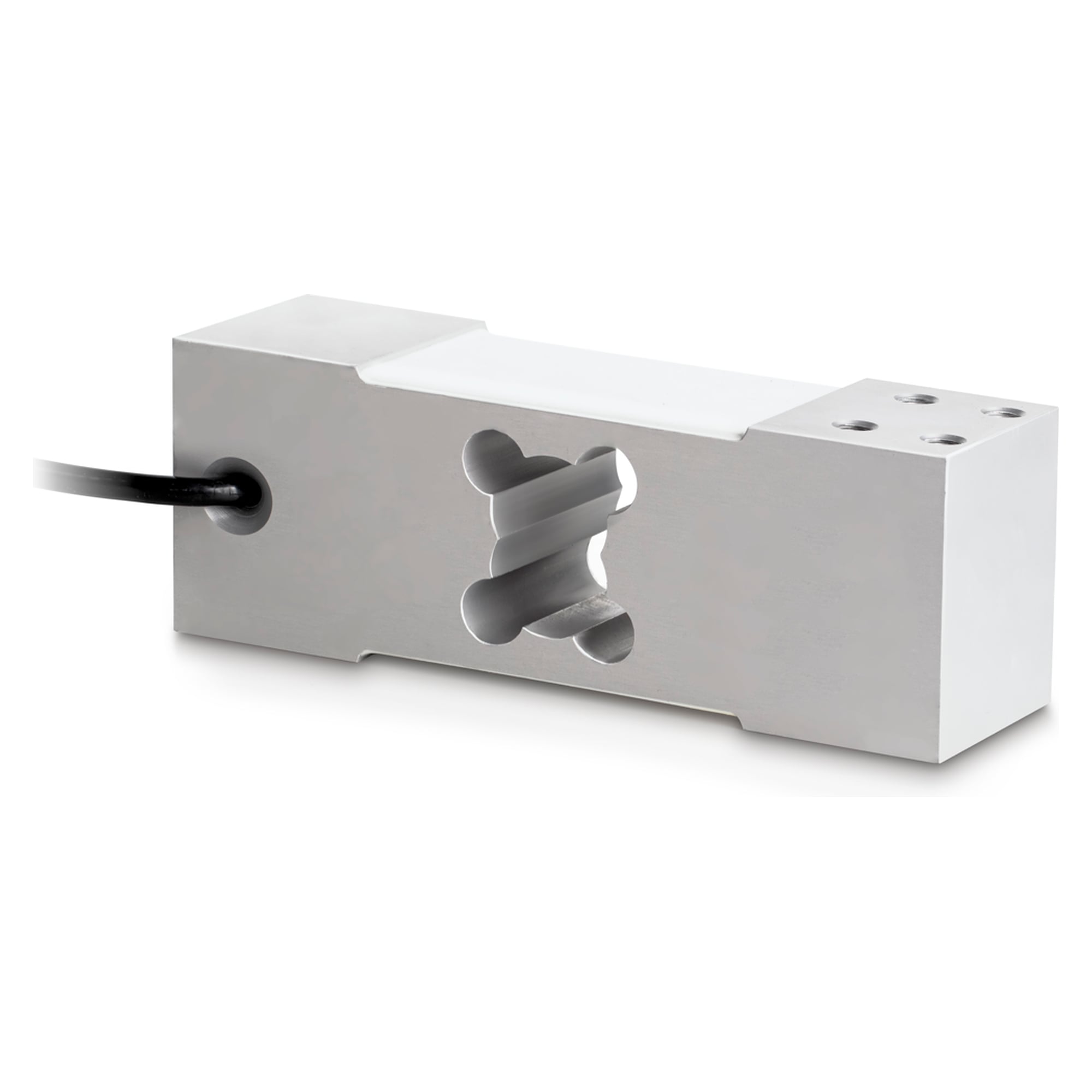

Load Cell 250 kg - SAUTER CP 250-3P8

Anyone assembling or servicing price-computing and bench scales needs a load cell that reads loads evenly no matter where they sit on the platform. The SAUTER CP 250-3P8 does this as a single-point cell rated for 250 kg, with a aluminium spring body.

Benefits

• Verifiable resolution: 3000 divisions (e) to OIML R60 class C3
• Y value 10000: high Emax/vmin ratio for fine graduation
• Aluminium spring body: light and dimensionally stable (1,8 kg net)
• Platform up to 600×600 mm: suits compact to mid-size weighing decks
• 6-wire connection: compensates cable resistance over longer runs

Technical data

• Rated capacity (Max): 250 kg
• OIML class: C3
• Verifiable resolution: 3000 e
• Y value: 10000
• Force direction: Compression
• Maximum platform size: 600×600 mm
• Cable length: 3 m
• Load cell connection: 6-wire
• Operating temperature: -35 °C to 65 °C
• Material: Aluminium
• Net weight: 1,8 kg

Applications

Industry and manufacturing, packaging, food and pharmaceutical production, machine and plant engineering, and research and development.

Compliance and origin

The load cell is classified to OIML R60 class C3. Higher classes (C4 or C5) are available on request. EAN 4045761308350, customs tariff number 84239010, country of origin China.
