Precise alloy steel load cell from SAUTER for tension and compression forces up to 5000 kg (50 kN). Combined error 0.05 % F.S., load button included. For force test benches and weight measurement.

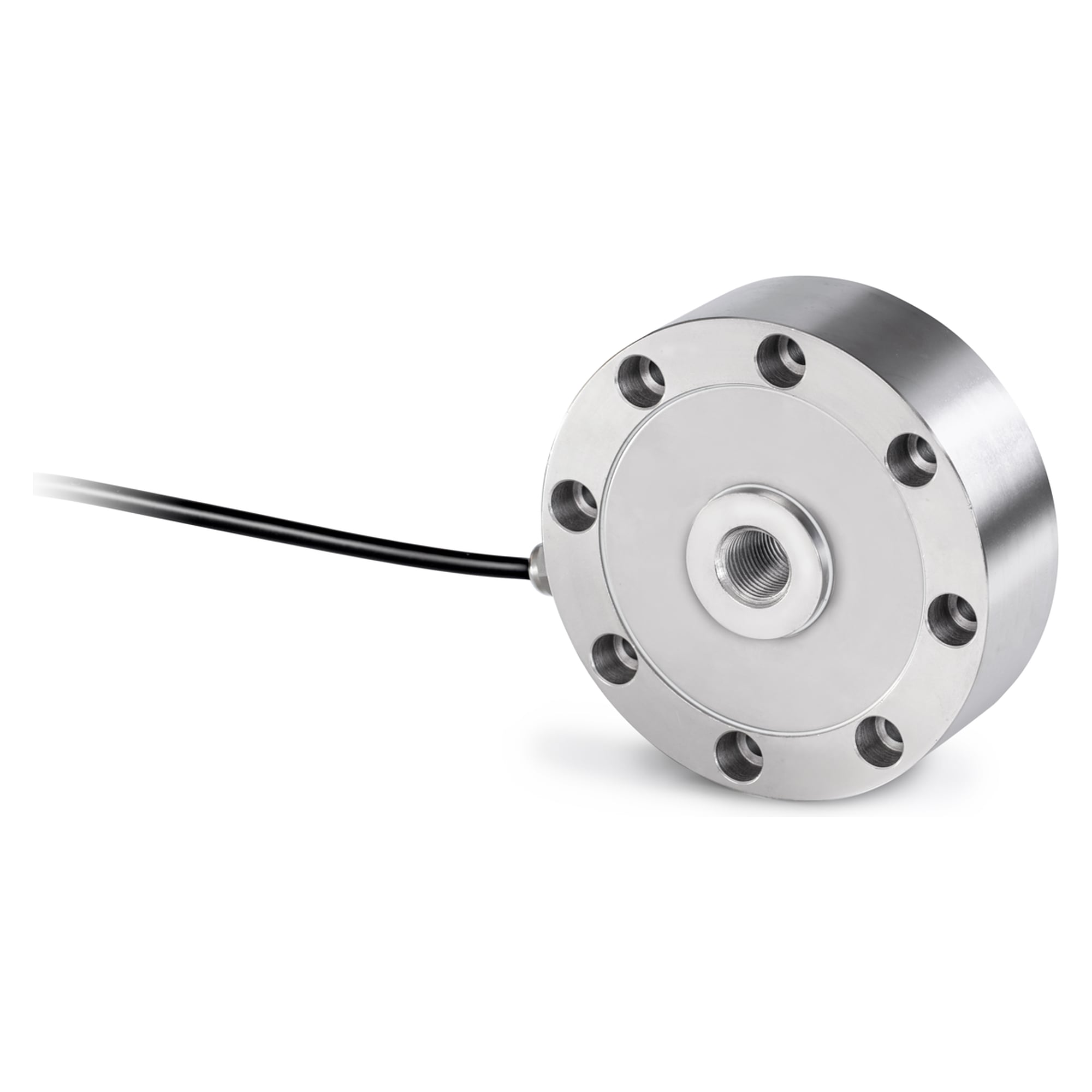

Load Cell 5000 kg - SAUTER CR 5000-1Y1
SAUTER
Original product
Net price (excl. VAT)
€211.68
Item
KER-CR 5000-1Y1
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
EAN4045761246188
Country of originChina
Customs tariff number90249000
ConditionNew
Article
KER-CR 5000-1Y1
Frequently Bought Together
-
This Item:
€211.68
-
Load Cell 1000 kg - SAUTER CT 1000-3P1
€76.83
-
Load Cell 50 kg - SAUTER CB 50-3Q1
€180.32
Total price
The SAUTER CR 5000-1Y1 captures tension and compression forces up to 5000 kg (50 kN) with a combined error of 0.05 % F.S. Its alloy steel load button suits weight and force measurement as well as force test benches.
Benefits
- High precision (combined error 0.05 % F.S.): accurate results in weight and force measurement.
- Tension and compression: one sensor for both load directions on force test benches.

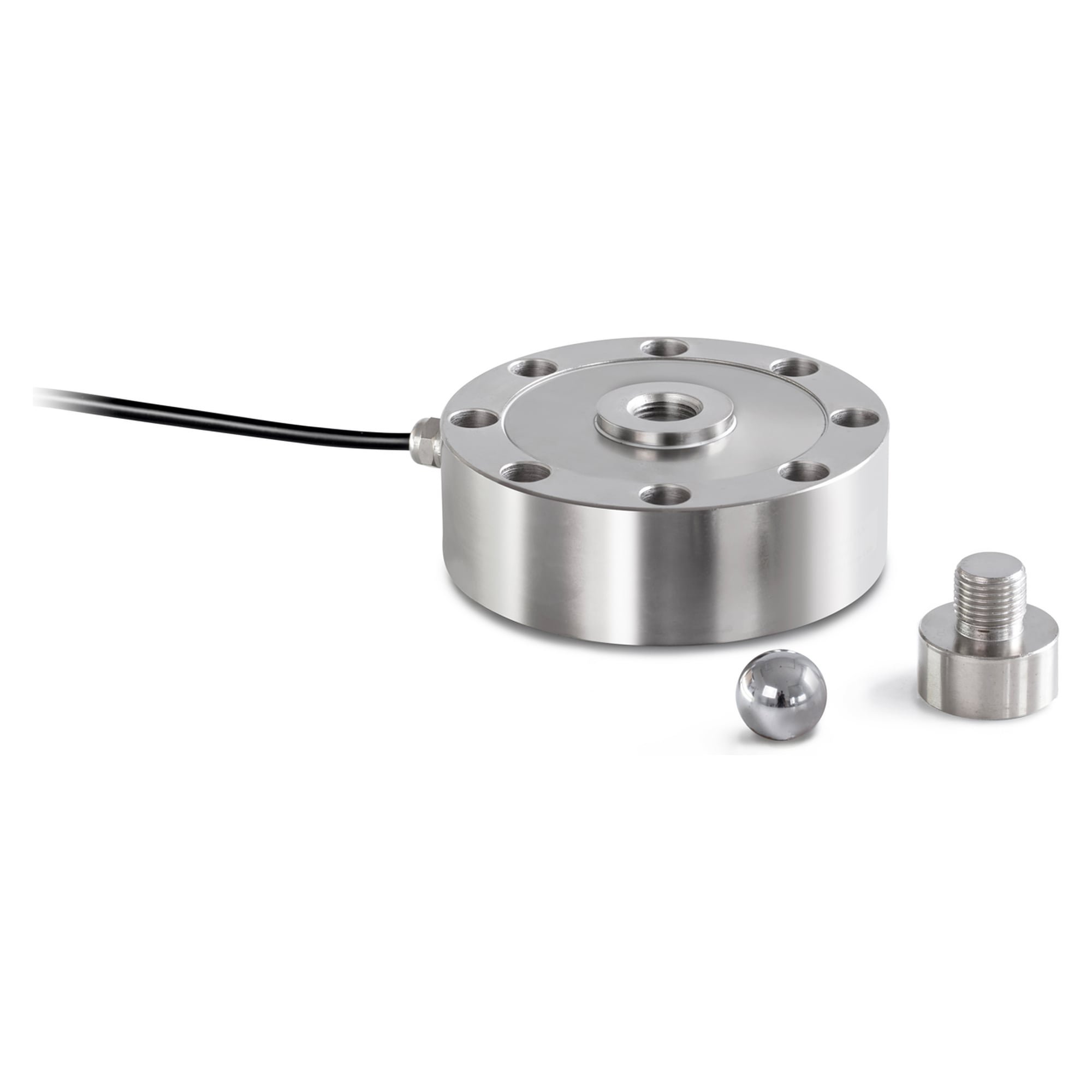

- Load button included: force applied via the supplied button or a threaded bore.
- Rated load 5000 kg / 50 kN: alloy steel body for high load capacity.
- OIML class C1: defined accuracy class for demanding measurements.
Technical data
- Rated capacity (Max): 5000 kg
- Force range (Max): 50 kN
- Force direction: Tension and compression
- Combined error: 0.05 % F.S.
- OIML class: C1
- Dimensions (Ø×H): 105×37 mm
- Connection: 4-wire
- Cable length: 3 m
- Material: alloy steel
- Net weight: 1,8 kg
Applications
The CR 5000-1Y1 serves weight and force measurement and force test benches in industry, manufacturing and agriculture. Force is applied via the supplied load button or a threaded bore.
Compliance and origin
EAN 4045761246188. Customs tariff code 90249000. Country of origin: China.
| Manufacturer | Sauter |
|---|---|
| Country of Manufacture | China |
| EAN | 4045761246188 |
| Weight | 2.000000 |
| HS-Code | 90249000 |
| GPSR manufacturer information | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Article authenticity | Original product |
| Condition of article | New |
| Wägebereich max (g) | 5000000.000000 |
| Position sensing | No |
