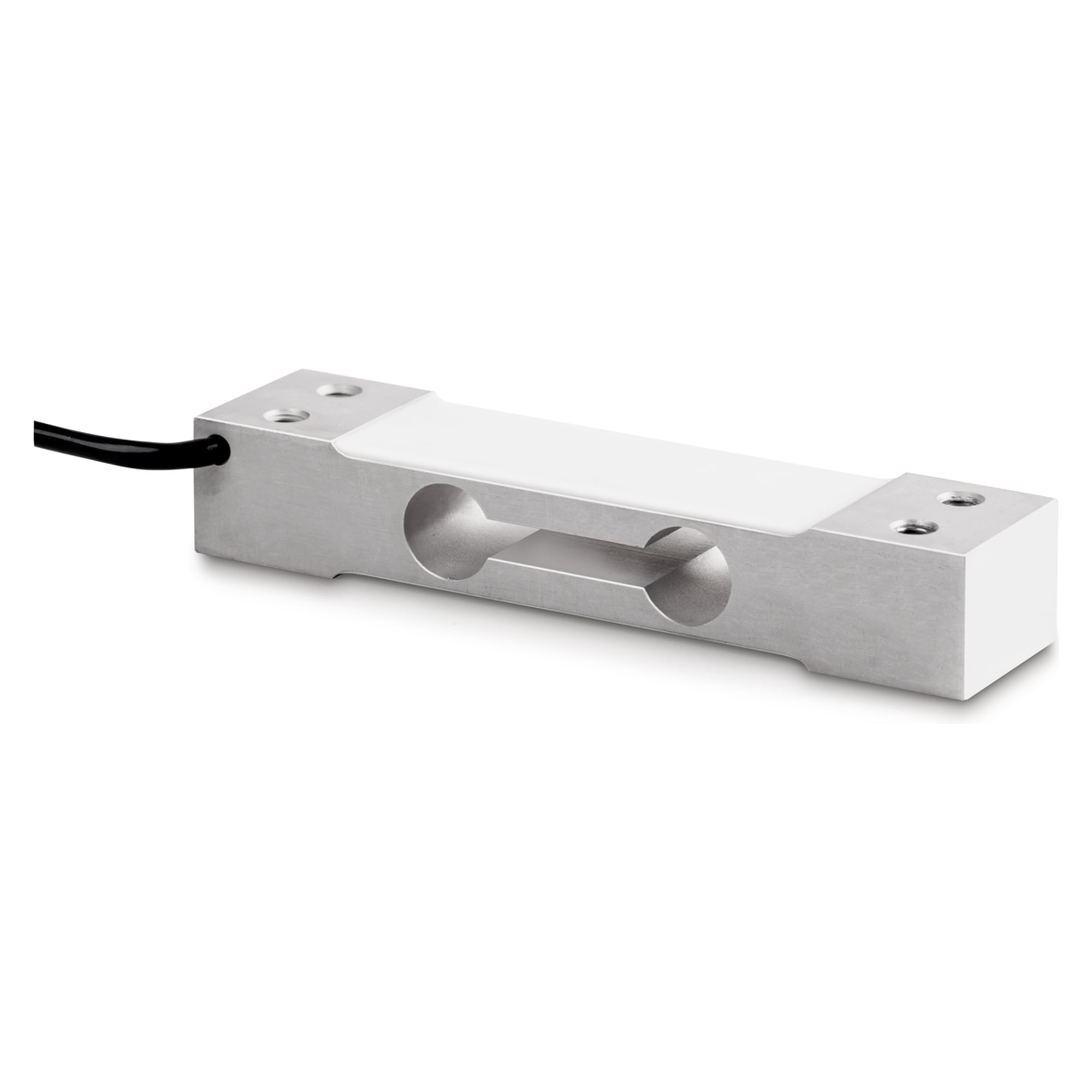

Load Cell 3 kg - SAUTER CP 3-3P1
The SAUTER CP 3-3P1 is a single-point load cell rated for 3 kg with a anodised aluminium spring body. It resolves 3000 verifiable divisions to OIML R60 class C3 for trade-approved scales. It supports platforms up to 250×350 mm and simplifies building and repairing price-computing, bench and platform scales.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Anyone assembling or servicing price-computing, bench and platform scales needs a load cell that reads loads evenly no matter where they sit on the platform. The SAUTER CP 3-3P1 does this as a single-point cell rated for 3 kg, with a anodised aluminium spring body.
Benefits
- Verifiable resolution: 3000 divisions (e) to OIML R60 class C3
- Y value 10000: high Emax/vmin ratio for fine graduation
- Anodised aluminium spring body: corrosion-protected and light (0,20 kg net)
- Platform up to 250×350 mm: suits compact to mid-size weighing decks
- Operating range -35 °C to 65 °C: stable in cool and warm environments
Applications
Industry and manufacturing, packaging, food and pharmaceutical production, machine and plant engineering, and research and development.
Compliance and origin
The load cell is classified to OIML R60 class C3. Higher classes (C4 or C5) are available on request. EAN 4045761221208, customs tariff number 84239010, country of origin China.
Technical data
| Rated capacity (Max) | 3 kg |
|---|---|
| OIML class | C3 |
| Verifiable resolution | 3000 e |
| Y value | 10000 |
| Force direction | Compression |
| Maximum platform size | 250×350 mm |
| Cable length | 0,4 m |
| Load cell connection | 4-wire |
| Operating temperature | -35 °C to 65 °C |
| Material | Anodised aluminium |
| Net weight | 0,20 kg |
| Weight | 0.25 kg |
| Manufacturer | Sauter |
| EAN | 4045761221208 |
| HS-Code | 84239010 |
| GPSR manufacturer information | KERN & SOHN GmbH, Ziegelei 1, DE-72336 Balingen-Frommern, www.kern-sohn.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | China |
| Wägebereich max (g) | 3000 |
