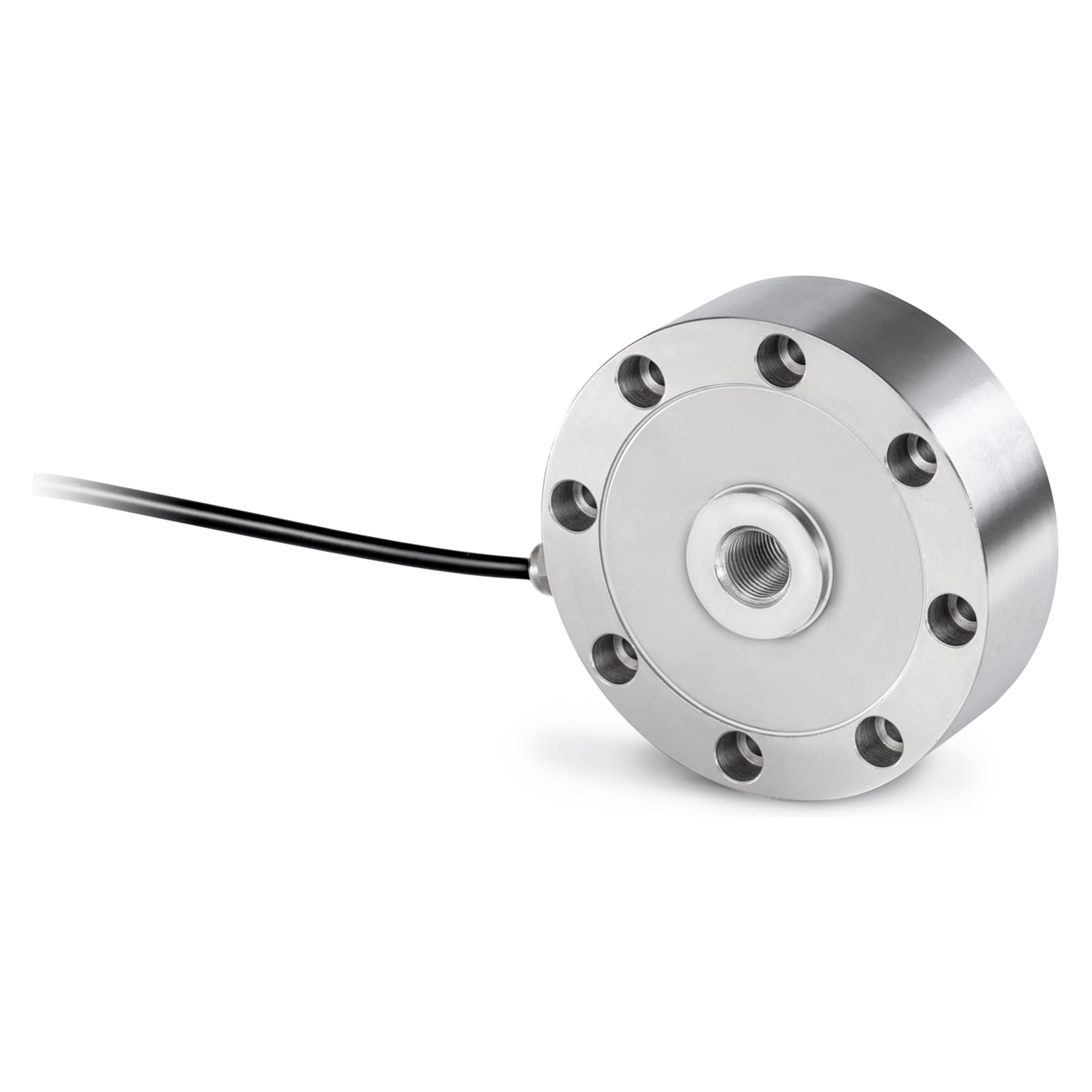

Load Cell 10000 kg - SAUTER CR 10000-1Y1
Precise alloy steel load cell from SAUTER for tension and compression forces up to 10000 kg (100 kN). Combined error 0.05 % F.S., load button included. For force test benches and weight measurement.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The SAUTER CR 10000-1Y1 captures tension and compression forces up to 10000 kg (100 kN) with a combined error of 0.05 % F.S. Its alloy steel load button suits weight and force measurement as well as force test benches.
Benefits
- High precision (combined error 0.05 % F.S.): accurate results in weight and force measurement.
- Tension and compression: one sensor for both load directions on force test benches.

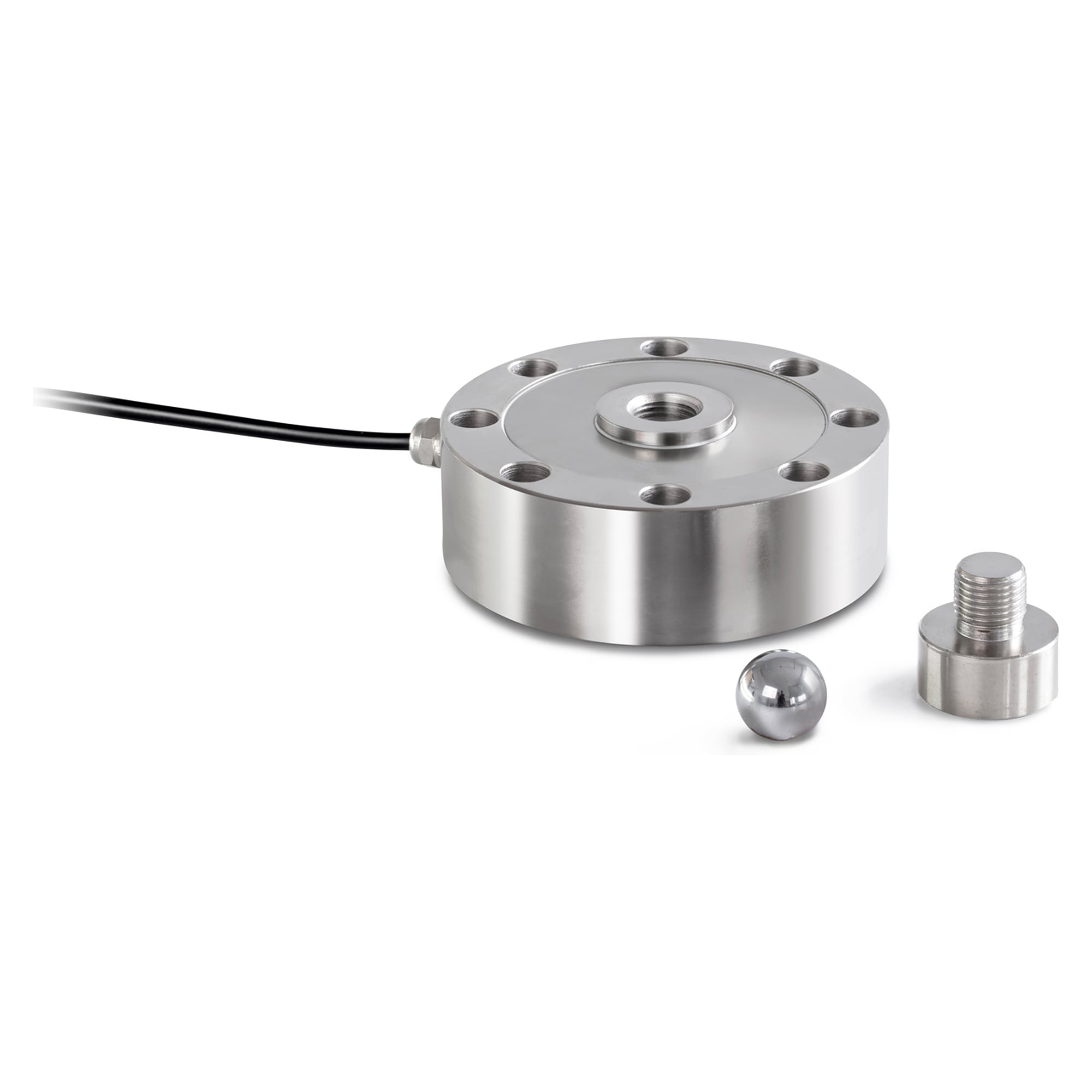

- Load button included: force applied via the supplied button or a threaded bore.
- Rated load 10000 kg / 100 kN: alloy steel body for high load capacity.
- OIML class C1: defined accuracy class for demanding measurements.
Applications
The CR 10000-1Y1 serves weight and force measurement and force test benches in industry, manufacturing and agriculture. Force is applied via the supplied load button or a threaded bore.
Compliance and origin
EAN 4045761246195. Customs tariff code 90249000. Country of origin: China.
Technical data
| Rated capacity (Max) | 10000 kg |
|---|---|
| Force range (Max) | 100 kN |
| Force direction | Tension and compression |
| Combined error | 0.05 % F.S. |
| OIML class | C1 |
| Dimensions (Ø×H) | 125×52 mm |
| Connection | 4-wire |
| Cable length | 3 m |
| Material | alloy steel |
| Net weight | 4,0 kg |
| Weight | 4.2 kg |
| Manufacturer | Sauter |
| EAN | 4045761246195 |
| HS-Code | 90249000 |
| GPSR manufacturer information | KERN & SOHN GmbH, Ziegelei 1, DE-72336 Balingen-Frommern, www.kern-sohn.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | China |
| Wägebereich max (g) | 10000000 |
