Digital Torque Gauge - SAUTER DB 1-4
The SAUTER DB 1-4 checks torque wrenches, electric and cordless screwdrivers up to 1 Nm with 0,2 mNm resolution. A joint simulator enables dynamic testing of powered screwdrivers. The painted metal housing and the 1000 Hz internal sampling rate ensure repeatable results. RS-232 and USB transfer up to 500 readings to the PC.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description

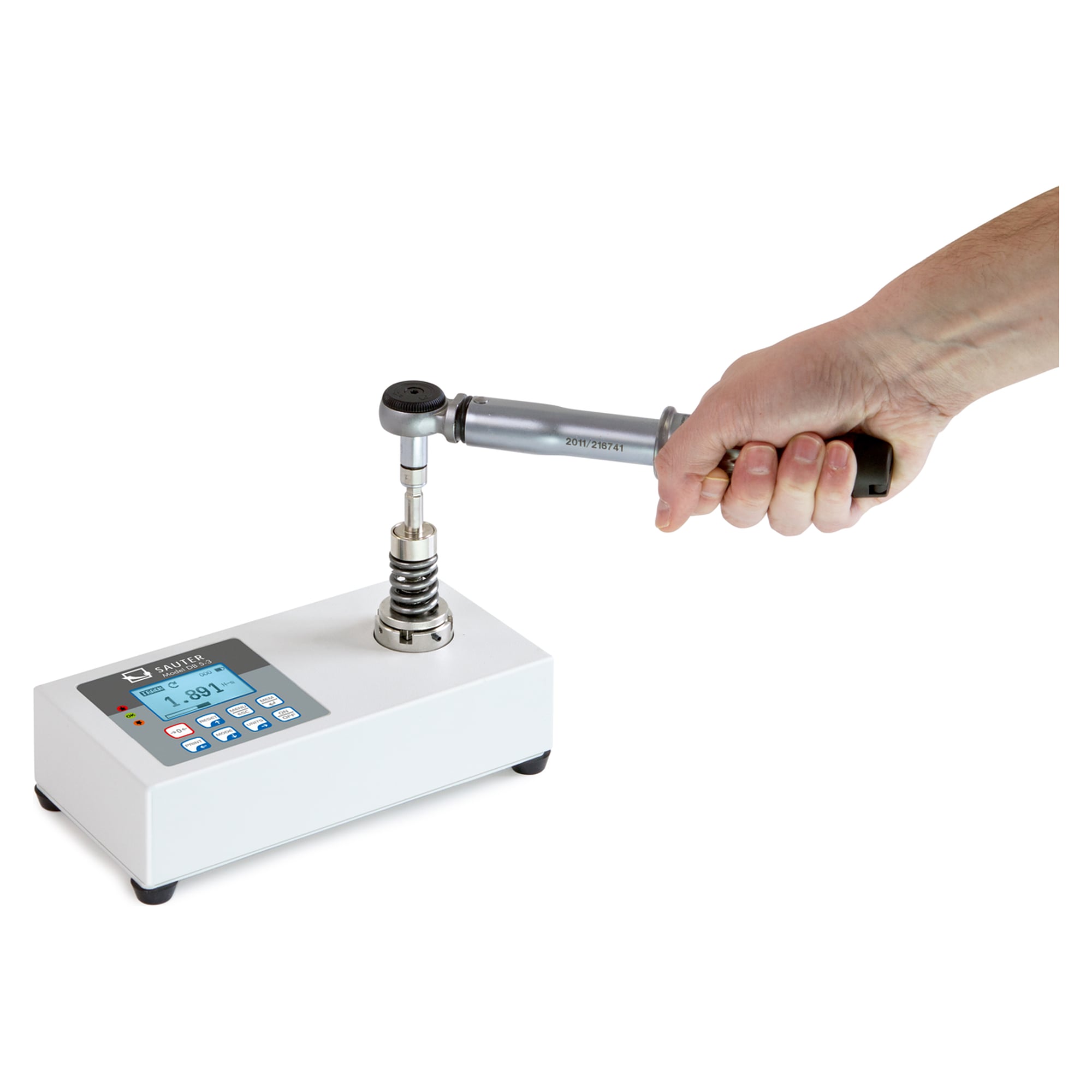

In production and in tool calibration, the SAUTER DB 1-4 checks the torque of torque wrenches, electric and cordless screwdrivers up to 1 Nm with 0,2 mNm. The 1000 Hz internal sampling rate reliably captures dynamic tightening cycles as well.
Benefits

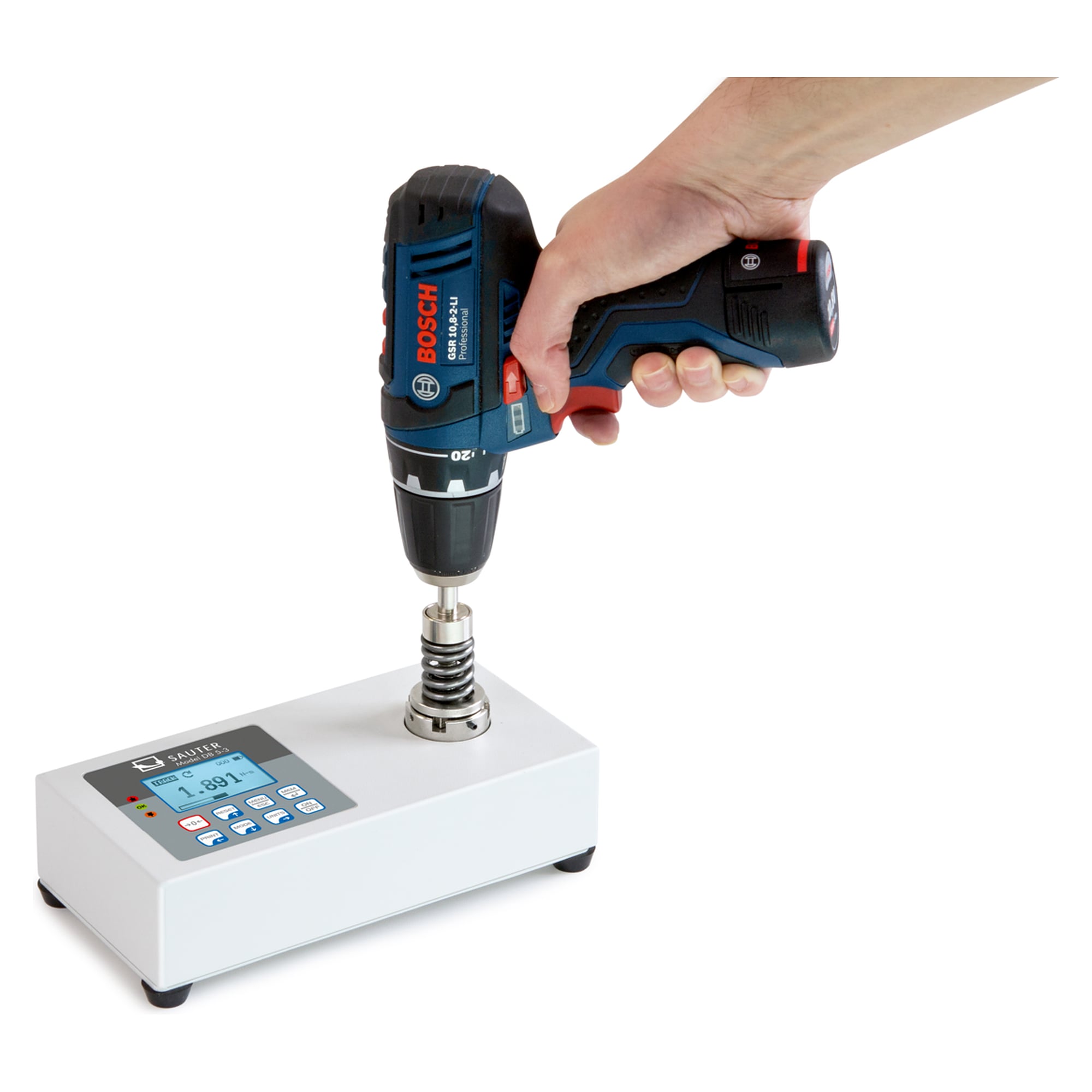

- Dynamic testing: joint simulator for powered screwdrivers
- Both directions: clockwise and counter-clockwise testing
- Pass/fail check: limit function with acoustic and visual signal

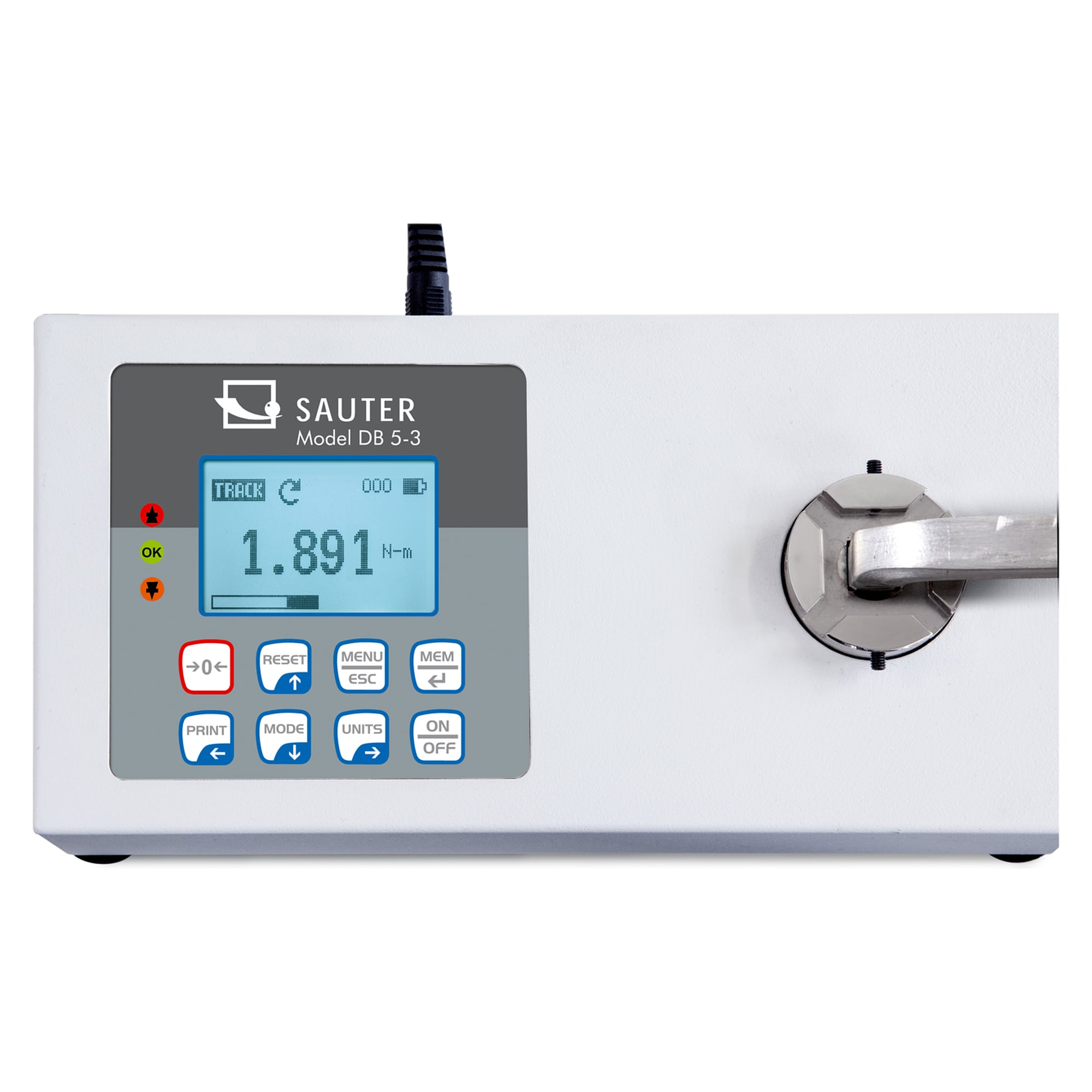

- Data capture: peak-hold for maximum values, track mode for continuous display
- Data output: RS-232 and USB as standard, internal memory for 500 readings
- Rugged: painted metal housing with LED capacity bar
- Secure setup: anti-slip rubber feet
- Cordless capable: mains and NiMH battery operation, up to 18 h
Applications
The DB 1-4 is used in workshops, test laboratories, tool and mould making, and in service and maintenance.
Compliance and origin
EAN 4045761193468, customs tariff number 90318080, country of origin Thailand.
Technical data
| Torque range (max) | 1 Nm |
|---|---|
| Readability (d) | 0,2 mNm |
| Accuracy | 0,5% of full scale |
| Overload protection | 120% |
| Internal sampling rate | 1000 Hz |
| Units | Nm, kgf/cm, kgf/m, in/lbs, ft/lbs |
| Display | Graphic LCD |
| Interfaces | RS-232 (standard), USB |
| Power supply | NiMH battery and mains adapter |
| Power supply input | 100 V - 240 V |
| Battery life | 18 h |
| Charging time | 14 h |
| Operating temperature | 15 °C - 35 °C |
| Housing dimensions (WxDxH) | 180×110×56 mm |
| Weight | 2,2 kg |
| Manufacturer | Sauter |
| Manufacturer Nr. | DB 1-4 |
| EAN | 4045761193468 |
| HS-Code | 90318080 |
| GPSR manufacturer information | KERN & SOHN GmbH, Ziegelei 1, DE-72336 Balingen-Frommern, www.kern-sohn.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Thailand |
| Display type | Graphic LCD |
| Interface | RS-232, USB device |
