Digital Torque Gauge - SAUTER DB 20-3

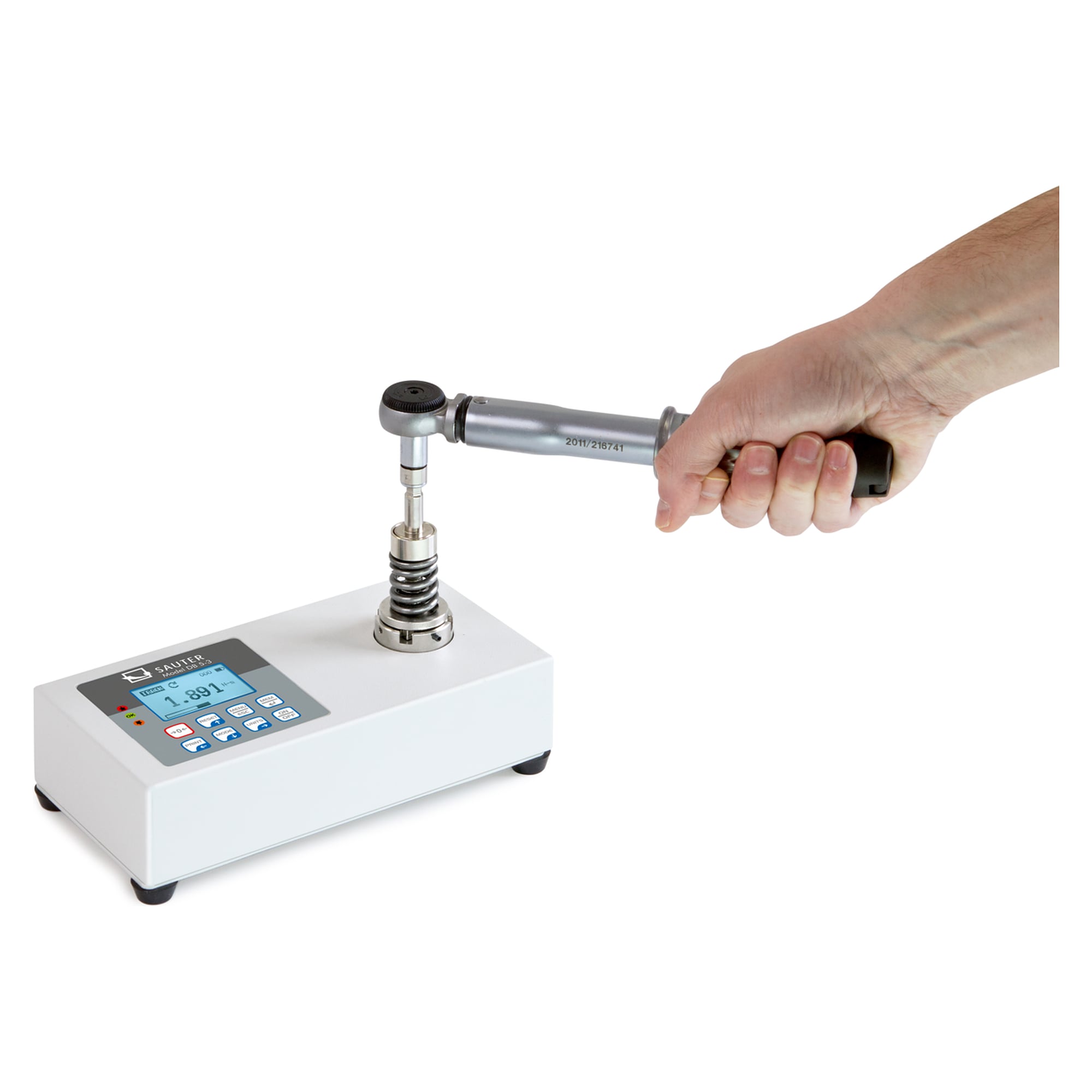

In production and in tool calibration, the SAUTER DB 20-3 checks the torque of torque wrenches, electric and cordless screwdrivers up to 20 Nm with 0,005 Nm. The 1000 Hz internal sampling rate reliably captures dynamic tightening cycles as well.

Benefits

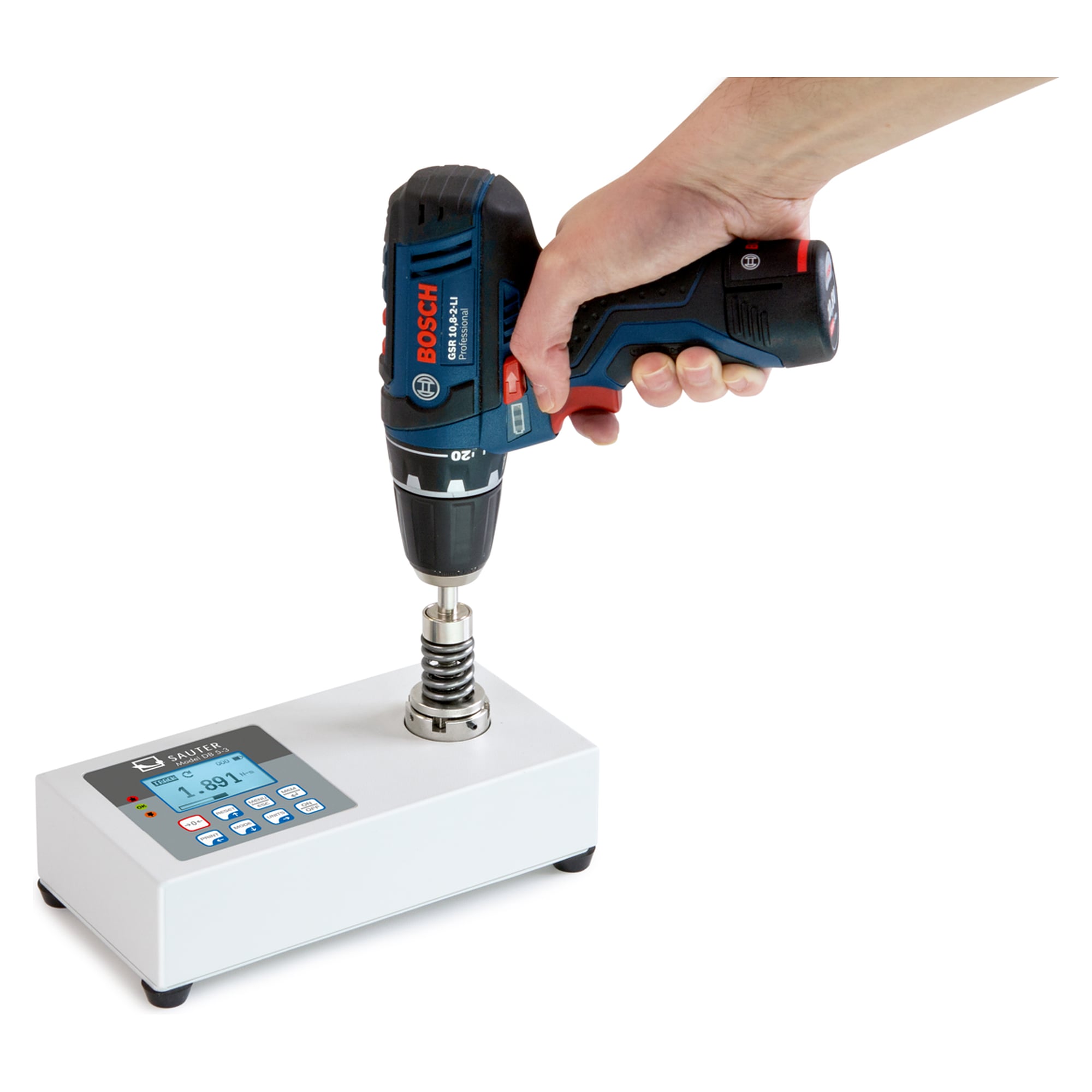

• Dynamic testing: joint simulator for powered screwdrivers
• Both directions: clockwise and counter-clockwise testing
• Pass/fail check: limit function with acoustic and visual signal
• Data capture: peak-hold for maximum values, track mode for continuous display
• Data output: RS-232 and USB as standard, internal memory for 500 readings
• Rugged: painted metal housing with LED capacity bar
• Secure setup: sturdy mounting plate for secure fixing
• Cordless capable: mains and NiMH battery operation, up to 18 h

Technical data

• Torque range (max): 20 Nm
• Readability (d): 0,005 Nm
• Accuracy: 0,5% of full scale
• Overload protection: 120%
• Internal sampling rate: 1000 Hz
• Units: Nm, kgf/cm, kgf/m, in/lbs, ft/lbs
• Display: Graphic LCD
• Interfaces: RS-232 (standard), USB
• Power supply: NiMH battery and mains adapter
• Power supply input: 100 V - 240 V
• Battery life: 18 h
• Charging time: 14 h
• Operating temperature: 15 °C - 35 °C
• Housing dimensions (WxDxH): 220×110×50 mm
• Weight: 3,4 kg

Applications

The DB 20-3 is used in workshops, test laboratories, tool and mould making, and in service and maintenance.

Compliance and origin

EAN 4045761193482, customs tariff number 90318080, country of origin Thailand.
