Digital Torque Gauge - SAUTER DB 500-2
The SAUTER DB 500-2 checks the torque of torque wrenches, electric screwdrivers and cordless drivers up to 500 Nm with 0.1 Nm readability. Its 1000 Hz internal sampling rate captures even brief tightening peaks. The coated metal housing and solid mounting plate suit continuous workshop use.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description

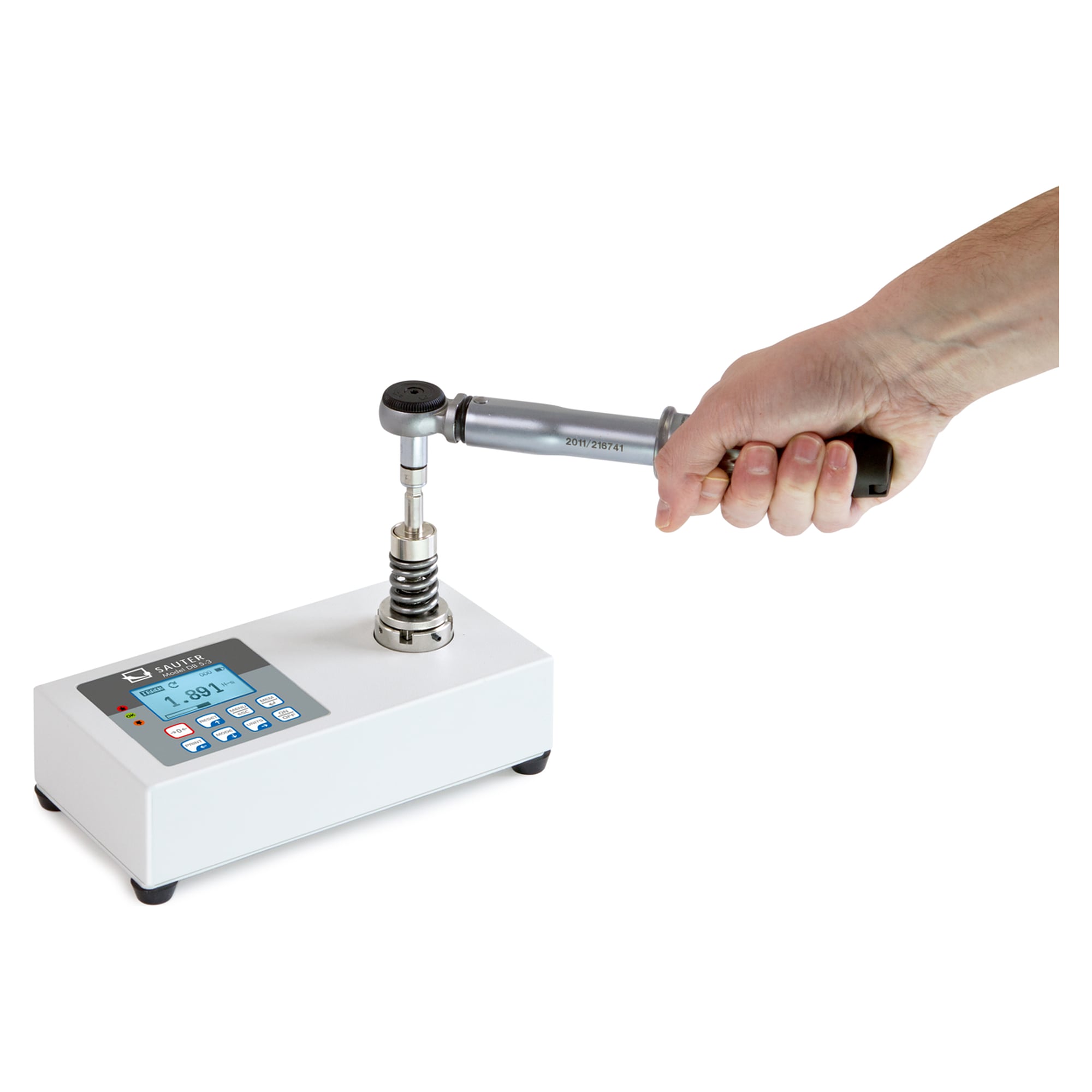

For teams that regularly verify the torque of their tools, the SAUTER DB 500-2 measures right at the test bench. The rotary transducer reads torque up to 500 Nm with 0.1 Nm readability, and the 1000 Hz internal sampling rate records fast tightening peaks.
Benefits
- Both directions of rotation: suitable for clockwise and counter-clockwise testing of torque wrenches and drivers.
- Peak hold and track: choose peak capture or a continuous display of the live torque value.
- Limit function: programmable upper and lower limits with an audible and visual signal during measurement.
- Internal memory: up to 500 readings, transferable to a PC with optional software via USB or RS-232.
- Rugged metal housing: coated metal with a solid mounting plate for firm bench fixing.
Applications
Used in workshops, test laboratories, tool and mould making, and in service and maintenance.
Compliance

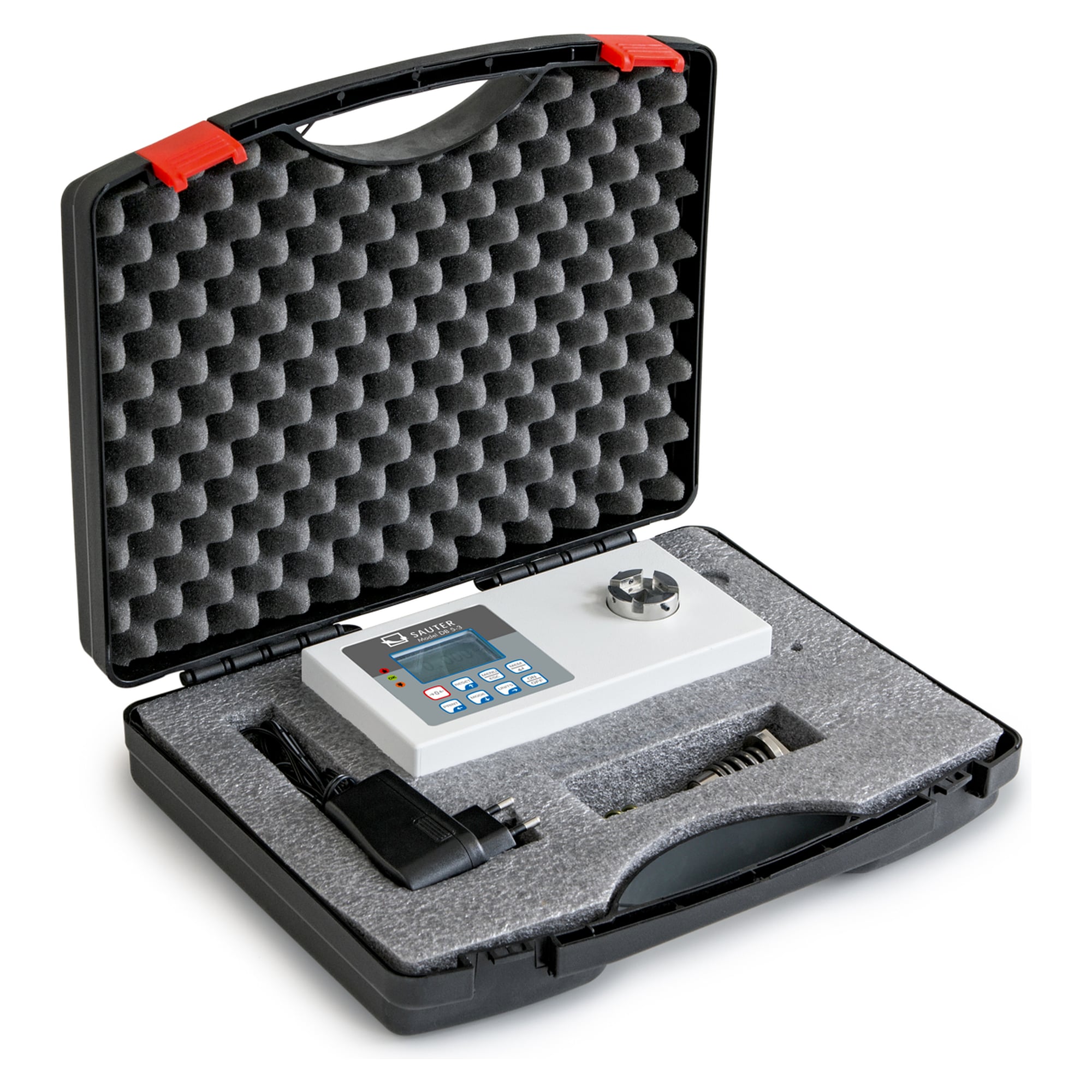

Supplied with rotary transducer, mounting plate and carrying case. EAN 4045761193499, customs code 90318080.
Technical data
| Torque range (max) | 500 Nm |
|---|---|
| Readability | 0,1 Nm |
| Tolerance | 0,5 % of max |
| Overload protection | 120 % of max |
| Internal sampling rate | 1000 Hz |
| Units | Nm, kgf/cm, kgf/m, in/lbs, ft/lbs |
| Display | graphic LCD, backlit |
| Interfaces | RS-232 standard, USB device |
| Power | NiMH battery and mains adapter, approx. 18 h operation |
| Housing | coated metal, 180 x 110 x 45 mm |
| Ambient temperature | 15 - 35 °C |
| Net weight | 4,0 kg |
| Weight | 4.8 kg |
| Manufacturer | Sauter |
| Manufacturer Nr. | DB 500-2 |
| EAN | 4045761193499 |
| HS-Code | 90318080 |
| GPSR manufacturer information | KERN & SOHN GmbH, Ziegelei 1, DE-72336 Balingen-Frommern, www.kern-sohn.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Thailand |
| Display type | Graphic LCD |
| Interface | RS-232, USB device |
