Digital Force Gauge Haken - SAUTER FH 50

The SAUTER FH 50 measures tension and compression forces up to 50 N with a resolution of 0,01 N and mounts on any SAUTER test stand rated to 5 kN. One gauge therefore covers both hand-held checks and stationary test series.

Benefits

• Tension and compression in one unit: measurement in both directions up to 50 N.
• Fine resolution: readability 0,01 N at a tolerance of 0,5% of the measuring range.
• Peak value captured reliably: peak hold retains the maximum, track shows the measurement continuously.

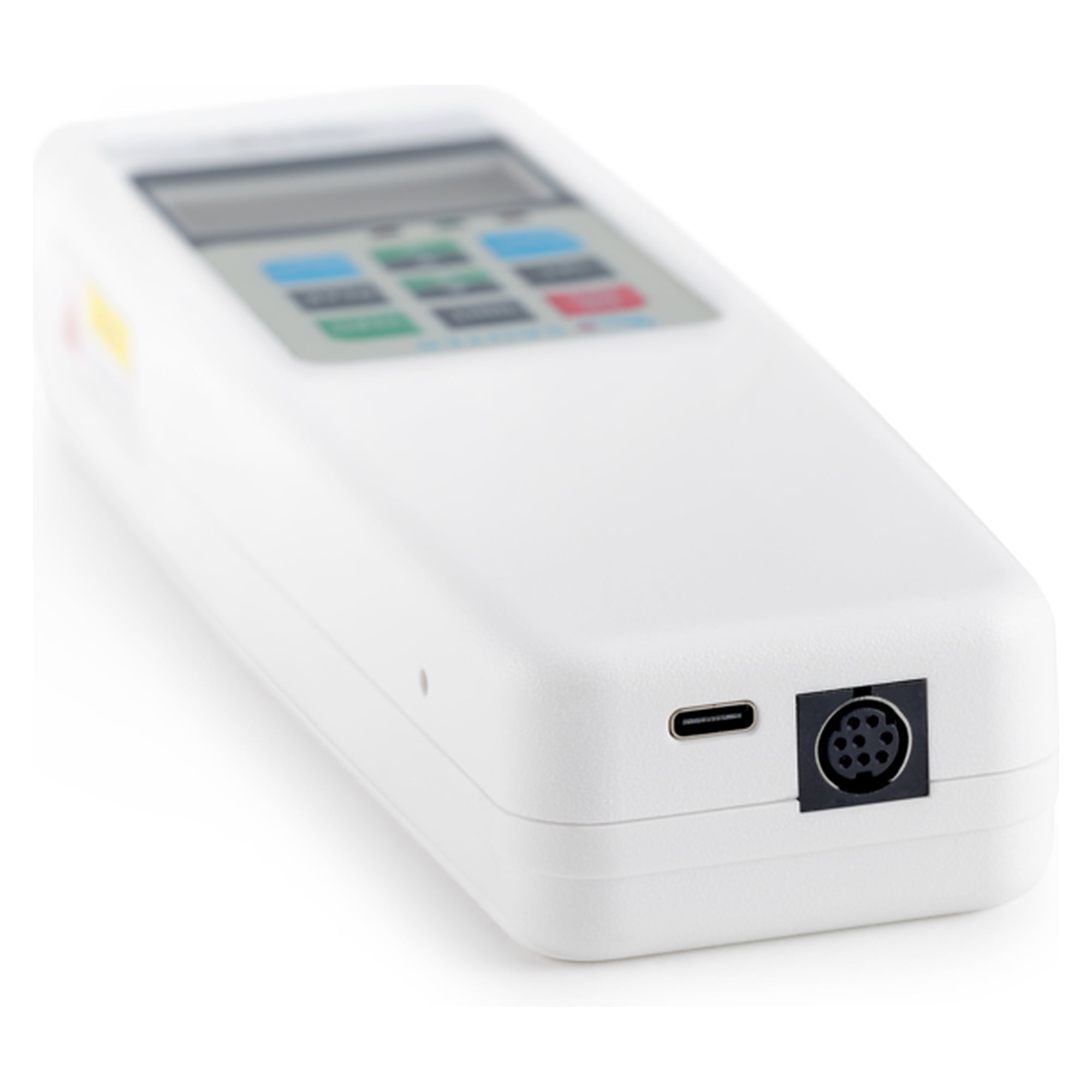

• Data transfer as standard: RS-232 and USB on board, with USB also supplying power to the unit.
• Overload reserve: overload protection up to 150% of the range protects the load cell.
• Mobile and stand-ready: NiMH battery for up to 40 h of use, mountable on any SAUTER test stand up to 5 kN.

Technical data

• Measuring range (max): 50 N
• Readability (d): 0,01 N
• Force directions: tension and compression
• Accuracy (tolerance): 0,5% of the measuring range
• Overload protection: 150% of the range
• Measuring frequency: 2 kHz
• Load fitting: hook
• Interfaces: RS-232 serienmäßig,USB-Device
• Display: LCD, reversible with backlight
• Power supply: NiMH battery and plug-in mains adapter (100 V - 240 V), battery life up to 40 h (backlight off)
• Dimensions (assembled, W×D×H): 280×70×40 mm
• Net weight: 0,55 kg
• Operating temperature: 10 °C to 40 °C
• Housing: plastic

Applications

The SAUTER FH 50 is used in test laboratories, in research and development, in the automotive industry and in maintenance and servicing. It also serves force measurement in plastics processing and in medical settings such as rehabilitation facilities, physiotherapy and occupational therapy practices, and residential and nursing care homes.

Compliance and origin

EAN 4045761368590. Customs tariff number 90248000. Country of origin: China.
