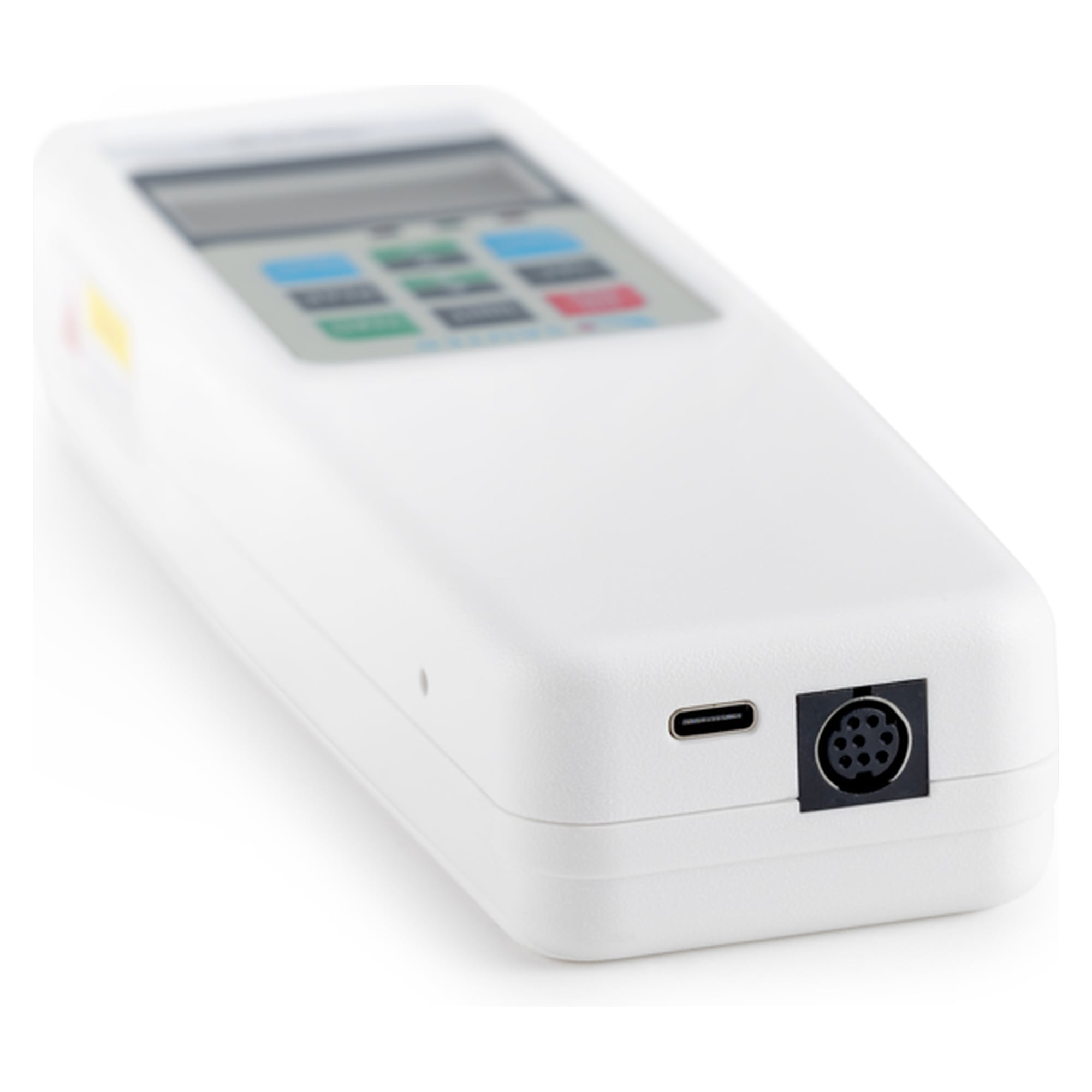

Digital Force Gauge with External Load Cell Haken - SAUTER FH 200 EXT
The SAUTER FH 200 EXT-2024e is a digital force gauge with an external load cell for tensile and compressive forces up to 200 N at 0,1 N readout. Peak-hold, a limit function and RS-232 plus USB are standard. It ships in a sturdy carrying case.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The SAUTER FH 200 EXT-2024e records tensile and compressive forces up to 200 N with 0,1 N readout via an external load cell on a 2,5 m cable. Because the display and sensor are separate, you can measure cleanly even at cramped or hard-to-reach points.
Benefits
- Fine resolution: 200 N range at 0,1 N readout.
- Tension and compression: both force directions in one instrument.
- Repeatable accuracy: tolerance 0,5 % of Max, overload protection 150 % of Max.
- Peak and live value: peak-hold keeps the maximum, the track function shows the live reading.
- Limit function: upper and lower limits with audible and visual signalling.
- External load cell: remote sensor on a 2,5 m cable with hook coupling.
- Interfaces: USB device and RS-232 as standard.
Applications
Typical fields of use for the FH 200 EXT-2024e include test laboratories, research and development, the automotive industry, maintenance and servicing, and plastics engineering. It is equally suited to medical applications, rehabilitation facilities, physiotherapy and occupational therapy, outpatient settings, and residential and nursing care homes.
Compliance and origin
EAN 4045761368538. Customs code 90248000. Country of origin China.
Technical data
| Range (Max) | 200 N |
|---|---|
| Readout (d) | 0,1 N |
| Tolerance | 0,5 % of Max |
| Overload protection | 150 % of Max |
| Sampling rate | 2 kHz |
| Force directions | tension and compression |
| Load coupling | hook |
| Interfaces | RS-232 and USB device as standard |
| Housing | plastic |
| Dimensions (assembled) | 110 x 75 x 20 mm |
| Cable length | 2,5 m |
| Net weight | 0,90 kg |
| Operating temperature | 10 to 40 °C |
| Power | NiMH battery and mains adapter (100 V - 240 V) |
| Weight | 2.2 kg |
| Manufacturer | Sauter |
| EAN | 4045761368538 |
| HS-Code | 90248000 |
| GPSR manufacturer information | KERN & SOHN GmbH, Ziegelei 1, DE-72336 Balingen-Frommern, www.kern-sohn.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | China |
| Material | Plastic |
| Display type | LCD |
| Interface | RS-232, USB device |
