Digital force gauge for 2 external load cells, touchscreen - SAUTER FS 2

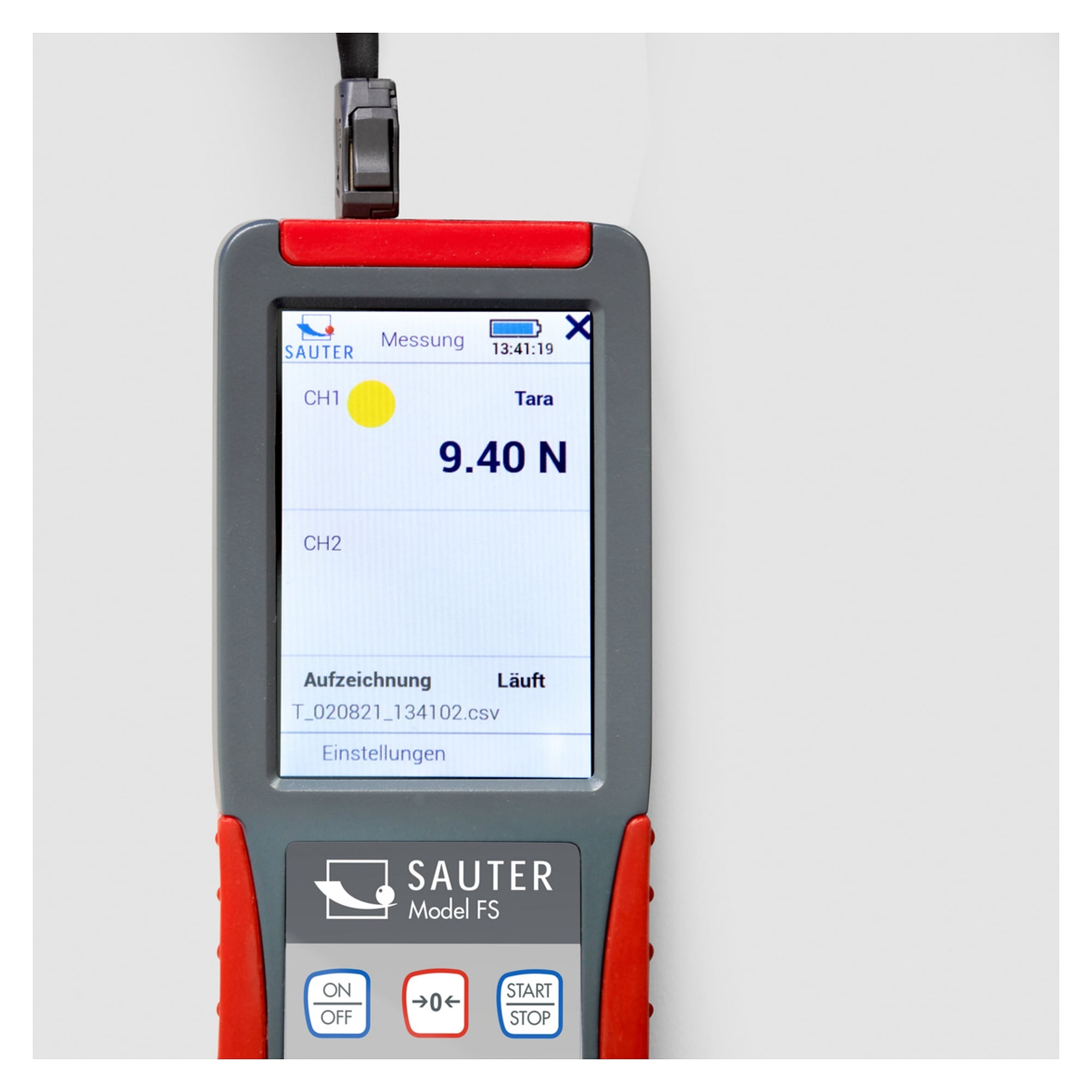

The SAUTER FS 2 is a digital force gauge with a 3.5 inch touchscreen for external strain gauge load cells. Two measuring channels come as standard, and the SAUTER FS 34 module adds two more. It measures at 1000 Hz, stores data on 16 GB and transfers it via USB.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description

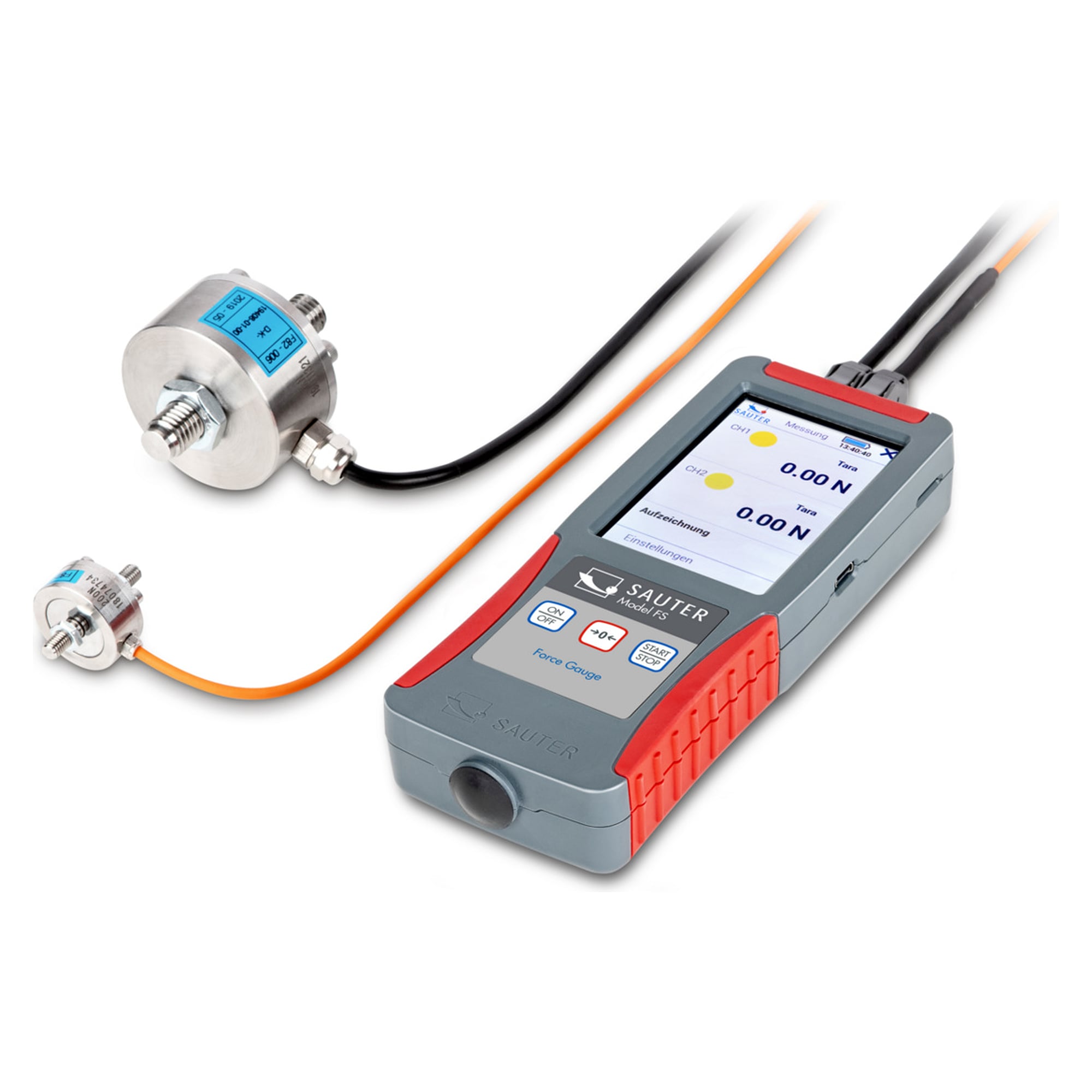

The SAUTER FS 2 lets you measure forces in different tensile and compression directions with just one display unit. It accepts external 4-wire and 6-wire strain gauge sensors, and the measuring range depends on the connected load cell. Sensor data is stored directly in the connector, so the gauge identifies the cell when it is plugged in.
Advantages

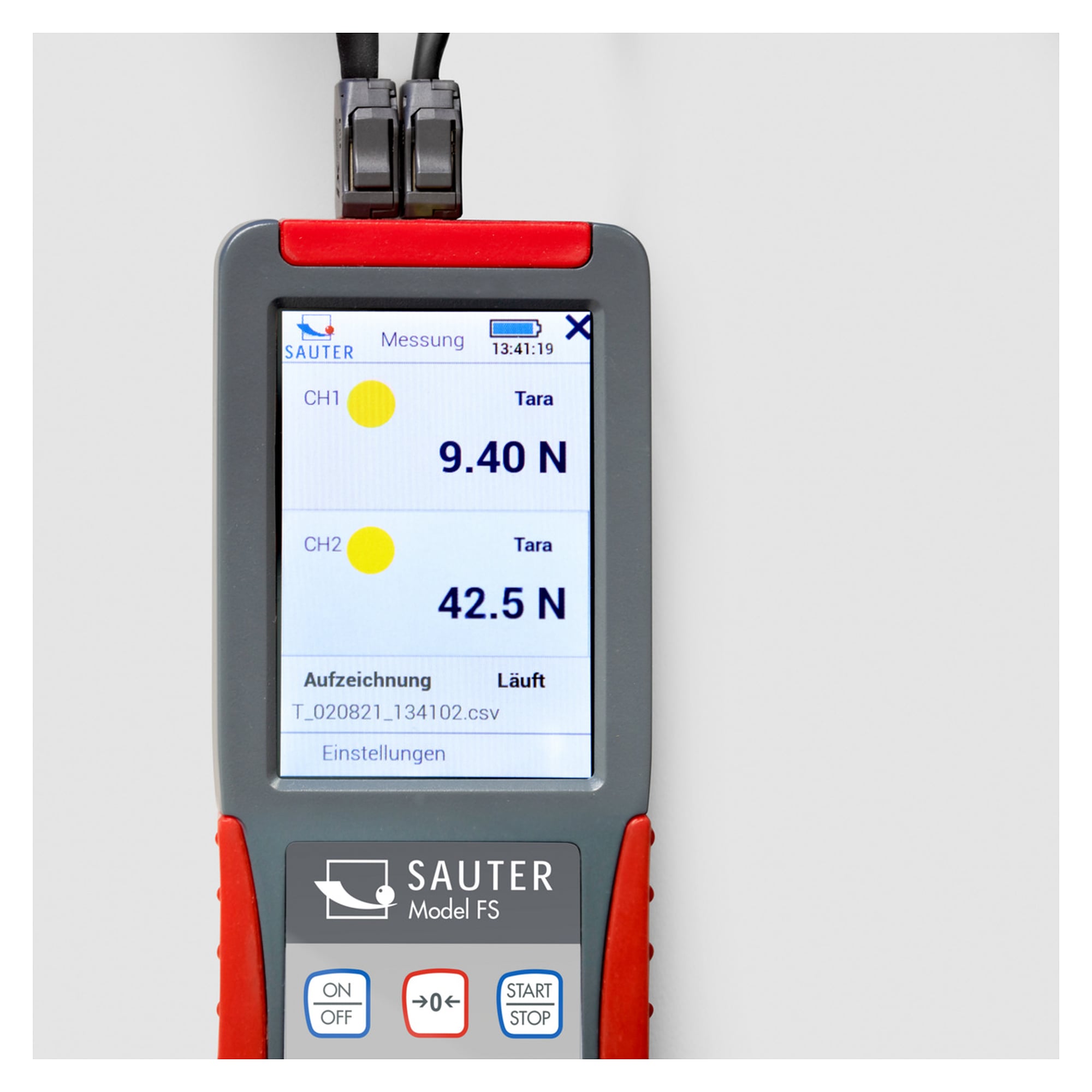

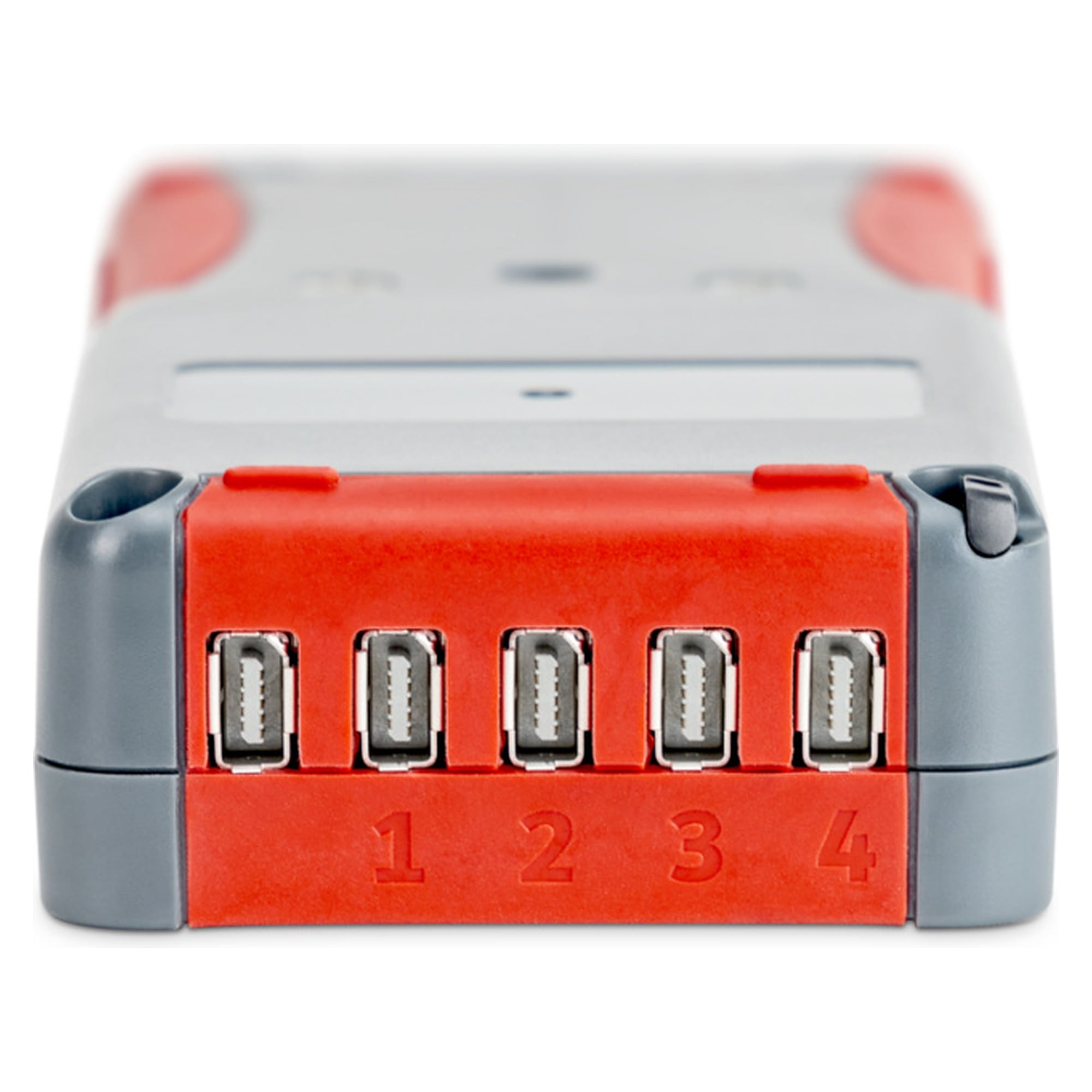

- Multi-channel: 2 channels as standard, up to 4 external load cells with the FS 34 A/D converter module

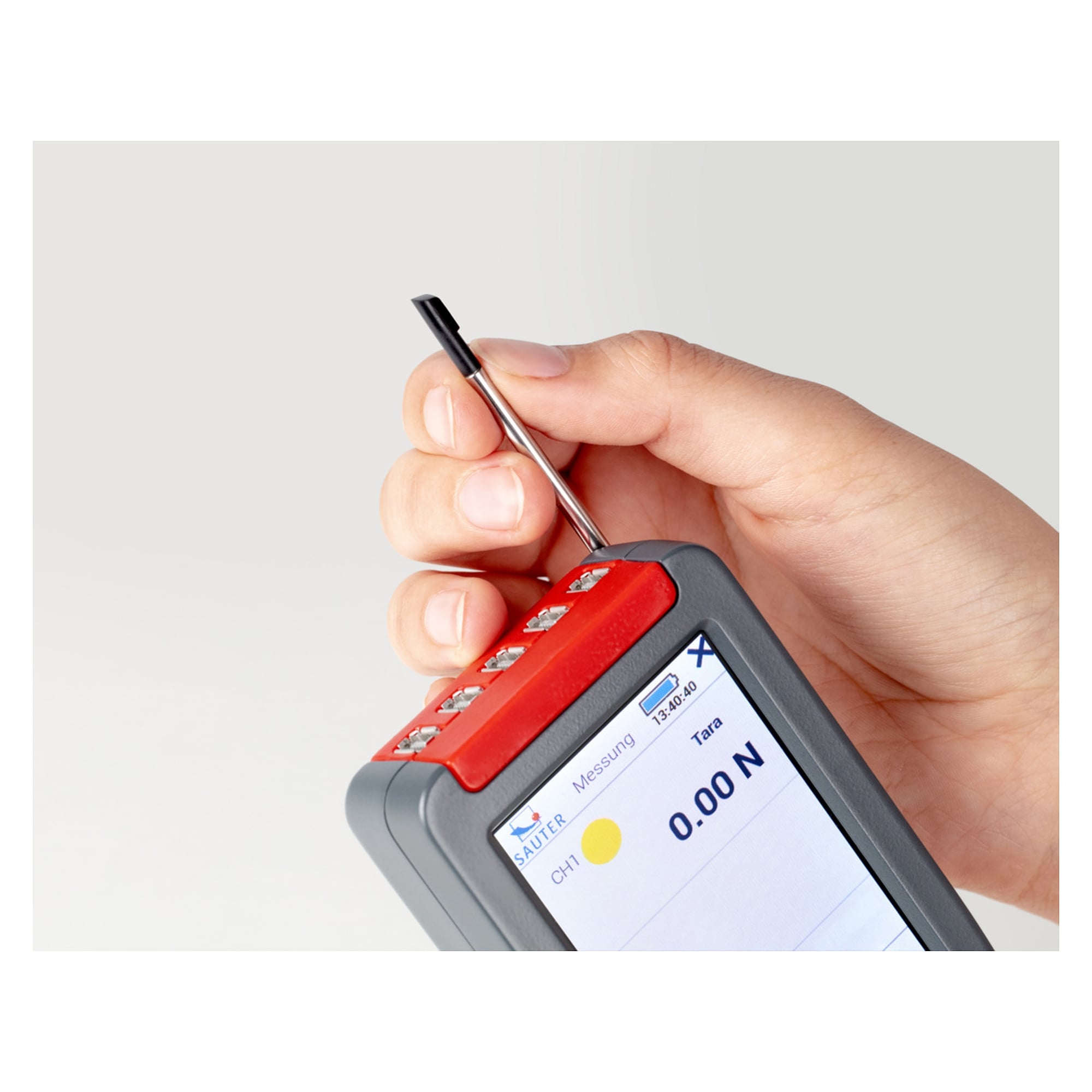

- 3.5 inch touchscreen: operation by finger or the supplied touch pen
- 1000 Hz measuring frequency: captures fast force curves reliably
- On-board evaluation: peak value, track, tolerance and statistics functions

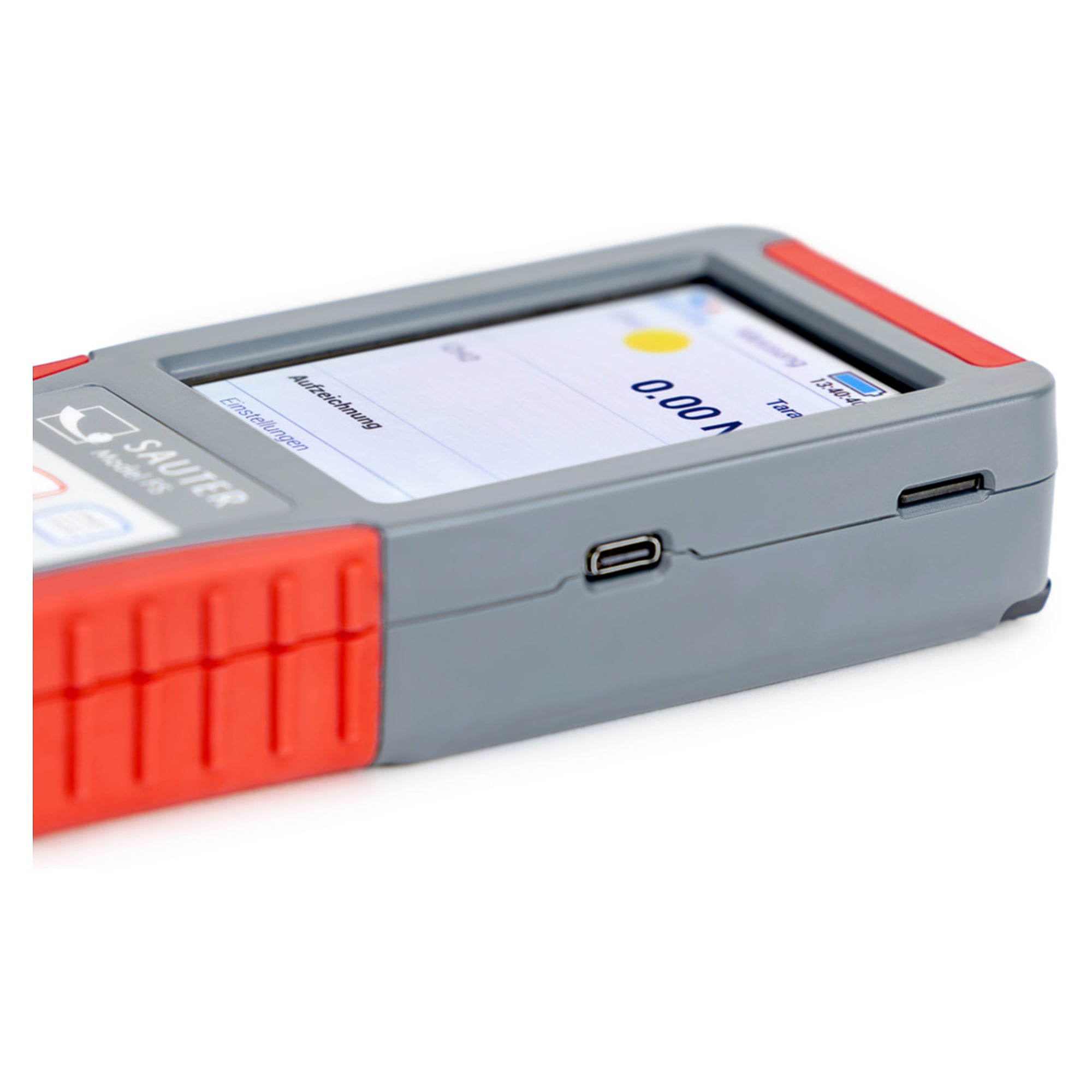

- Memory and USB: 16 GB internal memory, USB for data transfer and power supply
- Adjustment: two-point adjustment with weights or numerically
Applications
Mounts on all SAUTER test stands, such as the SAUTER TVO and TVS test stand sets with length gauge. Typical fields are test laboratories, research and development, the automotive industry, maintenance and servicing, and plastics technology.
Conformity and origin
EAN 4045761236967. Warranty 36 months.
Technical data
| Measuring frequency | 1000 Hz |
|---|---|
| Measuring channels | 2 |
| Sensors | 4-wire and 6-wire strain gauge |
| Display | 3.5 inch touchscreen with touch pen |
| Functions | peak, track, tolerance, statistics, memory |
| Internal memory | 16 GB |
| Interface | USB device |
| Power supply | rechargeable battery 3.7 V, 2400 mAh and power adapter |
| Housing | plastic |
| Dimensions (W x D x H) | 71 x 31 x 180 mm |
| Net weight | approx. 0.30 kg |
| Weight | 0.3 kg |
| Manufacturer | Sauter |
| EAN | 4045761236967 |
| GPSR manufacturer information | KERN & SOHN GmbH, Ziegelei 1, DE-72336 Balingen-Frommern, www.kern-sohn.com |
| Condition of article | New |
| Article authenticity | Original product |
Scope of delivery
Display unit in a systainer T-LOC system case, plug-in power supply and USB type C cable. Load cells are available separately.
