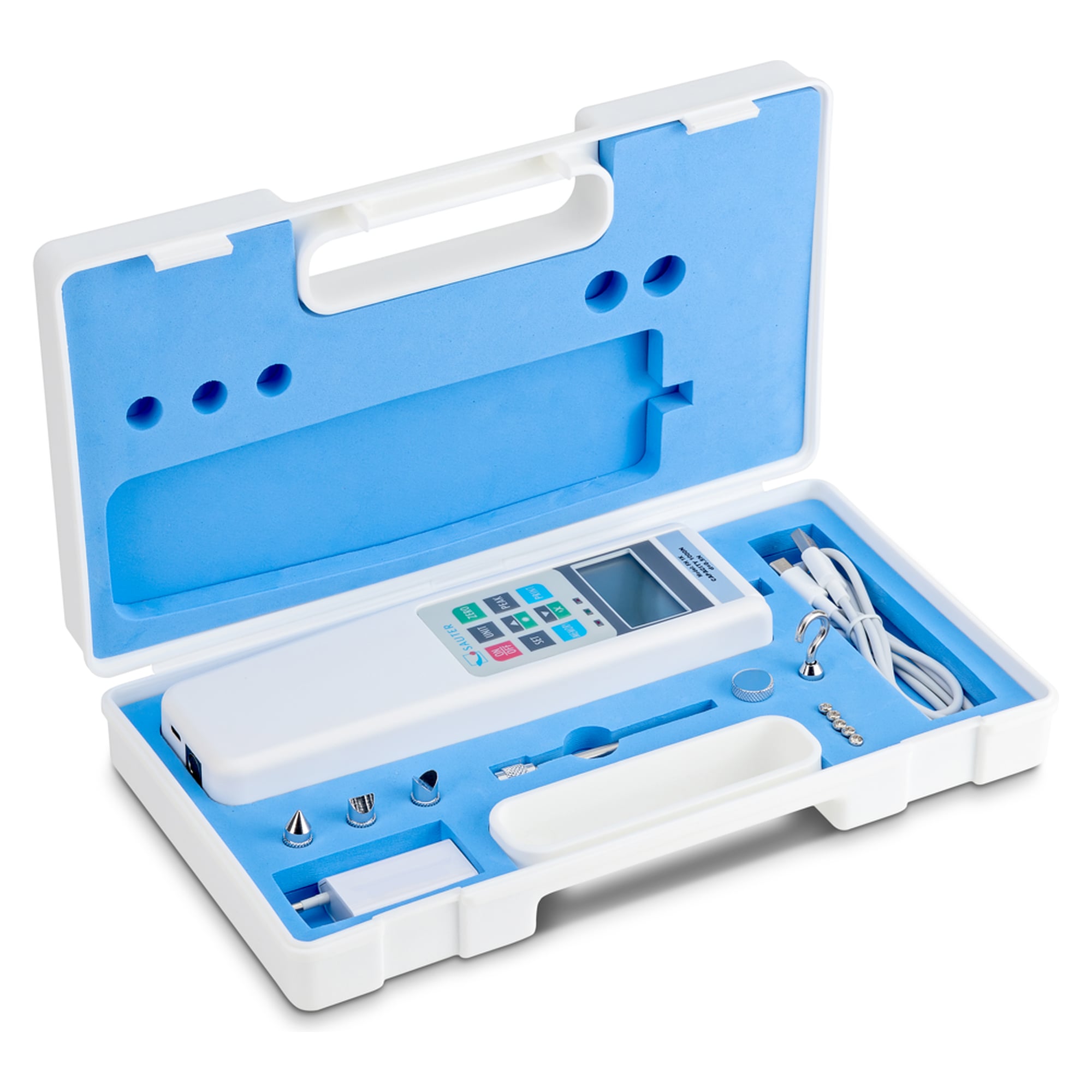

Digital Force Gauge with External Load Cell Haken - SAUTER FH 50 EXT
On the SAUTER FH 50 EXT the load cell sits on a 2,5 m cable, separate from the display, which is ideal for cramped test setups. It measures tension and compression forces up to 50 N at 0,01 N resolution. RS-232 and USB are on board as standard.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
On the SAUTER FH 50 EXT the load cell sits on a 2,5 m cable, separate from the display unit. This lets you record tension and compression forces up to 50 N at 0,01 N resolution even in cramped or hard-to-see test setups.
Benefits
- Tension and compression in one unit: measurement in both directions up to 50 N.
- Fine resolution: readability 0,01 N at a tolerance of 0,5% of the measuring range.
- Peak value captured reliably: peak hold retains the maximum, track shows the measurement continuously.
- Data transfer as standard: RS-232 and USB on board, with USB also supplying power to the unit.
- Overload reserve: overload protection up to 150% of the range protects the load cell.
- Separate load cell: 2,5 m cable for measurements at hard-to-reach points.
Applications
The SAUTER FH 50 EXT is used in test laboratories, in research and development, in the automotive industry and in maintenance and servicing. It also serves force measurement in plastics processing and in medical settings such as rehabilitation facilities, physiotherapy and occupational therapy practices, and residential and nursing care homes.
Compliance and origin
EAN 4045761368583. Customs tariff number 90248000. Country of origin: China.
Technical data
| Measuring range (max) | 50 N |
|---|---|
| Readability (d) | 0,01 N |
| Force directions | tension and compression |
| Accuracy (tolerance) | 0,5% of the measuring range |
| Overload protection | 150% of the range |
| Measuring frequency | 2 kHz |
| Load fitting | hook |
| Interfaces | RS-232 serienmäßig,USB-Device |
| Cable length (load cell) | 2,5 m |
| Display | LCD, reversible with backlight |
| Power supply | NiMH battery and plug-in mains adapter (100 V - 240 V), battery life up to 40 h (backlight off) |
| Dimensions (assembled, W×D×H) | 110×75×20 mm |
| Net weight | 0,90 kg |
| Operating temperature | 10 °C to 40 °C |
| Housing | plastic |
| Weight | 2.2 kg |
| Manufacturer | Sauter |
| EAN | 4045761368583 |
| HS-Code | 90248000 |
| GPSR manufacturer information | KERN & SOHN GmbH, Ziegelei 1, DE-72336 Balingen-Frommern, www.kern-sohn.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | China |
| Material | Plastic |
| Display type | LCD |
| Interface | RS-232, USB device |
