Digital Force Gauge Gelenkkopf - SAUTER FL 2K

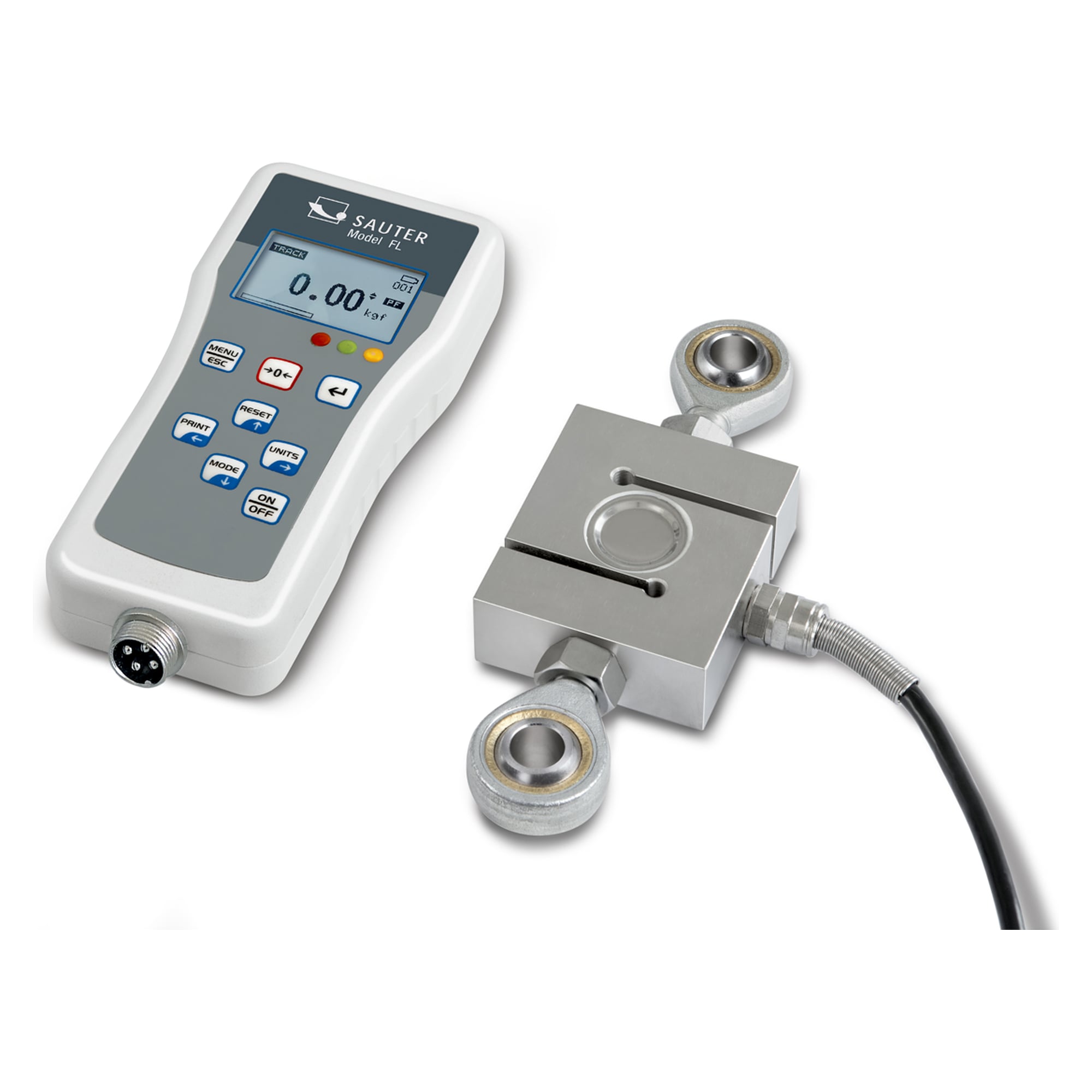

The SAUTER FL 2K measures high tensile and compressive forces up to 2,5 kN through an external load cell, with 1 N readability. Tension eyelets are included, the readout stays compact and mounts to SAUTER test stands from 1 kN.

Benefits

• Peak-hold and track: lock the peak value or follow the force curve continuously
• Readability 1 N: fine resolution across the full range up to 2,5 kN
• Limit function: upper and lower limits in tension and compression, with an optical signal when exceeded
• Capacity indicator: a rising light bar shows the remaining range and helps prevent overload
• Data output: up to 500 stored readings, transfer to a PC or controller over USB and the analogue output (-2 to +2 V)
• Rugged metal housing: coated metal built for lasting use, supplied in a carry case

Technical data

• Measuring range (Max): 2,5 kN
• Readability (d): 1 N
• Accuracy: 0,2 % of full scale
• Overload protection: 120 % of full scale
• Sampling rate: 1000 Hz
• Force directions: tension and compression

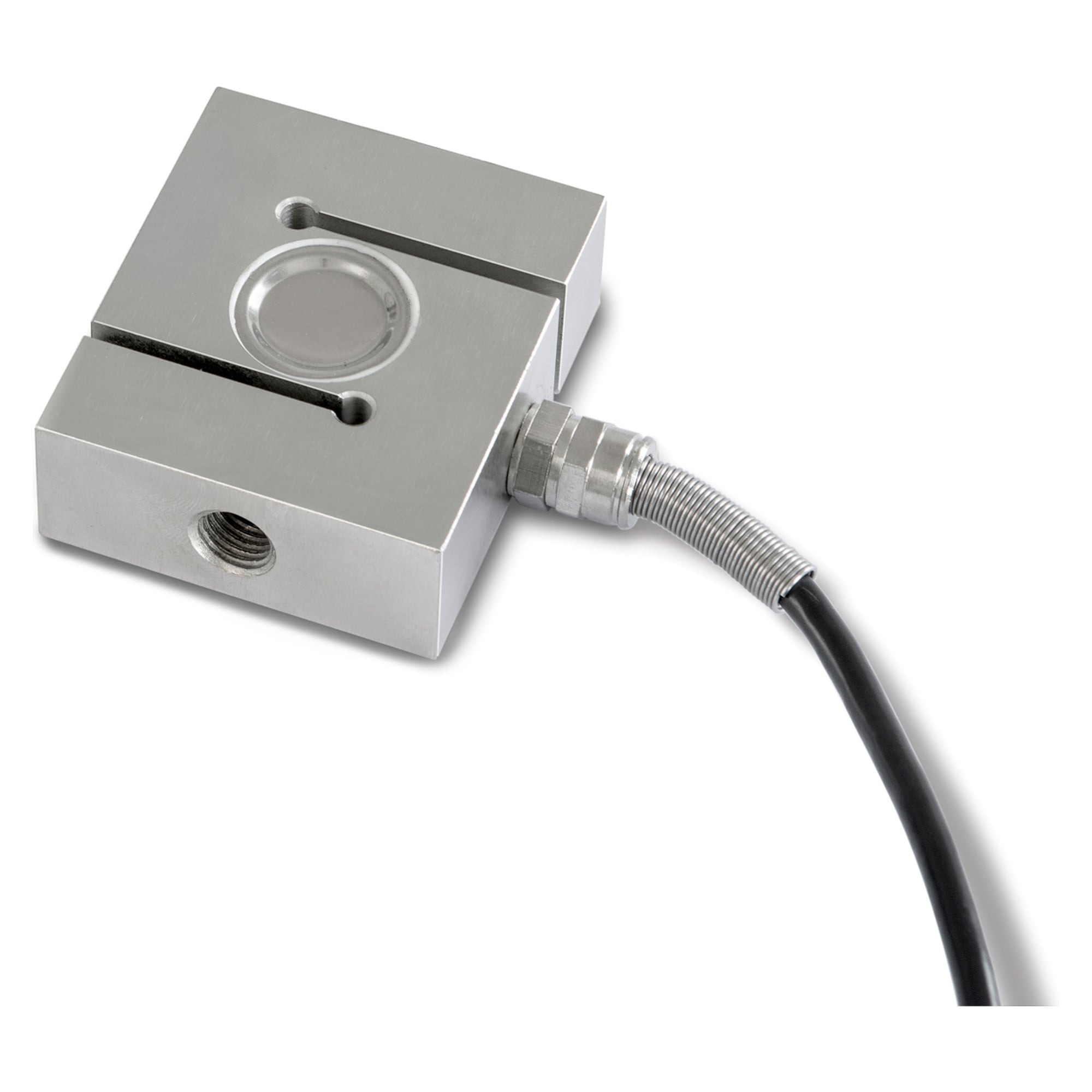

• Force application: rod end with external load cell (tensile)

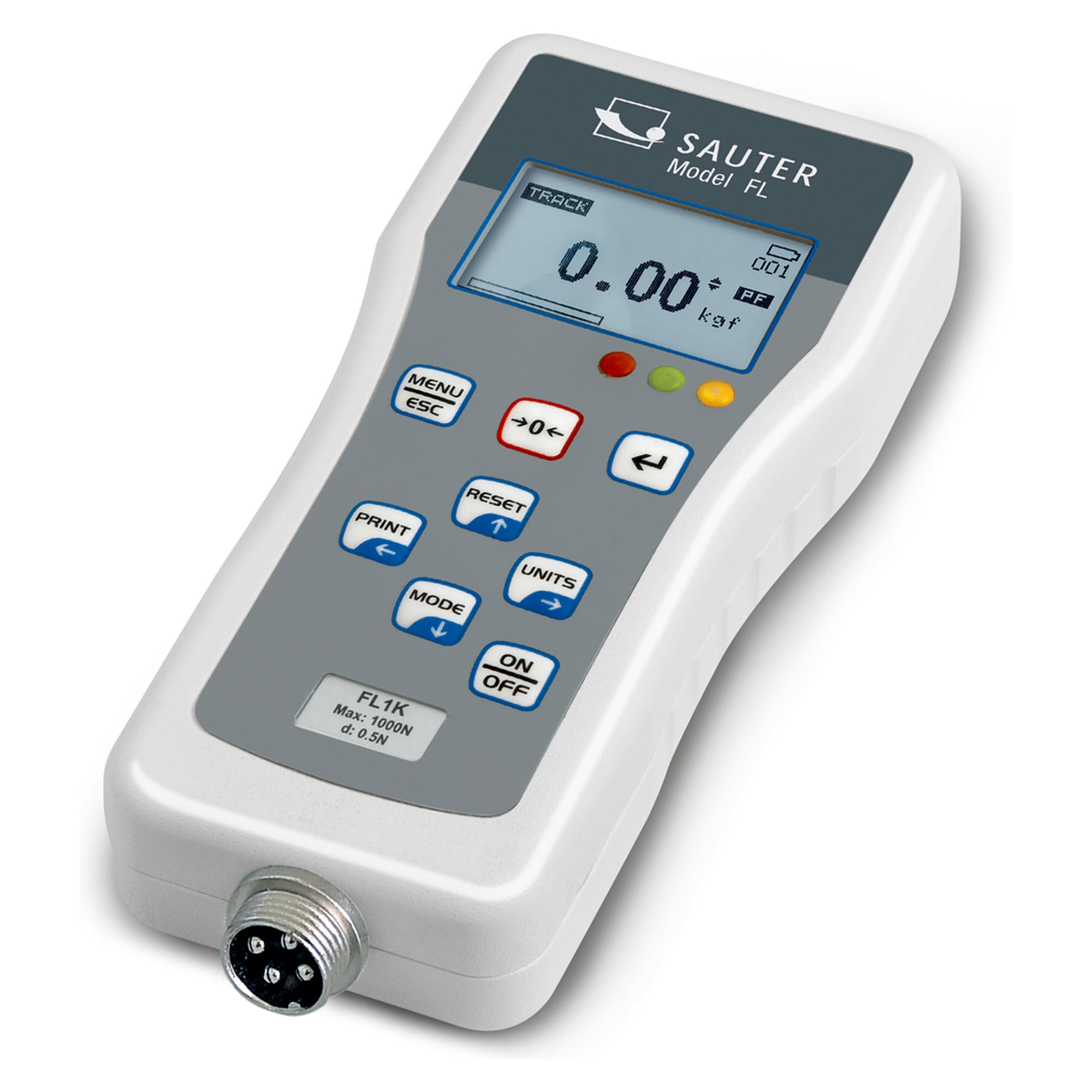

• Display: LCD, 8,5 mm digit height
• Interfaces: RS-232 (standard), USB and analogue output (0 +/-2 V)
• Internal memory: up to 500 readings
• Power supply: NiMH battery and mains adapter (100 - 240 V)
• Battery life: 8 h (backlight on), 10 h (backlight off), charging 8 h
• Operating temperature: 15 - 35 °C
• Housing: coated metal
• Dimensions (W×D×H): 170x75x30 mm
• Weight: 0,55 kg

Applications

Test laboratories, research and development, the automotive industry and maintenance teams use it for repeatable tension and compression tests, as does plastics processing.

Compliance and origin

Selectable units N, kN, kgf, ozf and lbf. EAN 4045761138919, customs tariff code 90248000, country of origin Thailand.
