Digital force gauge for 4 external load cells, touchscreen - SAUTER FS 4

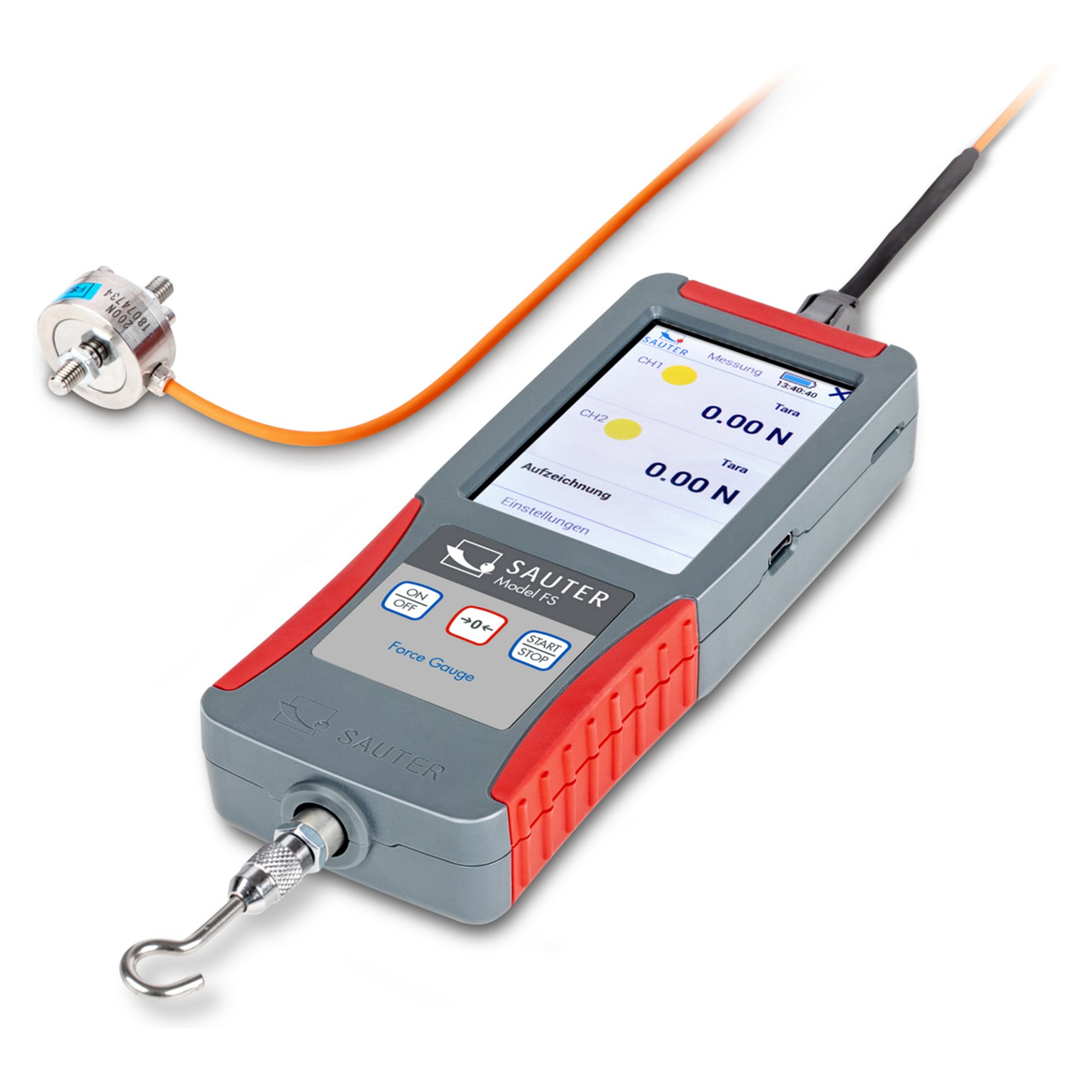

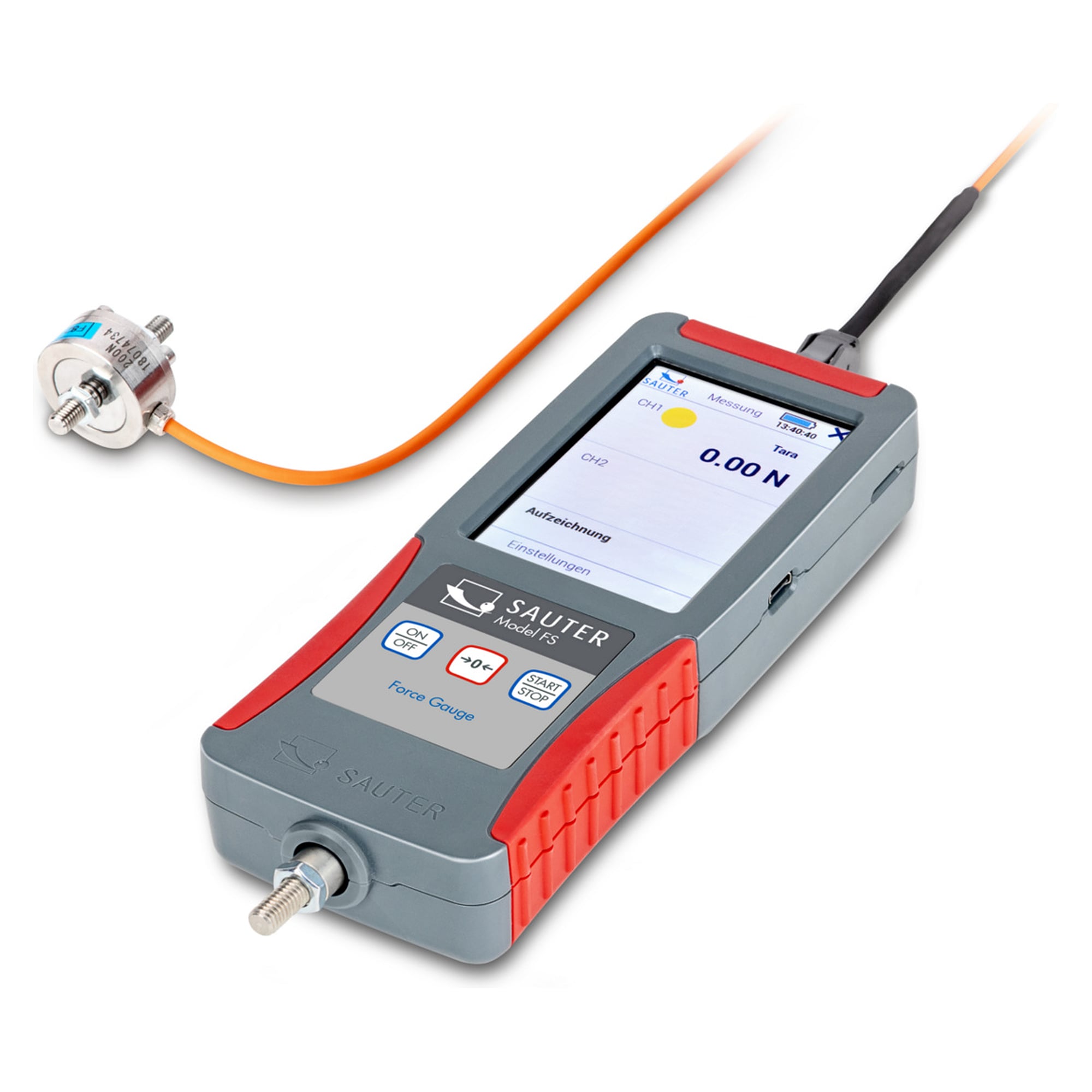

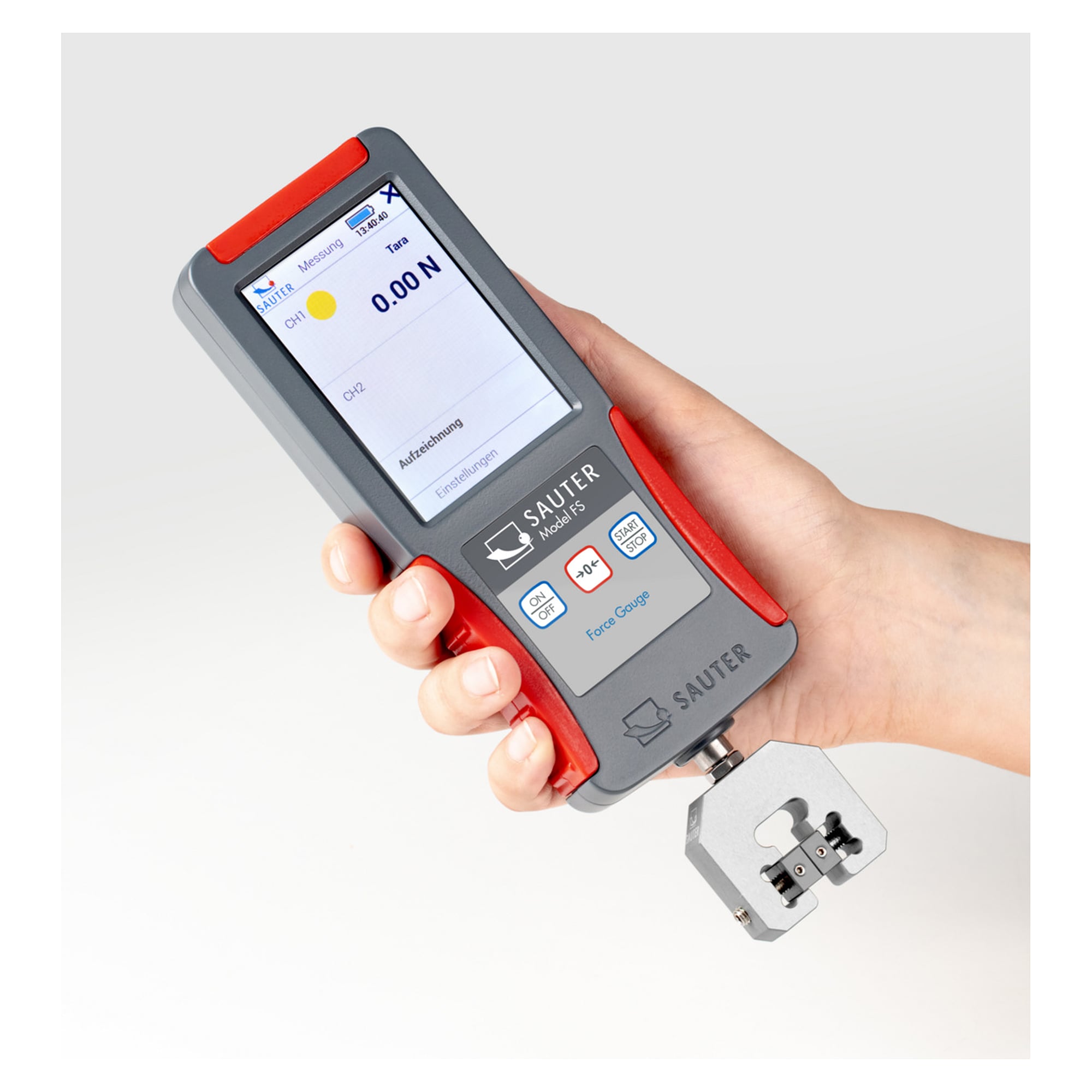

The SAUTER FS 4 is a digital force gauge with four measuring channels for external strain gauge load cells. It is operated via a 3.5 inch touchscreen and measures at 1000 Hz. Peak, track, tolerance and statistics are on board, as are 16 GB of memory and USB.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description

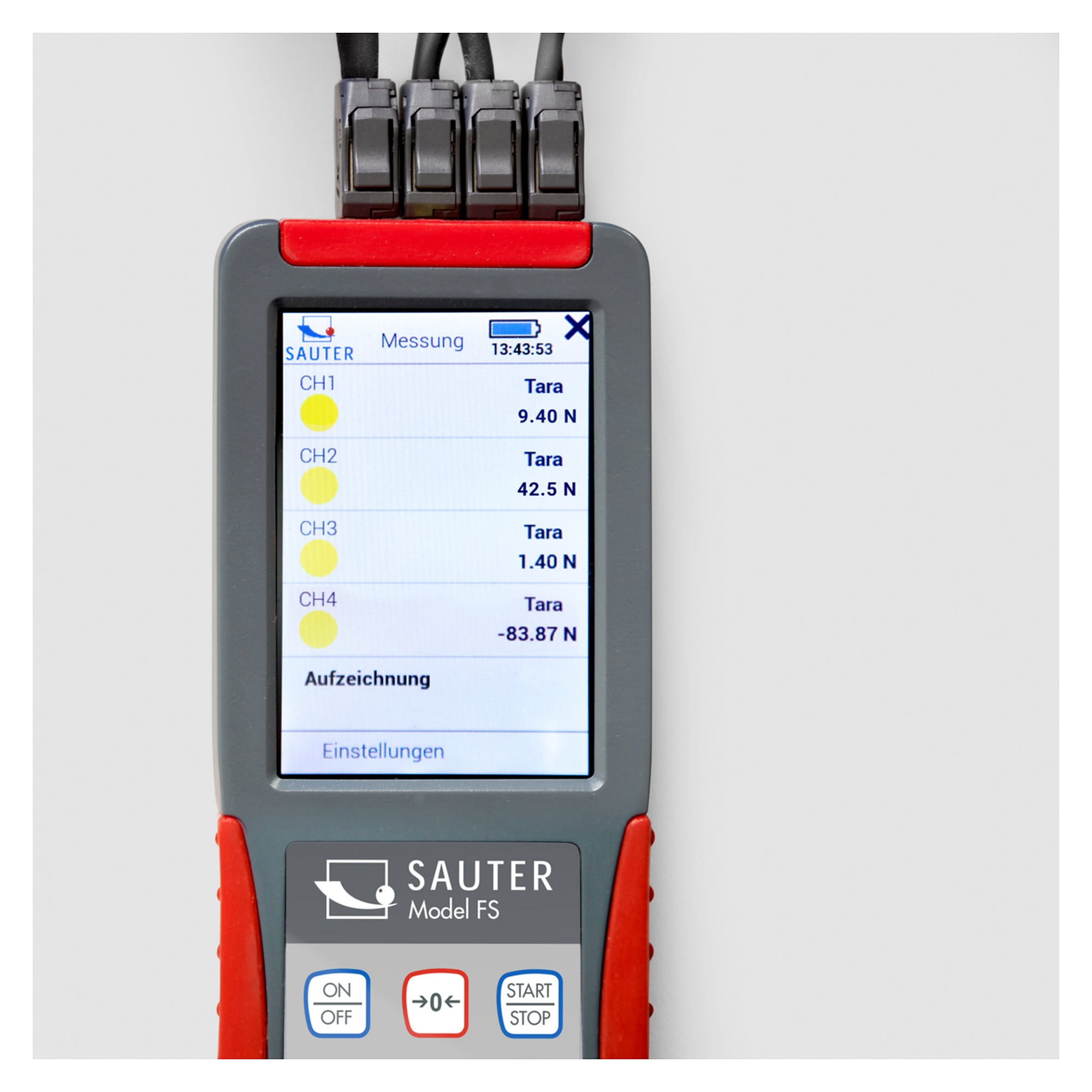

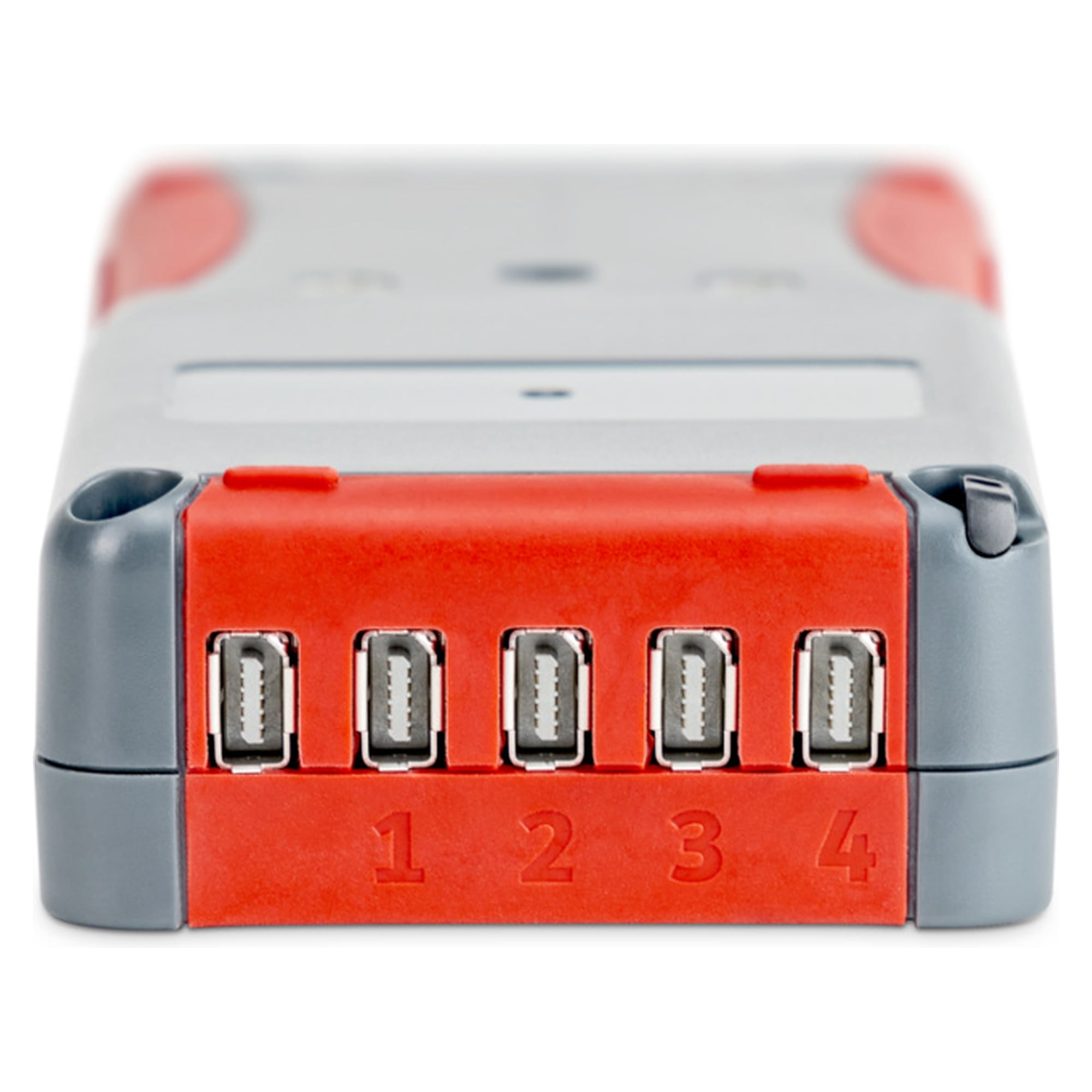

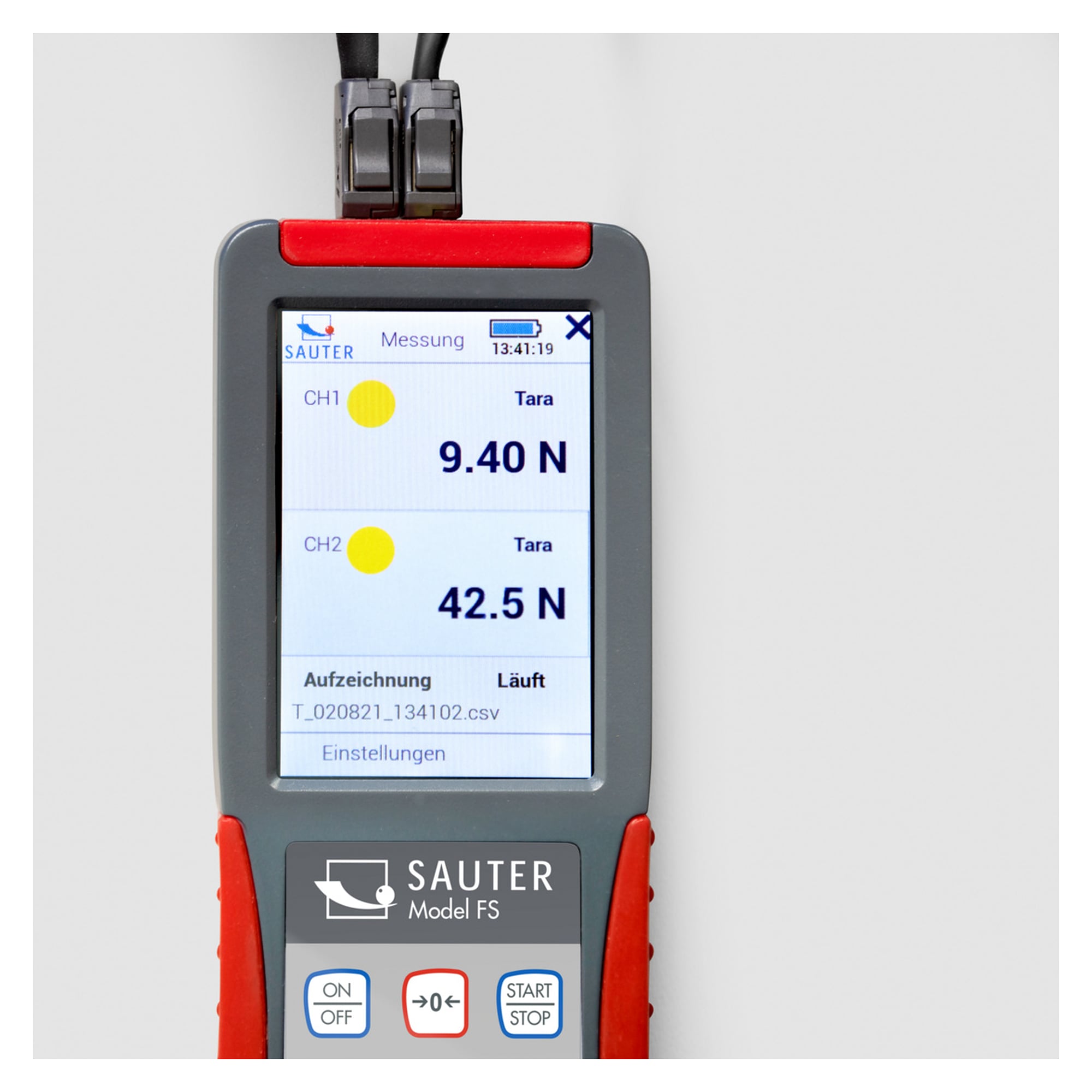

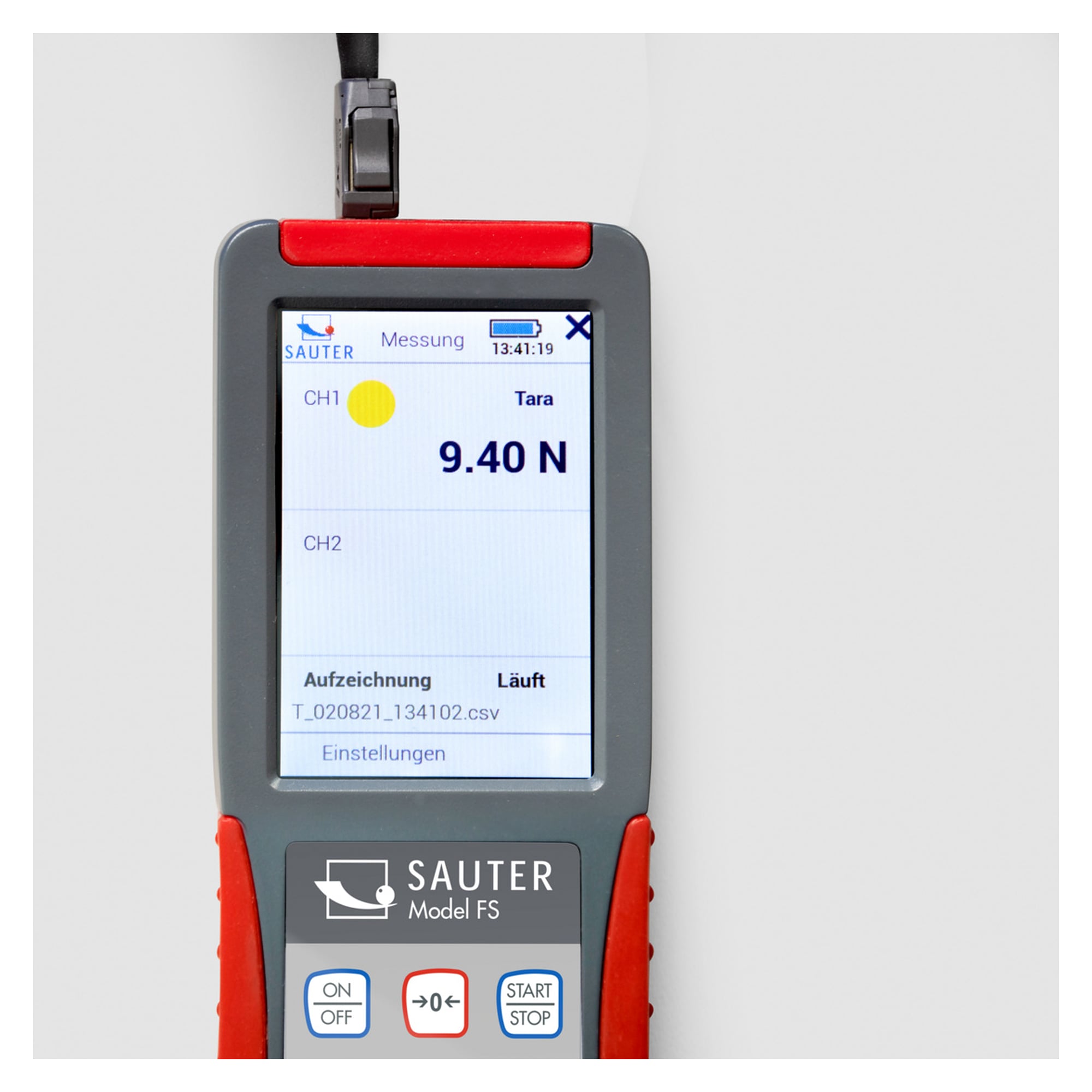

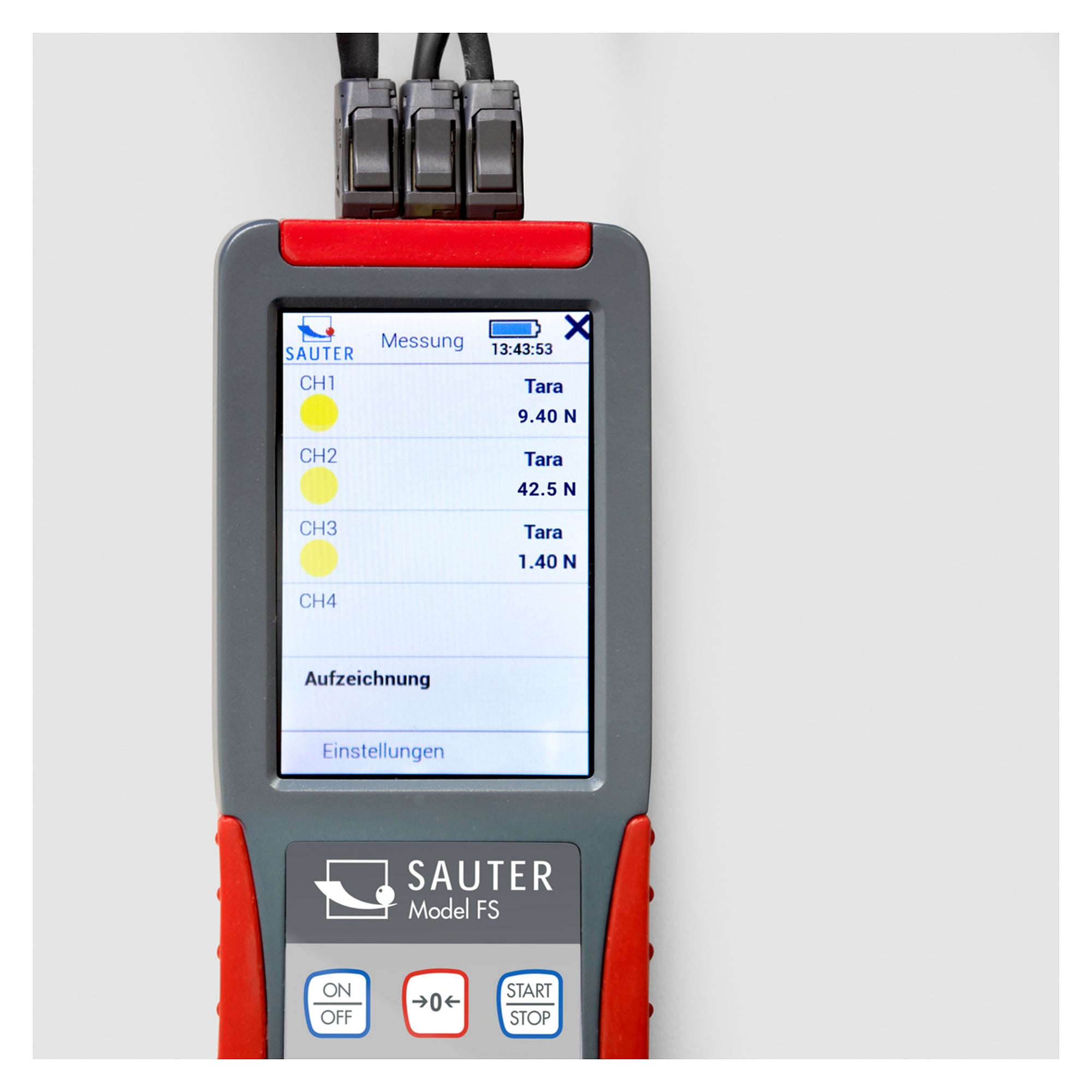

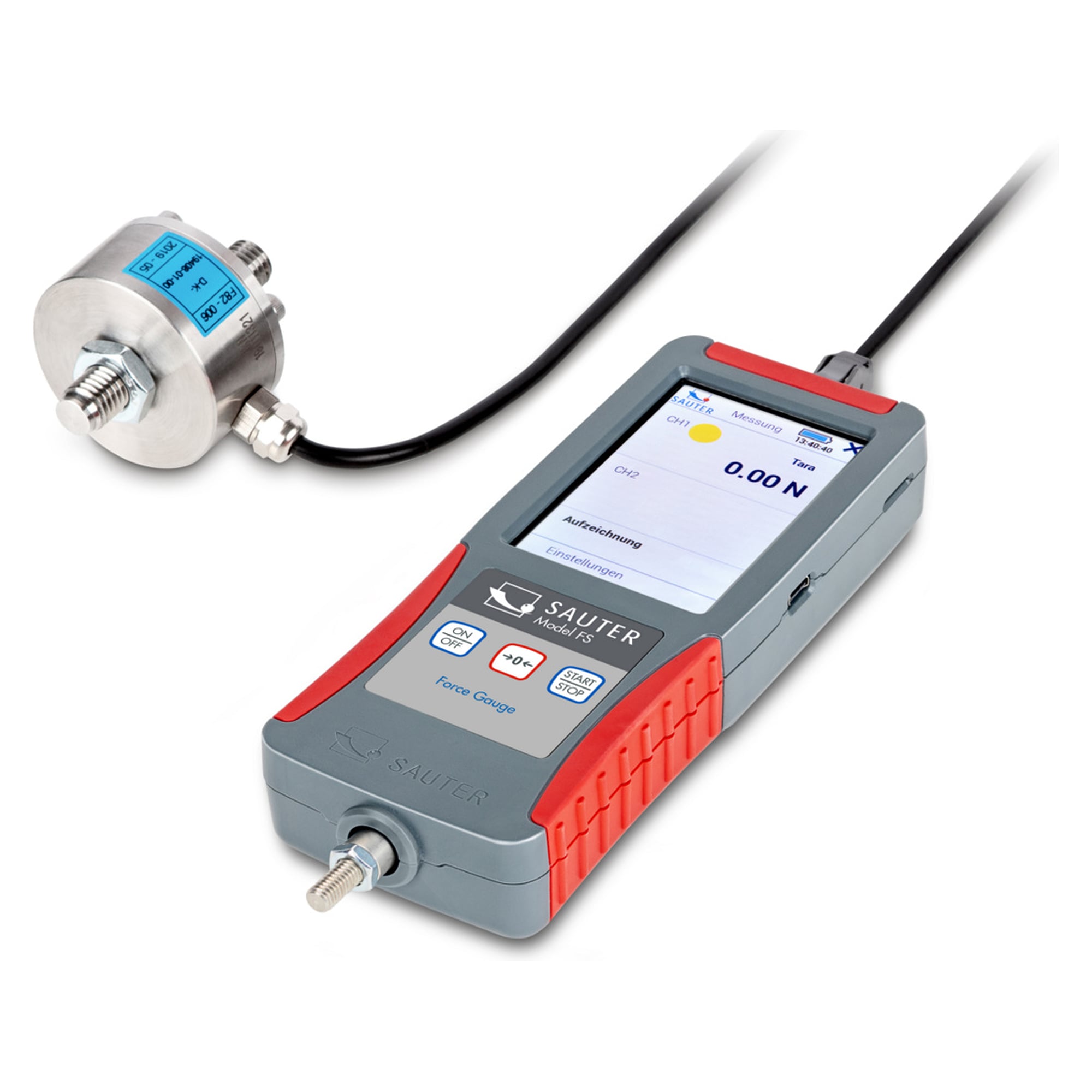

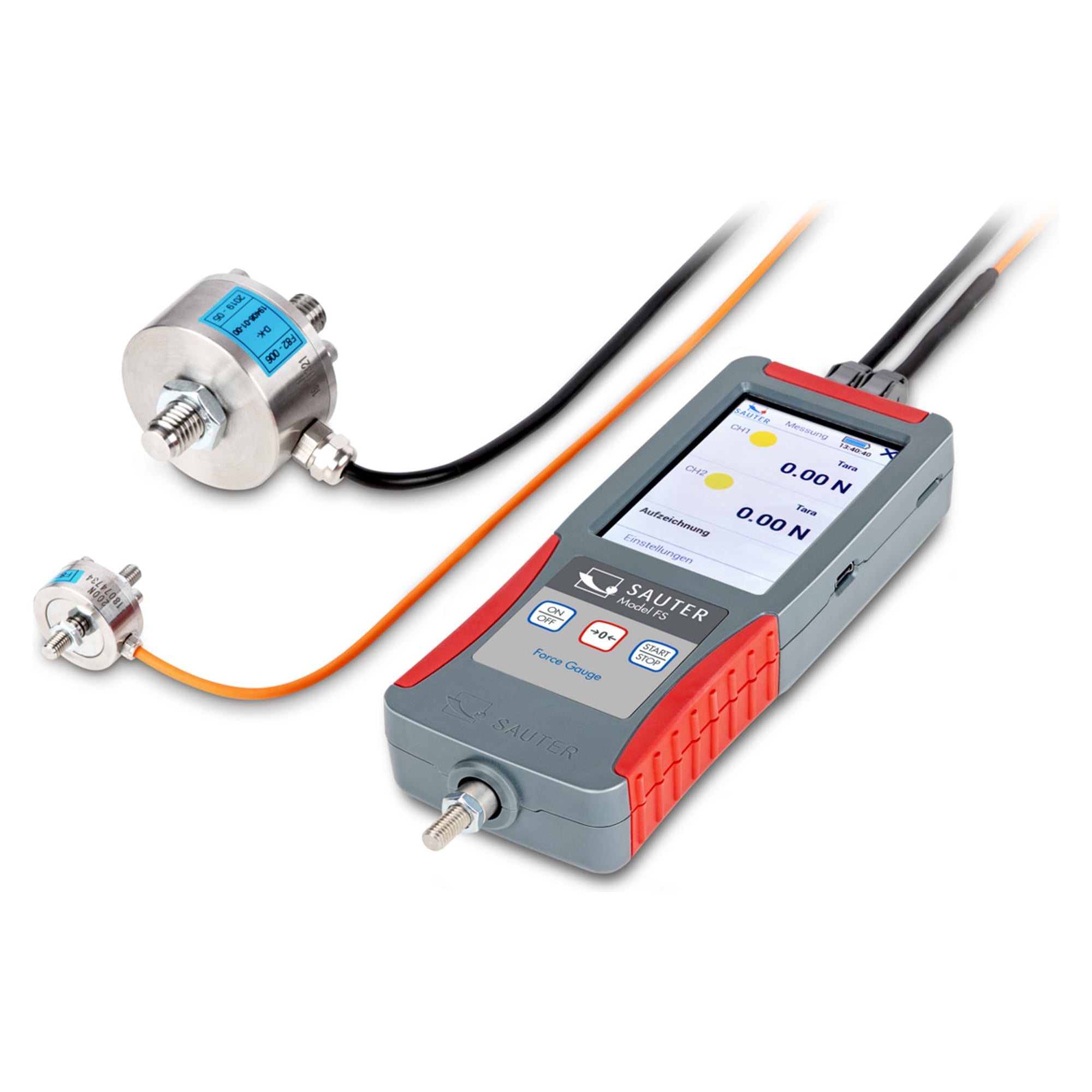

The SAUTER FS 4 combines up to four external load cells in one display unit. This lets you measure forces in several tensile and compression directions without changing instruments. It is suitable for 4-wire and 6-wire strain gauge sensors, with the sensor data stored directly in the connector.
Advantages
- Four channels as standard: no upgrade required

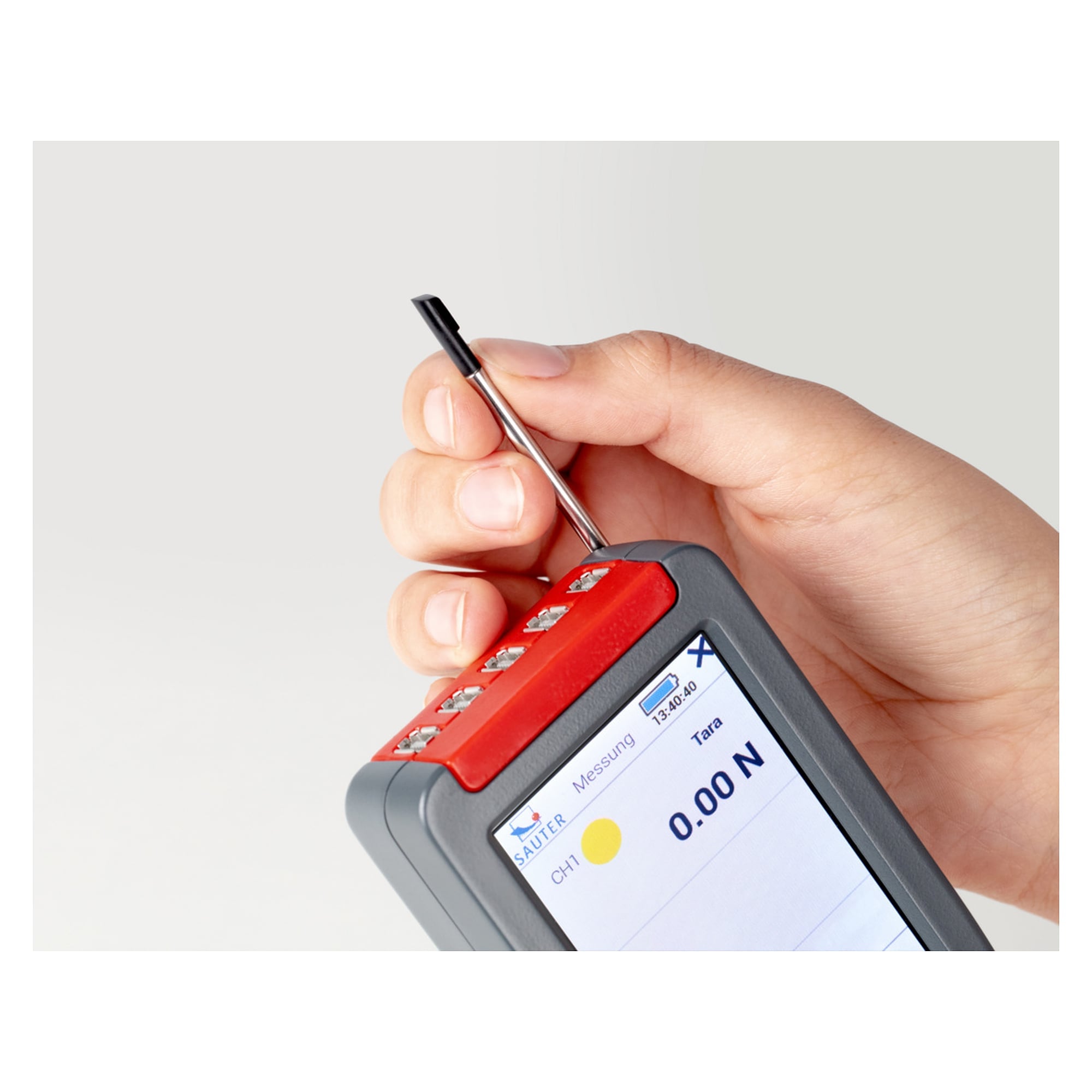

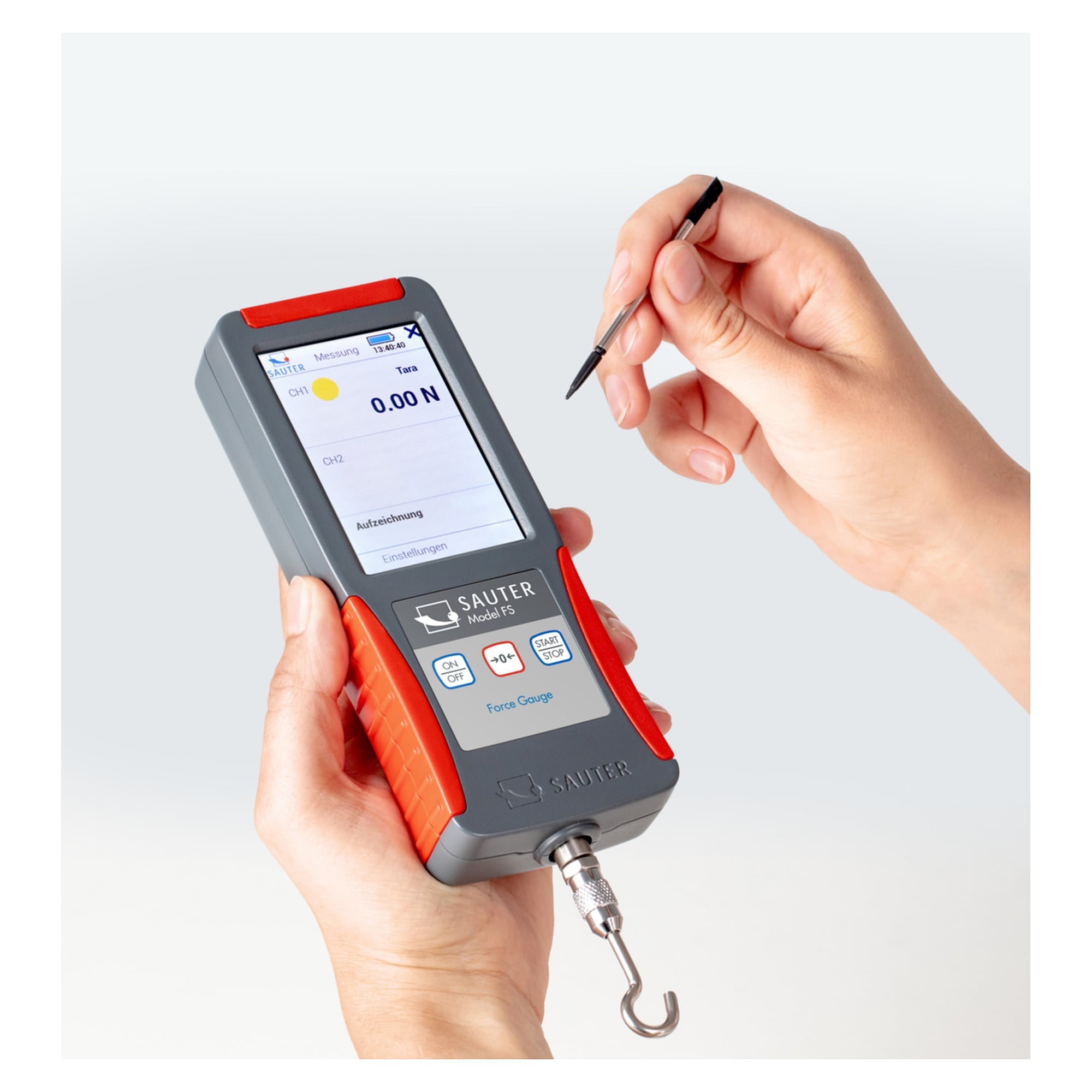

- 3.5 inch touchscreen: operation by finger or touch pen
- 1000 Hz measuring frequency: reliable capture of fast force curves
- Evaluation functions: peak measurement, track function for continuous display, tolerance and statistics functions

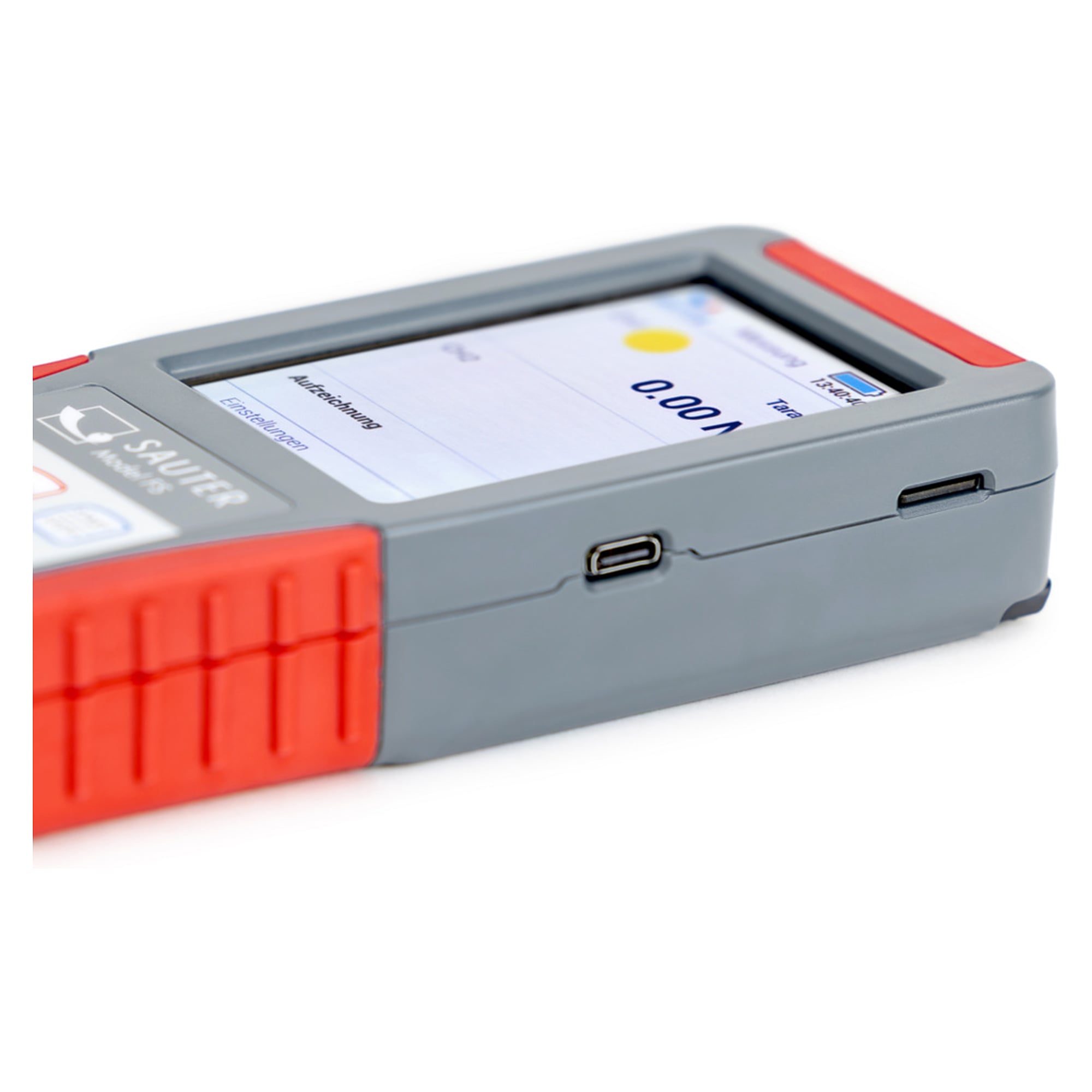

- Data handling: 16 GB internal memory, USB for data transfer and power supply
- Flexible adjustment: two-point adjustment with weights or numerically
Applications
Mounts on all SAUTER test stands, including the SAUTER TVO and TVS test stand sets with length gauge. The FS 4 is used in test laboratories, research and development, the automotive industry, maintenance and servicing, and plastics technology.
Conformity and origin
EAN 4045761237025. Warranty 36 months.
Technical data
| Measuring frequency | 1000 Hz |
|---|---|
| Measuring channels | 4 |
| Sensors | 4-wire and 6-wire strain gauge |
| Display | 3.5 inch touchscreen with touch pen |
| Functions | peak, track, tolerance, statistics, memory |
| Internal memory | 16 GB |
| Interface | USB device |
| Power supply | rechargeable battery 3.7 V, 2400 mAh and power adapter |
| Housing | plastic |
| Dimensions (W x D x H) | 71 x 31 x 180 mm |
| Net weight | approx. 0.35 kg |
| Weight | 0.35 kg |
| Manufacturer | Sauter |
| EAN | 4045761237025 |
| GPSR manufacturer information | KERN & SOHN GmbH, Ziegelei 1, DE-72336 Balingen-Frommern, www.kern-sohn.com |
| Condition of article | New |
| Article authenticity | Original product |
Scope of delivery
Display unit in a systainer T-LOC system case, plug-in power supply and USB type C cable. Load cells are available separately.
