Test Stand Set - SAUTER TVS 5000N240-LD
The motorised SAUTER TVS 5000N240-LD twin-column test stand handles tensile and compression forces up to 5 kN at travel speeds of 1 - 240 mm/min. Its built-in LD length gauge records displacement up to 210 mm with 0,01 mm readability for force-displacement graphs on a PC. The five-in-one set ships with the LD system, interface cable, AFH LD software, AFH 12 converter and mounting.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
For repeatable tensile and compression testing in the lab and in production control, the SAUTER TVS 5000N240-LD delivers up to 5 kN of test force and, thanks to the LD length gauge, documents the full force curve over travel. The stepper motor keeps the speed constant from the smallest to the full load and stops without overrun.
Benefits
- Five in one: test stand, LD length gauge, interface cable, AFH LD software and AFH 12 converter arrive assembled.
- Force-displacement graphs on the PC: linear potentiometer with 210 mm range and 0,01 mm readability.
- Constant test speed: stepper motor from 1 - 240 mm/min, with precise start and stop and no overrun.
- Protected travel: maximum stroke limited by electrical limit switches.

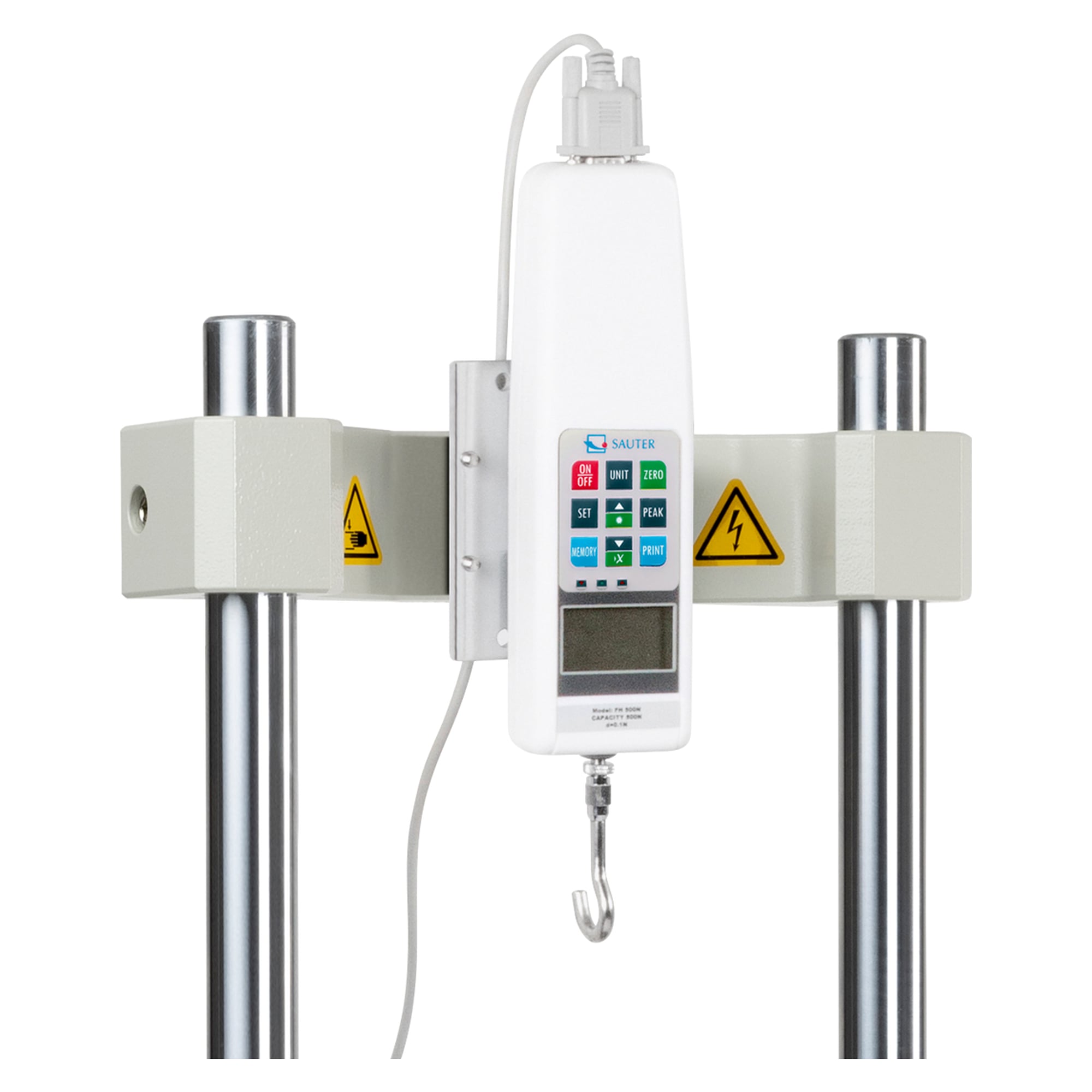

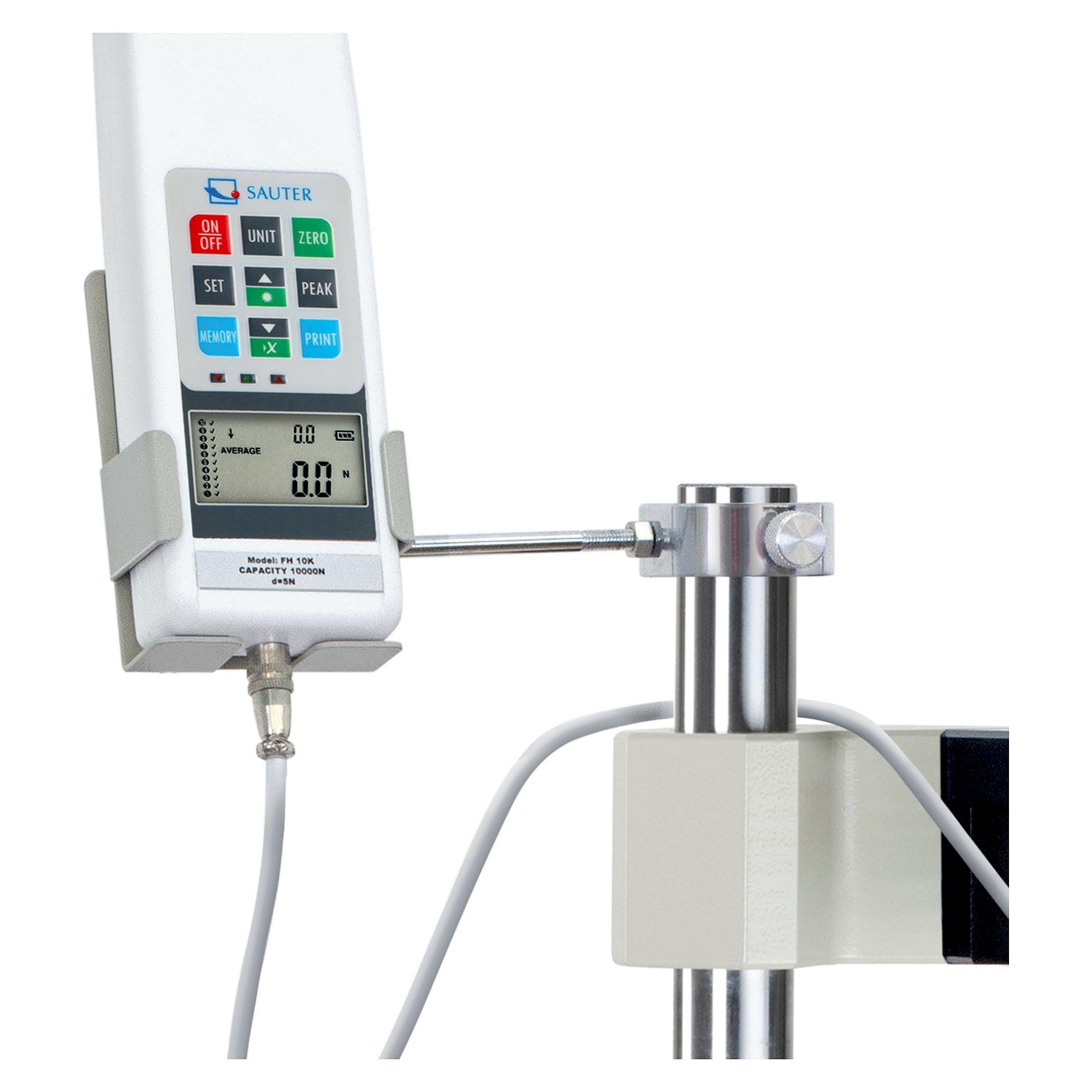

- Flexible mounting: long guide columns (113,5 cm) for SAUTER FC, FH, FK and FL force gauges.
Applications
The test stand is used in industry (plastics, automotive, medical, metal), in laboratory work, in series quality control, in the packaging industry and in teaching and training.
Compliance and origin
EAN 4045761343603, customs tariff code 90249000, country of origin China.
Technical data
| Force generated (max) | 5 kN |
|---|---|
| Travel speed | 1 - 240 mm/min |
| Length measuring range | 210 mm |
| Displacement readability | 0,01 mm |
| Measuring accuracy | 0,5 % of max |
| Drive | stepper motor |
| Guide column length | 113,5 cm |
| Dimensions (W×D×H) | 400 × 250 × 1550 mm |
| Power supply | 230 V AC, 50 Hz, built-in unit |
| Housing | painted metal |
| Net weight | 65 kg |
| Weight | 95 kg |
| Manufacturer | Sauter |
| Manufacturer Nr. | TVS 5000N240-LD |
| EAN | 4045761343603 |
| HS-Code | 90249000 |
| GPSR manufacturer information | KERN & SOHN GmbH, Ziegelei 1, DE-72336 Balingen-Frommern, www.kern-sohn.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | China |
| Display type | LED segments |
