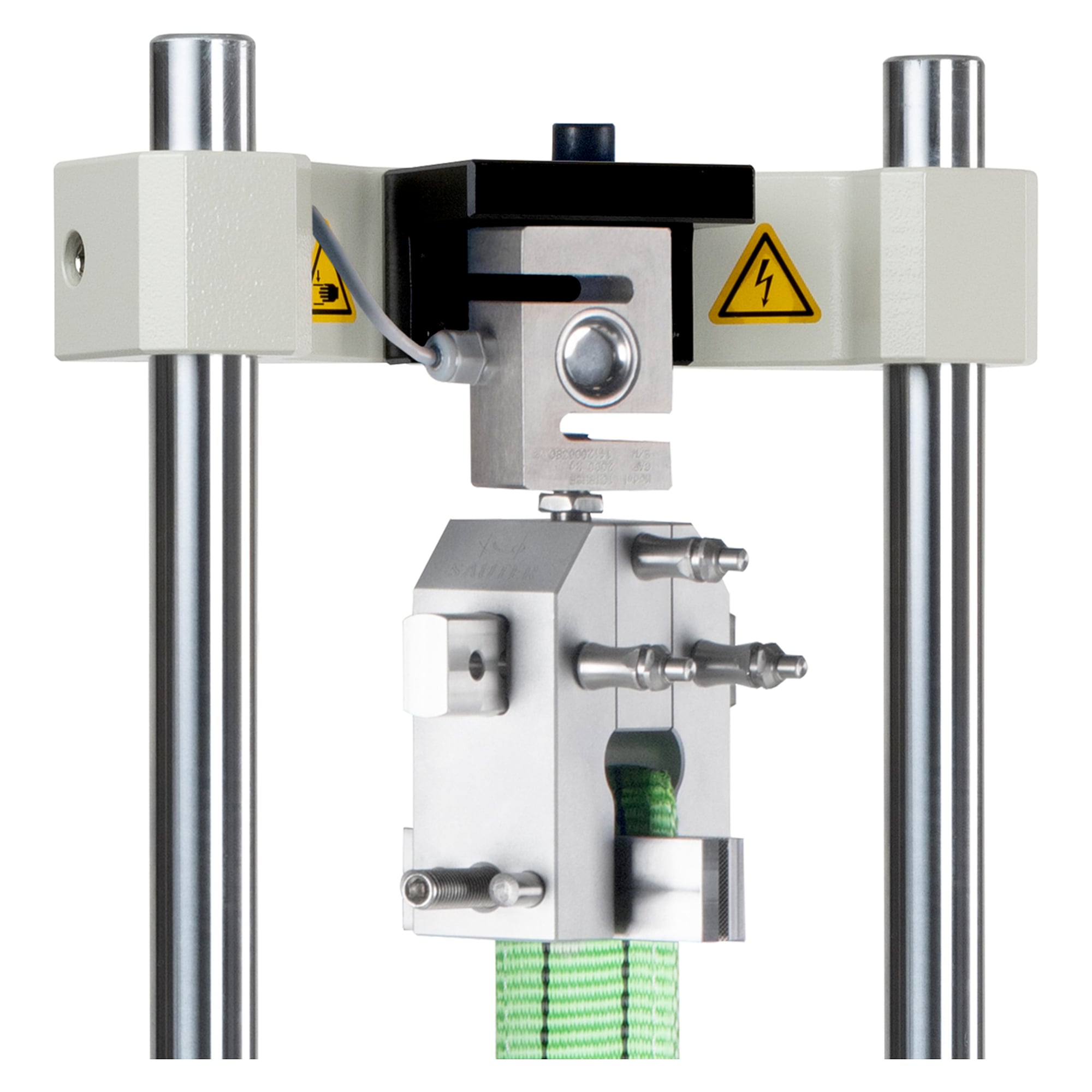

Test Stand Set - SAUTER TVS 20KN100-LD

For repeatable tensile and compression testing in the lab and in production control, the SAUTER TVS 20KN100-LD delivers up to 20 kN of test force and, thanks to the LD length gauge, documents the full force curve over travel. The stepper motor keeps the speed constant from the smallest to the full load and stops without overrun.

Benefits

• Five in one: test stand, LD length gauge, interface cable, AFH LD software and AFH 12 converter arrive assembled.
• Force-displacement graphs on the PC: linear potentiometer with 210 mm range and 0,01 mm readability.
• Constant test speed: stepper motor from 1 - 100 mm/min, with precise start and stop and no overrun.
• Protected travel: maximum stroke limited by electrical limit switches.

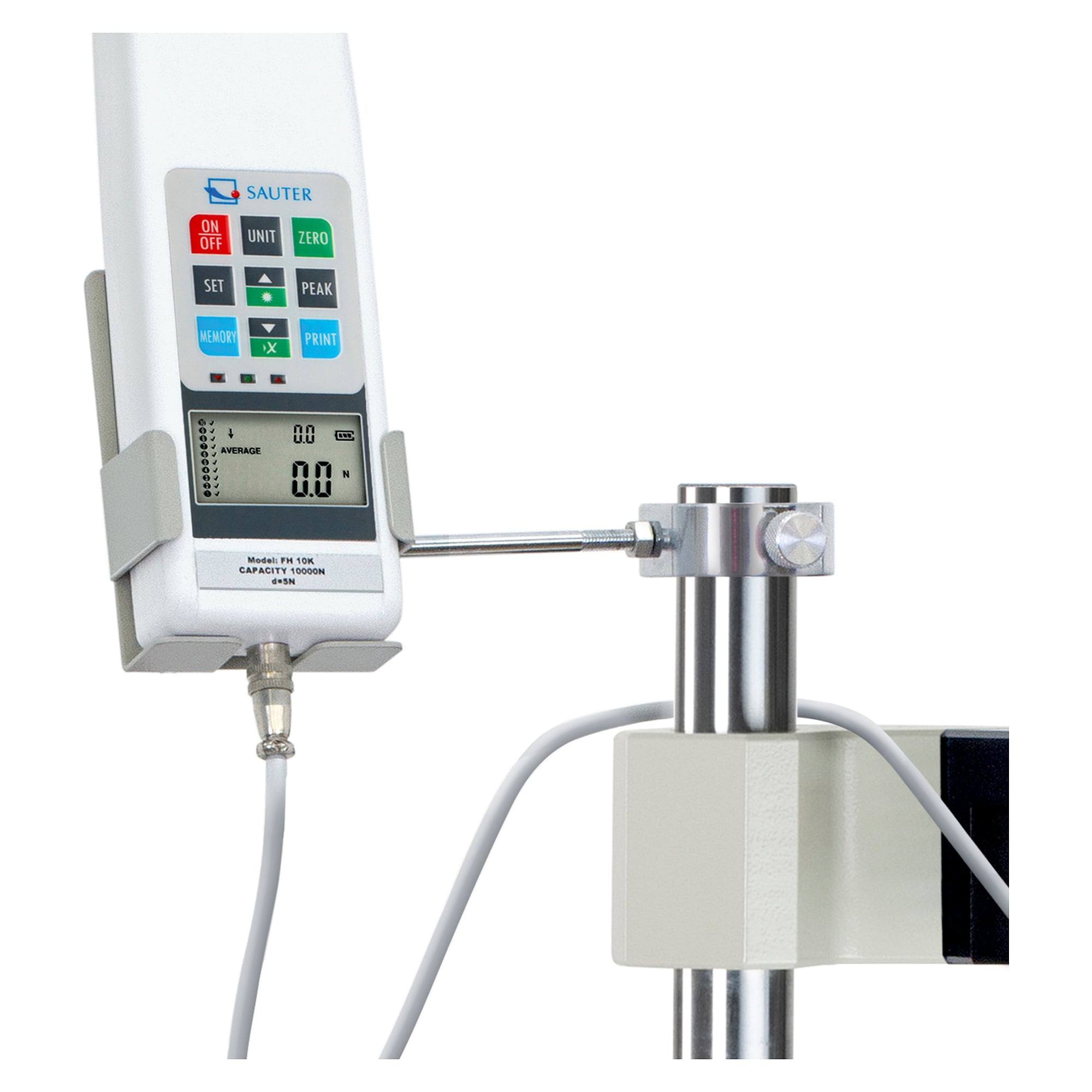

• Flexible mounting: long guide columns (113,5 cm) for SAUTER FC, FH, FK and FL force gauges.

Technical data

• Force generated (max): 20 kN
• Travel speed: 1 - 100 mm/min
• Length measuring range: 210 mm
• Displacement readability: 0,01 mm
• Measuring accuracy: 0,5 % of max
• Drive: stepper motor
• Guide column length: 113,5 cm
• Dimensions (W×D×H): 400 × 250 × 1550 mm
• Power supply: 230 V AC, 50 Hz, built-in unit
• Housing: painted metal
• Net weight: 150 kg

Applications

The test stand is used in industry (plastics, automotive, medical, metal), in laboratory work, in series quality control, in the packaging industry and in teaching and training.

Compliance and origin

EAN 4045761343634, customs tariff code 90249000, country of origin China.
