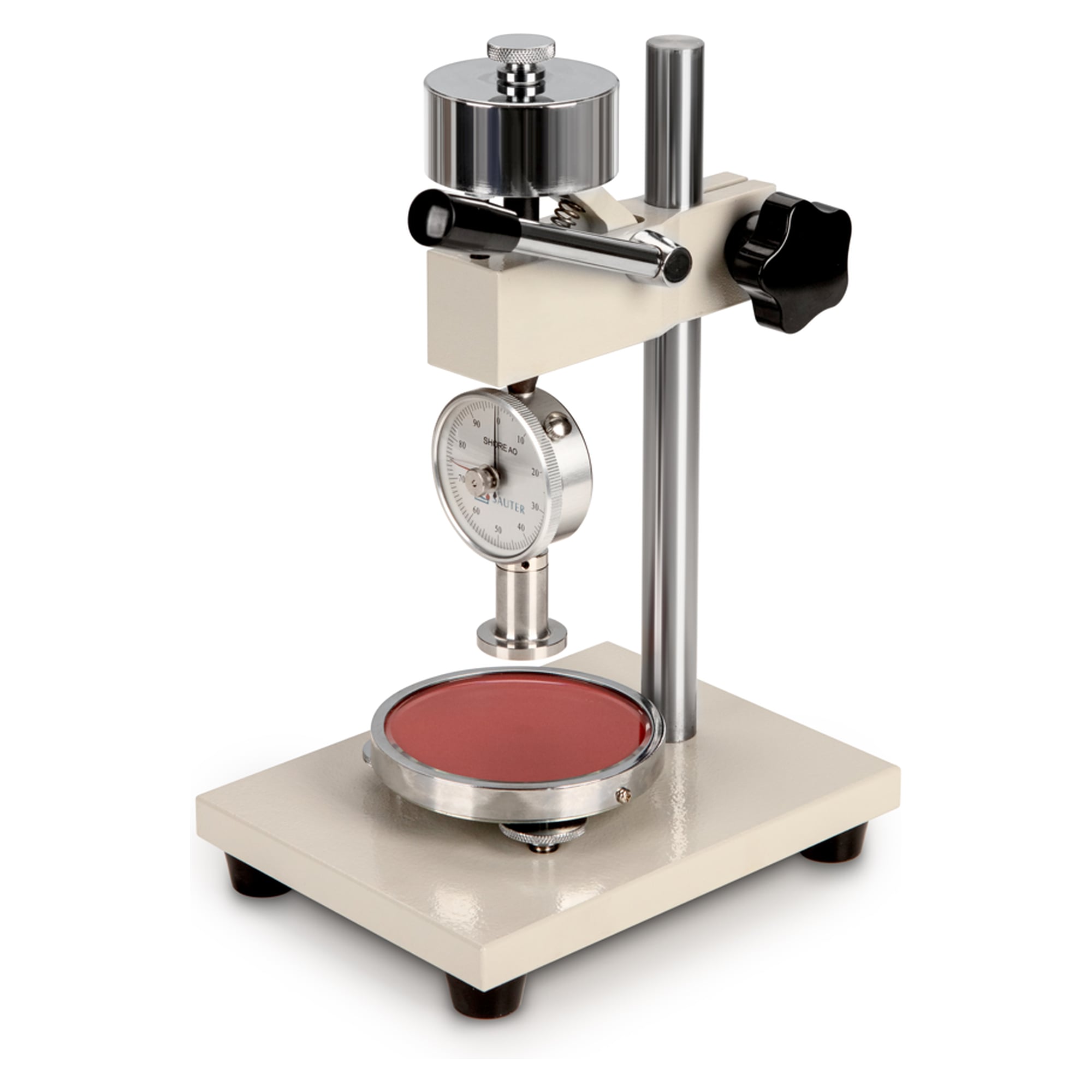

Manual Shore Test Stand - SAUTER TI-AC

To determine Shore A values on plastics or leather reproducibly, you clamp your SAUTER Shore hardness gauge into the TI-AC lever test stand. The 10 N test force is released evenly by the lever and, according to the manufacturer, delivers results about 25 % more accurate than freehand measurement.

Benefits

• Reproducible release: a defined lever movement instead of varying hand pressure.

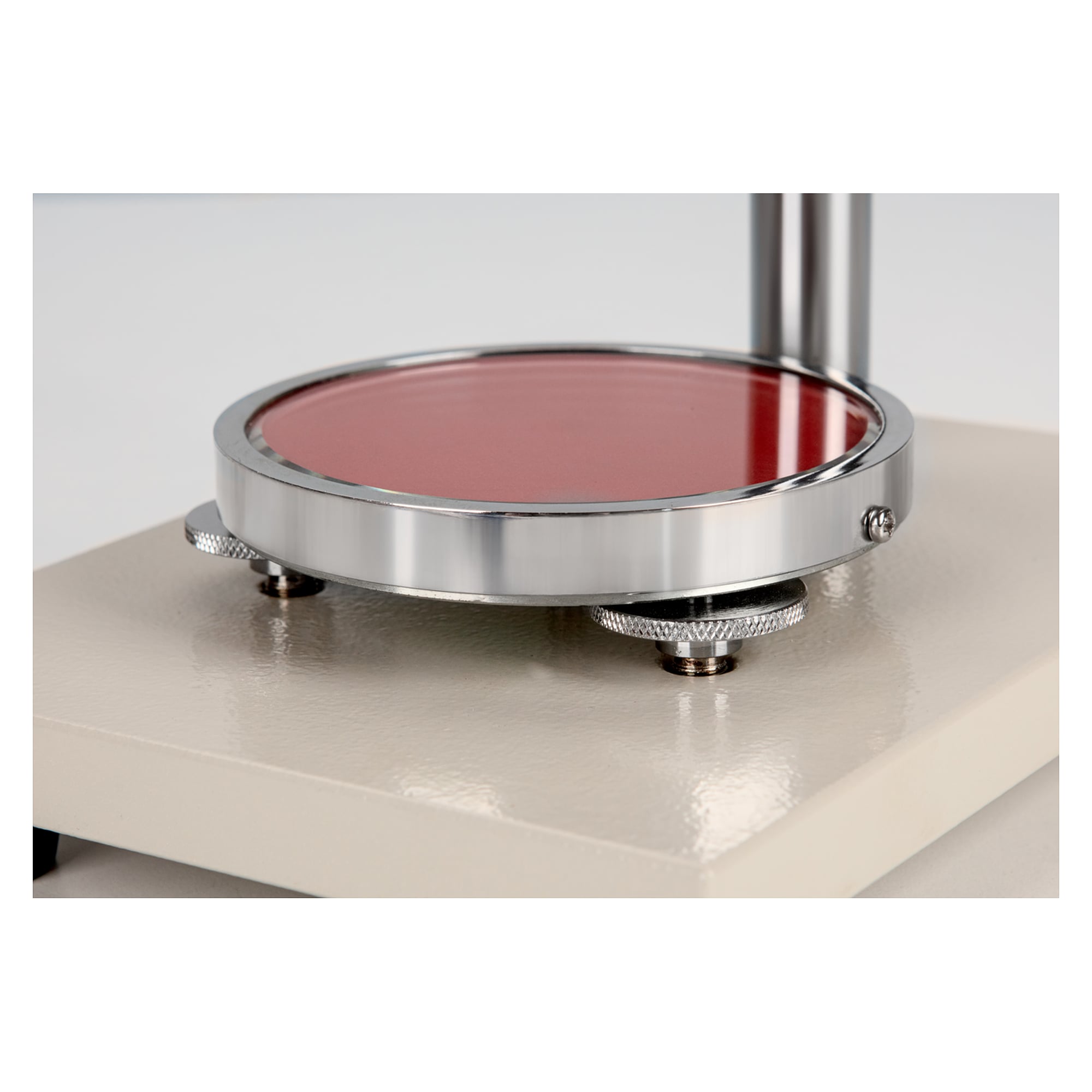

• Glass base plate: high measuring accuracy thanks to the hard support surface.
• Levelling: levelling device for precise alignment, even with inhomogeneous test objects.
• More accuracy: about 25 % higher accuracy than a hand measurement.
• Sturdy build: stainless steel body for precise measuring movements.

Technical data

• Hardness scale: Shore A
• Hardness test force: 10 N
• Base plate: glass
• Travel (release): 15 mm
• Housing: stainless steel
• Dimensions (W x D x H): 150 x 200 x 330 mm
• Net weight: 7 kg

Applications

The TI-AC is used in plastics processing, in medical technology, in the automotive industry, in packaging and in the food industry.

Compliance and origin

EAN 4045761140233, customs tariff number 90248000, country of origin China. The hardness gauge is not included in the delivery.
