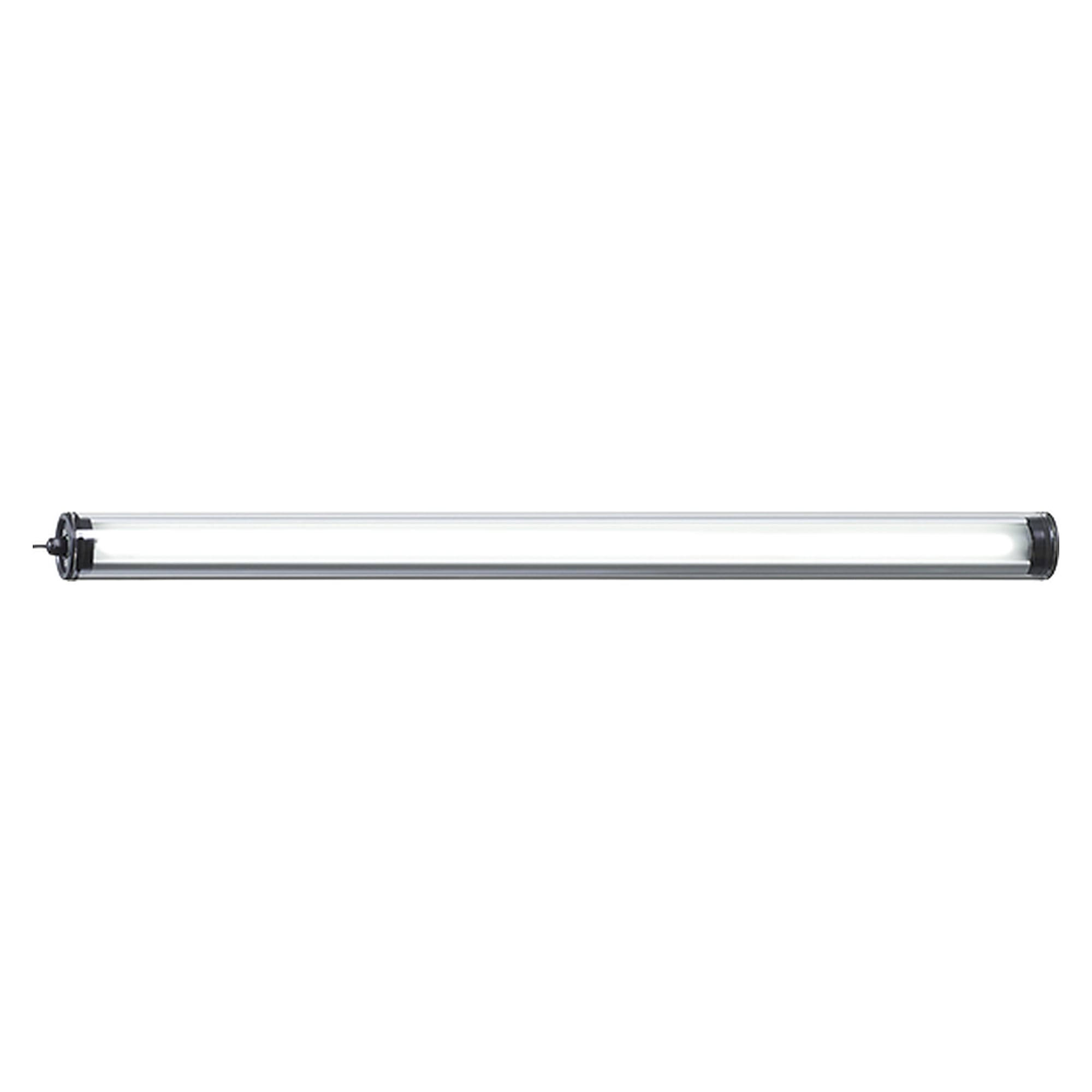

LED tube luminaire RL70LE-84 N, 22-26 V DC, 3300 lm, 1070 mm, acrylic - Waldmann 113283000-00712032

The RL70LE-84 N puts 3300 lm onto a light output length of 1016 mm, and its clear acrylic (PMMA) tube is designed for wet environments exposed to powerful water jets. It runs directly on the 22-26 V DC machine voltage, with no operating device inside the luminaire.

Benefits

• 3300 lm at 44 W power consumption, luminous efficiency 75 lm/W, 5000 K neutral white, CRI ≥ 80
• Clear acrylic (PMMA) tube with IP67 protection for wet environments exposed to powerful water jets
• Light Forming technology with diffuser spreads the light across 1016 mm of light output at a 100° beam angle, luminance L65 ≤ 14,000 cd/m²
• Operates on 22-26 V DC machine voltage in protection class III, connected via ST16/2 BS connector

Applications

• Machine tools with water jets in the working area
• Woodworking machines
• Integrated manufacturing and inspection systems

Installation and accessories

• Mounting with pipe clamp (accessory)
• Mains connection via ST16/2 BS connector, screwed cable gland on side part A
• Matching luminaire brackets, also with rubber profile or in stainless steel
• For mains operation: operating device 100-240 V / 24 V DC 100 W or constant voltage operating device 220-240 V / 24 V DC
