TUBELED_70 EVO LED machine light 1580 mm, 81W, 120-277V AC, IP67/IP69K - LED2WORK 156510-11

For mains-fed large installations, the 1580 mm TUBELED_70 EVO with built-in driver delivers 11394 lm at 81 W total power without any external power supply. At 155 lm/W, consumption stays low.

Your benefits

• Integrated driver: connects directly to 120-277V AC.
• Very high light output: 11394 lm, 155 lm/W efficacy.
• Fully sealed: IP67/IP69K rating, dust-tight and washdown-proof.
• Long service life: over 100,000 h (L80/B10), low maintenance.
• Good colour rendering: Ra > 85 at 5700K.
• Rugged: aluminium housing with single-pane safety glass.

Technical data

• Model: TUBELED_70 EVO AC
• Light source: SMD LED
• Total power incl. driver: 81 W
• Lamp power: 74 W
• Luminous flux: 11394 lm
• Luminous efficacy: 155 lm/W
• Light colour: 5700K 3-step MacAdam
• Colour rendering (Ra): > 85
• Supply voltage: 120-277V AC ± 10%, 50-60 Hz
• Connection: M12 S-coded, 3-pin
• Protection rating (IP): IP67/IP69K
• Protection class: I
• Beam angle: 100°
• Operating temperature: -20 °C to +60 °C
• Service life: > 100,000 h (L80/B10)
• Material: aluminium, glass

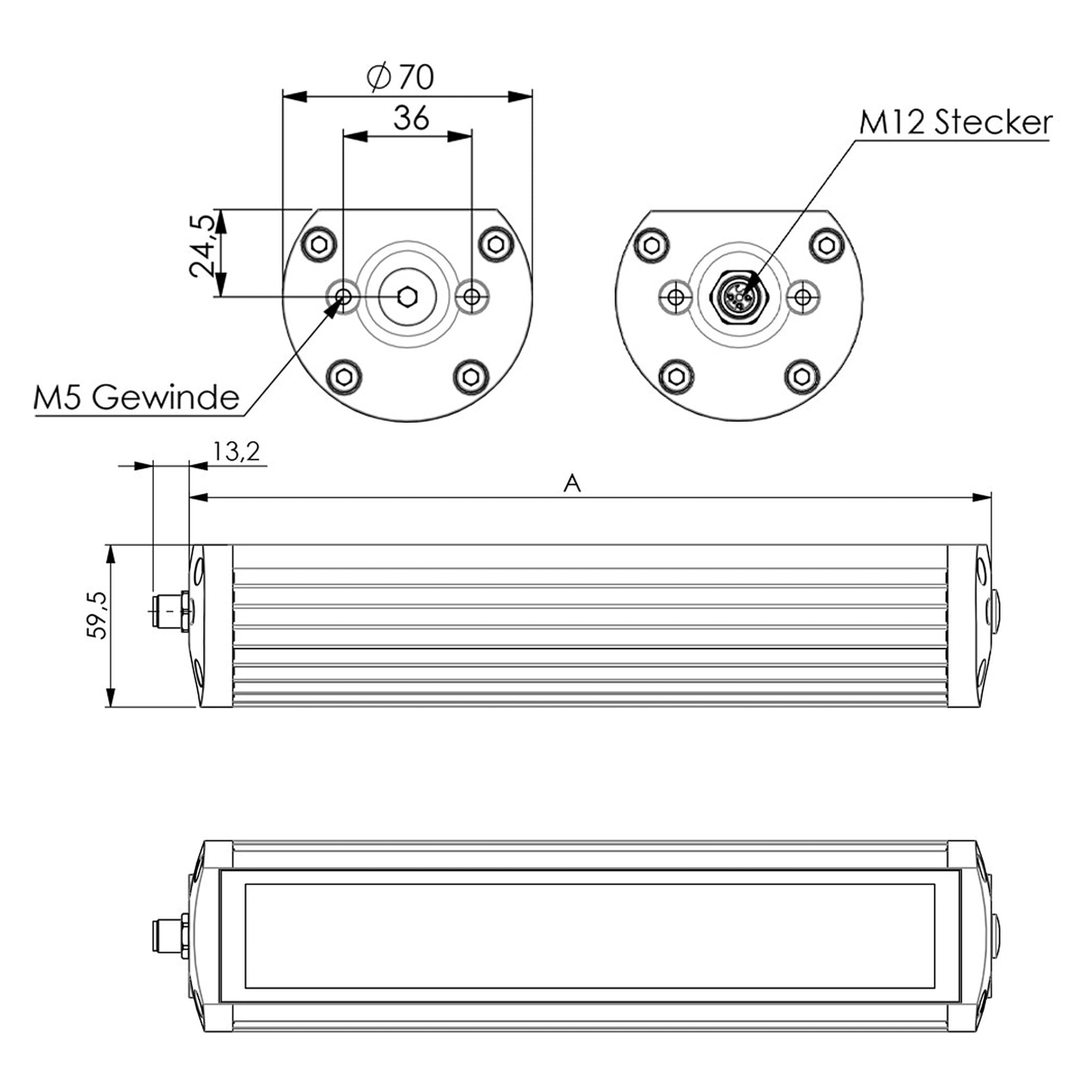

• Dimensions: 1580 mm x 70 mm x 59.5 mm
• Weight: 4400 g
• Risk group (DIN EN 62471): exempt group
• Certifications: CE, UKCA, ETL Listed (5003529)
• Made in: Germany

Applications

For large-area machine and work-area lighting in installations with direct mains feed, including wet and cleaning-intensive areas. Fixing hardware optional.
