Ionizer Tester CPM54 for Decay Time, Offset and Walking Test, with Batteries and EU Charger - Warmbier 7100.CPM54
Compact charged plate monitor for standard-compliant testing of ionisers to IEC 61340-4-7. It measures decay time and offset voltage fully automatically for both polarities and also records body voltage up to 2000 V. Runs on lithium-ion batteries, analogue output via BNC.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description

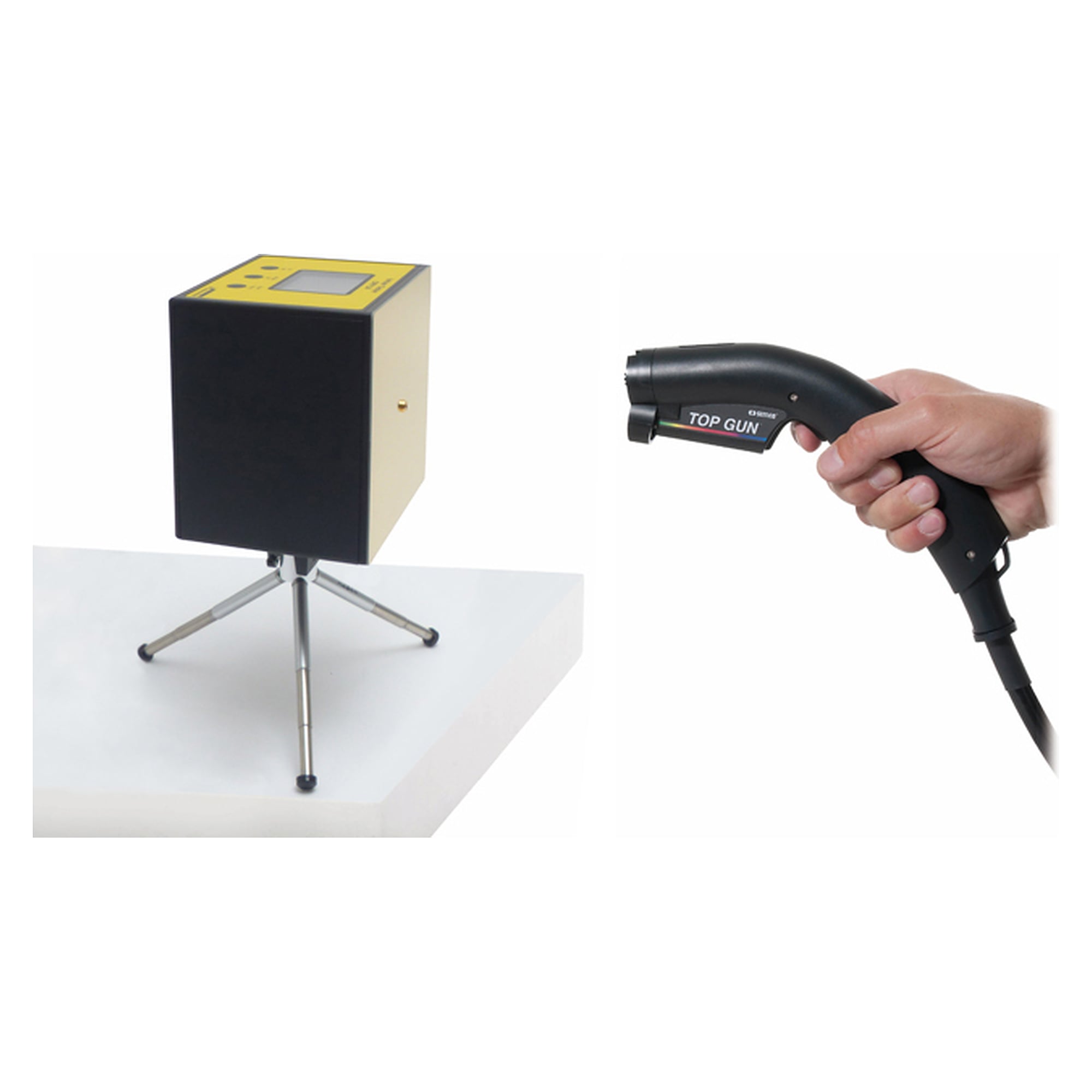

Ionisers lose performance through contaminated emitters and ageing, and nobody can see it. The CPM54 makes their performance measurable: an integrated 150 x 150 mm plate electrode is charged, the unit measures the time it takes for the charge to drop from the start to the stop value and determines the offset voltage the ioniser leaves on the plate.
Features
- Fully automatic testing of positive and negative decay and offset voltage
- Decay time by default from ±1000 V to ±100 V, other start and stop values adjustable
- Contacting plate measurement to IEC 61340-4-7
- Body voltage test up to 2000 V to IEC 61340-4-5
- Colour display
- Analogue output ±5 V via BNC, 1/4 inch tripod thread
Technical data
| Manufacturer no. | 7100.CPM54 |
|---|---|
| Plate electrode | 150 x 150 mm |
| Dimensions (W x D x H) | 150 x 173 x 125 mm |
| Power supply | lithium-ion batteries |
| Weight | 1 kg incl. batteries |
| Manufacturer | Warmbier |
| Manufacturer Nr. | 7100.CPM54 |
| EAN | 4052339034504 |
| GPSR manufacturer information | Wolfgang WARMBIER Untere Gießwiesen 21 DE-78247 Hilzingen www.warmbier.com |
| Condition of article | New |
| Article authenticity | Original product |
| Sales unit | 1 Stück |
| ESD version | ESD (antistatic) |
Scope of delivery
- Ionizer Tester CPM54
- 3 lithium-ion batteries
- Charger with EU plug
- Operating instructions (DE/EN)
- Calibration certificate (DE/EN)
For recording on a PC, the analogue output can be connected to the USB converter 7100.UAD1.
