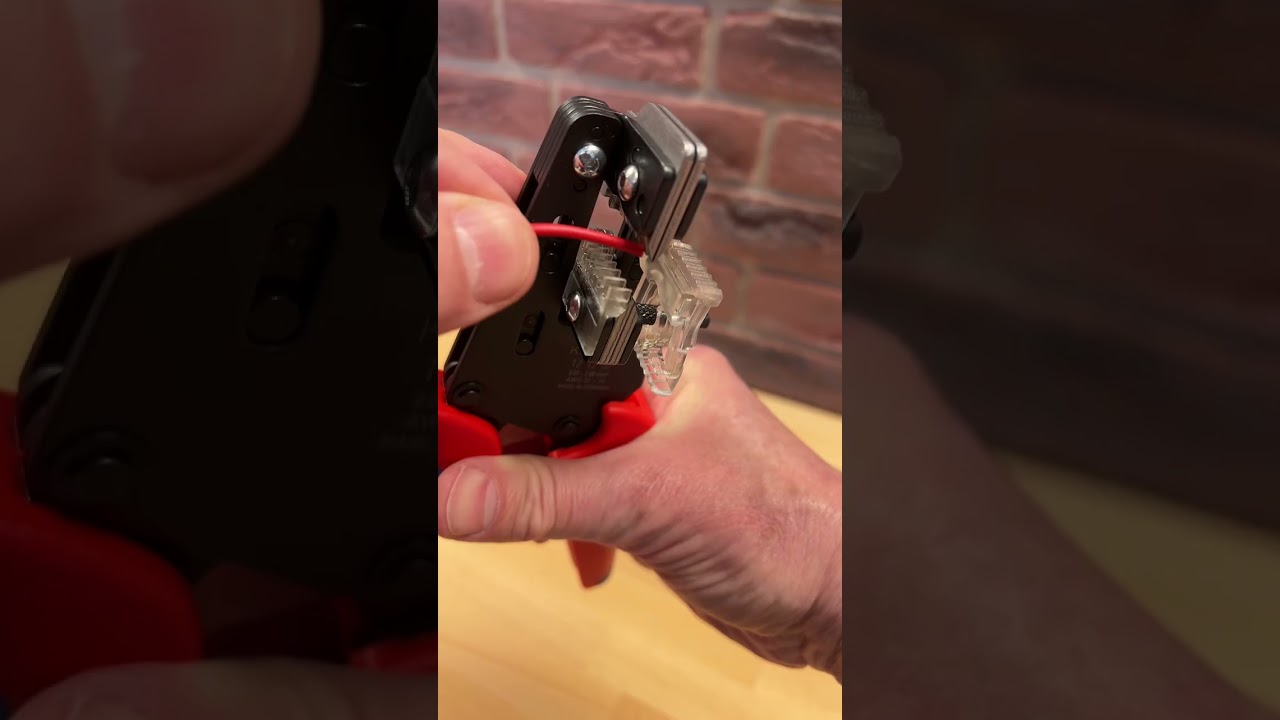

Precision insulation stripper with adapted shaped blades, burnished, 195 mm - Knipex 12 12 02

With PTFE insulated cables the stripping cut decides how good the later connection will be. The 12 12 02 precision insulation stripper works with two pairs of form-fitting blades and a length stop adjustable between 5 and 20 mm, so the insulation is cut evenly around the full circumference and every core gets the same stripping length.

Benefits

• Two high quality pairs of blades cut the insulation evenly around the entire circumference for a clean result without fraying.
• The cable insulation stays free of pressure marks, which keeps the function of the conductor intact.
• Replaceable shaped blades, matched exactly to the respective conductor cross section.
• Repeatable stripping lengths thanks to the length stop adjustable between 5 and 20 mm, made of glass fibre reinforced plastic with a screw fastening for a reliable and precise fit on the bolt.
• An additional cable guide positions the cable exactly at the stripping points of the blades.
• Matched to PTFE insulated cable of 0.09 / 0.14 / 0.38 / 0.57 / 1.0 / 1.5 / 2.08 mm², at 447 g tool weight and 195 mm length.

Areas of use

Assembly of fine PTFE insulated wiring in measurement and control technology, sensor systems, aviation and laboratory construction. Wherever many cores of identical length have to be stripped and a nicked strand or a crushed insulation is unacceptable, the form-fitting blade guidance shows its strength.

Standards and conformity

According to the manufacturer the tool contains substances of very high concern in the sense of the REACH regulation. The RoHS directive does not apply to this product.
