Packages with a row of leads on each side only release when a continuous blade heats the whole row at once. These tweezer tips offer a 10.41 mm blade on a 9 mm tip and regulate themselves to 420 to 475 °C. They belong in the SHP-TTZ hand piece of the TMT-5000S-1 and TMT-5000S-2 soldering systems.
Tweezer soldering tip pair blade 10.41 mm T series - Thermaltronics T80TZ100
THERMALTRONICS
Original product
Net price (excl. VAT)
€66.69
Item
WL38394
Manufacturer no.
T80TZ100
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.T80TZ100
ConditionNew
Article
WL38394
Frequently Bought Together
-
This Item:
€66.69
-

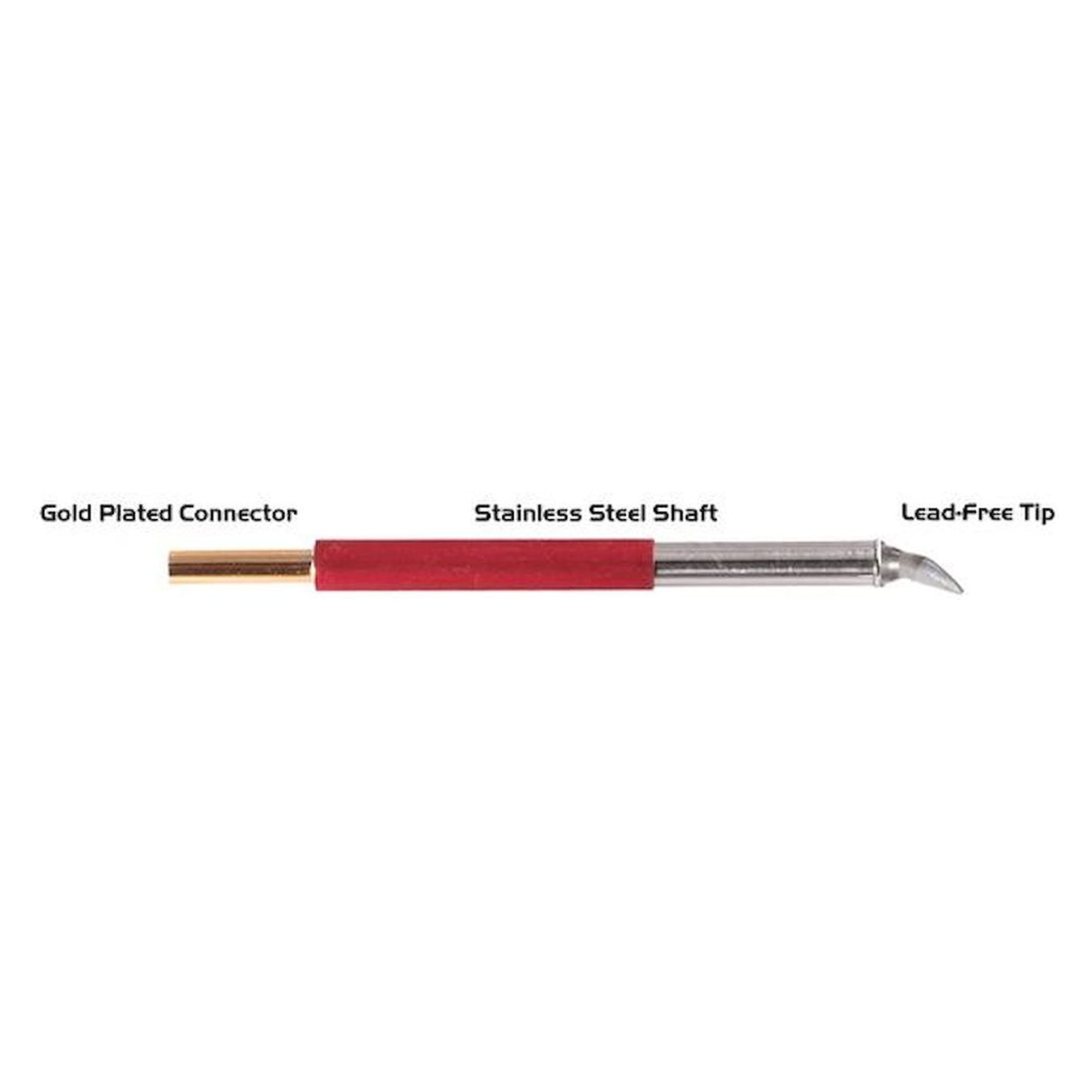

Soldering tip chisel bent 30°, 1.78 mm, T series - Thermaltronics TM80CB225
€13.25
-
Soldering tip chisel 1.78 mm 60° long reach T series - Thermaltronics TM60LR403
€13.25
Total price
As soon as a package carries several pins per side, the tweezer tip has to reach the whole lead row at the same time. This pair from the T tweezer tip series uses a continuous blade 10.41 mm wide on a 9 mm tip for exactly that.
Benefits
- Blade width of 10.41 mm covers a complete short lead row so the part lifts in one movement
- Short 9 mm tip keeps the lever arm small and the grip precise
- Self regulating heater without any temperature setting, working band 420-475 °C
- Supplied as a pair so both sides of the component reflow at the same moment
- RoHS compliant and usable with lead-free solder
Technical data
| Item number | WL38394 |
| Model | T80TZ100 |
| Manufacturer | Thermaltronics |
| Manufacturer item number | T80TZ100 |
| Product series | T tweezer tip series, 420-475 °C |
| Temperature range | 420-475 °C |
| Tip type | Tweezers, pair |
| Tip shape | Blade |
| Tip length | 9 mm (0.35 in) |
| Tip width | 10.41 mm (0.41 in) |
| Suitable hand piece | SHP-TTZ |
| Suitable systems | TMT-5000S-1, TMT-5000S-2 |
| Order unit | Piece |
| Dimensions with packaging (LxWxH) | 183 mm x 87 mm x 11 mm (7.2 in x 3.4 in x 0.4 in) |
| Weight | 0.1 kg |
| Design | RoHS compliant, lead-free capable |
Applications
Desoldering SOIC and SOT packages, connectors with a short pin row and component blocks that have to release on both sides at once.
Compatibility and scope of delivery
Matched to the SHP-TTZ tweezer hand piece on TMT-5000S-1 and TMT-5000S-2. One pair of tips is supplied, without hand piece and without power unit.
| Manufacturer Nr. | T80TZ100 |
|---|---|
| Manufacturer | Thermaltronics |
| Weight | 0.100000 |
| GPSR manufacturer information | AMS Ltd, Unit 3 Norse Trade Park, Congleton CW12 1GW, www.ams-electronics.co.uk |
| Article authenticity | Original product |
| Condition of article | New |
| Position sensing | No |
