Conical cartridge tip with 16.4 mm tip length at 1.0 mm width for joints buried between tall components or inside enclosures. The long slim shape gives reach while the 1.0 mm point still carries enough heat. Operating range 325-358 °C.

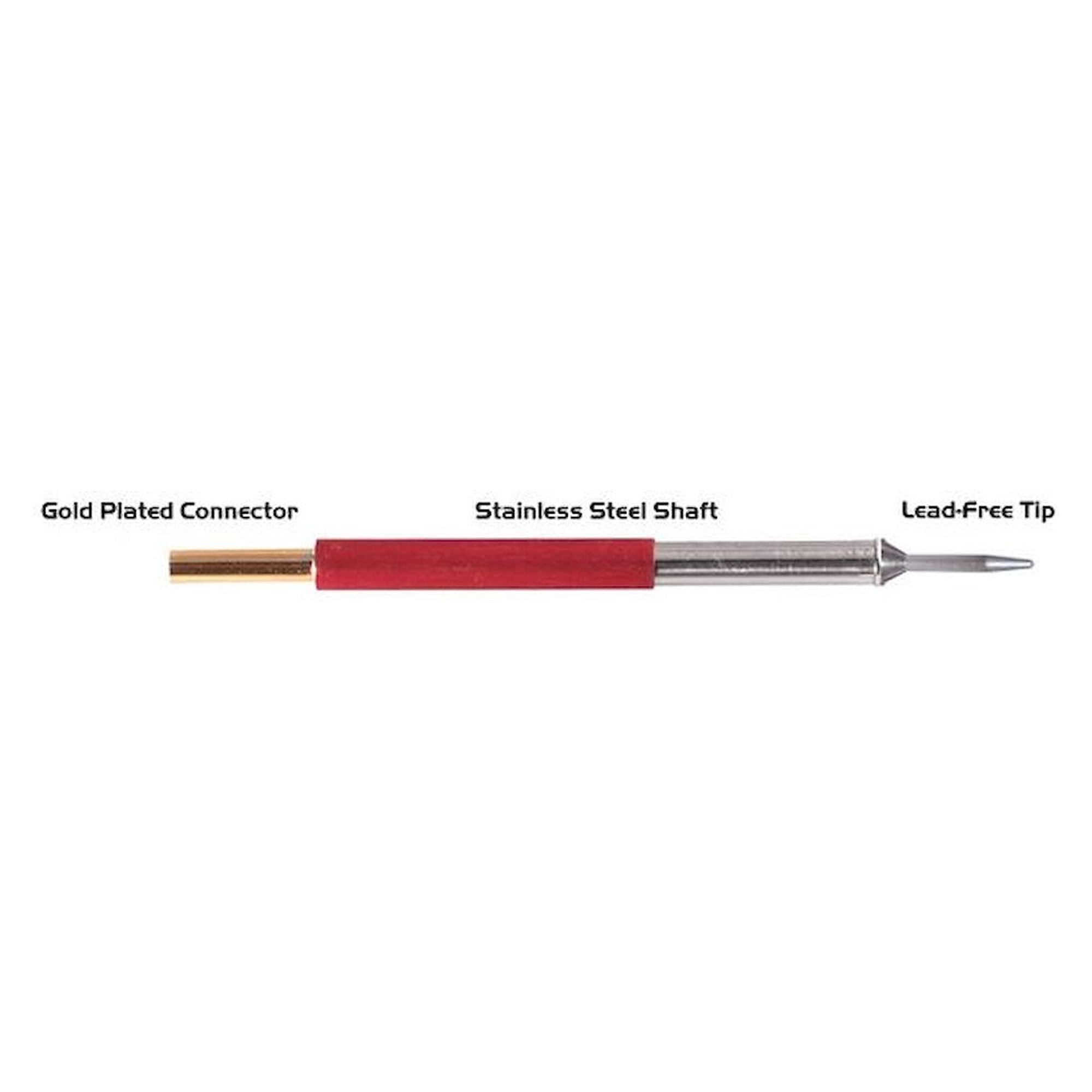

Soldering tip conical long 1.0 mm T series - Thermaltronics TM60CS154
THERMALTRONICS Original product
Net price (excl. VAT)
€13.25
Item WL38426
Manufacturer no. TM60CS154
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.TM60CS154
ConditionNew
Article
WL38426
Frequently Bought Together
- This Item: €13.25
- Desoldering tip inner diameter 1.1 mm T80 series - Thermaltronics T80DT004 €17.77
- Soldering tip conical 1.0 mm T series short geometry - Thermaltronics TM70CP303 €13.25
Total price
Some joints sit behind heatsinks, electrolytic capacitors or housing edges and cannot be reached cleanly with a short tip. This conical T series tip is deliberately long at 16.4 mm and stays thermally capable thanks to its 1.0 mm point.
Benefits
- 16.4 mm tip length for recessed and partly hidden joints
- 1.0 mm tip width with enough heat capacity for leaded components
- Slim taper that finds room between tall neighbouring parts
- Curie point technology, 325-358 °C with no controller and no calibration
- RoHS compliant, suitable for lead-free work
Technical data
| Item number | WL38426 |
| Model | TM60CS154 |
| Manufacturer | Thermaltronics |
| Manufacturer item number | TM60CS154 |
| Dimensions with packaging (LxWxH) | 117 mm x 33 mm x 13 mm |
| Dimensions with packaging in inches (LxWxH) | 4.6 in x 1.3 in x 0.5 in |
| Order unit | Piece |
| Product series | T tip series, 325-358 °C |
| Temperature range | 325-358 °C |
| Soldering or desoldering tip | Soldering tip |
| Tip length | 16.4 mm |
| Tip length in inches | 0.65 in |
| Tip width | 1 mm |
| Tip width in inches | 0.04 in |
| Tip shape | conical |
| Matching hand piece | SHP-T |
| Weight | 0.1 kg |
| Compliance | RoHS compliant, lead-free soldering |
Applications
Typical in repairs inside populated enclosures, on power supplies with tall capacitors, on second-row connectors and in rework on assemblies already fitted into a product.
Compatibility and scope of delivery
For the SHP-T hand piece and the TMT-5000S-1 and TMT-5000S-2 soldering stations. Supplied as a single cartridge, order unit piece.
| Manufacturer Nr. | TM60CS154 |
|---|---|
| Manufacturer | Thermaltronics |
| Weight | 0.100000 |
| GPSR manufacturer information | AMS Ltd, Unit 3 Norse Trade Park, Congleton CW12 1GW, www.ams-electronics.co.uk |
| Article authenticity | Original product |
| Condition of article | New |
| Position sensing | No |
