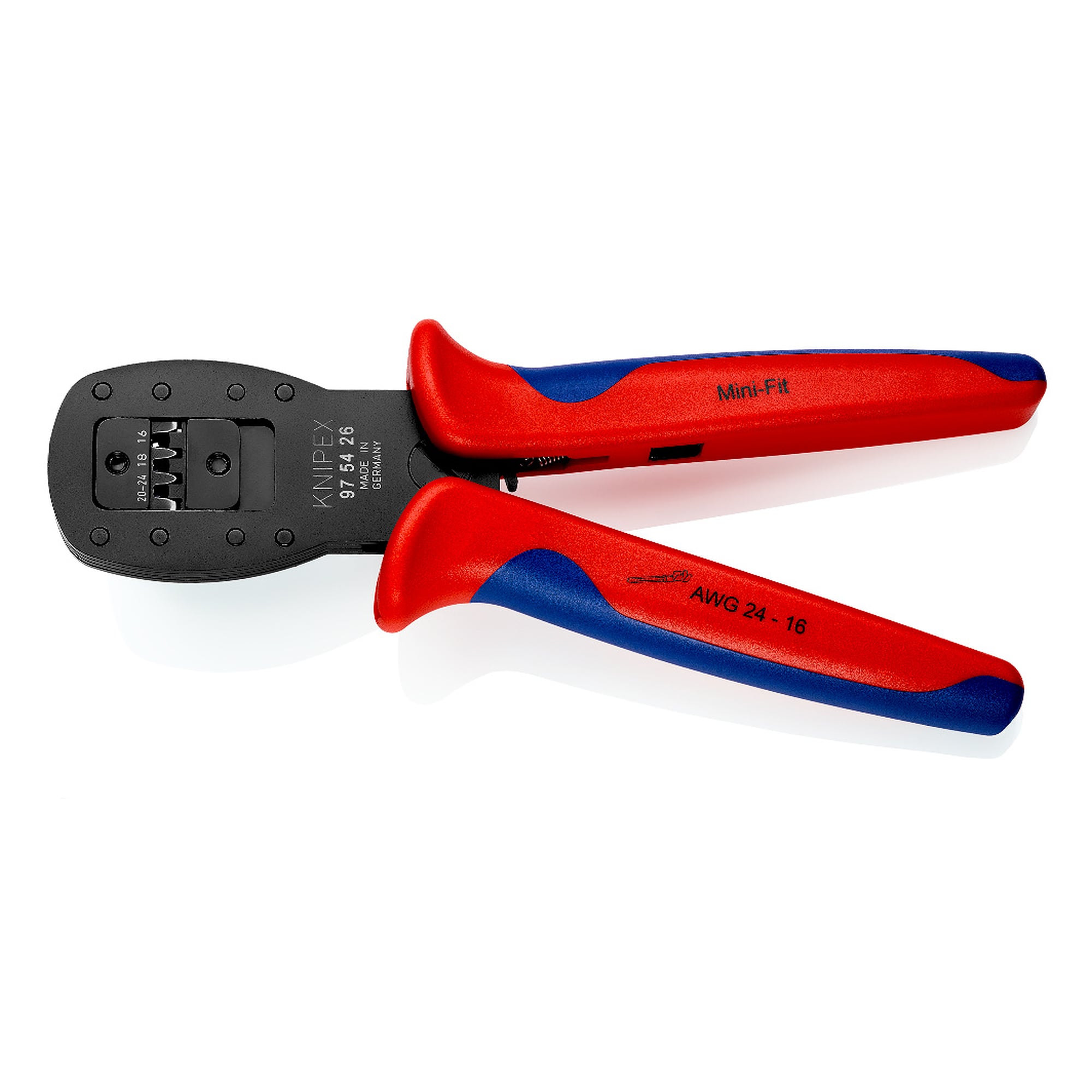

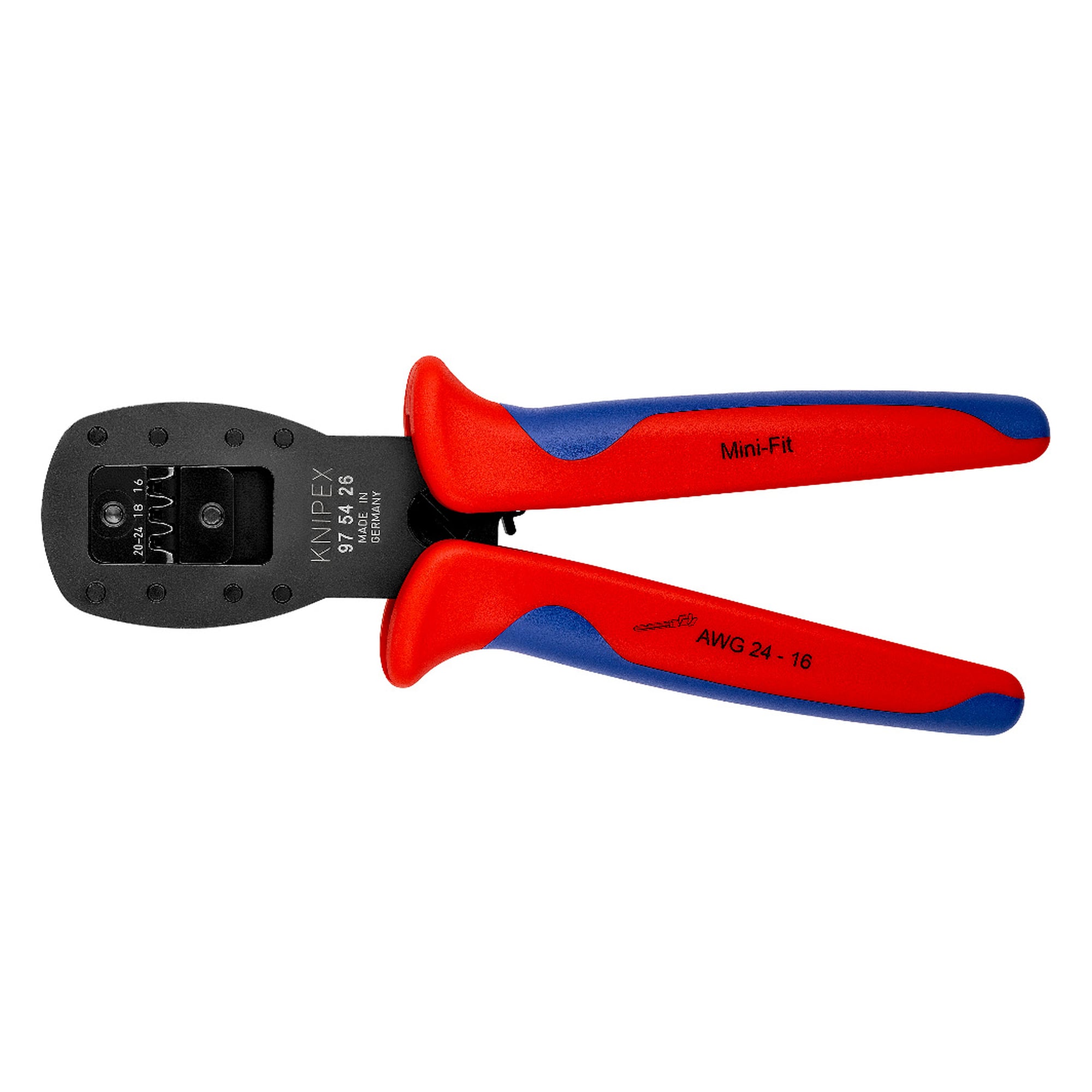

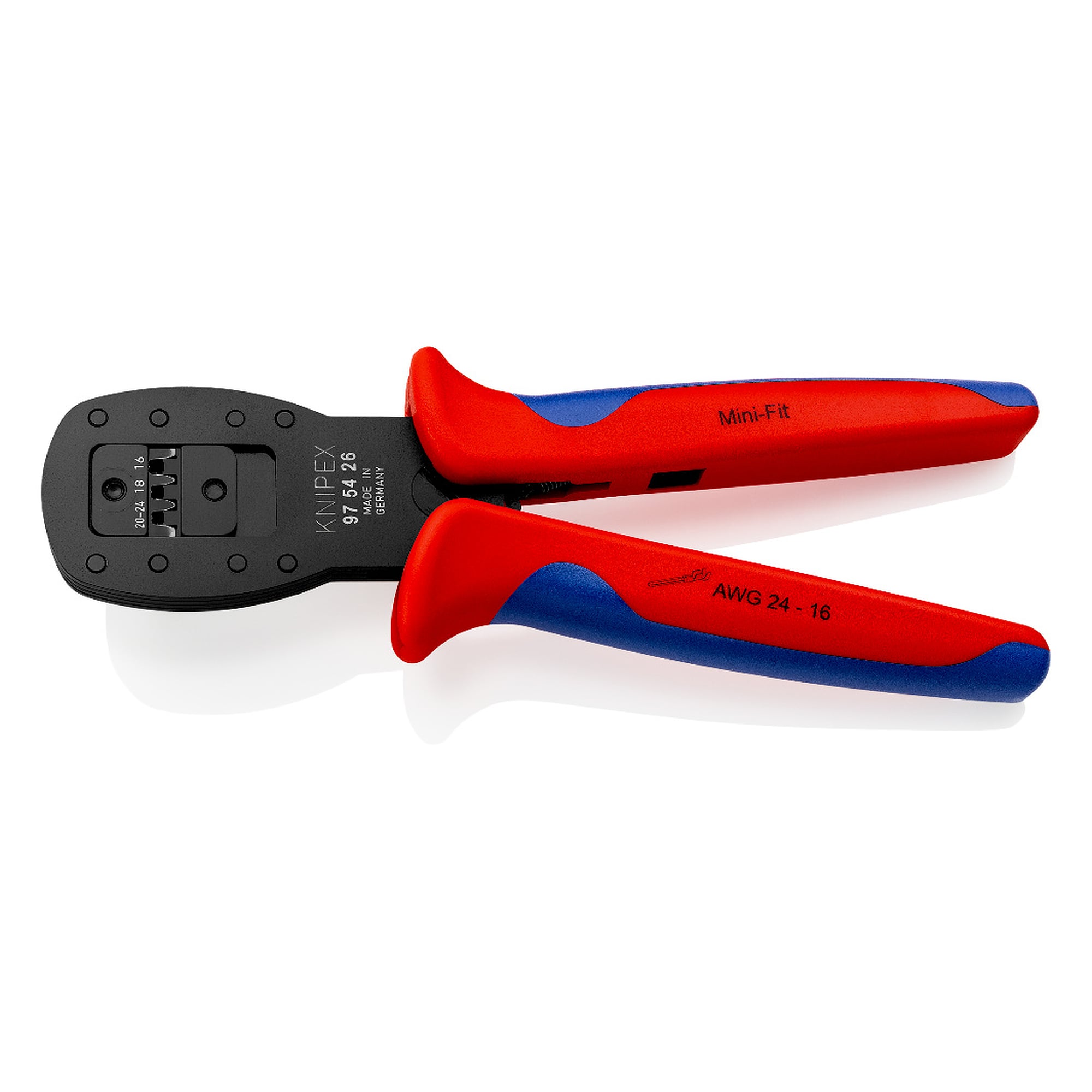

Crimping pliers for Mini-Fit miniature connectors from Molex, parallel crimp, AWG 24 to 16, 190 mm - Knipex 97 54 26

With miniature connectors the crimp determines the contact resistance of the whole assembly. The 97 54 26 crimping pliers guide the jaws in parallel and press contacts of the Mini-Fit series from Molex LLC in the range AWG 24 to 16 with factory calibrated pressure.

Benefits

• Parallel crimping jaw guidance to satisfy the particularly high standards of small connectors.
• Three crimping nests cover the range AWG 24 to 16 without changing the tool.
• Consistently high crimping quality thanks to precision dies and a ratchet mechanism that can be unlocked when needed.
• Crimping pressure is precisely set and calibrated at the factory, so no adjustment is required by the user.
• High crimping force through efficient lever action at a tool weight of 305 g.
• Compact 190 mm design with multi-component grips on the handles.

Technical data

Areas of use

Control system and cabinet building, electronics manufacturing, cable assembly and service on devices with Mini-Fit connectors. The crimping die is not exchangeable, and for other miniature connectors such as HD 22, Modu IV or Micro Timer the manufacturer offers dedicated pliers on request.

Standards and conformity

The manufacturer does not state a tool standard for this product. According to the manufacturer the pliers contain substances of very high concern under REACH. The RoHS directive does not apply.
