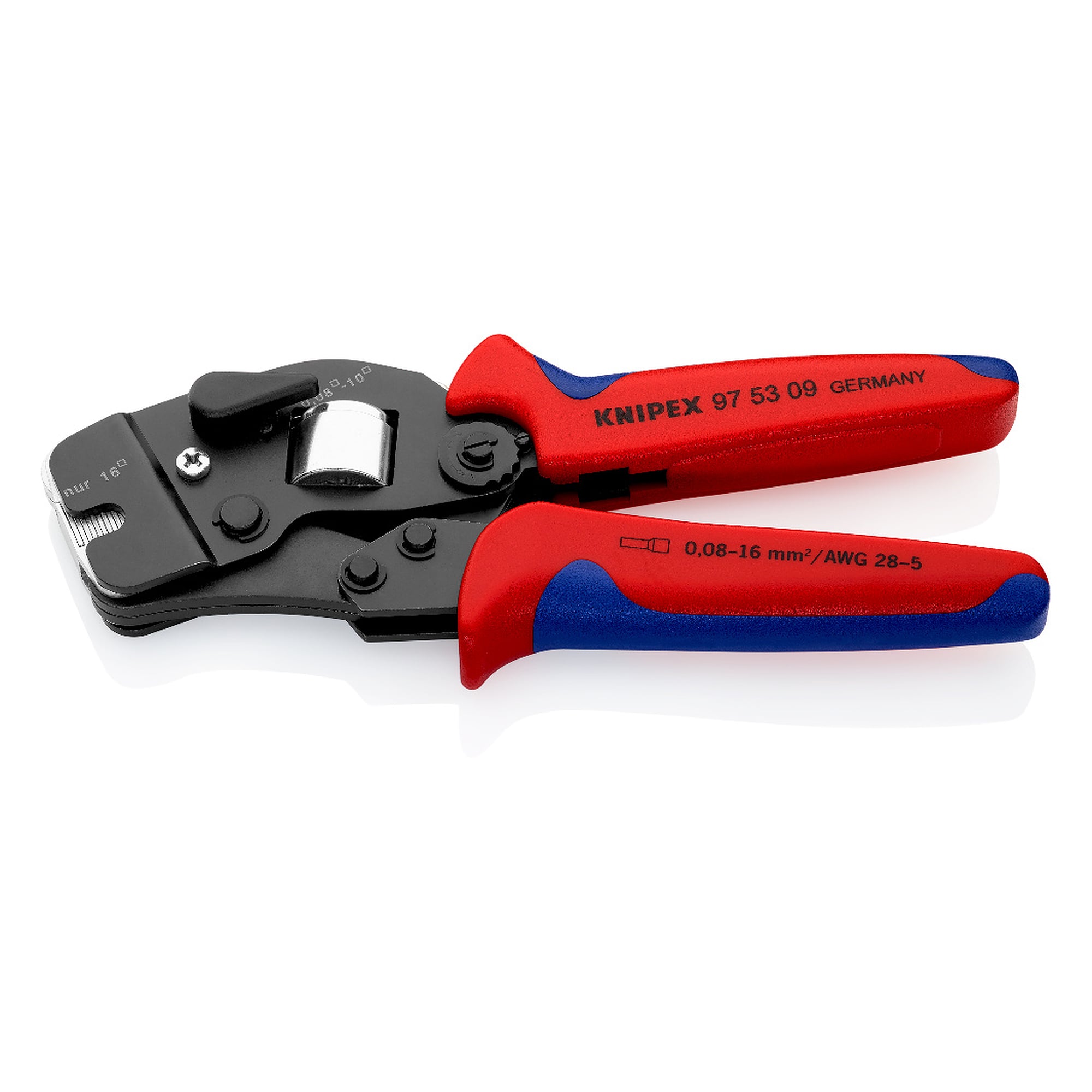

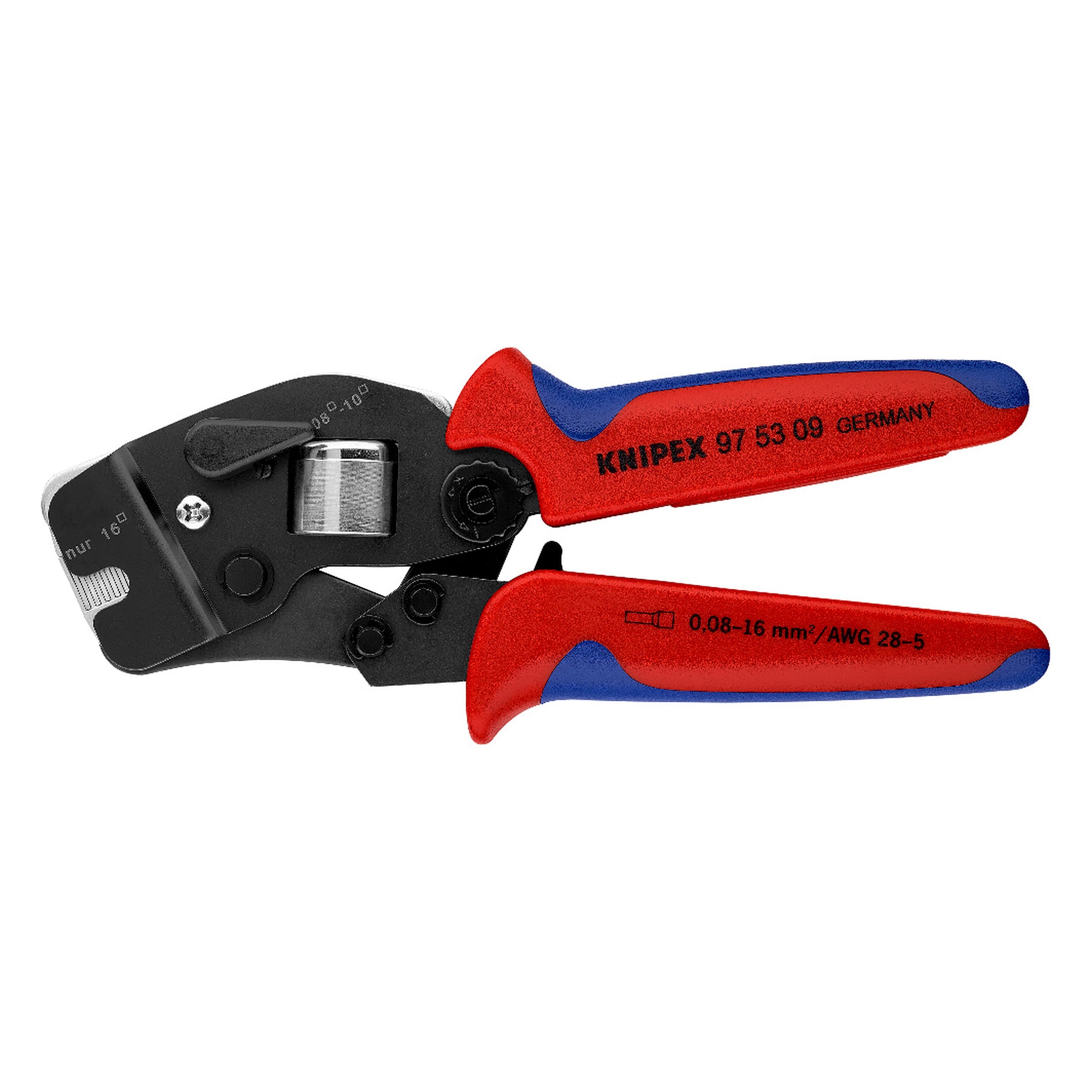

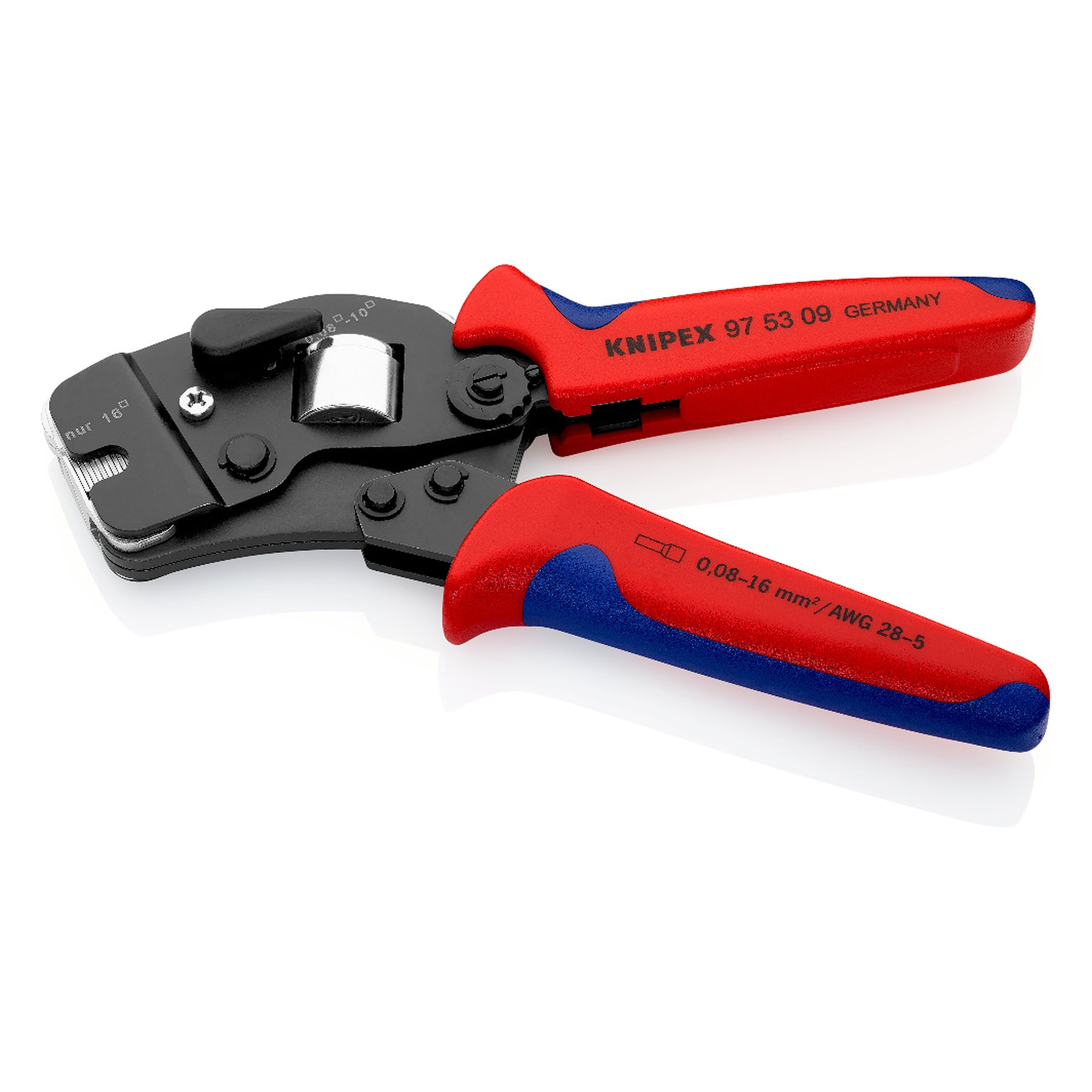

Crimping pliers for wire end ferrules For crimping wire end ferrules according to DIN 46228 part 1 + 4. Self-adjusting adjustment to the required wire end ferrule size: no crimping errors due to using the wrong crimping insert. Frontal insertion of the wire-end ferrules into the tool. Consistently high crimp quality due to positive ratchet (can be unlocked). Crimp pressure is precisely set (calibrated) at the factory, adjustable. Force amplification by knee lever for fatigue-free working. High operating comfort due to handy design and low weight. Crimping from 0.08 to 10.0 mm² and 16.0 mm² in one profile. with selection lever for setting the crimping range 0.08 to 10 or 16.0 mm². especially suitable for all twin wire-end ferrules up to 2 x 6 mm² or 2 x AWG 8. - Application: Wire end ferrules - Capacity square millimetres: 0.08 - 10 / 16mm² - Number of nests: 1 - AWG: 28 - 5.
- For crimping ferrules according to DIN 46228 part 1 + 4
- Self-adjusting adjustment to the required wire end ferrule size: no crimping errors due to use of the wrong crimp insert

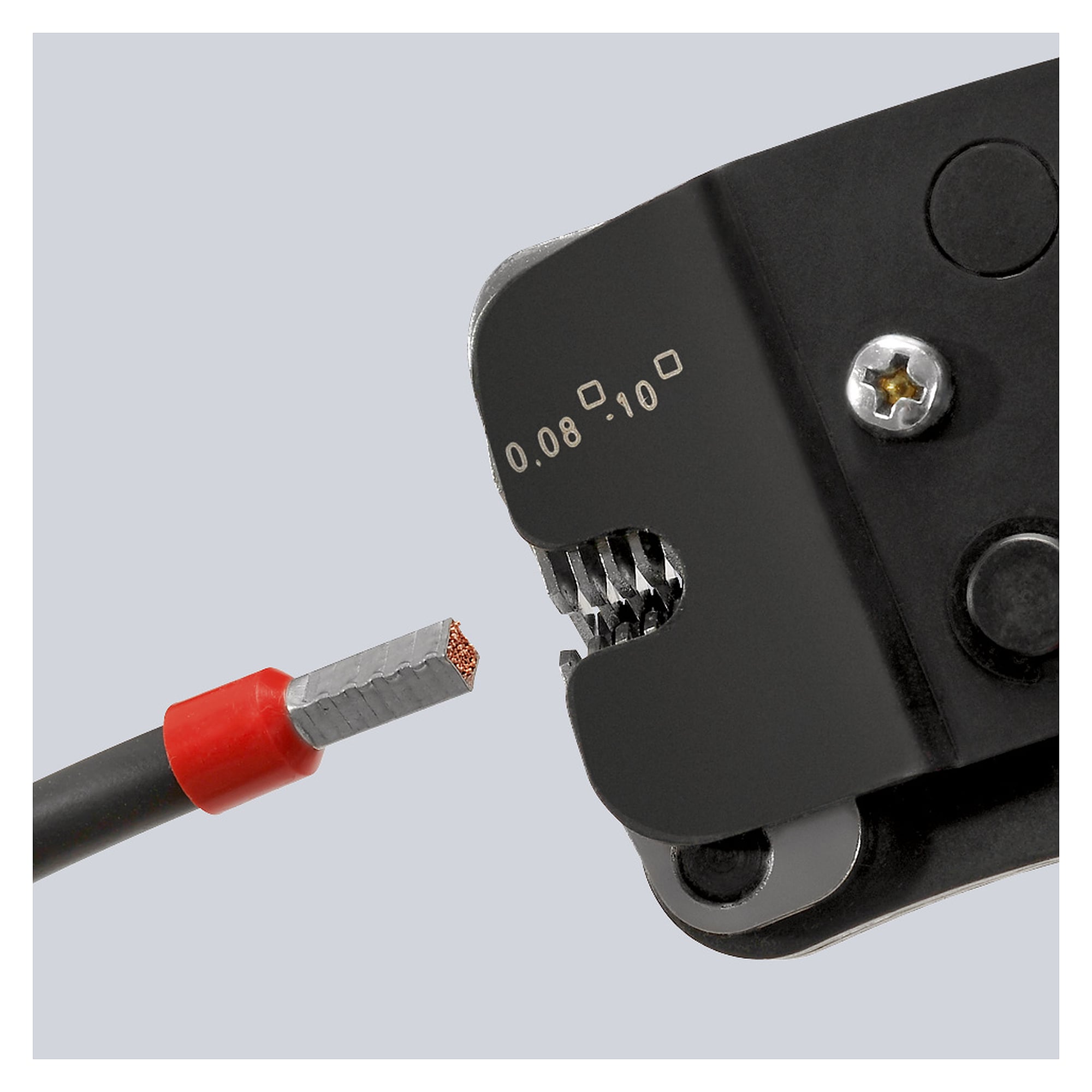

- Frontal insertion of the wire-end ferrules into the tool
- Consistently high crimp quality due to positive ratchet (can be unlocked)
- Crimp pressure is precisely set (calibrated) at the factory, adjustable
- Force amplification through toggle lever for low-fatigue work
- High operating comfort due to handy design and low weight
Product details
| item number | WL33541 |
| model | 97 53 09 |
| manufacturer | KNIPEX |
| manufacturer item number | 97 53 09 |
| dimensions (LxWxH) | 190 mm x 20 mm x 23 mm |
| dimensions with packaging (LxWxH) | 190 mm x 20 mm x 23 mm |
| Packaging volume | 0.087 dm³ |
| order unit | piece |
| type of packaging | single pack |
| RoHS conform | no |
| surface | burnished |
| application crimp | Wire end ferrules |
| VDE | no |
| Number of crimp nests | 1 |
| crimp profile | Square crimp automatic |
| tool length | 190 mm |
| AWG | 28 - 5 |
| type of handle | with multi-component sleeves |
| type of pliers | automatic crimping tool |
