Crimping pliers for non-insulated open plug type connectors with 6.3 mm plug width, three nests covering 0.5 to 2.5 mm², matching AWG 20 to 14. They also cut cable, strip wire and shorten copper or brass screws from M 2.6 to M 5 in the threaded holes. The bolted joint gives even movement, 230 mm long at 250 g.

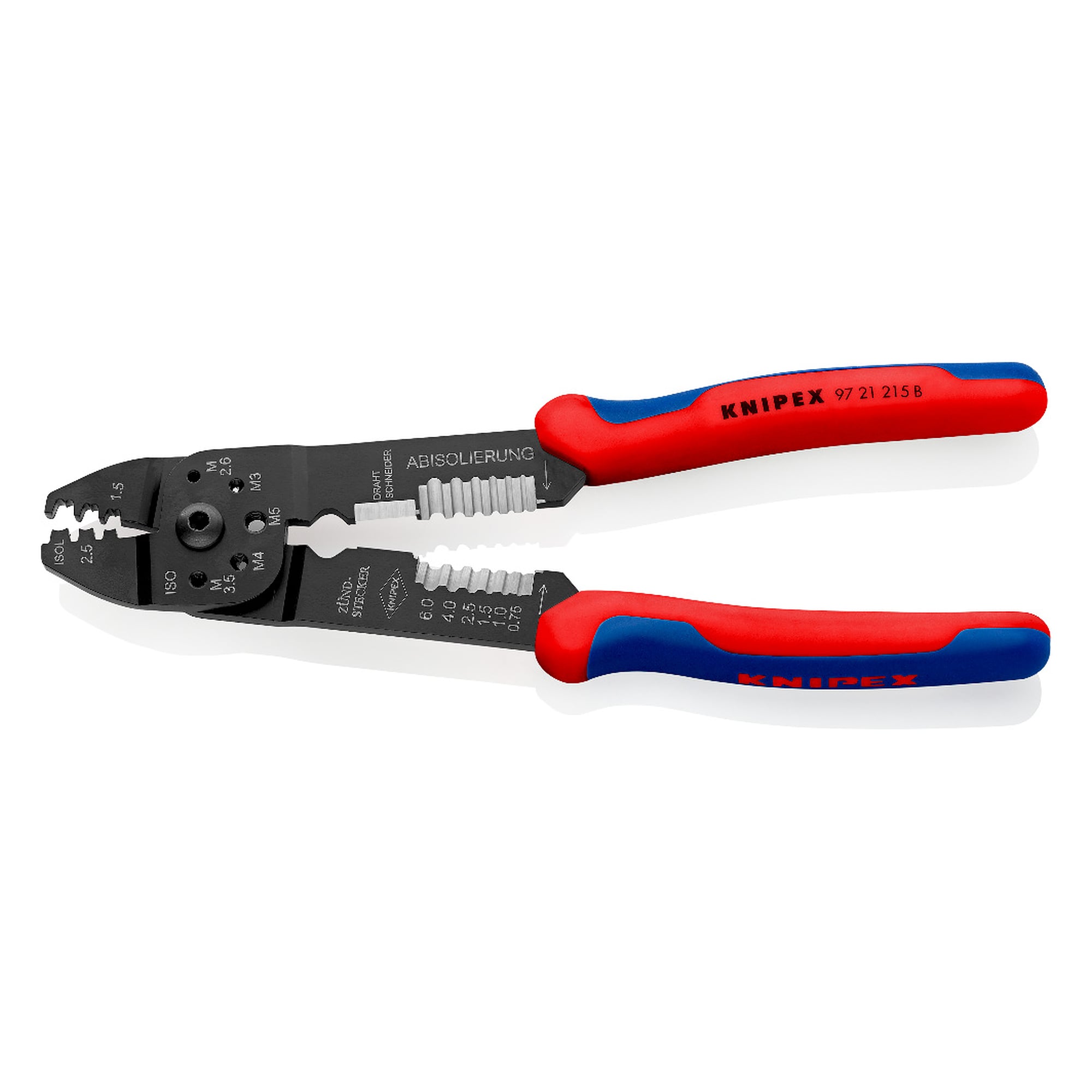

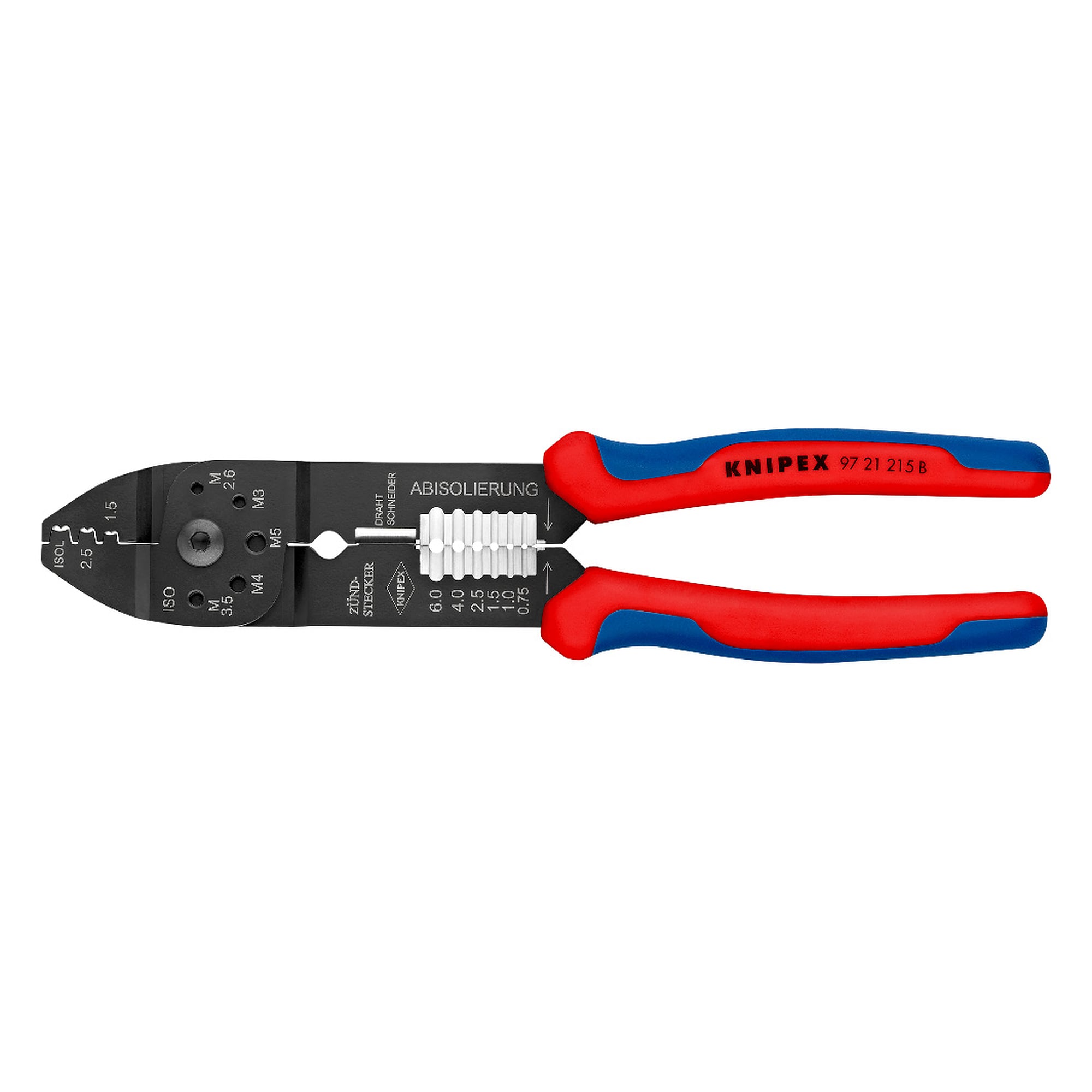

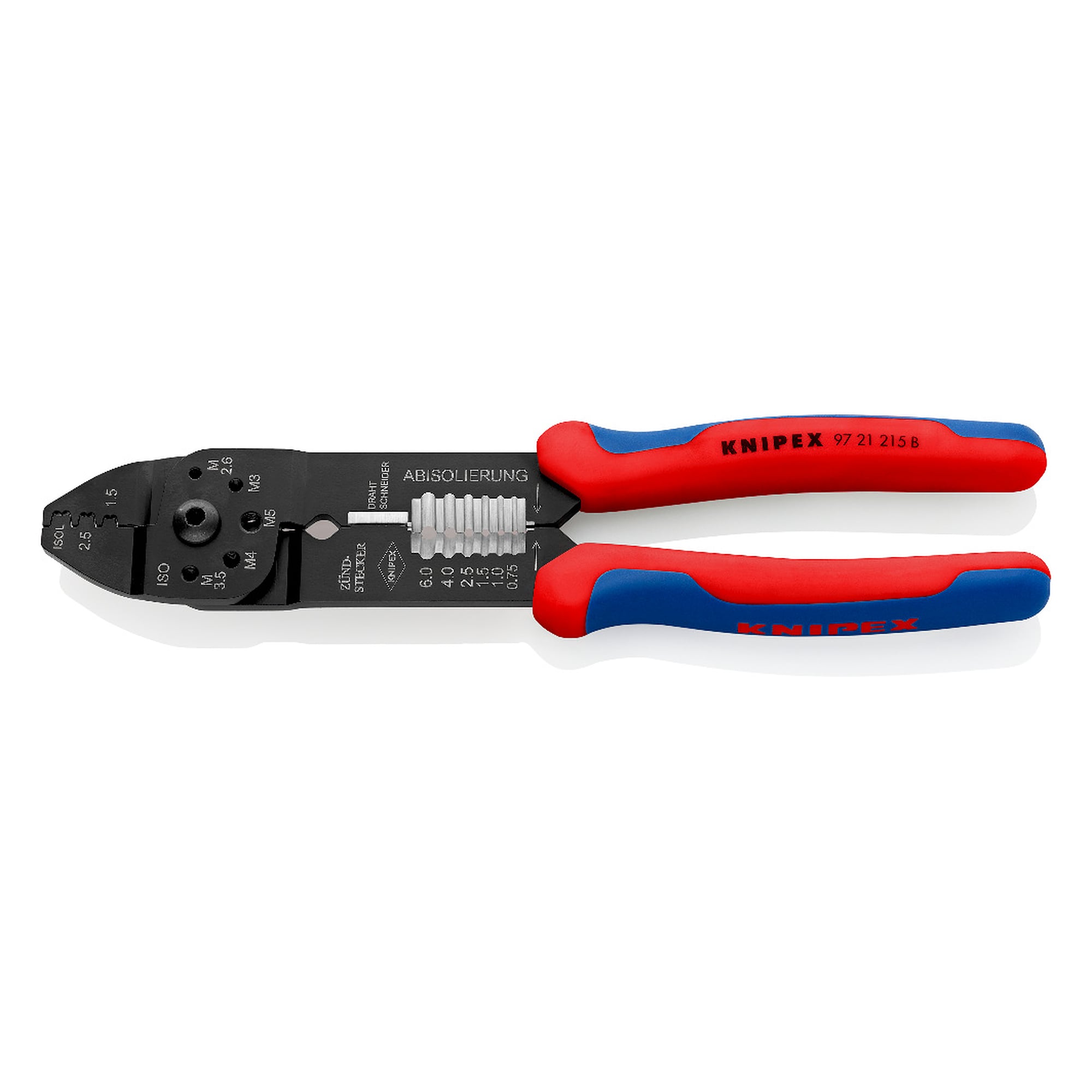

Crimping pliers for non-insulated open plug connectors 6.3 mm, 0.5 to 2.5 mm², 230 mm - Knipex 97 21 215 B
KNIPEX
Original product
Net price (excl. VAT)
€21.21
Item
WL61939
Manufacturer no.
97 21 215 B
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.97 21 215 B
EAN4003773019695
ConditionNew
Article
WL61939
Frequently Bought Together
-
This Item:
€21.21
-
Weidmüller 901250. Crimping pliers for end sleeves (ferrules)
€157.30
-
Crimp Tool for MC4 Solar Connectors 2.5 - 6 mm², 250 mm - Wiha 45796
€113.41
Total price
Anyone fitting open plug type connectors needs an even crimping force and does not want to swap tools for every step. The 97 21 215 B crimping pliers press non-insulated open plug connectors with a 6.3 mm plug width in three nests from 0.5 to 2.5 mm², and they cut and strip the conductor as well.
Benefits
- Three crimping nests for non-insulated open plug type connectors from 0.5 to 2.5 mm², matching AWG 20 to 14.
- Cable cutter and stripping holes in the same tool, which saves a tool change at the terminal.

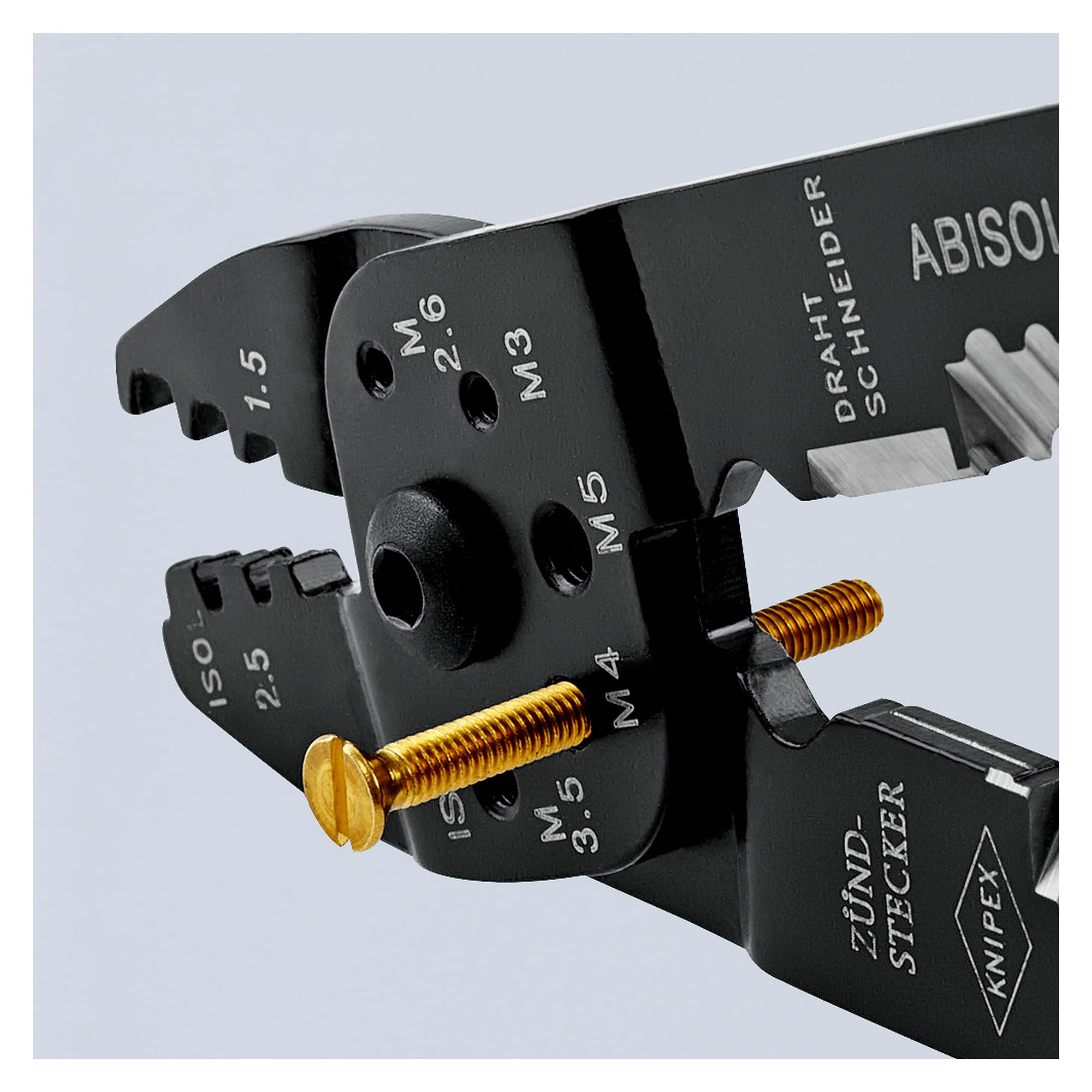

- Threaded holes for cutting copper and brass screws threaded M 2.6 / M 3 / M 3.5 / M 4 and M 5.
- Bolted joint for high stability and even movement throughout the service life.
- Multi-component grips on the handles for a secure hold over the 230 mm lever length.
Technical data
| EAN | 4003773019695 |
|---|---|
| Pliers | painted black |
| Handles | with multi-component grips |
| Weight | 250 g |
| Dimensions | 230 x 63 x 25 mm |
| Application | non-insulated open plug type connectors (6.3 mm plug width) |
| Capacity square millimetres | 0.5 - 2.5 mm² |
| Number of nests | 3 |
| AWG | 20 - 14 |
| REACH conformity | contains no SVHC |
| RoHS conformity | not applicable |
Areas of use
Vehicle and trailer electrics, machine and plant construction, control cabinet building and service work on wiring harnesses, wherever open blade terminals with a 6.3 mm plug width are used.
Standards and conformity
The manufacturer does not state a tool standard for these pliers. According to the manufacturer they contain no substances of very high concern under REACH, and the RoHS directive does not apply.
| Manufacturer Nr. | 97 21 215 B |
|---|---|
| Manufacturer | Knipex |
| EAN | 4003773019695 |
| Weight | 0.250000 |
| Colour | Black |
| Height | 25 mm |
| Width | 63 mm |
| GPSR manufacturer information | KNIPEX-Werk Oberkamper Strasse 13 DE-42349 Wuppertal-Cronenberg www.knipex.de |
| Article authenticity | Original product |
| Condition of article | New |
| Farbe | schwarz |
| Overall length [mm] | 230.000000 |
