The product may differ from the illustration
Dissipative Kapton/polyimide masking tape for solder coverage in the wave. 4 mm wide, 33 m long, short-term heat resistant to 300 °C and removable without residue.
Kapton/polyimide tape UL510 dissipative, 4 mm x 33 m, up to 300 °C - A1-ESD 885604
A1-ESD Original product
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Country of originGermany
Customs tariff number85159080900
ConditionNew
Article
WL47255
Frequently Bought Together
- This Item: €5.55Excl. 19% VAT , excl. Shipping Cost
- Kapton/polyimide tape UL510 3 mm x 33 m, dissipative, up to 300 C - A1-ESD WL47254 €4.80Excl. 19% VAT , excl. Shipping Cost

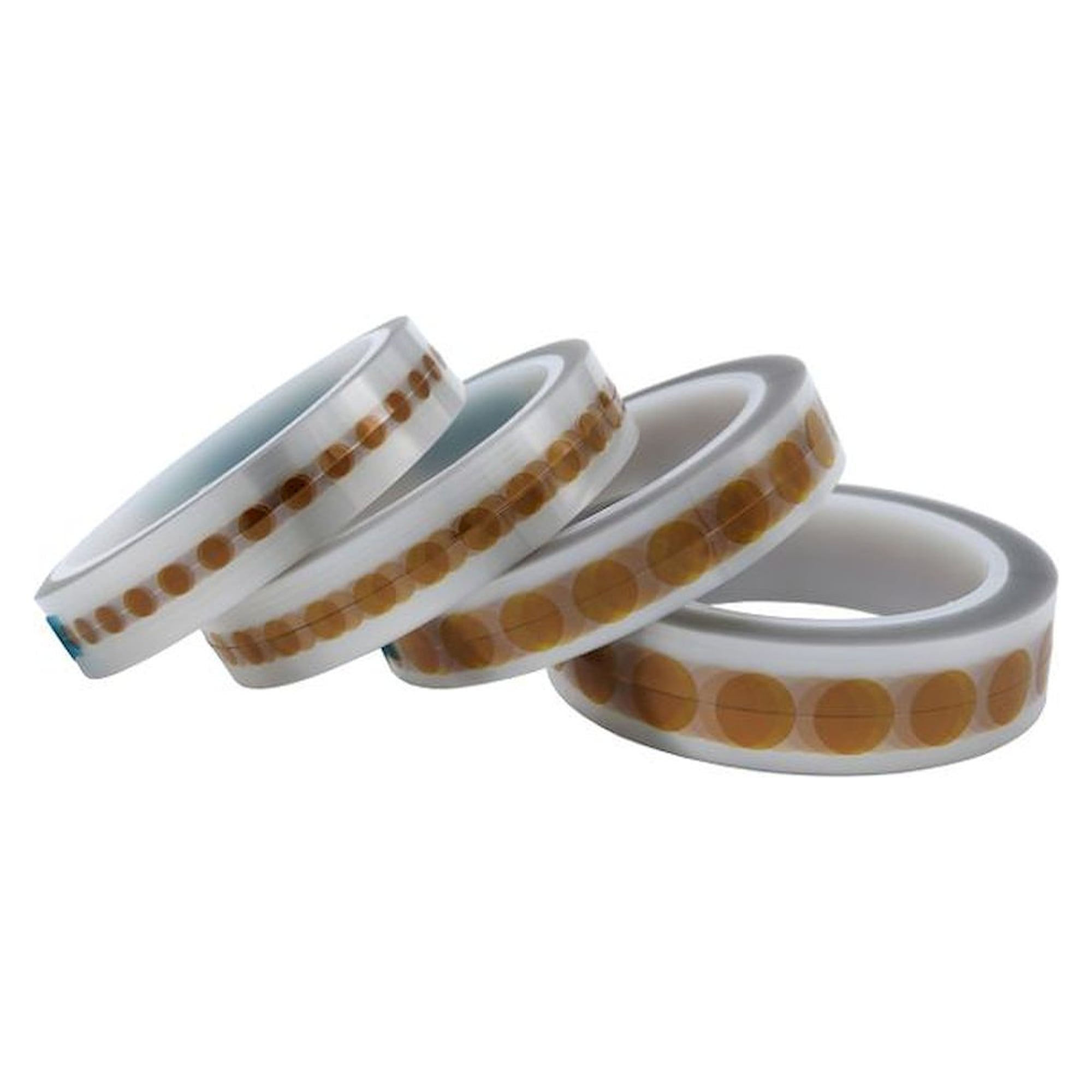

- Kapton/Polyimide dots, 4125 pieces, D: 6 mm €18.55Excl. 19% VAT , excl. Shipping Cost
Total price
This dissipative Kapton/polyimide tape protects sensitive contact surfaces and cut-outs during wave soldering by reliably masking areas from the solder. With short-term heat resistance up to 300 °C, it survives the pass through the solder wave without charring.
Benefits
- Masks contact surfaces and cut-outs in the solder wave
- Short-term heat resistant up to 300 °C
- Removable without residue, no cleaning after soldering
- Dissipative material to protect ESD-sensitive assemblies
- Chemical resistant
- Flame protection to UL510
Technical data
| Item no. | WL47255 |
| Model | 885604 |
| Width | 4 mm |
| Length | 33 m |
| Core Ø | 76 mm |
| Material | polyimide, dissipative |
| Colour | amber |
| Heat resistance | short-term up to 300 °C |
| Flame protection | UL510 |
| Order unit | roll |
Applications
- Masking contact surfaces, connectors and holes during wave soldering
- Protecting temperature-critical areas on circuit boards
Compatibility and scope of delivery
Supplied as a roll 4 mm wide and 33 m long on a 76 mm diameter core.
Dissipative material, ESD-compliant to IEC 61340-5-1. Made in EU.
| Execution | ESD (antistatic) |
|---|---|
| Manufacturer | A1-ESD |
| Country of Manufacture | Germany |
| Weight | 0.100000 |
| HS-Code | 85159080900 |
| GPSR manufacturer information | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Article authenticity | Original product |
| Condition of article | New |
